Switch new wiring diagram to work on fc

Reply




LinkBack Thread Tools Search this Thread
Old 05-04-12, 01:46 PM   #1
Full Member

Trader Score: (0)

Join Date: Aug 2009
Location: va beach
Posts: 50
VA Switch new wiring diagram to work on fc

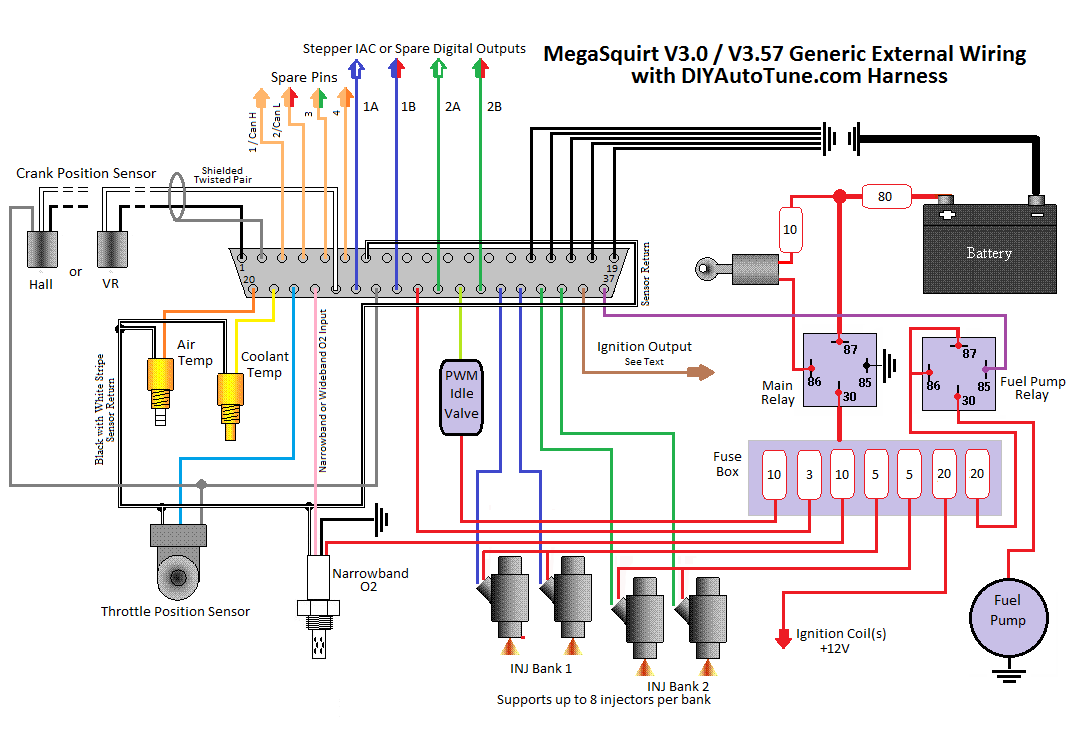

was wondering if anybody could modify the new wiring harness diagram to work on FC im sure i would not only help me out but a lot of other people going megasquirt thnx here's pic of new harness diagram out for diyautotune
Attached Thumbnails
Switch new wiring diagram to work on fc-mswiring.png
88jdmfc is offline   Reply With Quote
Old 05-05-12, 11:06 AM   #2
Engine, Not Motor
10 Year Member
5 Year Member

Aaron Cake's Avatar

Trader Score: (1)

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 28,902
Send a message via ICQ to Aaron Cake Send a message via Yahoo to Aaron Cake
This appears to be the generic wiring diagram from the DIY Auto Tune website.
Aaron Cake is offline   Reply With Quote
Old 05-06-12, 12:19 AM   #3
MegaSquirt Mod
5 Year Member

muythaibxr's Avatar

Trader Score: (0)

Join Date: Sep 2004
Location: Maryland
Posts: 4,704
The diagrams in the ms3 manual along with the rotary section should be sufficient to get folks up and running.
