Wiring Help Needed
I have read many threads about connecting the Scosche adapter to a head unit, but I can't seem to figure a few things out. I have the common problem of the amps not turning on due to lack of power. When I read the thread about correcting this I don't really understand what to do.

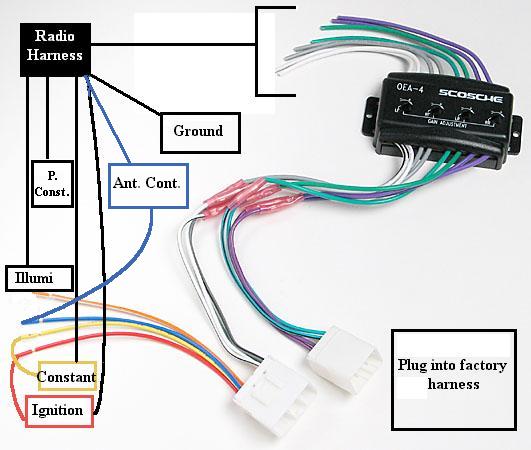

I have bought this adapter, and it is slightly different than the one that is shown in the stickied post.
Click the image to open in full size.

Can some one please tell me which wires to hook up? I know there are many threads on this, but I just get confused.
ObliqueFD is offline   Reply With Quote
Old 02-28-04, 05:34 PM   #2
No Life.
10 Year Member

ObliqueFD's Avatar

Trader Score: (23)

Join Date: Nov 2002
Location: Lancaster, Ohio
Posts: 1,113
Send a message via AIM to ObliqueFD
What is wrong?

Click the image to open in full size.
ObliqueFD is offline   Reply With Quote
Old 02-29-04, 12:32 PM   #3
No Life.
10 Year Member

ObliqueFD's Avatar

Trader Score: (23)

Join Date: Nov 2002
Location: Lancaster, Ohio
Posts: 1,113
Send a message via AIM to ObliqueFD
Bump
ObliqueFD is offline   Reply With Quote
Old 02-29-04, 12:46 PM   #4
"I see triangles"

Zyon13B's Avatar

Trader Score: (0)

Join Date: Apr 2003
Location: PA
Posts: 1,121
I think you have it right. Just hook the adapter wires to the 4 speaker connections out of the stereo.
Zyon13B is offline   Reply With Quote
Old 02-29-04, 03:18 PM   #5
No Life.
10 Year Member

ObliqueFD's Avatar

Trader Score: (23)

Join Date: Nov 2002
Location: Lancaster, Ohio
Posts: 1,113
Send a message via AIM to ObliqueFD
I figured it out. I had to connect the P. Constant to the light green/black wire on the factory harness.
