RX-8 Steering wheel.....IT FITS!!!
05-02-11, 08:47 AM
#26
Just take the blue pill..
Thread Starter
Still working on that, but what I have tossed around is, since I wont be using the airbag, I can use its wires on the FD's clock spring to run from the wheel to the PAC unit for the audio controls. Basically unplug the airbag sensor plug under the dash, and harvest it's wires for the controls. Not ideal, but it works, I also left enough wire between the plugs to reattach them if necessary down the road. Also, doing it this way allows me one extra wire to also hook up to the lighting for the Rx-8's buttons!
05-12-11, 08:34 PM
#29
Senior Member
iTrader: (10)
Join Date: Aug 2007
Location: Savannah, GA
Posts: 742
Likes: 0
Received 0 Likes
on
0 Posts
I have an RX8 and I happen to like love the layout of this wheel. lol I can be cruising and my thumbs already know where the buttons are. Even when I'm about to destroy a sharp turn, my thumb knows exactly where that mute button is so I can hear my tires. lmao This is a pretty interesting swap, good thinking on the radio control unit. I may have to use that Idea if I ever put an aftermarket radio in.
07-27-11, 01:41 PM
#32
Doing the Ricky Bobby
iTrader: (1)
Join Date: Jan 2008
Location: Dallas, Texas
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
I have a pioneer double din unit and want to do the same thing as you. Does the steering wheel still allow a good view of all the gauges or does it cut them off a lot?
I would guess the reason you will likely never get the airbag to work is it is a dual stage airbag vs. the fd's single stage system. hooking up the airbag would more than likely do more damage than help when the system in the car is not designed for it.
I would guess the reason you will likely never get the airbag to work is it is a dual stage airbag vs. the fd's single stage system. hooking up the airbag would more than likely do more damage than help when the system in the car is not designed for it.
08-18-11, 08:09 PM
#34
Just take the blue pill..
Thread Starter
I have not been able to work on the car for a couple of months now. I got a cheapo speed6 that I am making a dd that has been consuming what little free time I have left. Hopefully I will be able to post some meaningful updates in a couple of weeks though...
09-19-11, 05:56 PM
#35
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts

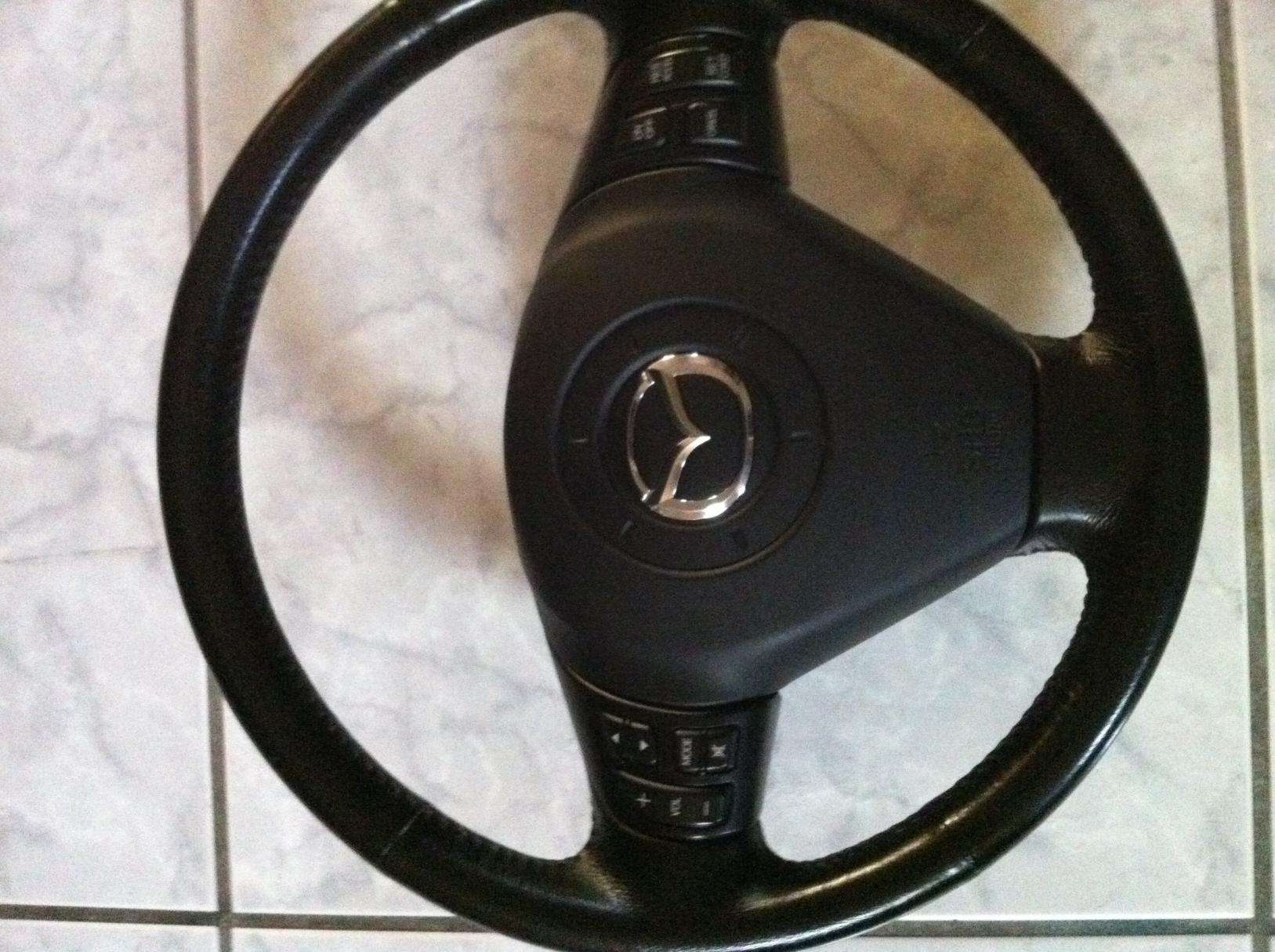

11-09-11, 04:16 PM
#37
Just take the blue pill..
Thread Starter
update
I am still working out some kinks but I got the audio portion of the install working.
Disclamer: This is still experimental, and I take no responsibility if you follow this write-up and damage your car.
First thing I did, since I wont be using the Rx8 airbag, is harvest the wires that go to the factory airbag as a wire through clock spring source. I made connections on the chassis side of the airbag wires and then cut the connector off on the steering wheel side (with enough wire to re-connect it if I decide to go back to stock wheel later), and ran wires to the controls as follows.

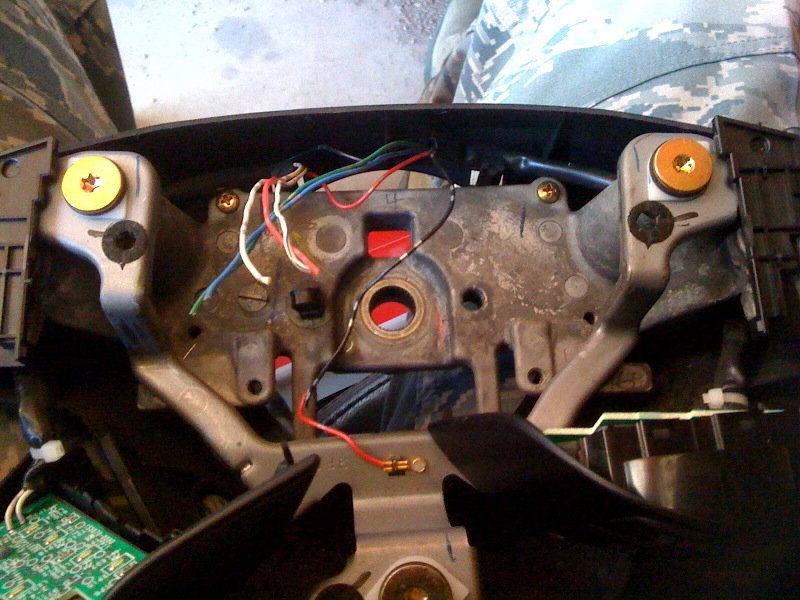

If you look at the picture the wiring on the steering wheel is as follows:
connect white wire to signal (white) wire on SWI-PS
connect W/B wire to ground (I used one of the phillips screws on the wheel for this, but I have been seeing resistance fluctuation on the buttons when turning the wheel, so I may run this to a chassis ground to see if that helps).
connect red wire coming from upper portion of steering wheel to either 12V switch or 12v when
lights on source. (I chose 12v constant).
connect black wire to ground (I used the same screw on the steering wheel frame).
The blue and green wires are for cruise control, I will experiment with these later.
After wiring up and programming the PAC SWI-PS for version 3, I hooked it up to my AVIC F90BT radio, and the buttons on the wheel now control the radio just fine, although sometimes you have to turn the steering wheel very slightly (literally a quick jiggle while pressing the button) to get it to work. I believe this is due to resistance fluctuations from the clock spring, I will experiment more on that to get it to work flawlessly. Another option is programming the SWI-PS on version 11, which I may try as well if all else fails.
I will post more updates soon.
Disclamer: This is still experimental, and I take no responsibility if you follow this write-up and damage your car.
First thing I did, since I wont be using the Rx8 airbag, is harvest the wires that go to the factory airbag as a wire through clock spring source. I made connections on the chassis side of the airbag wires and then cut the connector off on the steering wheel side (with enough wire to re-connect it if I decide to go back to stock wheel later), and ran wires to the controls as follows.
If you look at the picture the wiring on the steering wheel is as follows:
connect white wire to signal (white) wire on SWI-PS
connect W/B wire to ground (I used one of the phillips screws on the wheel for this, but I have been seeing resistance fluctuation on the buttons when turning the wheel, so I may run this to a chassis ground to see if that helps).
connect red wire coming from upper portion of steering wheel to either 12V switch or 12v when
lights on source. (I chose 12v constant).
connect black wire to ground (I used the same screw on the steering wheel frame).
The blue and green wires are for cruise control, I will experiment with these later.
After wiring up and programming the PAC SWI-PS for version 3, I hooked it up to my AVIC F90BT radio, and the buttons on the wheel now control the radio just fine, although sometimes you have to turn the steering wheel very slightly (literally a quick jiggle while pressing the button) to get it to work. I believe this is due to resistance fluctuations from the clock spring, I will experiment more on that to get it to work flawlessly. Another option is programming the SWI-PS on version 11, which I may try as well if all else fails.
I will post more updates soon.
12-18-11, 06:35 PM
#39
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts

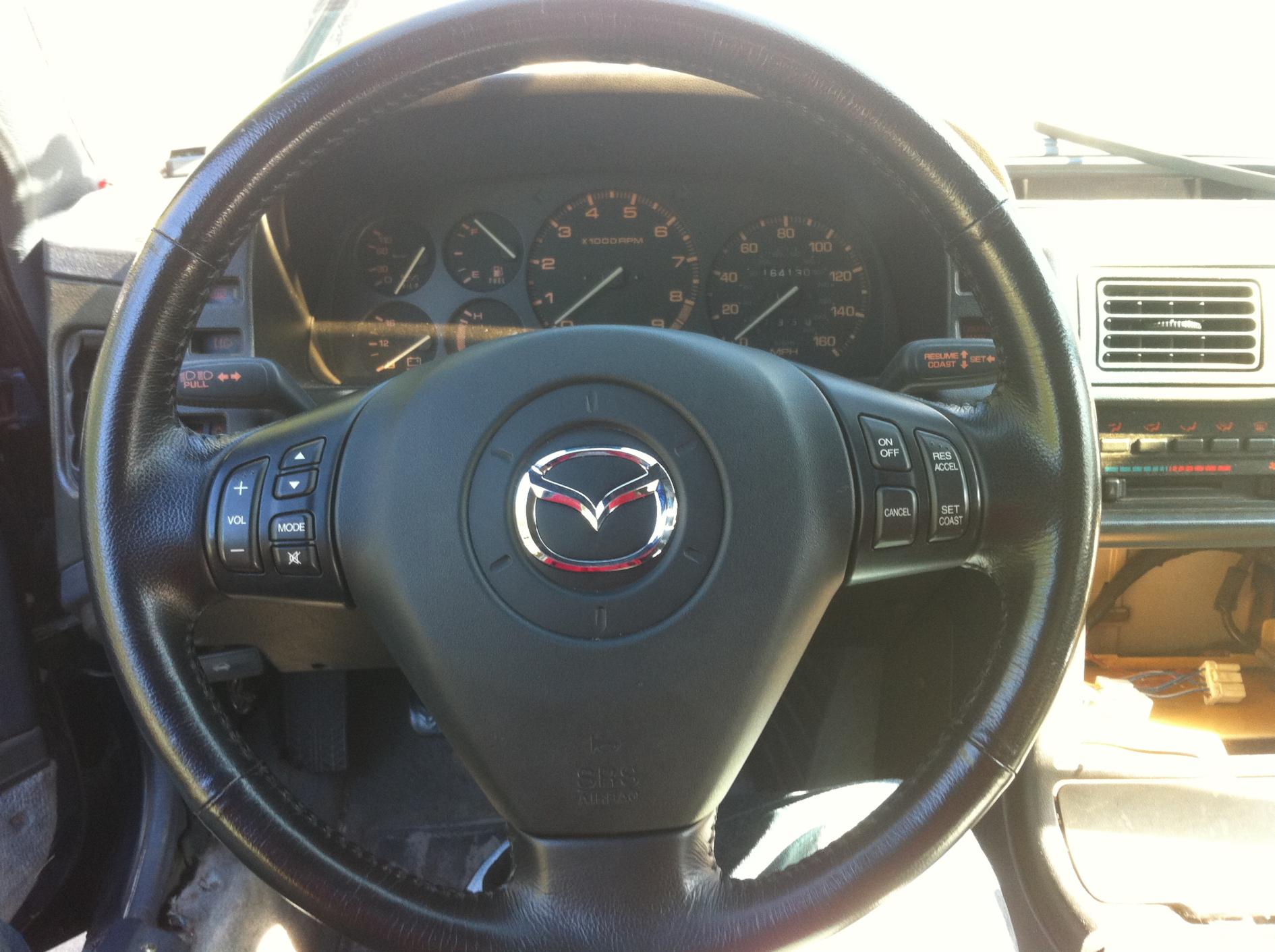

Just installed in RX7 Vert.
I'm glad this thread is still alive. Today I connected my RX8 wheel to my Turbo Vert I'm building. I tried to use the RX-8 clock spring but it did not fit. I ended up using the original clock spring. I had to grind the center of the clock grind so I could turn the plastic shaft vertical so the RX-8 wheel would line up. Took less than 5 minutes with a dremel. At this point I only have the horn working. I look forward to more updates so I can get the audio working. Thanks for all of the info Inbrown.
Last edited by JJ42072; 12-18-11 at 06:35 PM. Reason: typo
03-05-12, 09:34 AM
#41
Just take the blue pill..
Thread Starter

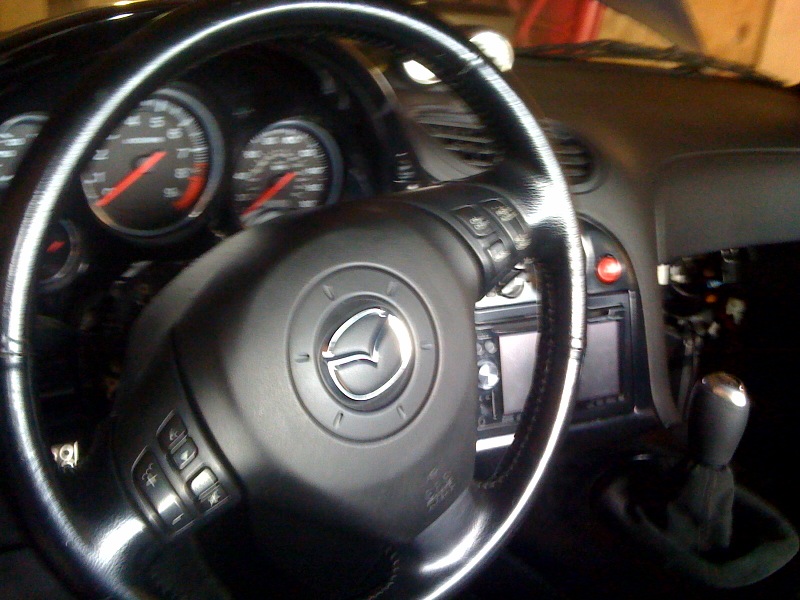

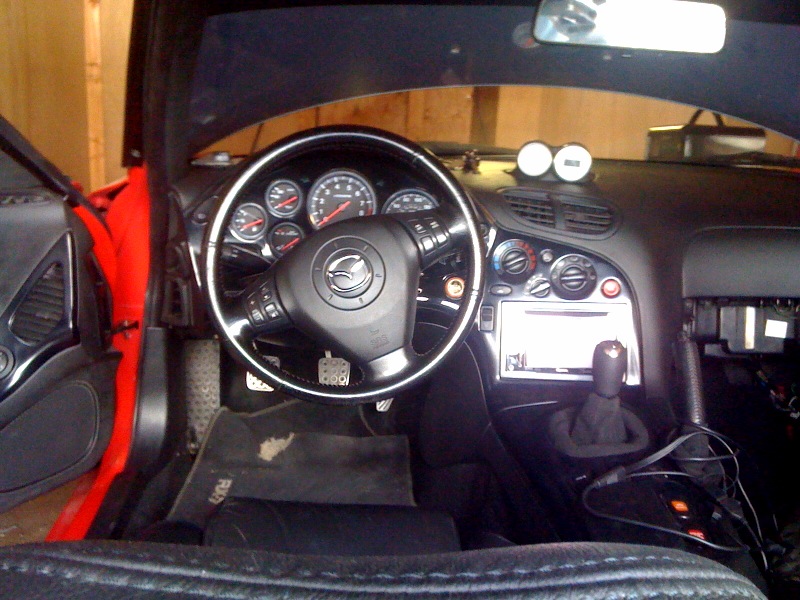

There isn't a whole lot to update yet. I will be working on the horn wiring and the cruise sometime within the next few weeks. Here are some semi-finished aesthetics for you in the meantime.
03-14-12, 12:26 PM
#43
Just take the blue pill..
Thread Starter
I decided it wasn't really worth the effort. The Rx8 uses a dual stage, vs. the single Stage of the FD, and though technically possible to retrofit, the cost (monetary and time) wouldn't be worth it. I just did the airbag light mod (do a search on it) and called it a day. The overall result was worth it. Let's see: It's smaller than the stock wheel, looks better than the stock wheel, gives you steering wheel controls of an aftermarket radio, gets rid of the old school single stage airbag that could cause YOU more damage in an accident (my sister had her nose broken by the deployment of an older single stage bag like the one in the FD, yet had no other injuries, she wore a seatbelt), and just gives you another way of bringing the car up to date.
04-25-12, 03:54 PM
#44
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
I decided it wasn't really worth the effort. The Rx8 uses a dual stage, vs. the single Stage of the FD, and though technically possible to retrofit, the cost (monetary and time) wouldn't be worth it. I just did the airbag light mod (do a search on it) and called it a day. The overall result was worth it. Let's see: It's smaller than the stock wheel, looks better than the stock wheel, gives you steering wheel controls of an aftermarket radio, gets rid of the old school single stage airbag that could cause YOU more damage in an accident (my sister had her nose broken by the deployment of an older single stage bag like the one in the FD, yet had no other injuries, she wore a seatbelt), and just gives you another way of bringing the car up to date.
08-19-13, 01:44 PM
#50
Just take the blue pill..
Thread Starter
No, I haven't really had the time to really dig into it. I have been using the original controls attached to the lower part of the console. Also for all those wondering, I got the horn to work by using a small wire bolted between the hub and the airbag assy. The horn is the green wire coming out of the body side harness that connects to the steering column. On the steering wheel side, I swapped the audio control wire on the steering wheel over to the factory gray wire instead.
