little trouble with my loom
i just recently bought an E8 and started laying out all the connector wires and found that i am missing a few wires and i so i am just wondering if anyone can help shed some light on my situation.
wires missing:
34 pin connector:
spare a/d #3, pin #17
spare a/d #4, pin #25
PWM out #3, pin #23
26 pin connector:
PWM out #4, pin #19

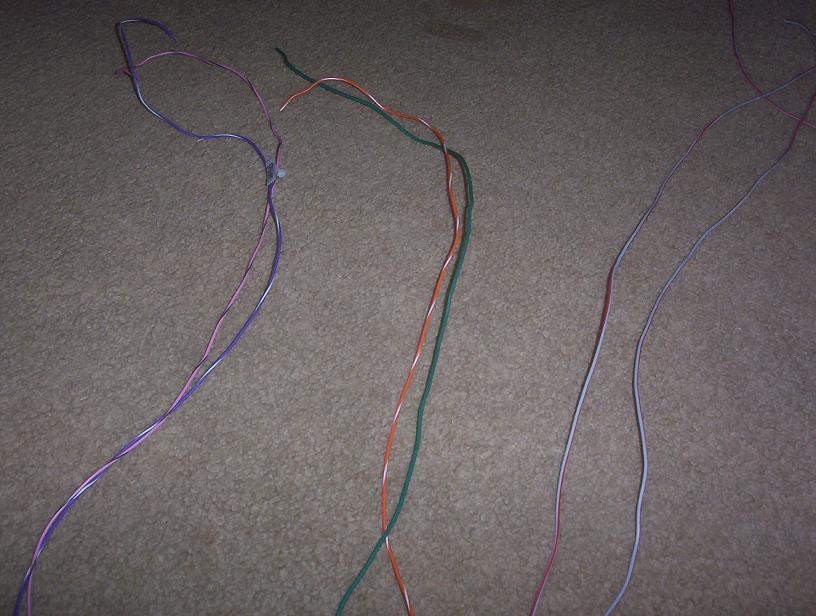

the wires that i have left over that i don't know about are the orange with white stripe which i think i found that on the diagram as a 8v supply, and a green wire which i'm sure is a ground and two grey with red stripe wires which i'm not real sure what they go to. so any help would be greatly appreciated.
thanks garrett
wires missing:
34 pin connector:
spare a/d #3, pin #17
spare a/d #4, pin #25
PWM out #3, pin #23
26 pin connector:
PWM out #4, pin #19
the wires that i have left over that i don't know about are the orange with white stripe which i think i found that on the diagram as a 8v supply, and a green wire which i'm sure is a ground and two grey with red stripe wires which i'm not real sure what they go to. so any help would be greatly appreciated.
thanks garrett
#2
EFI Tech Wannabe
iTrader: (1)
Join Date: Sep 2003
Location: D.R., USA, the world...
Posts: 2,405
Likes: 0
Received 4 Likes
on
4 Posts
If you bought this new from a Haltech official dealer you can tell him to send that harness back to Haltech and get a complete one. That is a manufacturing error and should be warranted.
If you bought this from a friend, or from ebay i have say you might have to either A. buy a new harness or B. put in the missing wires.
If you bought this from a friend, or from ebay i have say you might have to either A. buy a new harness or B. put in the missing wires.
#3
Lives on the Forum
Sorry, but I don't have the E8 wiring diagram in front of me, but...
If that wire is an 8V reference, you can't use it unless you're using 8VDC components.
No need to worry about this one.
I doubt the green wire is a ground.
All grounds are BLACK.
The two gray / red wires are extra +12VDC switched.
You can use it for whatever.
I think you need at least one for your fuel injectors?
-Ted
If that wire is an 8V reference, you can't use it unless you're using 8VDC components.
No need to worry about this one.
I doubt the green wire is a ground.
All grounds are BLACK.
The two gray / red wires are extra +12VDC switched.
You can use it for whatever.
I think you need at least one for your fuel injectors?
-Ted
#4
EFI Tech Wannabe
iTrader: (1)
Join Date: Sep 2003
Location: D.R., USA, the world...
Posts: 2,405
Likes: 0
Received 4 Likes
on
4 Posts
Ted,
He is missing wires that ARE supposed to come on the harness from the factory, you're talking about different wires than the ones he mentioned. Thats why he has to contact his supplier and get that harness exchanged.
He is missing wires that ARE supposed to come on the harness from the factory, you're talking about different wires than the ones he mentioned. Thats why he has to contact his supplier and get that harness exchanged.
#5
flamehead
Thread Starter
Join Date: Oct 2002
Location: moore, oklahoma
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
yeah your right on the green that says it's an aux in now that i look at it.i bought this off of a guy but the harness is brand new
http://www.haltech.com/downloads/E8%...0Connector.pdf
http://www.haltech.com/downloads/E8%...0Connector.pdf
these are the diagrams i am looking at i am just basically asking if i can get along without the pwm out number3 and the spare a/d #3 and #4. on the 34 pin and the pwm out #4 on the 26 pin i guess
http://www.haltech.com/downloads/E8%...0Connector.pdf
http://www.haltech.com/downloads/E8%...0Connector.pdf
these are the diagrams i am looking at i am just basically asking if i can get along without the pwm out number3 and the spare a/d #3 and #4. on the 34 pin and the pwm out #4 on the 26 pin i guess
#6
EFI Tech Wannabe
iTrader: (1)
Join Date: Sep 2003
Location: D.R., USA, the world...
Posts: 2,405
Likes: 0
Received 4 Likes
on
4 Posts
Originally Posted by rx7lover0147
....can get along without the pwm out number3 and the spare a/d #3 and #4. on the 34 pin and the pwm out #4 on the 26 pin i guess
I would find out where the Harness/kit was bought by, that way you can get it exchange, since those features are important, at least thats how i see it, you still have your injectors/ignition wires, which ever you dont use you can use as outputs too.
But ill tell you this, if you need a new harness i can sell you one, i have it in stock right now, and its complete. PM or email me if your interested.
#7
Lives on the Forum
Originally Posted by Claudio RX-7
He is missing wires that ARE supposed to come on the harness from the factory, you're talking about different wires than the ones he mentioned. Thats why he has to contact his supplier and get that harness exchanged.
Someone making bootleg Haltech harnesses???
-Ted
Trending Topics
#8
EFI Tech Wannabe
iTrader: (1)
Join Date: Sep 2003
Location: D.R., USA, the world...
Posts: 2,405
Likes: 0
Received 4 Likes
on
4 Posts
Originally Posted by RETed
That's just freakin' weird.
Someone making bootleg Haltech harnesses???
-Ted
Someone making bootleg Haltech harnesses???
-Ted
This one would be the 3rd one ive seen in 6+ years of being a dealer, so if they have a way of getting it exchanged through the individual who sold it or bought it from a dealer, go for it, if not, option b., i can supply a new complete one, heck, i would even take that one as part of the payment.
BUT!, now that you mention that, it would be pretty interesting to see someone actually build a knock off haltech harness from scratch. Ive tried it, dawnting task, and you have to account for all the different color wires, to actually be able to get the exact same colors that haltech uses, "that's-a one-a spicy meat-a ball-a!"
Let me know, if you want the harness.
