JT85RX7

I have a 85 12a rx I know the oil injection lines are important where is it possible to put them on a Holley directly in it or is there a better way ?

lduley

iTrader: (1)

Premix and save yourself the hassle

erick31876

iTrader: (8)

If that is a real racing beat carb,there will be a hose barb on the one of the float bowls or metering blocks,can't remember which one off hand

freddyrx3

iTrader: (14)

The way we used to do is, you fab up some longer lines. Remove the Carb. Drill 2 1/4 holes near the butterfly and feed the carb oil through there. And to manipulate the hard-plastic hose, just use a lighter and bend to shape. Hold down with some Plastic Ties and you're all set.

https://www.rx7club.com/old-school-o...holley-632758/

JT85RX7

Thanks for the help !!

rxtasy3

iTrader: (2)

yes it's a RB carb, 465cfm for the stock port 12a.

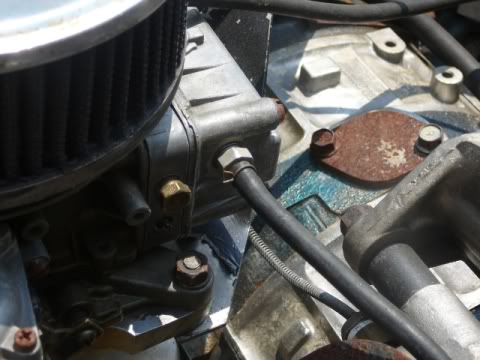

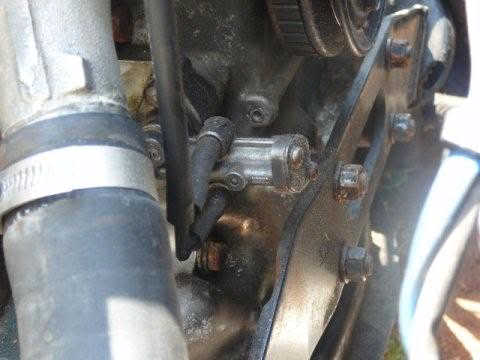

the RB holley uses a barb fitting threaded into the site plug hole of the primary bowl. i used a vac fitting in the shape of an "F" at the omp to make the 2 lines into 1. then connect that one line to the barb fitting in the primary bowl.

JT85RX7

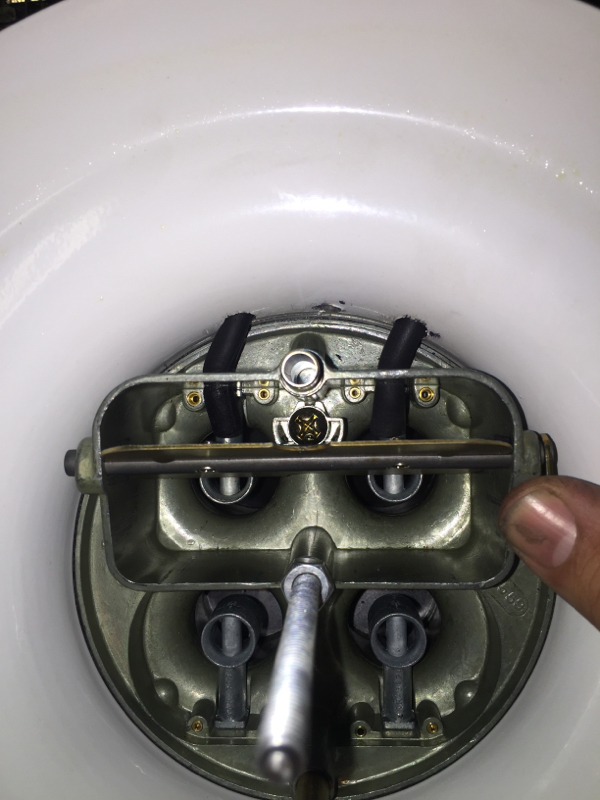

Here's what I ended up doing. Drilled 2 1/4 inch holes near the back of the butterfly. Doing that made me keep the original length of the plastic oil lines, drilled two 1/4 inch holes at the bottom of the racing beat air cleaner then reinstalled the original lines through their.

rxtasy3

iTrader: (2)

^so where do u have the hose off that nipple in the fuel bowl going to?

JT85RX7

It's connected to the fuel return line is that wrong ? The brass fitting is connected to vacuum advanced
