Is anyone out there experimenting with the Fuel Tech EMS, Im in the market for a new EMS and Im stuck between the Haltech PS1000 and now the Fuel Tech FT-300 similar price tag. Pros and Cons on both sides.
I'll go ahead a post the specs on the FT-300
Resources:
Maximum RPM: 16000rpm
Built-in MAP sensor for naturally aspirated or blown engines (6bar - 87psi)
1 to 12 cylinders engine management
Real Time programmable
16x2 Characters LCD Display
4 navigation keys
Sensors Input:
Engine coolant temperature (oil or water)
Intake air temperature
Oil pressure
Fuel pressure
Configurable auxiliary outputs:
Progressive Nitrous Injection with fuel and ignition compensation (activated by TPS)
Electronic boost control through 3 way PWM solenoid valve (activated by RPM and TPS)
Fuel pump control
Variable camshaft control (VTEC)
Powerglide transmission shift (2 speed)
Electric fan by coolant temperature
Simple Idle valve activation
External shift light
Ignition Control:
Compatible with hall effect distributor or crank trigger wheels: 60-2, 36-1, 12-1, 3, 4 or 8 tooth wheels and more.
Distributor, wasted spark coils or coil on plug
5 ignition outputs
Hall or magnetic trigger input
Time Based Rev Limiter (Traction Control)
Two-Step rev limiter with timing retard and fuel enrichment
Ignition and/or Fuel Rev Limiter
Ignition Coil Dwell time control
Ignition outputs to MSD, FuelTech SparkPRO, Integrated HEI Coils and built-in ignitor coils
Total Fuel Injection Control:
Normally aspirated engines by TPS, MAP+TPS or MAP only
Turbocharged, supercharged or blown engines by integrated MAP
Up to 2 injectors banks with individual maps
Up to 12 high impedance injectors or unlimited with FuelTech Peak and Hold Driver
Complete and easy tuning:
Overall trim function for Fuel Maps (individual by bank) and Ignition Maps
Interpolated Ignition Maps per RPM, with individual compensation maps: vacuum, boost, TPS, intake air temperature and coolant temperature.
Interpolated Fuel Injection Maps per TPS or MAP, with compensation maps by: RPM, intake air temperature, coolant temperature and battery voltage.
Anti-Lag Systems
Deceleration Fuel cut-off
Adjustable engine start fuel injection time by engine temperature and ignition timing
Security and user resources:
User protection password
Tuner protection password
Injectors dead time configuration to real fuel injection time processing
Check Control Warnings: exceeded boost pressure, RPM, coolant temperature, fuel injectors opening %, oil pressure, fuel pressure.
Adjustable LCD Display brightness
Customizable start screen message
Up to 5 memories to save different maps adjustments
Complete LCD real time ECU information
I also was trolling around with the tuning software and is very easy to understand.
Thoughts?
I'll go ahead a post the specs on the FT-300
Resources:
Maximum RPM: 16000rpm
Built-in MAP sensor for naturally aspirated or blown engines (6bar - 87psi)
1 to 12 cylinders engine management
Real Time programmable
16x2 Characters LCD Display
4 navigation keys
Sensors Input:
Engine coolant temperature (oil or water)
Intake air temperature
Oil pressure
Fuel pressure
Configurable auxiliary outputs:
Progressive Nitrous Injection with fuel and ignition compensation (activated by TPS)
Electronic boost control through 3 way PWM solenoid valve (activated by RPM and TPS)
Fuel pump control
Variable camshaft control (VTEC)
Powerglide transmission shift (2 speed)
Electric fan by coolant temperature
Simple Idle valve activation
External shift light
Ignition Control:
Compatible with hall effect distributor or crank trigger wheels: 60-2, 36-1, 12-1, 3, 4 or 8 tooth wheels and more.
Distributor, wasted spark coils or coil on plug
5 ignition outputs
Hall or magnetic trigger input
Time Based Rev Limiter (Traction Control)
Two-Step rev limiter with timing retard and fuel enrichment
Ignition and/or Fuel Rev Limiter
Ignition Coil Dwell time control
Ignition outputs to MSD, FuelTech SparkPRO, Integrated HEI Coils and built-in ignitor coils
Total Fuel Injection Control:
Normally aspirated engines by TPS, MAP+TPS or MAP only
Turbocharged, supercharged or blown engines by integrated MAP
Up to 2 injectors banks with individual maps
Up to 12 high impedance injectors or unlimited with FuelTech Peak and Hold Driver
Complete and easy tuning:
Overall trim function for Fuel Maps (individual by bank) and Ignition Maps
Interpolated Ignition Maps per RPM, with individual compensation maps: vacuum, boost, TPS, intake air temperature and coolant temperature.
Interpolated Fuel Injection Maps per TPS or MAP, with compensation maps by: RPM, intake air temperature, coolant temperature and battery voltage.
Anti-Lag Systems
Deceleration Fuel cut-off
Adjustable engine start fuel injection time by engine temperature and ignition timing
Security and user resources:
User protection password
Tuner protection password
Injectors dead time configuration to real fuel injection time processing
Check Control Warnings: exceeded boost pressure, RPM, coolant temperature, fuel injectors opening %, oil pressure, fuel pressure.
Adjustable LCD Display brightness
Customizable start screen message
Up to 5 memories to save different maps adjustments
Complete LCD real time ECU information
I also was trolling around with the tuning software and is very easy to understand.
Thoughts?
#2
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
I don't understand why you are stuck between those two options. The FT-300 stats do not show any capability to control rotary engine split ignition, O2 input for closed loop or auto-tuning, air con idle, data logging, or CAN support. It also does not specify the tuning table resolution or the fuel injector resolution.
Are you building a V-8 drag car?
Are you building a V-8 drag car?
#4
Senior Member
iTrader: (1)
Join Date: Jun 2010
Location: Santa Monica
Posts: 475
Likes: 0
Received 0 Likes
on
0 Posts
An ECU spec list like that is really much to base an ECU selection on. You need to look at the software and see what it's capabilities are. There are a few ecus on the market that can give those same specs.
EB Turbo
EB Turbo
#6
^^ I know Lucimar Racing is using this EMS and squeezing over 1000 whp on a 13b. I like that it has the screen and you can see and adjust things on the go, much like the commander on a PFC.
The FT400 has everything that Evil Aviator mention pretty much the same as a PS1000 and you can run more injectors
Price difference is like 50 bucks
The FT400 has everything that Evil Aviator mention pretty much the same as a PS1000 and you can run more injectors
Price difference is like 50 bucks
#7
www.lms-efi.com
iTrader: (27)
The display is a nice but, if it's anything like the PFC Commander, I certainly wouldn't look at it as a tuning aid. The display potential of the Fuel Tech seems to be pretty good though.
Of course I'm a bit biased, but I don't see it as being much of a comparison. The Sport specifically, and AEM, ViPec, and others in the price range, have much more potential for custom configuration. The Fuel Tech has no provision for auxiliary inputs such as wheel speed, aux pressures or temps, etc. It's limited to the 4 dedicated inputs.
The Fuel Tech uses the old Microtech tuning method before they brought out the more common matrix mode. I didn't mind it, some did. Probably not a bad thing, just different.
The Fuel Tech doesn't have high current injector drivers, low-ohm injectors require resistors or a driver box. Might not be a big deal if you're building a new fuel system and can opt for high-ohm injectors. The Sport 1000 can run 12 low-ohm injectors directly, with no resistors. The Fuel Tech can't do this. If you're using the high-ohm injectors Fuel Tech specifies with the Sport 1000, you can run even more.
The datalogging software looks nice. But with the base ECU only allowing a limited amount of channels to be input into the ECU, how much use can it be without spending more on the dedicated logger?
In short, $1799 for the Fuel Tech v. $1550 (street price) of a Sport 1000, or something similar, that does just as much or more, and has thousands of people using it as a support base isn't much a choice.
Of course I'm a bit biased, but I don't see it as being much of a comparison. The Sport specifically, and AEM, ViPec, and others in the price range, have much more potential for custom configuration. The Fuel Tech has no provision for auxiliary inputs such as wheel speed, aux pressures or temps, etc. It's limited to the 4 dedicated inputs.
The Fuel Tech uses the old Microtech tuning method before they brought out the more common matrix mode. I didn't mind it, some did. Probably not a bad thing, just different.
The Fuel Tech doesn't have high current injector drivers, low-ohm injectors require resistors or a driver box. Might not be a big deal if you're building a new fuel system and can opt for high-ohm injectors. The Sport 1000 can run 12 low-ohm injectors directly, with no resistors. The Fuel Tech can't do this. If you're using the high-ohm injectors Fuel Tech specifies with the Sport 1000, you can run even more.
The datalogging software looks nice. But with the base ECU only allowing a limited amount of channels to be input into the ECU, how much use can it be without spending more on the dedicated logger?
In short, $1799 for the Fuel Tech v. $1550 (street price) of a Sport 1000, or something similar, that does just as much or more, and has thousands of people using it as a support base isn't much a choice.
Trending Topics
#9
Ive seen the Fuel tech in action, and it looked like it was working really good. You get to a nice new harness, everything is on the screen no laptop needed. All the functions it has, is just awesome. There are a few rotaries going really fast on this system.
Just some short clips, doing some base settings for Lucimar racing.
Just some short clips, doing some base settings for Lucimar racing.
#10
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
1991 Turbo II Convertible.
I purchased the FT350 last week and I'm in the process of having it installed with a Precision Turbo 7065.
FuelTech - Products
FuelTech - Products
#12
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts

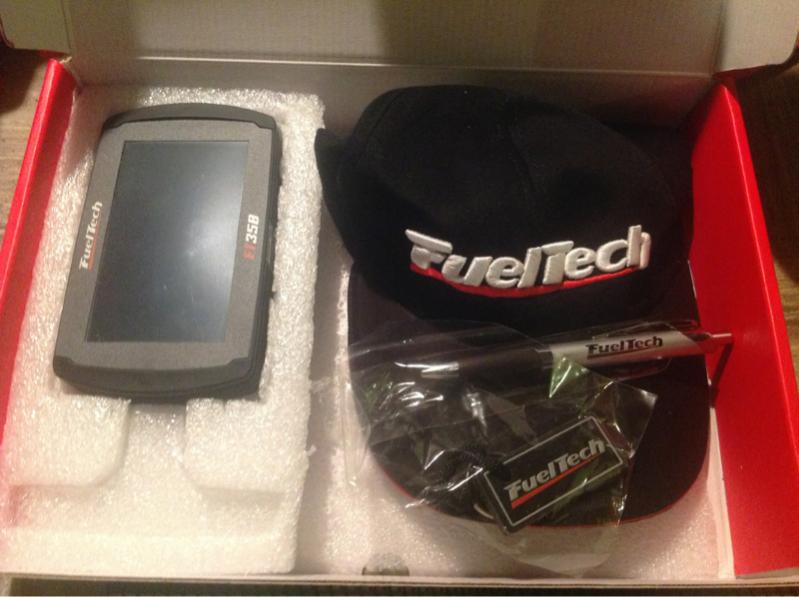

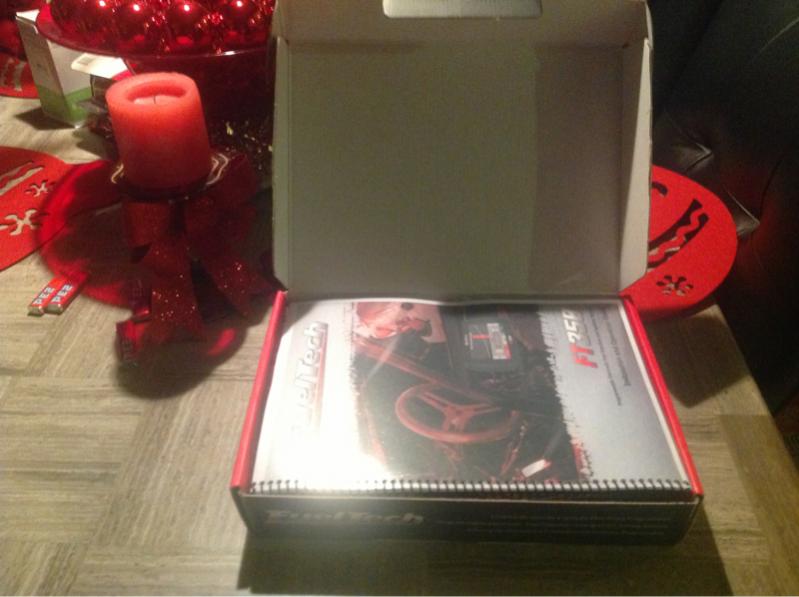

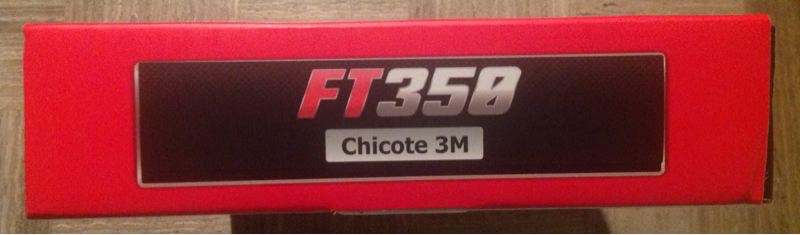

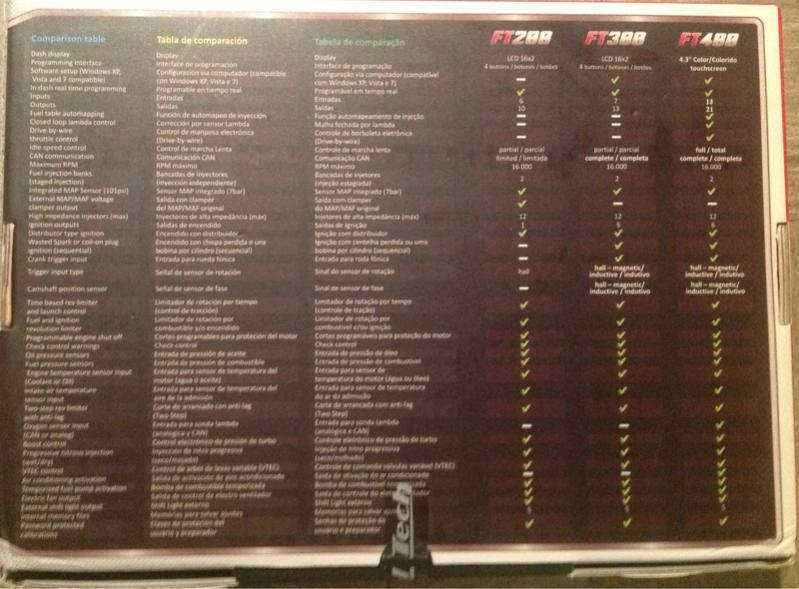

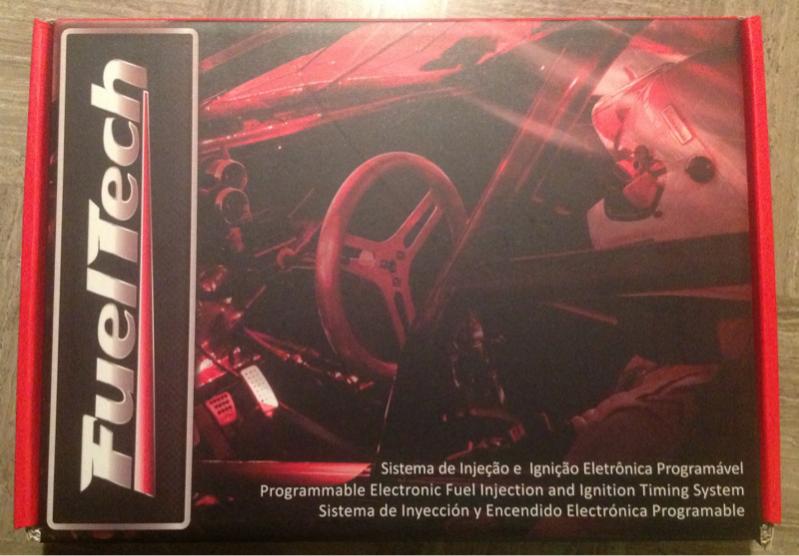

Unboxing of FT-350. The distributor in Orlando tells me that I can use most of the sensors from Mazda. Glad I don't have to fork out anymore money....
#14
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
Now I have to figure out where I'm going to mount the display....
#16
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
I really need to subscribe to this thread. My convertible is fully functional with the FT350.
I love this ECU. You can have 5 different tunes with this ECU. Essentially you could buy an extra wiring harness, install it in another car, and run your 2nd vehicle with the same ECU.
I love this ECU. You can have 5 different tunes with this ECU. Essentially you could buy an extra wiring harness, install it in another car, and run your 2nd vehicle with the same ECU.
#17
PANAMAniac Rotor Head
Join Date: Mar 2004
Location: ORLANDO FLORIDA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
I really need to subscribe to this thread. My convertible is fully functional with the FT350.
I love this ECU. You can have 5 different tunes with this ECU. Essentially you could buy an extra wiring harness, install it in another car, and run your 2nd vehicle with the same ECU.
I love this ECU. You can have 5 different tunes with this ECU. Essentially you could buy an extra wiring harness, install it in another car, and run your 2nd vehicle with the same ECU.
1. Use 4 each LS1 Coils (Readily available at any auto parts store if you need to replace)
2. Use High Impedance injectors. I used 4each 1000cc Injector dynamics injectors.
3. If you want to keep A/C on the car buy the FT400.
Cool thing is that the ECU is detachable. Remove it from the car, stick it in your pocket, and no one will be able to start your car.
#20
Full Member
#21
Senior Member
iTrader: (2)
You can control split timing but not as flexibly as with some other ECUs. Particularly, you can set one value for the split which would expand through the whole main ignition table (as opposed to having a separate split timing table with different values).
#22
Full Member
You can run A/C with FT350 (my car does so).
You can control split timing but not as flexibly as with some other ECUs. Particularly, you can set one value for the split which would expand through the whole main ignition table (as opposed to having a separate split timing table with different values).
You can control split timing but not as flexibly as with some other ECUs. Particularly, you can set one value for the split which would expand through the whole main ignition table (as opposed to having a separate split timing table with different values).
#25
Junior Member
Join Date: Mar 2002
Location: New Jersey
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
i just bought the fuel-tech 350.....what sensors do i need i heard ford sensors for air temp and coolant temp but what years...and im running 93 throttle body can i use the stock tps sensor....thanks
