Sorry guys, I've just been working on small things that don't really make for very interesting photos. I've got some bigger things coming up that I'll get some photos of.
Last edited by ColeWithTheFD; 04-21-16 at 05:17 AM.
#30
Junior Member
Thread Starter
Join Date: Oct 2014
Location: Wyoming
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Another test fit with all the panels on. Sorry about being so lazy about this thread. I usually don't remember that I need to take photos until I've gone home.
I boxed in all the upper control arm mounts and got a little carried away with the welder. I don't MIG weld often, so that's about as good as it gets. The frame is all trimmed up and welded so I can smooth it all out and make it look nice. It looks like poo right now.
I made mounts for the fenders. The headlight brackets also mount to these. I started to make them, then realized that I need everything on the front end mounted and aligned before I could get them to fit properly. So I took them off.
I got some sweet ricer hood mounts and cut them into my hood. I'll be getting a new hood for the car since this one is garbage so I'll just have to cut them into the same spot on the new hood.
I'm pretty much winging it when it comes to the tube front end. I don't really know what I'm doing, but I think it looks kind of neat. It probably weighs more than stock lol. The additional bars are for the hood mounts and radiator support.
Everything sits in there pretty nicely. I know a lot of people do v-mounts, but I wanted to go pretty standard. The radiator sits about four inches forward from it's stock position, giving me a little more room to work with.
Last edited by ColeWithTheFD; 06-24-16 at 11:09 PM.
#32
Junior Member
Thread Starter
Join Date: Oct 2014
Location: Wyoming
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
#34
Senior Member
nice work, I think if its just a track car then you dont need to tub the wheel wells. And the whole point of a bashbar/tube front end is durability I wouldn't be too worried on weight.
#36
Junior Member
Thread Starter
Join Date: Oct 2014
Location: Wyoming
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
I like seeing the intercooler through the bumper. Plus since everything is so far forward and out of the way, it makes it easier to remove the front end with everything still attached.
#39
Senior Member
#40
Junior Member
Thread Starter
Join Date: Oct 2014
Location: Wyoming
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
I'm going to use the new FD Wisefab kit once it's available. I've been e-mailing them to try and get a time frame of when it will be for sale. They haven't gotten back to me haha. From what I've seen of it, it looks pretty rad. James Deane has posted some videos of it on his car.
Last edited by ColeWithTheFD; 07-15-16 at 08:34 PM.
#41
Senior Member
I'm going to use the new FD Wisefab kit once it's available. I've been e-mailing them to try and get a time frame of when it will be for sale. They haven't gotten back to me haha. From what I've seen of it, it looks pretty rad. James Deane has posted some videos of it on his car.
#44
Junior Member
Thread Starter
Join Date: Oct 2014
Location: Wyoming
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Hey everyone, sorry for the lack of updates. The car was neglected for a couple years because I bought an E30 that took my attention. I've been drifting that until I broke a knuckle and smashed it into a fence lol. Like a reaaaally well built fence. I've spent the past four months or so back working hard on the FD. It's currently running and driving, but still needs paint, body work, and a some other things. It hasn't really done anything other than a few burnouts in my driveway. I'll try to update this more often, but it realistically won't be finished until winter because I'm I'm also pretty focused on my Can-AM X3 as well. I probably won't post any photos of it with the new motor until it's completely finished since it's pretty dumb and I'll get made fun of lol.
This is the E30 I was talking about. It makes about 450whp and only weighs 2100lbs without me in it so it's pretty rowdy. I've competed in a few Drift Colorado comps with it and have had some decent results.
This is how the car looked before I put the motor in. Got some hella stance boi Weds wheels for it that I'm sure I'll destroy.
It has a fully TIG welded cage that took me wayyy longer than it should have to finish.
I robbed a few parts off other cars of mine including this fuel cell that ended up working pretty well.
Here is version 1 of my ECU and relay panel. I didn't really like the layout so its changed a bit to make it cleaner even though it's tucked under the dash and you can't see it. I also made a pretty cool shifter mount plate.
I had to make a new sub frame for the new motor. It looks pretty weak in this picture, bur everything has been reinforced an is plenty strong. The steering rack was moved down and inch so I used a bump steer kit to fix the tie rod angle.

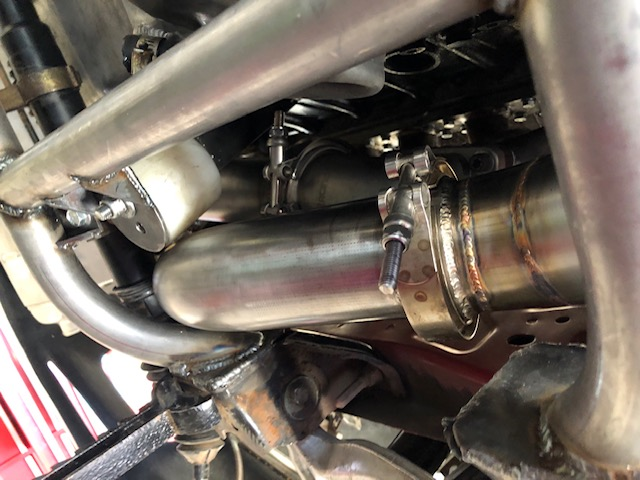

I had to get pretty crafty with the down pipe to make everything fit.
Here how all that jankiness comes together. It's a mess and I'm and idiot.
Also, here's the X3 I was talking about to help understand what is distracting me from the FD right now.
This is the E30 I was talking about. It makes about 450whp and only weighs 2100lbs without me in it so it's pretty rowdy. I've competed in a few Drift Colorado comps with it and have had some decent results.
This is how the car looked before I put the motor in. Got some hella stance boi Weds wheels for it that I'm sure I'll destroy.
It has a fully TIG welded cage that took me wayyy longer than it should have to finish.
I robbed a few parts off other cars of mine including this fuel cell that ended up working pretty well.
Here is version 1 of my ECU and relay panel. I didn't really like the layout so its changed a bit to make it cleaner even though it's tucked under the dash and you can't see it. I also made a pretty cool shifter mount plate.
I had to make a new sub frame for the new motor. It looks pretty weak in this picture, bur everything has been reinforced an is plenty strong. The steering rack was moved down and inch so I used a bump steer kit to fix the tie rod angle.
I had to get pretty crafty with the down pipe to make everything fit.
Here how all that jankiness comes together. It's a mess and I'm and idiot.
Also, here's the X3 I was talking about to help understand what is distracting me from the FD right now.
