Interesting. Whats the plan for deadening? The doors, trunk, and rear 1/4's are pretty easy, but pulling up the carpet or pulling out the dash is kindof a pain in the butt.
I usually hate those turn signals, but they don't look all bad there.
Interesting. Whats the plan for deadening? The doors, trunk, and rear 1/4's are pretty easy, but pulling up the carpet or pulling out the dash is kindof a pain in the butt.
I usually hate those turn signals, but they don't look all bad there.
Same ol', Same ol'. Inner and Outer Door Skins with a seal for whenever he decides to get front speakers (so the door becomes a woofer enclosure, not infinite baffle), single layer on floor with a CCF/MLV layer on top, and leaving the headliner factory configuration. He's not an audiophile, so we're using some pretty basic stuff to tone down the car for commuting.
The main downside is the ARK Coilovers with 12kg/mm F&R spring rates and poorly matched monotube dampers. There's seemingly zero low speed compression, and rebound ends up growing exponentially with speed. Really sad to say, this might be one of the worst coilovers I've tested, and I've been setting up cars professionally for over 5yrs. Getting comfort and compliance while being fast and maintaining driver input (feel) on this configuration is going to be a challenge, so I'll break open my notebook of past experiences and bust out some old school tricks.
Intercooler shipped out Friday. We'll see waazzzuppp soon enough! V-Mount, Baby!
The priority of airflow is Radiator > Intercooler > AC Condenser > Oil Coolers.
Yes, I now realize how much easier it would have been to "Z-Mount" my configuration like an FD, but now I think I'm sold on the idea of the hood vent lookin' really ******' cool.
It needs to be along the surface of the intercooler to work properly. I'm actually going to show you what I planned, **** it, why not.
I intend to fully duct (both before and after individual portions of the V-Mount) with aluminum work. That's divided ducting before the radiator and after, before the intercooler, and after, etc. Trust me, my fabricator already sees the Dollar Signs in his eyes... That **** isn't easy. $_$ $_$
Because the body lines of the car are very squarish from a Top or Front View, the louvers must match that to retain appearances.
They are offering to build me a custom one with a front gurney flap integrated in. It should help
Being that the intercooler is placed near the very front of the hood, the largest portion of lift (as shown on an FC here) will actually turn into a bit of downforce as air is drawn out of the engine bay. It'll effectively shrink my frontal area.
Another way I can reword this is that there is a very high pressure region at the front of the car (and front of the fender wells) and by placing a hood duct near the front, it'll draw that air through, lowering that pressure. This makes my heat exchangers work more efficiently.
Last edited by RGHTBrainDesign; 03-19-17 at 08:14 PM.
It needs to be along the surface of the intercooler to work properly. I'm actually going to show you what I planned, **** it, why not.
I intend to fully duct (both before and after individual portions of the V-Mount) with aluminum work. That's divided ducting before the radiator and after, before the intercooler, and after, etc. Trust me, my fabricator already sees the Dollar Signs in his eyes... That **** isn't easy. $_$ $_$
Because the body lines of the car are very squarish from a Top or Front View, the louvers must match that to retain appearances.
They are offering to build me a custom one with a front gurney flap integrated in. It should help
Being that the intercooler is placed near the very front of the hood, the largest portion of lift (as shown on an FC here) will actually turn into a bit of downforce as air is drawn out of the engine bay. It'll effectively shrink my frontal area.
Another way I can reword this is that there is a very high pressure region at the front of the car (and front of the fender wells) and by placing a hood duct near the front, it'll draw that air through, lowering that pressure. This makes my heat exchangers work more efficiently.
Nice, I found something similar offered by these guys which I was thinking of using in the future: https://www.velox-motorsports.com
I knew you'd already a design firmly in mind. Looks great.

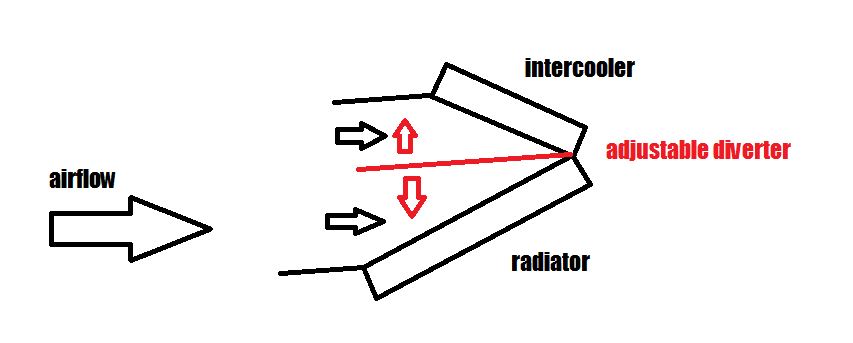

I'm doing the V-mount with the flat mounted I/C, with the shrouding etc. For a few race cars, my guy has made an adjustable diverter so that you can play with the relative airflow to the the rad and I/C - more important in my case since I won't use any hood vents.
I knew you'd already a design firmly in mind. Looks great.
I'm doing the V-mount with the flat mounted I/C, with the shrouding etc. For a few race cars, my guy has made an adjustable diverter so that you can play with the relative airflow to the the rad and I/C - more important in my case since I won't use any hood vents.
Could you post pictures on here? That's REALLY interesting and I'd love to hear more about it.
Being that my intercooler is still being finished, I've debated time and again for hood clearance vs. angle of attack. I think that my design being flat vs. this design (end tanks aim upwards instead of rearwards) brings up a few more compromises in the engine bay.
Skeese's Beautiful new V-Mount Configuration with EFR 9180.
I already intended on running a hood vent, and my proposed setup would sit about 4-5" higher up than this design, which works to my benefit. The FD, I believe, has a deeper engine bay. Taking up that hood clearance space for slight intercooler angle doesn't seem worth it for this build, and speaking of angle, my radiator should be more upright as a result. Don't forget about ground clearance! Higher than the front subframe is a definite design quality for harsh conditions.
Could you post pictures on here? That's REALLY interesting and I'd love to hear more about it.
I couldn't find any pictures of the other cars, sorry. You might have to wait until mine is done, but by then, I'm sure you will have already completed your intercooler arrangement. What I have in mind is basically a sheet of aluminium sitting between the intercooler and radiator and would have adjustment slots allowing it to pivot up or down, as illustrated by the below super quick MS Paint sketch....
I couldn't find any pictures of the other cars, sorry. You might have to wait until mine is done, but by then, I'm sure you will have already completed your intercooler arrangement. What I have in mind is basically a sheet of aluminium sitting between the intercooler and radiator and would have adjustment slots allowing it to pivot up or down, as illustrated by the below super quick MS Paint sketch....
good idea...i remember seeing herblenny's builder doing the same thing.
I couldn't find any pictures of the other cars, sorry. You might have to wait until mine is done, but by then, I'm sure you will have already completed your intercooler arrangement. What I have in mind is basically a sheet of aluminium sitting between the intercooler and radiator and would have adjustment slots allowing it to pivot up or down, as illustrated by the below super quick MS Paint sketch....
I mean, how else would you do it? That's exactly what we have here too. Lol. My design is a much flatter intercooler though with the radiator more upright. Radiator gets less from the diverter since it has a huge 16" SPAL behind it, and diverter is curved with "soft edges" as I call them in Aerodynamics.
I can draw up a few quick sketches later and post pics.
Here's what we'd combine the concepts of (with a quick internet search):
Cool to see us on the same page here!
Last edited by RGHTBrainDesign; 03-20-17 at 09:30 AM.
So I have to apologize for not really getting on here as much as I used to. The Integra is going into the shop to finalize some pretty cool things on Tuesday, then it's a few more mods, and off to the dyno with the H23A VTEC.
The turbo mockup will happen on Tuesday. I'll take final dimensions and decide whether or not to go Full-Race Manifold + EFR 0.92 IWG or my intended manifold/downpipe design.
Well, in other news, my credit card company refunded me for the bullshit excuse of a laptop that I've been using for the last year. Two hard drive failures, boot loops, screen issues, touchpad not working, etc. XoticPC didn't cover their bases... Sending it out for repairs and it coming back WORSE was my final straw. SO, I decided to take the professional route and build a desktop for an Engineering Work Station using the new AMD Ryzen 7 architecture.
Check out this build:
My buddy sold me his Dual Nvidia GTX980 (SLI Bridged) setup with EK, Full Faced Water Blocks on them for a stupid low price, so all said and done, I'm in it for the price of the laptop refund, exactly.
Now for school, I'll just shell out $400 for a half-decent ultrabook sized Windows 10 rig to purely get me all my Google Docs and web-browsing, then back up as necessary (I've lost so much information on this stupid laptop that I'm returning...it's time I'll never get back)
Done and Done. Time to step up my professional business.
Not bad. Might've gone with more hard drive, but what with the cloud and network storage who needs it?
I built a little low wattage rig that goes the distance for me(not much of a gamer ).
Not bad. Might've gone with more hard drive, but what with the cloud and network storage who needs it?
I built a little low wattage rig that goes the distance for me(not much of a gamer ).
Well, I have a Hitachi 1TB 3.5", WD Black 1TB 3.5", and a WD Green 2TB 3.5" that I'll be putting in that case, hidden away.
Everything came today and I can't believe how good the keyboard and mouse are. Very impressed with my purchase so far.
Can't leave without posting the Rx7 update today...hehehe
The ASRock came DOA. The Asus Prime x370 Pro is coming tomorrow with system assembly and final water cooling bleeding to be done that evening.
The Prime x370 Pro comes with the 0404 BIOS aka Not Compatible With Ryzen. I picked up a local ASUS Crosshair VI Hero and it has an offline BIOS updater built into the back of the Mobo... Let's just say the system works now. EKWB Backplate issues likely caused the ASRock and Prime to not work properly, but with all the diagnostic materials on the Crosshair VI, it was easy to figure out.
The Rx7 is going to get a Davies Craig EWP150 Kit. **** it, don't care, better Intercooler fitment and faster warmup. I already have a radiator that's 2.5x factory capacity and am sick and tired of replacing busted thermostats on ALL of my vehicles (OEM thermostats fail on everything...). This knocks out both issues. I won't run too cold, and I won't have a failed thermostat.
David (aka MonsterBox) and I have been talking recently and he likes the direction I'm heading with this. I take that as a compliment of the highest regard.
Abel (Ibarra) is getting my last small bearing GSL 3rd Member. I need to bug him on shipment date soon.
So what's next? Pulling the engine bay harness far enough away to allow for cutting/welding for the V-Mount. Ordering the EWP150 setup this week, installing, finalizing the rear end and starting the V-Mount by the end of the month.
As far as big parts left to buy, the Adaptronic M6000 is definitely next after the fabrication phase. I wonder if Tony (FFR Fabrication) will let me store the car there while I wire everything up.
Keen to see the EWP setup. I'm thinking of using the same for my build aye. Using their EWP controller also which will also double as a fan controller. Just tryna figure out routing haha.
Keen to see the EWP setup. I'm thinking of using the same for my build aye. Using their EWP controller also which will also double as a fan controller. Just tryna figure out routing haha.
I would definitely go that route if I wanted -16AN coolant lines and didn't have a hefty 270A alternator to top mount (because this car will retain AC and PS, and I'm likely adding hydroassist brakes off the PS).
The one thing with my steering setup is I planned to modulate steering assistance with speed, so the hydro-assist brakes might suffer in that regard (so a reason NOT to do it).
I'm going to take the water pump off tomorrow and mock everything up in CAD, send it out to machining with an engraved SN0BX7 or RGHTBrainDesign logo and hopefully get it together next week.
03-15-17, 03:01 AM
Getting comfort and compliance while being fast and maintaining driver input (feel) on this configuration is going to be a challenge, so I'll break open my notebook of past experiences and bust out some old school tricks.
).
**** it, don't care, better Intercooler fitment and faster warmup.
