Old 02-12-13, 11:45 PM   #1
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Austin's FB TII Swap - Details and Pics Aplenty

Hey guys, I'll just start off with a few pics and details of the cars: as I promised.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

1984 Mazda RX-7 GS
1.1L 12a carburetor engine
Stock engine, trans, rear end
No ECU
Complete burgundy interior

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

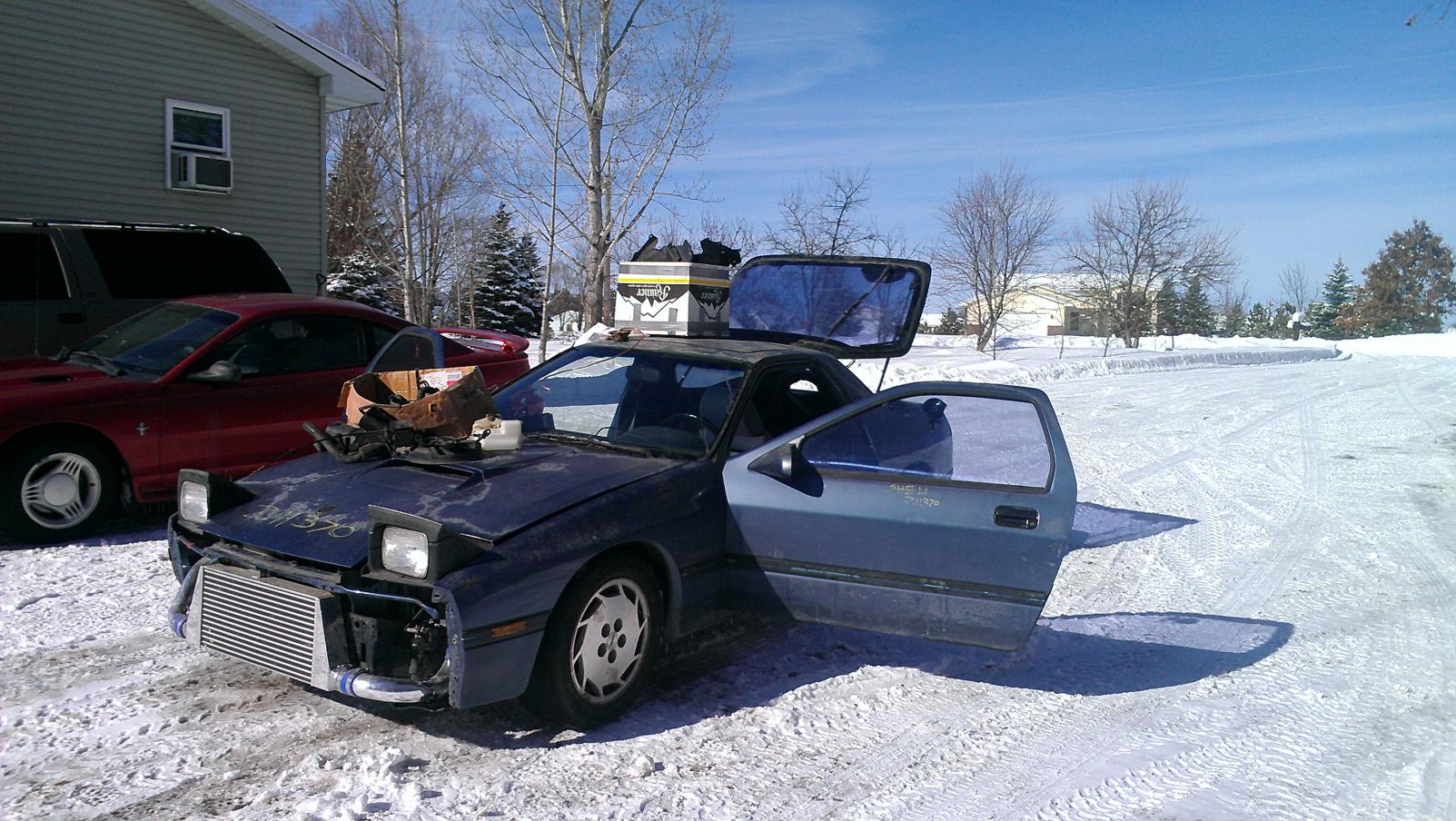

1987 Mazda RX-7 Turbo II
1.3L 13b turbo engine
TII transmission
Stock ECU
Interior partly gutted but should be complete

Project description:
I plan on swapping the TII 13bt engine and TII trans out of the 87 into my 84, along with all of the wiring and necessary parts.

I will be posting up all of my links that have helped me in this post, then quoting a member's post that has proved to be extremely helpful in my considerations of what to do during this swap.

Links I found helpful are as follows:

Other Member's Build Threads
Chronicles of a TII Swap
Sean's TII 83 S
Matt’s T2 FB Build (pic heavy)
(TURBO) TII swap into GSL-SE
Matt's Original Swap
PeteyTurbo’s TII Swap

How to notch the 12a for a 13b install
How to Notch the 13b for install in a previously 12a car
How to Notch the 13b for install in a previously 12a car another way

FB FMIC?
FMIC Installation into FB

FC TII 5-lug conversion
Write up - FC subframe swap (how I did it)
Any one have 5 lug pictures of their First gen
BBS vert wheels on 1st gen with big brake kit
5 lug fc conversion on the rear of 1 gen

Difference between 13b and 13bt
13b NA and 13b Turbo engine differences

Downpipe
What did you use for a Downipe?(FC)

TII Swap Questions
TII swap couple questions

My favorite single post on the TII swap, from Directfreak, found here at (ENGINE) TII swap into GSL-SE page 4

START DIRECTFREAK QUOTE
================================================== ========
Sorry Guys, I decided to use this as my running parts list. I will add to it, change it, and so on as the project continues. It was originally a PM I sent to another member, and I posted it elsewhere (area 51). I figured it belongs here anyway.

Aftermarket ECU? Much fabrication?
Info? I got your stinkin’ Info right here!!.

First, let me tell you, a GSL-SE is the best model available to do a 13B Turbo transplant. It already has several things necessary to make the swap easier:
GSL-SE Front Cover - already have it
GSL-SE Oil Pan- already have it
GSL-SE Engine Mounts- already have it
GSL-SE Fuel Line Pick Up (EFI) - already have it
GSL-SE Fuel Injectors (good for primaries)- already have it
GSL-SE Engine Mounts- already have it
GSL-SE Radiator (3 core) - already have it
GSL-SE Air Cooled Oil Cooler (mounted under the Radiator) - already have it
GSL-SE Brakes (Bigger and Better all around) Not needed, but recommended
GSL-SE Suspension (Better all around, and better bolt pattern for aftermarket wheels) Not needed, but recommended
That is just the GSL-SE stuff. For my particular swap, you will still need:
13B Turbo engine (or Cosmo) - already have it
Fuel Injection Intake Manifold and Throttle body- already have it
Primary Fuel Injectors (the GSL-SE ones are perfect) - already have it(even spares!)
Secondary Fuel Injectors (1200cc minimum, 1600cc (Bosch recommended)- ordered from injector.com
Custom Fuel Rail – Needs to be made.
Custom Turbo Exhaust Manifold – Needs to be made
Turbo – 63-1 (Yes, 63-1!)

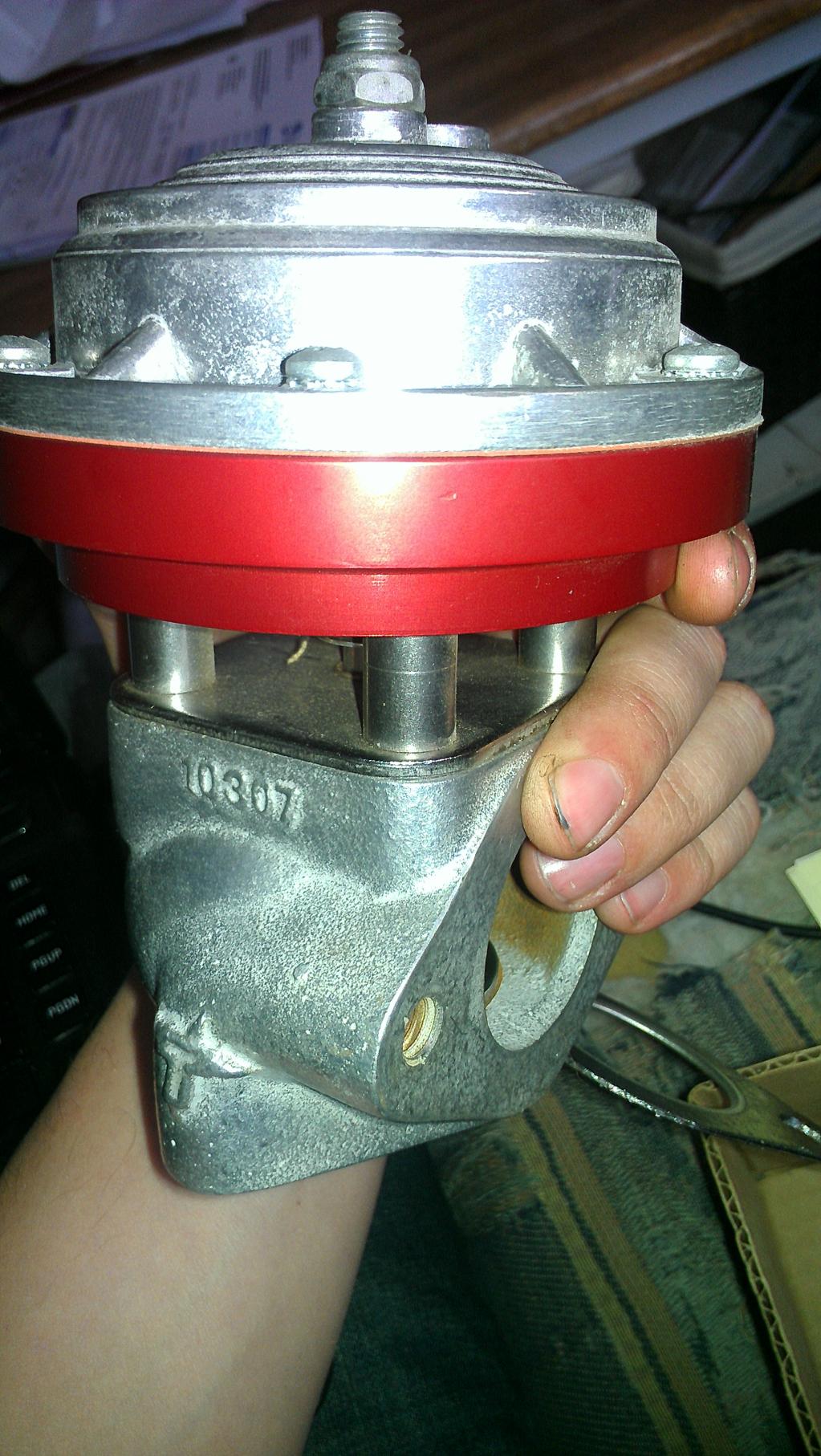

Wastegate – HKS GT - ordered from overboost.com
Greddy Profec-B – Boost valve Controller)- ordered from preludeparts.com.com

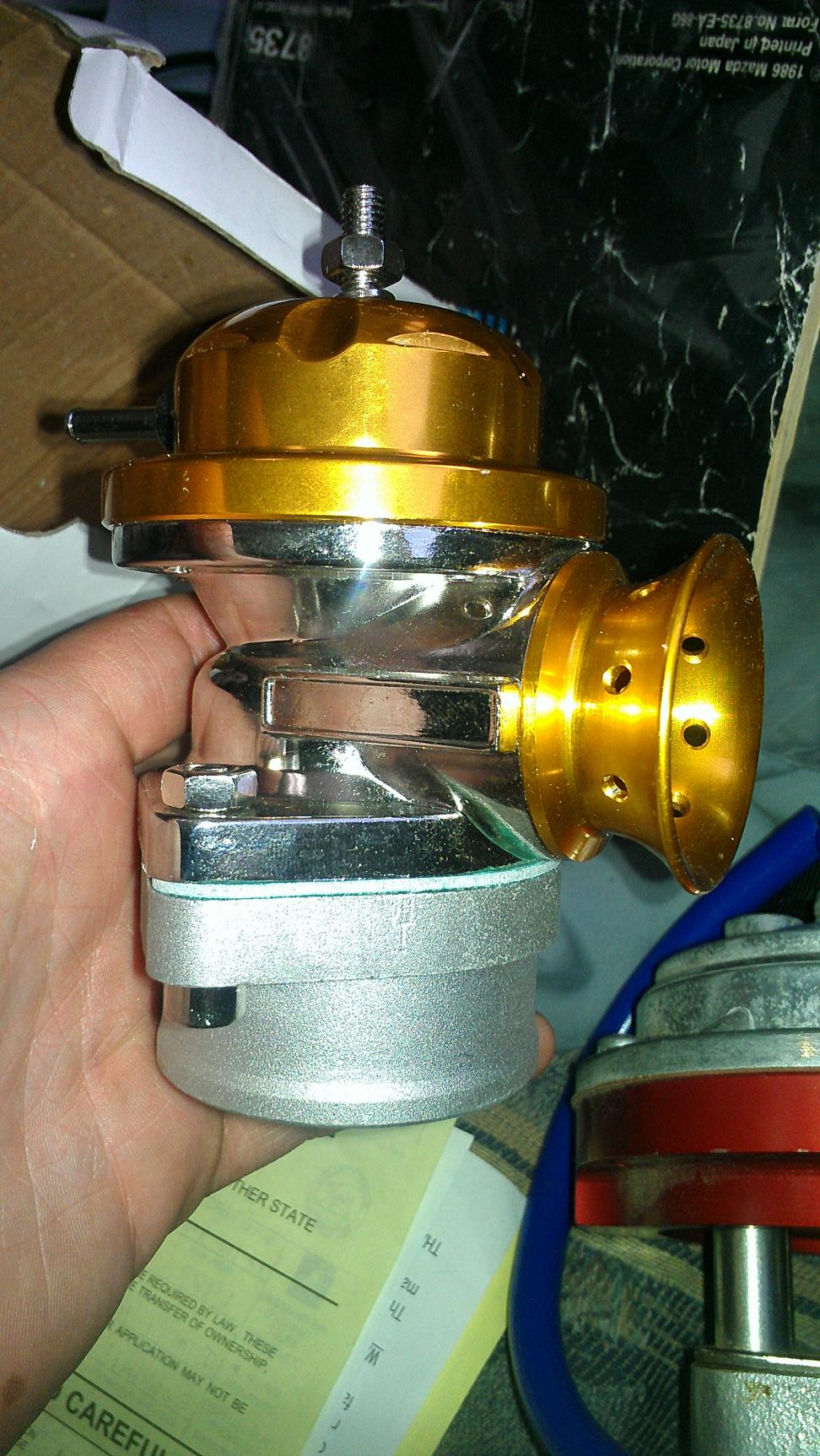

BOV – By Pass Valve – HKS Racing- ordered from overboost.com.com
Intercooler – Isuzu NPR - already have it
Custom Intercooler Piping
MSD 6AL- already have it
High Output alternator (should have come with engine) 80amps or better- already have it
Dual sleeve alternator Pulley)- ordered from racingbeat.com
2nd Gen Leading Coils with ignitors- already have it
2nd Gen Trailing coils with ignitors- already have it
2nd Gen Engine Fuse block – to replace crappy “Fusible Links” - already have it
Black Magic Electric Fan for radiator- already have it
Aeromotive 1000HP Fuel Pump- already have it
Aeromotive Fuel Pressure Regulator- already have it
Aeromotive In Line 10 Micron Fuel Filter- already have it
Lots of 10AN Lines and Fittings ($$$$)- already have a bunch
New Oil Cooler lines )- ordered from racingbeat.com
Haltech E6K with Flying Lead/bridge (RPM Perfomance?)
Turbo II Transmission (1988)- already have it
Custom Made Transmission Mount or Modify mine?
Racing beat Lightweight (17lb) steel flywheel- already have it
Turbo II counterweight- already have it
Upgraded Turbo II Pressure Plate- already have it
4-Puck heavy duty clutch- already have it
Turbo II starter (or automatic N/A one)- already have it
1st Gen Shifter housing (another reason to use a GSL-SE)
Turbo II Slave Cylinder- already have it
Optima Sealed Battery Relocated to Passenger Bin)- got the Yellow Top
Long Battery cables for relocation- already have it
Reinforce/Adjust the GSL-SE differential- need to do!
Custom Exhaust Down pipe
Custom Exhaust Pipe to muffler
Magnaflow muffler? Don’t know yet.
Crystal Lenses – High Output Halogen headlights.- already have it
Intake and Exhaust gaskets- Still Need - 3rd Gen ones?
SUSPENSION
Eibach Pro Springs front and rear- ordered
Tokico Illuminas (5 way) struts front and rear- ordered
Energy Suspension Polyurethane bushings in the front, new stock rubber ones in the rear)- ordered from pst.com
Hawk Racing Brake Pads front and rear)- ordered from racingbeat.com
GAUGES:
VDO 3 gauge “A” Pillar Pod with:
Autometer Ultra-light 2-1/16 - Boost pressure – MY FAVORITE. - already have it
Autometer Ultra-light 2-1/16 - Fuel Pressure (Electrical) - already have it
Autometer Ultra-light 2-1/16 - EGT – Exhaust Gas Temperature (Needs the probe) - already have it
Custom Center console covered in Carbon Fiber with:
Autometer Ultra-light 2-1/16 - Rich/Lean indicator- already have it
in the location of the stock clock
3 additional gauges under the Sony CDX-MP70 MP3 Player:
Autometer Ultra-light 2-1/16 - Water Temperature (Electrical) - already have it
Autometer Ultra-light 2-1/16 - Oil Pressure (Electrical) - already have it
Autometer Ultra-light 2-1/16 - Oil Temperture- already have it
EVENTUALLY:
Mariah Widebody Mode 1 Kit with Wheels.
3rd Gen seats (in black)
5 Point Racing Harnesses - IMMEDIATELY
4 Point Roll Bar/Cage - IMMEDIATELY
2 More MSD 6A’s for ultimate ignition
G-Tech Pro
As you can see,MY parts list is quite extensive. Luckily I am about 90% of the way there. I will be completing this list within the next 60 days, and then tearing into the car shortly thereafter. I anticipate finishing by the end of the summer if it all works out.

By the way, this does not include Labor, misc parts, time, time, and did I mention time?
Also TOOLS. Engine lifts, engine stands, Air compressors, parts washers, extra nuts, bolts, aluminum sheets for fabricating, etc. Labor is very expensive, as only a real quality rotary mechanic can do this, unless you know how to do it yourself.

I will be doing most of it myself, with the exception of the fuel system, Haltech installation, tuning, and Dyno testing. All of which is very expensive as well.

As you can see, it is not easy, quick, or cheap. It is quite an expensive toy that will NEVER be worth what you put into it. In other words, even if you do a real awesome job, that looks like factory OEM - you will never even get half of the money you invested into it if you try to resell it.

Why I am I doing this? Because I have always wanted a Turbo 1st Gen since my first RX-7 over 14 years ago. I plan to keep it as long as I can, and make well over 400 hp to the rear wheels. It will be my “fun” car. Not a daily driver by any means.

Before you consider this route let me recommend a few things.
1) Have another Car for daily use (pick-up truck recommended)
1) Don’t start until you have all the parts you need. (you will need more than you think)
2) Unless you want more than 250 hp (which is a shitload for a 1st Gen),
go another route.

ANOTHER ROUTE:

1) Take your (12A) engine, rebuild it, Streetport it, get some nice headers and a good carb (Weber/Dellorto) and you’ll be at about 200 hp for less than $1200
2) Same thing, with a 13B = 230 hp, about $1500

3) Turbocharge your 12A. – Get a Holly 550, a Rising rate Fuel Pressure Regulator, an Intercooler, an old RX-7 Turbo with manifold (modified), a locked distributor, and you’ll be at 220 HP on a stock port 12A, 250 HP with a Street Port. – Less than 2K

4) Turbocharge a 13B. – Get a Holly 550, a Rising rate Fuel Pressure Regulator, an Intercooler, an old RX-7 Turbo with manifold, a locked distributor, and you’ll be at 240 HP on a stock port 12A, 280 HP with a Street Port. – Less than 2200

5) A Nitrous Oxide System. Good only on a Street or Bridge port, you must do this EXTREMELY Well, with plenty of safeguards to avoid blowing your engine. – Less than $500 for the kit, and Extra 50-75 HP over what you currently have.

I hope this has provided you with MORE THAN ENOUGH information concerning a swap like this. Go to the RX-7 Forum, the web and Read, Read, Read.

Check this particular thread for all the goodies:
TII Swap itno GSL-SE

Good Luck and keep us posted!
================================================== =======
END QUOTE

(I just didn't like the italicized way a regular quote is used so I wrote where his quote starts and stops)

Now, as anyone looking at this thread should know by now, I am a very open guy that likes to share info and things for others. I've provided my list of links so far to things that have helped me learn and move towards my goal.

I'll keep posting here with pics, videos, and ideas and I'd appreciate those of you that are considering the swap and those I've featured above could help me out as well.

Thanks,
Austin
lindahlish is offline   Reply With Quote
Old 02-12-13, 11:59 PM   #2
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Here's a short video of a walk around of my TII car that I'll be using for the swap.


Not meaning to double post, it just came through right now.
lindahlish is offline   Reply With Quote
Old 02-13-13, 10:10 AM   #3
Never Follow
10 Year Member

82transam's Avatar

Trader Score: (16)

Join Date: Feb 2002
Location: North Jersey
Posts: 7,799
pandafb
Nice detailed post so far, much better job than I did with mine lol. Hopfully I can put together a better writeup when I get to the T2 swap in my GS in a few months...

Good luck with the swap, you're off to a good start.
82transam is offline   Reply With Quote
Old 02-13-13, 05:05 PM   #4
Spankin' the Wank
5 Year Member

highnitro12187's Avatar

Trader Score: (19)

Join Date: Dec 2007
Location: Vancouver, WA
Posts: 473
looks like a good swap you got going on! glad to see another turbo fb guy starting up. welcome to the club!
__________________
My New 85 re-do Here

My Old FB T2 Rebuild/swap thead Here

Keep on Rotating
highnitro12187 is offline   Reply With Quote
Old 02-13-13, 05:39 PM   #5
HeyHeyHey..Its the Goose

Qingdao's Avatar

Trader Score: (2)

Join Date: Apr 2012
Location: Charleston
Posts: 965
In about 2 hours I'll have my turbo and exhaust manifold too.

But I've still gotta lot of time left on building my BP engine... And a Shiton more money needed.


I'm not gonna intercool. Just because I don't like all of the plumbing involved. It detracts from the beauty of the engine bay IMPO.



Spool up brother! \m/




.
__________________
1979 S 13B N/A
1984 GS 13BT
1979 GS 12A 90% factory stock WIP
Qingdao is offline   Reply With Quote
Old 02-14-13, 12:47 AM   #6
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Quote:
Originally Posted by 82transam View Post
Nice detailed post so far, much better job than I did with mine lol. Hopfully I can put together a better writeup when I get to the T2 swap in my GS in a few months...

Good luck with the swap, you're off to a good start.
Thanks I'm looking forward to your help throughout the swap, I'll need it.

Quote:
Originally Posted by highnitro12187 View Post
looks like a good swap you got going on! glad to see another turbo fb guy starting up. welcome to the club!
I can't wait to drive the thing! Just running the TII is fun enough, and I'm taking it out for a drive tomorrow.

Quote:
Originally Posted by Qingdao View Post
In about 2 hours I'll have my turbo and exhaust manifold too.

But I've still gotta lot of time left on building my BP engine... And a Shiton more money needed.

I'm not gonna intercool. Just because I don't like all of the plumbing involved. It detracts from the beauty of the engine bay IMPO.

Spool up brother! \m/
Hope your turbo install goes well! I figure buying a running, driving car with good compression on the engine is more beneficial to me right now than tearing an engine down since I don't necessarily have the space, time, or tools to complete the engine build in a reasonable time.

Tonight I got in the Energy Suspension bushings for the rear control arms and the Watts linkage for the rear axle from UPS.
Click the image to open in full size.

I'll be taking out the TII for a drive tomorrow just for the heck of it (if the roads are somewhat decent and I don't see any cops) and will tape it with the Gopro. I just want to make sure the engine warms up, idles decently, and the trans works well also.
Attached Thumbnails
Austin's FB TII Swap - Details and Pics Aplenty-2013-02-13-19.57.33.jpg
lindahlish is offline   Reply With Quote
Old 02-14-13, 11:28 AM   #7
'84 5-letter
10 Year Member

ioTus's Avatar

Trader Score: (5)

Join Date: Jul 2002
Location: Washington State
Posts: 3,169
iotus iotus ioTus
Send a message via AIM to ioTus Send a message via MSN to ioTus Send a message via Skype™ to ioTus
Saweeet! Let the games begin. I'm really glad you went with the turbo swap. You're going to have a blast man!

Your car is CLEAN. First that's one of my top favorite colors on an FB, second that interior is mint. Don't get rid of it!
__________________
Build thread: 1984 5-letter / S5 "Selene"
ioTus is offline   Reply With Quote
Old 02-14-13, 06:25 PM   #8
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Quote:
Originally Posted by ioTus View Post
Saweeet! Let the games begin. I'm really glad you went with the turbo swap. You're going to have a blast man!

Your car is CLEAN. First that's one of my top favorite colors on an FB, second that interior is mint. Don't get rid of it!
I'll be keeping the interior just as it is now - as much as people rip on the burgundy I do love it when it is in mint condition

Here are a few tidbits I bought with the car:

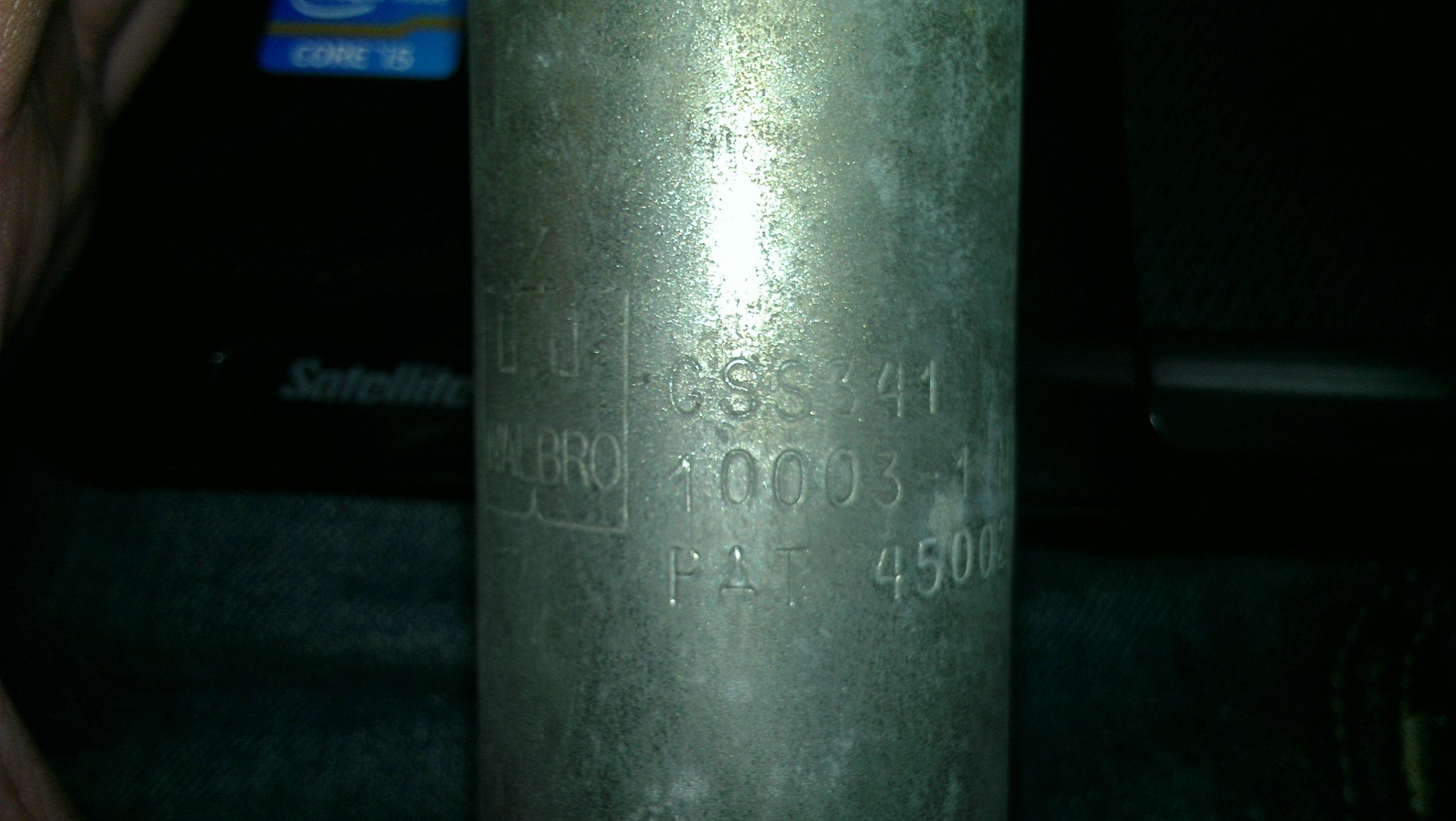

A Walbro 255lph fuel pump
Click the image to open in full size.

A Turbonetics wastegate
Click the image to open in full size.

An eBay shiny BOV
Click the image to open in full size.

And here's all the paperwork that came with the car and I may be getting a title for it as well...maybe...
Click the image to open in full size.

Click the image to open in full size.
And I found all of this while going through the entire car with all the bins of parts and such that was included in the sale. Among other things was:
A complete A/C system for the S4 engine
Another S4 UIM and LIM
Complete rat's nest
Stock Turbo II TMIC
And some other odds and ends

So today I took the TII out for a spin and that thing RIPS!! Compared to my little, completely stock, worn out 12a the TII felt like a rocket! Unfortunately the plows haven't cleaned up the 3" or so of snow and sleet we got yesterday and into last night so I couldn't fully open her up. I took a video again of my drive and will post it as soon as it's on YouTube. Uploading 1080p 30fps video takes a very long time...
Attached Thumbnails
Austin's FB TII Swap - Details and Pics Aplenty-2013-02-14-16.30.49.jpg   Austin's FB TII Swap - Details and Pics Aplenty-2013-02-14-16.31.14.jpg   Austin's FB TII Swap - Details and Pics Aplenty-2013-02-14-16.31.35.jpg   Austin's FB TII Swap - Details and Pics Aplenty-2013-02-14-13.10.35.jpg   Austin's FB TII Swap - Details and Pics Aplenty-2013-02-14-17.14.02.jpg

lindahlish is offline   Reply With Quote
Old 02-14-13, 10:34 PM   #9
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Here's the driving video I took.

lindahlish is offline   Reply With Quote
Old 02-15-13, 09:01 AM   #10
Village Idiot

woodmv's Avatar

Trader Score: (1)

Join Date: Nov 2010
Location: SE VA
Posts: 549
Nice! makes me wish I had mine running...
__________________
Woodmv - SE VA
SA22C506906
my 79 barn find thread
woodmv is offline   Reply With Quote
Old 02-15-13, 09:29 AM   #11
Never Follow
10 Year Member

82transam's Avatar

Trader Score: (16)

Join Date: Feb 2002
Location: North Jersey
Posts: 7,799
pandafb
It's amazing how fast a T2 engine feels compared to the 12a isn't it? Wait till you have it in the much lighter FB
82transam is offline   Reply With Quote
Old 02-15-13, 11:38 AM   #12
'84 5-letter
10 Year Member

ioTus's Avatar

Trader Score: (5)

Join Date: Jul 2002
Location: Washington State
Posts: 3,169
iotus iotus ioTus
Send a message via AIM to ioTus Send a message via MSN to ioTus Send a message via Skype™ to ioTus
Dang dood that looks chilly.

I will no longer complain about 38 degrees (F) and gravel all over the roads. You're driving down that road I'm like **** BRO SNOW WATCH OUT!

But when you're embedded in it like you are i suppose you totally get used to it. When I sand bag it and put winters on the rear I can drive teh FB no problem in snow. I prefer not to, and after my WRX wagon, AWD with 4x studs, its hard driving anything else in the snow.

I hope you have a good shop heater ;-)
__________________
Build thread: 1984 5-letter / S5 "Selene"
ioTus is offline   Reply With Quote
Old 02-15-13, 03:51 PM   #13
What's that smell?
5 Year Member

captainbizzaro's Avatar

Trader Score: (0)

Join Date: Jul 2007
Location: Dorset, England
Posts: 207
Gotta love S4 Turbo motors, low compression ratio ahoy woopwoop.
__________________
'80 13BT SA
'80 SA resto project
'80 rat SA running on 48 IDA's and a bad attitude
'83 FB S2
captainbizzaro is offline   Reply With Quote
Old 02-16-13, 01:04 PM   #14
Mazda Tech
5 Year Member

MazdaMike02's Avatar

Trader Score: (4)

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,534
Mazda Mike13B
Send a message via MSN to MazdaMike02
Looks like its getting underway. Hope it turns out well.
__________________
85' GSL 13B Weekend Warrior Build
http://www.rx7club.com/build-threads.../#post11159872
2008 Mazda 3 GT the DD
MazdaMike02 is offline   Reply With Quote
Old 02-16-13, 07:36 PM   #15
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Quote:
Originally Posted by woodmv View Post
Nice! makes me wish I had mine running...
It's a blast, let me tell ya. As Sean has told me, the 200hp that makes the FC a fun car will make the FB a rocket and after driving it I cannot WAIT to swap!!

Quote:
Originally Posted by 82transam View Post
It's amazing how fast a T2 engine feels compared to the 12a isn't it? Wait till you have it in the much lighter FB
Oh it's ridiculous! And in the video I only took three pulls, and only one of them kind of counted and I am anxiously awaiting the day I get the engine in the FB and get it running

Quote:
Originally Posted by ioTus View Post
Dang dood that looks chilly.

I will no longer complain about 38 degrees (F) and gravel all over the roads. You're driving down that road I'm like **** BRO SNOW WATCH OUT!
You had my fiance and I literally laughing out loud with that one! I have never typed lol but LOL,

Quote:
Originally Posted by ioTus View Post
But when you're embedded in it like you are i suppose you totally get used to it. When I sand bag it and put winters on the rear I can drive teh FB no problem in snow. I prefer not to, and after my WRX wagon, AWD with 4x studs, its hard driving anything else in the snow.
Yeah, it just takes a few times in the ditch and you learn real quick how bad it can suck. I blew out a 4 speed automatic tranny on a 4x4 truck because I got stuck in the snow and had to rebuild it in my bedroom in 2 weeks. I learned real fast after that.

And there's a Subaru Legacy Outback AWD 5-speed Wagon under a lean-to connected to our shed right now waiting on an $800+ driveshaft since Subi made sure not to put replaceable u-joints in their cars so you had to buy the Subi shaft. Dumb. But that thing is a blast in the winter in an open lot

Quote:
Originally Posted by ioTus View Post
I hope you have a good shop heater ;-)
Well, I use a shed...what's a shop?? is that like a garage???

I have no protection for this car right now besides the exterior body panels covering the interior and the hood covering the motor. My FB is in my grandparent's one car garage and that's where I'll be doing the swap (even though it's an hour away from me) but I have to deal completely with the elements, and have had to since I was born. You get used to that too, and it'll make me appreciate the shop later in life.

Quote:
Originally Posted by captainbizzaro View Post
Gotta love S4 Turbo motors, low compression ratio ahoy woopwoop.
Oh yeah, bunches of fun and a little safer than S5 with a higher compression ratio.

Quote:
Originally Posted by MazdaMike02 View Post
Looks like its getting underway. Hope it turns out well.
Thanks! I hope so too
lindahlish is offline   Reply With Quote
Old 02-17-13, 03:26 AM   #16
Insane Burnout

tacoboy1503's Avatar

Trader Score: (1)

Join Date: Aug 2009
Location: Jacksonville IL
Posts: 361
http://www.facebook.com/joshrx7rotary http://417rotary.com/forum/viewtopic.php?f=35&t=2240
sweet !!! i just did mine this wkd and gotta redo the my intake gasket since i forgot to order mine,, i just made me own w/ cork and it didnt do the trick.. got vacuum leak so after i get that fix i think im set besides exhaust
tacoboy1503 is offline   Reply With Quote
Old 02-17-13, 10:11 AM   #17
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Quote:
Originally Posted by tacoboy1503 View Post
sweet !!! i just did mine this wkd and gotta redo the my intake gasket since i forgot to order mine,, i just made me own w/ cork and it didnt do the trick.. got vacuum leak so after i get that fix i think im set besides exhaust
Yeah, I'll be ordering a few different gaskets from Atkins before the swap so I can take the external parts off of the engine to paint it before the install. If I would have stayed 12a I would have done the same thing this winter because I want a nice, clean, shiny engine bay instead of the dusty one I have now.

Exhaust... I got the stock downpipe with the purchase and will probably use it for a mock up for a while but I'm extremely undecided what I want to do. Probably 3" stainless with two Magnaflow mufflers, one acting as a presilencer and the other as a muffler at the end of the car. I just don't want to restrict it too much but I don't want it to be extremely loud either..
lindahlish is offline   Reply With Quote
Old 02-18-13, 02:03 PM   #18
'84 5-letter
10 Year Member

ioTus's Avatar

Trader Score: (5)

Join Date: Jul 2002
Location: Washington State
Posts: 3,169
iotus iotus ioTus
Send a message via AIM to ioTus Send a message via MSN to ioTus Send a message via Skype™ to ioTus
Quote:
Originally Posted by lindahlish View Post
.

Exhaust... I got the stock downpipe with the purchase and will probably use it for a mock up for a while but I'm extremely undecided what I want to do. Probably 3" stainless with two Magnaflow mufflers, one acting as a presilencer and the other as a muffler at the end of the car. I just don't want to restrict it too much but I don't want it to be extremely loud either..
On my s4 turbo swap I had the RB 2.5" down pipe, single 2.5" presilencer, then 2.5" over axle into a 2.5" inlet (street port) RB powerpulse muffler.

Best soundin exhaust I've heard on any car ever.

However, a little birdy told me they can get a hold of super secret 3" RB powerpulse mufflers.

Honestly that may be the way to go - full 3"
__________________
Build thread: 1984 5-letter / S5 "Selene"
ioTus is offline   Reply With Quote
Old 02-18-13, 05:58 PM   #19
HeyHeyHey..Its the Goose

Qingdao's Avatar

Trader Score: (2)

Join Date: Apr 2012
Location: Charleston
Posts: 965
I'm doing 2.5 all the way back.

$15.95 glasspak & whatever $15.95 muffler I can find.

$20 of steel piping....

$50 exhaust good to go!!
__________________
1979 S 13B N/A
1984 GS 13BT
1979 GS 12A 90% factory stock WIP
Qingdao is offline   Reply With Quote
Old 02-18-13, 06:39 PM   #20
'84 5-letter
10 Year Member

ioTus's Avatar

Trader Score: (5)

Join Date: Jul 2002
Location: Washington State
Posts: 3,169
iotus iotus ioTus
Send a message via AIM to ioTus Send a message via MSN to ioTus Send a message via Skype™ to ioTus
Quote:
Originally Posted by Qingdao View Post
I'm doing 2.5 all the way back.

$15.95 glasspak & whatever $15.95 muffler I can find.

$20 of steel piping....

$50 exhaust good to go!!
Be ready to do it over again. I had a similar setup, eBay special N1 style muff. That lasted a week. Couldn't bear to drive it
__________________
Build thread: 1984 5-letter / S5 "Selene"
ioTus is offline   Reply With Quote
Old 02-18-13, 08:23 PM   #21
HeyHeyHey..Its the Goose

Qingdao's Avatar

Trader Score: (2)

Join Date: Apr 2012
Location: Charleston
Posts: 965
Quote:
Originally Posted by ioTus View Post
Be ready to do it over again. I had a similar setup, eBay special N1 style muff. That lasted a week. Couldn't bear to drive it
Nope... There is a local parts dealer that has a rack. Good stuff sold cheaply, not cheap stuff.
__________________
1979 S 13B N/A
1984 GS 13BT
1979 GS 12A 90% factory stock WIP
Qingdao is offline   Reply With Quote
Old 02-19-13, 11:29 AM   #22
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Quote:
Originally Posted by ioTus View Post
On my s4 turbo swap I had the RB 2.5" down pipe, single 2.5" presilencer, then 2.5" over axle into a 2.5" inlet (street port) RB powerpulse muffler.

Best soundin exhaust I've heard on any car ever.

However, a little birdy told me they can get a hold of super secret 3" RB powerpulse mufflers.

Honestly that may be the way to go - full 3"
Well, I've researched it out and I don't think I can justify the cost to get full 3" stainless exhaust. I think I'll be doing the RB downpipe, because that seems to be a reoccurring theme in TII swaps - and why not use what works?? I'll try to get the 3" DP and go into a presilencer, to a Magnaflow muffler out the back. Would got from 3" to 2.5" but we will see.

Quote:
Originally Posted by Qingdao View Post
I'm doing 2.5 all the way back.

$15.95 glasspak & whatever $15.95 muffler I can find.

$20 of steel piping....

$50 exhaust good to go!!
Yeah, I'll probably go a bit more all out than that - but with how expensive this build is getting I may have to go with something along these lines. Hopefully not though, I'd like the system to last a few years until I can do a complete system that will support 500whp

Now, what I've done over the last few days:

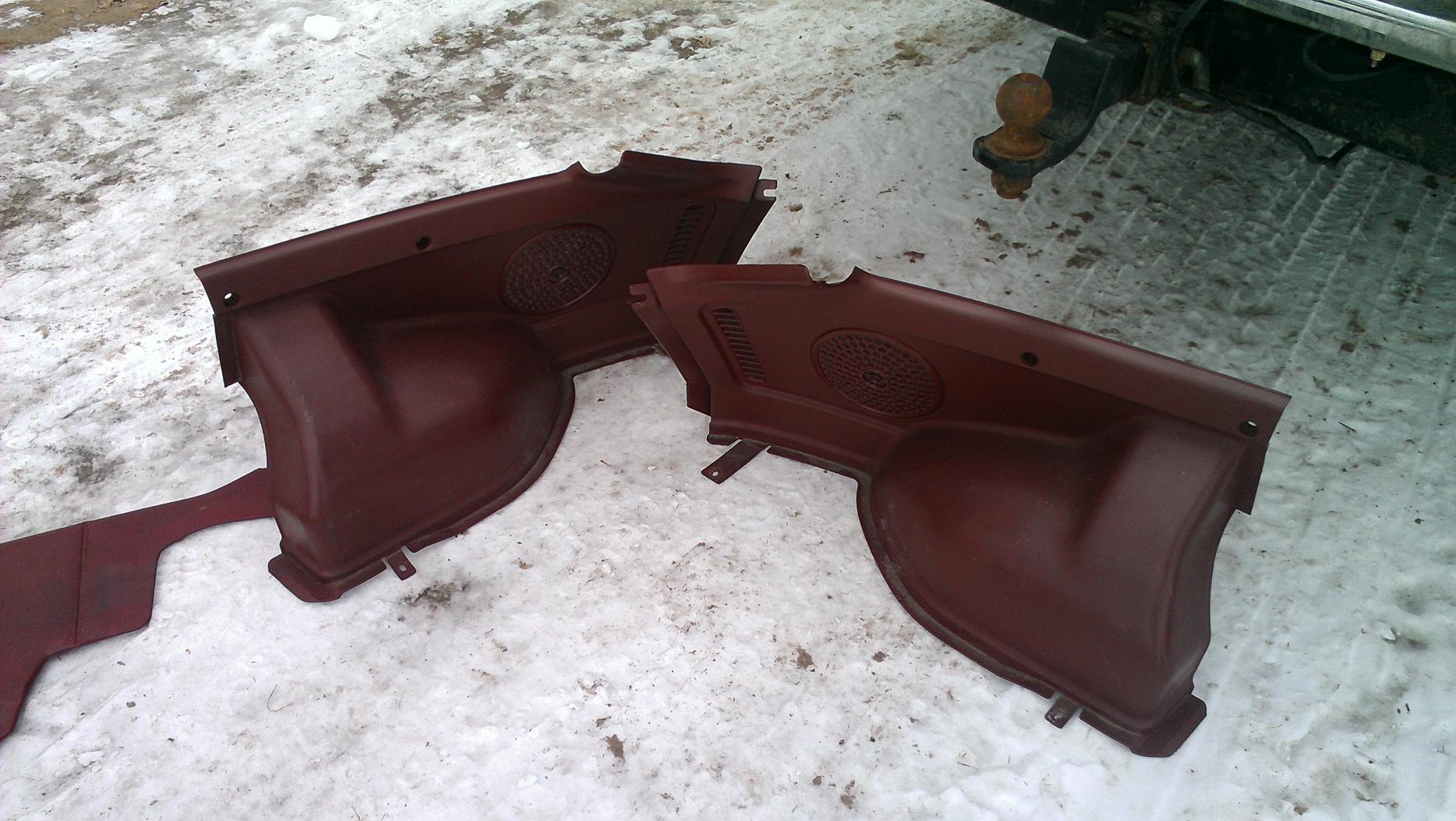

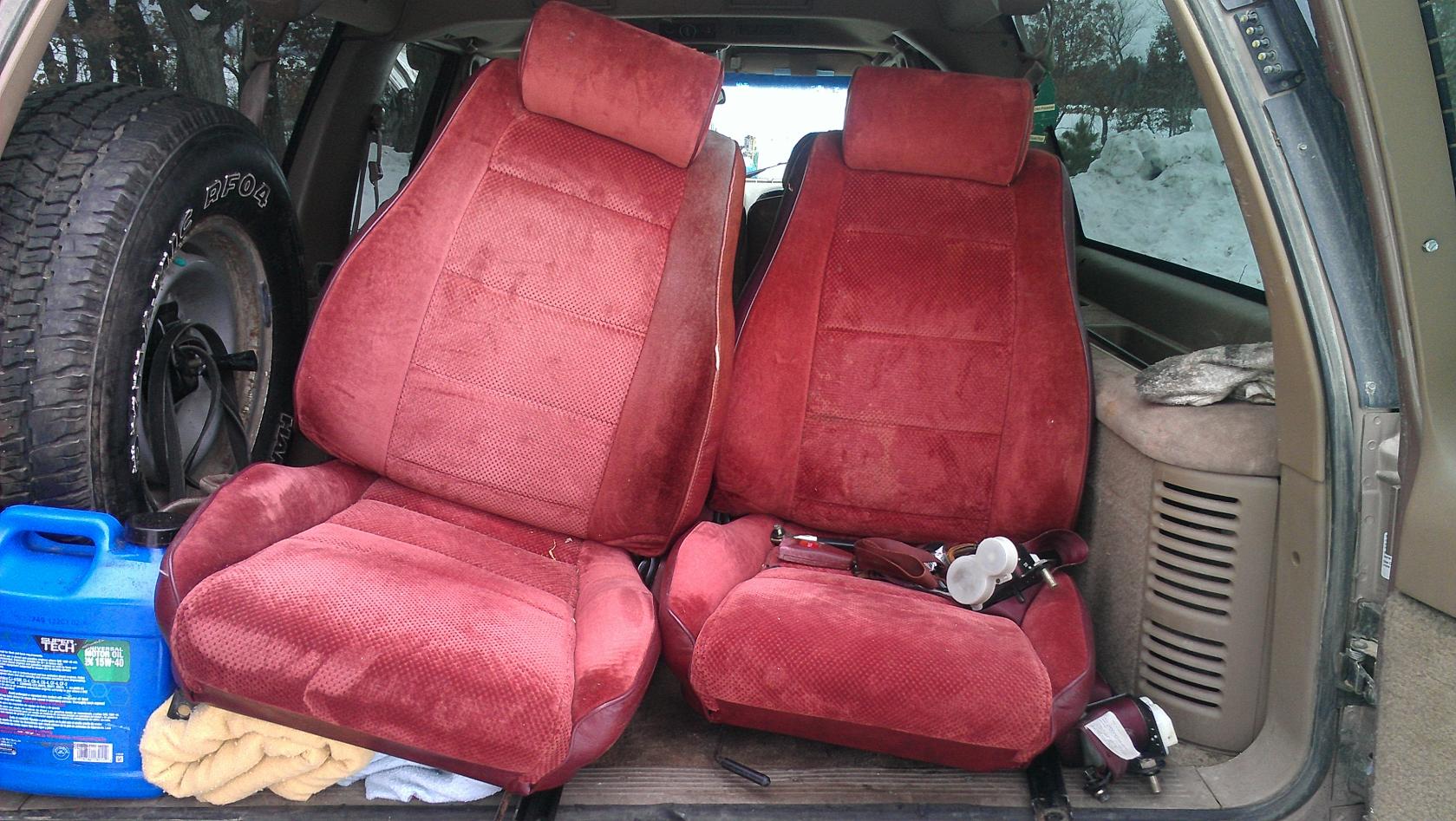

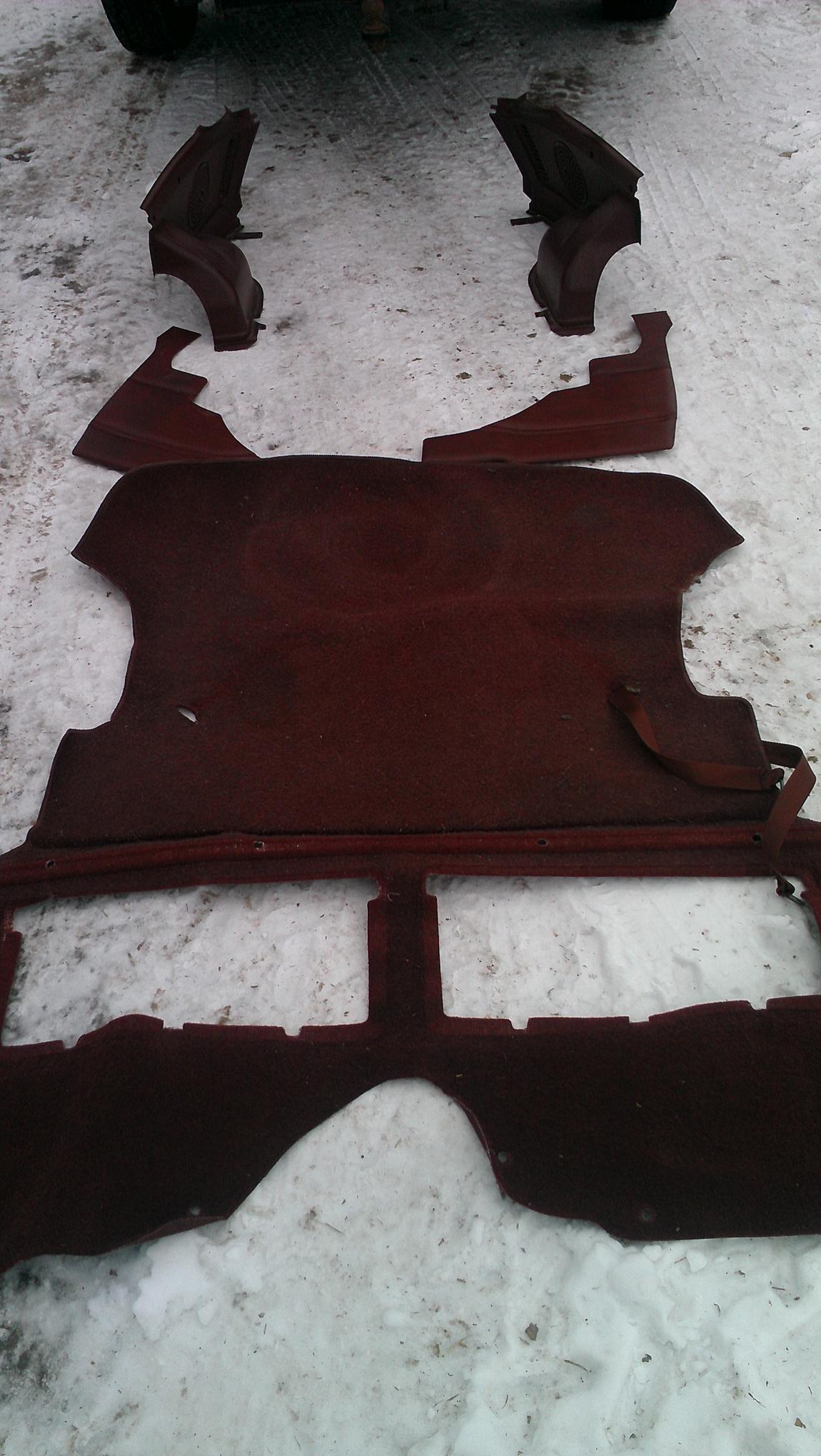

I went on an hour and a half excursion to meet up with a local member (username TOFUDRIFTER) with my RX-7 buddy and found Mike to be an awesome guy who I look forward to hanging out with this summer. He has an 83 LE that he's stripping the interior out of and put up for sale. So I went out and picked up some parts from him and would like to come out and get anything else he doesn't use.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

And here's a video of what I believe is the dreaded S4 ECU fuel cut. Take a view and let me know.


This has got me considering running the Rtek 1.7 or 1.8 to avoid this fuel cut and get better performance out of the almost stock ECU. We will see...

Here's another video of the loping idle issue I'm having and trying to figure out - any ideas??


Oh, and I tested the compression in both rotors yesterday - 110psi for 3 solid bumps on both rotors for the win!!!
Attached Thumbnails
Austin's FB TII Swap - Details and Pics Aplenty-2013-02-18-12.03.31.jpg   Austin's FB TII Swap - Details and Pics Aplenty-2013-02-18-12.02.32.jpg   Austin's FB TII Swap - Details and Pics Aplenty-2013-02-18-12.02.19.jpg

Last edited by lindahlish; 02-19-13 at 11:55 AM. Reason: Had to add some things
lindahlish is offline   Reply With Quote
Old 02-19-13, 01:37 PM   #23
'84 5-letter
10 Year Member

ioTus's Avatar

Trader Score: (5)

Join Date: Jul 2002
Location: Washington State
Posts: 3,169
iotus iotus ioTus
Send a message via AIM to ioTus Send a message via MSN to ioTus Send a message via Skype™ to ioTus
NICE score on the interior parts - that carpet, seats, and panels look amazing!!!

Def go with the rTek. I'd get the top model -what is it 2.1 or something?

I'd say you're on the right track with the exhaust. Get the solid downpipe, and count on doing everything there-back over at least once

With two magnaflows, you should be alright, though it may be a bit loud. I think with 2 in there it shouldn't be tinny at all though, so you should be good to go there. The turbo quiets it down a bit, almost like 1/3 of a muffler, one magnaflow I dont think will be enough.

One thing to consider is that if you're using 3" on a stock-ish turbo, you may encounter boost creep after the wastegate is maxed out and the exhaust is still welcoming more flow. It will suck through the turbo, spooling it faster as the wastegate is now effectively "blocked" (still flowing but at max capacity).
__________________
Build thread: 1984 5-letter / S5 "Selene"
ioTus is offline   Reply With Quote
Old 02-19-13, 03:35 PM   #24
Never Follow
10 Year Member

82transam's Avatar

Trader Score: (16)

Join Date: Feb 2002
Location: North Jersey
Posts: 7,799
pandafb
Yeah if you want to keep all the stock functionality but have the ability to tune it then go Rtek, i'm very happy with mine.

If you plan to go standalone in the future, a cheap way to get around the fuel cut is to just buy one of those fuel cut defenders that RB (and a slew of other places) sell for like $50.

I agree fully with ioTus, whatever you decide to do now on the car, whether it be the exhaust or the intake piping etc, expect to redo it at least once or twice. I've redone all of mine several times over lol It's just how it goes. Like I said in that one email, you're biggest concern at this point should be to get the engine in the car and running/driving without issues
82transam is offline   Reply With Quote
Old 02-19-13, 09:57 PM   #25
Parts Hunter For Life

lindahlish's Avatar

Trader Score: (27)

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 1,797
Austin Lindahl BenelliSBEM2
Quote:
Originally Posted by ioTus View Post
NICE score on the interior parts - that carpet, seats, and panels look amazing!!!
Oh yes they do! I'll be going back and getting some more parts from him if I take the time to go down again, maybe on a day off I'll go work on my car and get some parts from him at the same time.

Quote:
Originally Posted by ioTus View Post
I'd say you're on the right track with the exhaust. Get the solid downpipe, and count on doing everything there-back over at least once

With two magnaflows, you should be alright, though it may be a bit loud. I think with 2 in there it shouldn't be tinny at all though, so you should be good to go there. The turbo quiets it down a bit, almost like 1/3 of a muffler, one magnaflow I dont think will be enough.
I actually just found a deal for an RB DP and presilencer for a turbo application - praying that no one else steals it from me before my next pay check on the 27th....tempted to put money down on the setup to ensure I get it.

Quote:
Originally Posted by ioTus View Post
One thing to consider is that if you're using 3" on a stock-ish turbo, you may encounter boost creep after the wastegate is maxed out and the exhaust is still welcoming more flow. It will suck through the turbo, spooling it faster as the wastegate is now effectively "blocked" (still flowing but at max capacity).
Ohhhhhhh boost creep! I actually just read on porting the stock wastegate on the S4 turbos since they are prone to have the issue of boost creep. Aaron Cake is becoming a rotary legend and I will be following his tutorial on his website for porting the stock wastegate. And I'll be doing the 2.5" method now, looked at prices and want to go with a worthwhile exhaust but one that I won't feel bad about replacing later.

Quote:
Originally Posted by ioTus View Post
Def go with the rTek. I'd get the top model -what is it 2.1 or something?
Quote:
Originally Posted by 82transam View Post
Yeah if you want to keep all the stock functionality but have the ability to tune it then go Rtek, i'm very happy with mine.
Rtek it is! I'm just not sure which version to get:
1.5 too outdated
1.7 550cc primary injectors, 720cc secondaries minimum $150 new install
1.8 720cc primary and secondary injectors minimum $150 new install
2.1 Can be tuned, but looking at ~$500+, and for that price I could get a Haltech with a harness

Quote:
Originally Posted by 82transam View Post
If you plan to go standalone in the future, a cheap way to get around the fuel cut is to just buy one of those fuel cut defenders that RB (and a slew of other places) sell for like $50.
I looked into them and I decided that for an extra hundred, why not just send my chip into the Rtek guys and have them address many common issues instead of just the fuel cut? I figure it would be a $100 well spent on a safety feature, performance is also a factor though as well. Trust me, the RB FCd is the first thing I looked at then I found the Rtek option.

Quote:
Originally Posted by 82transam View Post
I agree fully with ioTus, whatever you decide to do now on the car, whether it be the exhaust or the intake piping etc, expect to redo it at least once or twice. I've redone all of mine several times over lol It's just how it goes. Like I said in that one email, you're biggest concern at this point should be to get the engine in the car and running/driving without issues
Oh yeah, I plan on getting it running well then redoing it all - I'm a realist I plan on putting it all in, driving it until the engine goes or I have another car and the income to build it into the monster I believe it can be. Like upgraded turbo, exhaust, ECU, widebody, interior work, rims, tires, among many other things

I'm having a serious issue right now figuring out how to run the fuel system. I have that Walbro 255lph in line fuel pump that I could use, but finding a post or thread on how to do it safely is proving to be difficult.
Fuel Pump Research
Directfreak's Fuel System - nopistons
(INTAKE) EFI-prepping a 1st gen
Best upgraded fuel pump

Or I could do a FD pump for $55 but that's in-tank and I'd have to mod the fuel tank - which isn't out of my expertise, I'd just like not to.
lindahlish is offline   Reply With Quote
Old 02-19-13, 09:57 PM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
11, 1984, ac, chevy, compressor, engine, fb, liter, mazda, motor, mounts, needed, rx, rx7, swap, turbo, whats

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -5. The time now is 04:05 AM.
All content Copyright © 2007 by Internet Brands, Inc.

Contacts
