Prelim testing shows mucho improvements over stock in terms of temperature stability, though that's just from the difference in thermal mass. Considering it only took a few seconds to add 10+ degrees to the stock IC it's worth the weight penalty to me. Still need to get my car weighed though :]
K-Tune is offline
Reply Like
Old 11-23-14, 01:36 PM
  #102
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
I also made a TID for the primary turbo using a 90 and 45 degree coupler
K-Tune is offline
Reply Like
Old 11-28-14, 07:05 PM
  #103
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts

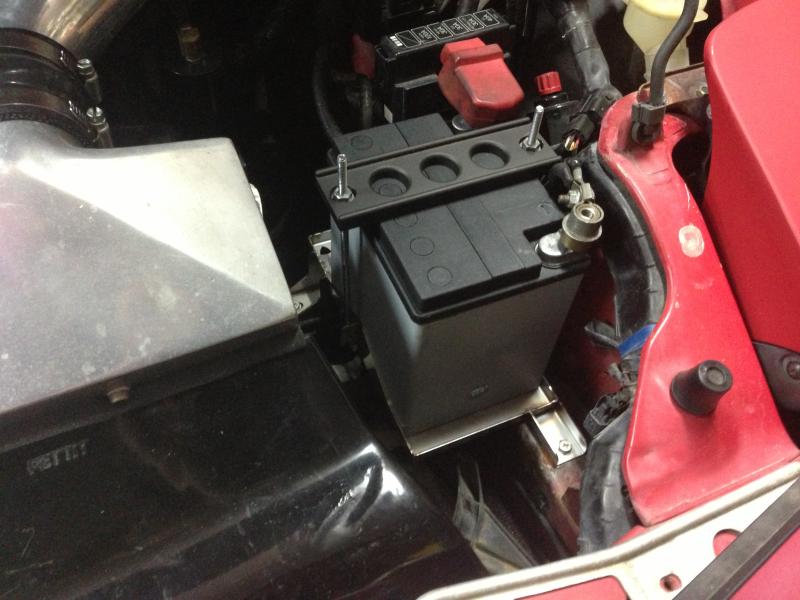

Turbojeff battery tray installed!

Name: IMG_0491_zpse8dfa63c.jpg Views: 55 Size: 60.0 KB
K-Tune is offline
Reply Like
Old 11-28-14, 09:05 PM
  #104
Senior Member


silver_7's Avatar

Join Date: May 2005
Location: Pensacola
Posts: 646
Likes: 0
Received 0 Likes on 0 Posts
Everything looks good. Nice and neat.
silver_7 is offline
Reply Like
Old 11-29-14, 10:30 PM
  #105
Full Member

iTrader: (24)

DriftinJim's Avatar

Join Date: May 2002
Location: South
Posts: 246
Likes: 0
Received 12 Likes on 4 Posts
Did you end up installing water injection yet?
DriftinJim is offline
Reply Like
Old 11-30-14, 08:31 AM
  #106
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Not yet, though I dont really have an excuse for not putting it in yet. Trying to address wheel hop at this point, but I should have WI installed before the next Auto-X season.
K-Tune is offline
Reply Like
Old 11-30-14, 09:08 AM
  #107
Rotary Enthusiast

iTrader: (5)

tt7hvn's Avatar

Join Date: Nov 2005
Location: New Bern, NC
Posts: 1,319
Likes: 0
Received 1 Like on 1 Post
I'm interested to see your WI setup. Since we both have similar setups I'm curious to see how you're going to do it.

Are you going with straight water or methanol mix?

Also, what ECU are you using? Right now I'm running the PFC now but REALLY leaning towards getting an adaptronic.
tt7hvn is offline
Reply Like
Old 11-30-14, 09:30 AM
  #108
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Power FC here. I normally just run straight water unless the temperatures drop below freezing to keep the tank from cracking. My nozzle will be at the bottom of the greddy elbow, and the pump will likely be mounted on the driver side frame rail. I'll be using the washer fluid reservoir as the WI tank.
K-Tune is offline
Reply Like
Old 11-30-14, 03:16 PM
  #109
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts

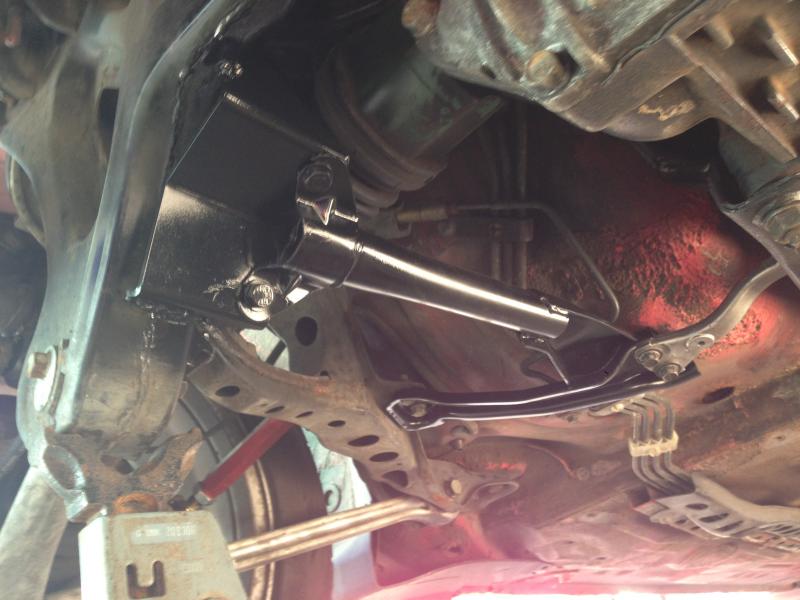

94+ subframe ties adapted
Name: IMG_0493_zpsdb7fb3e0.jpg Views: 86 Size: 58.0 KB

deadly florida wildlife says hi
Name: IMG_0494_zps6500fb7b.jpg Views: 100 Size: 81.6 KB
K-Tune is offline
Reply Like
Old 11-30-14, 09:24 PM
  #110
Time or Money, Pick one

iTrader: (36)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 3,347
Received 154 Likes on 125 Posts
Holy severed leg batman!! I see a coral snake! Yikes
silverTRD is offline
Reply Like
Old 12-01-14, 03:10 PM
  #111
Senior Member


silver_7's Avatar

Join Date: May 2005
Location: Pensacola
Posts: 646
Likes: 0
Received 0 Likes on 0 Posts
Very happy you saved this car. Its come a long way.
silver_7 is offline
Reply Like
Old 12-01-14, 05:00 PM
  #112
Rotary Enthusiast

iTrader: (10)

04G35S's Avatar

Join Date: Jan 2013
Location: Madison, WI
Posts: 1,053
Received 4 Likes on 4 Posts
I need to find some of those 94 sub frame braces for my car!
04G35S is offline
Reply Like
Old 12-01-14, 06:13 PM
  #113
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Originally Posted by silver_7
Very happy you saved this car. Its come a long way.
Thanks man, yes it has.


Anyone that has installed a samberg differential subframe on a 94+ should have these pieces laying around. Requires some welding.
K-Tune is offline
Reply Like
Old 12-03-14, 10:37 AM
  #114
Rotary Enthusiast

iTrader: (5)

tt7hvn's Avatar

Join Date: Nov 2005
Location: New Bern, NC
Posts: 1,319
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 04G35S
I need to find some of those 94 sub frame braces for my car!
Me too! Where did you get those?
tt7hvn is offline
Reply Like
Old 12-03-14, 06:27 PM
  #115
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
They used to be on XLR8s car. The connector plates that I welded on are included with samberg rear subframe kits to adapt their subframe to the 93 cars. His car is a '94 so he didn't need the plates or his old subframe connectors(the samberg cradle replaces these)
K-Tune is offline
Reply Like
Old 12-03-14, 06:32 PM
  #116
Rotary Enthusiast

iTrader: (10)

04G35S's Avatar

Join Date: Jan 2013
Location: Madison, WI
Posts: 1,053
Received 4 Likes on 4 Posts
Where can we order these plates and braces? I can get the braces from the dealer but would love to find the plates so I dont have to make them.
04G35S is offline
Reply Like
Old 12-03-14, 06:44 PM
  #117
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
FD Cobra 8.8 Cradle | Samberg Performance

W shaped pieces towards the top of the picture there..

They dont list them separately on their website.. I would contact them and ask how much for just the plates.
K-Tune is offline
Reply Like
Old 12-07-14, 07:09 PM
  #118
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts

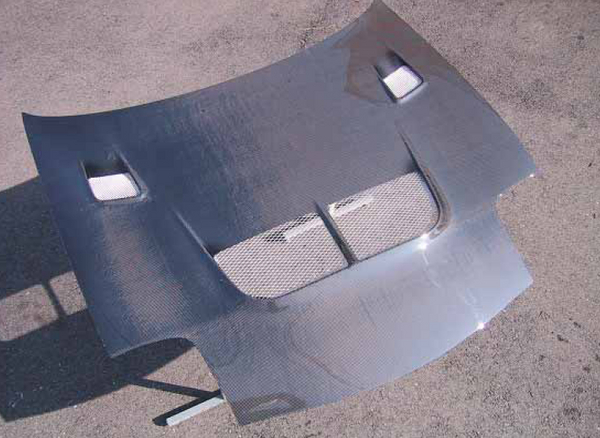

Picked up a crappy mazdaspeed rep hood for $80... actually a really good deal. Went to close the hood...interference with the intercooler, big time. So...went to the internet for inspiration and saw this hood: The "Full Blast"
Name: BFM40121510002_zpscfb98bb8.jpg Views: 92 Size: 206.2 KB

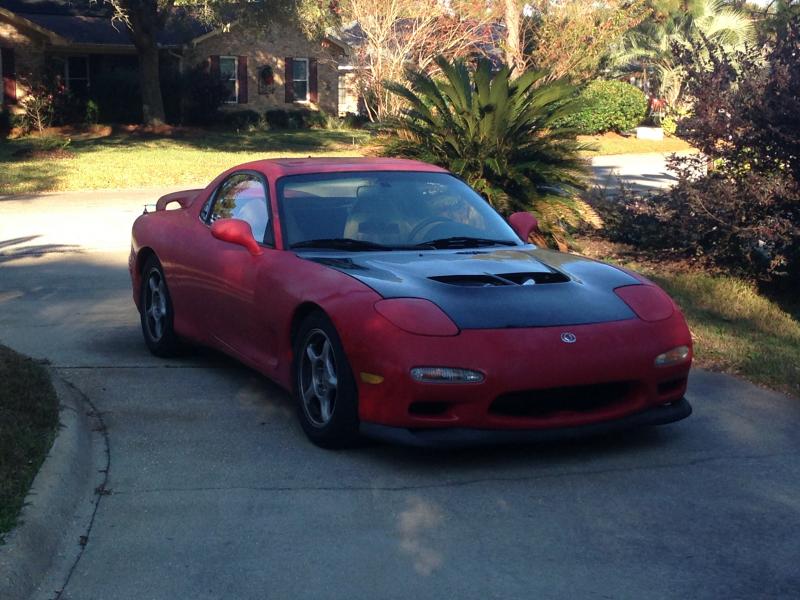

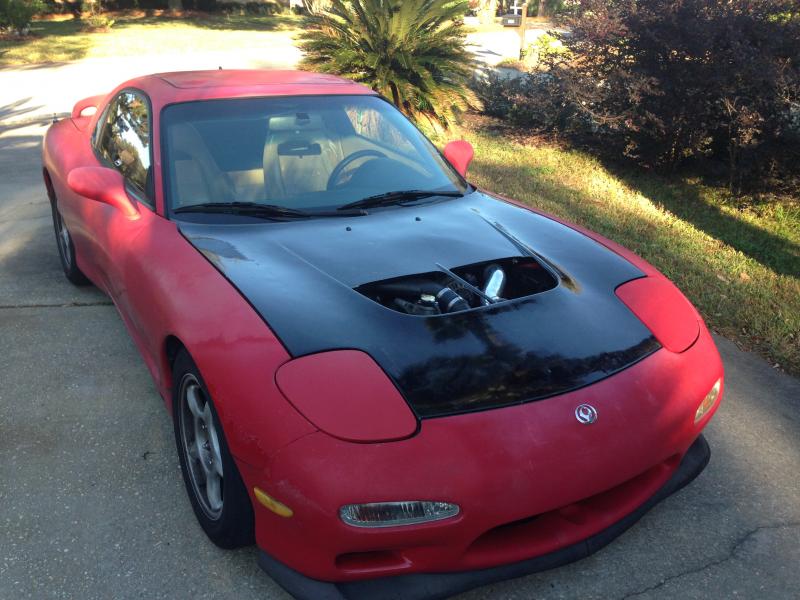

and here's how I did...
Name: IMG_0499_zps60bc9de0.jpg Views: 81 Size: 75.3 KB
Name: IMG_0501_zps555ce43e.jpg Views: 76 Size: 79.4 KB

I still need to clean up the edges and install some mesh, there's also the issue of the belt and alternator getting wet in the rain...so some sort of deflector will have to go on.
K-Tune is offline
Reply Like
Old 03-05-15, 07:52 PM
  #119
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Leading coil has been out this whole time... I feel kind of dumb for never testing it.

Fitted a Corbeau FX1 pro seat, 96+ y-pipe, knee pads, Nardi gara wheel with 1" extension, RX-8 4.44 R&P and limited slip, put the stock hood back on, new leading coil and updated harness, banzai racing trans crossmember.

1300cc secondaries coming soon.
K-Tune is offline
Reply Like
Old 03-06-15, 08:33 AM
  #120
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,437 Likes on 1,508 Posts
Wooo! You've been busy lately!

I was impressed to hear the difference with replacing the leading coil. Makes a lot of sense.

Dale
DaleClark is offline
Reply Like
Old 03-06-15, 11:52 AM
  #121
OMG a Chupacabra!

iTrader: (26)

Broke_A_Baller's Avatar

Join Date: May 2012
Location: Florida
Posts: 1,359
Received 7 Likes on 7 Posts
dang good deal on that hood!!!!
Broke_A_Baller is offline
Reply Like
Old 04-02-15, 06:43 PM
  #122
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Snagged another FTD...

K-Tune is offline
Reply Like
Old 08-01-15, 06:53 PM
  #123
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Small updates:
N3G1 twins installed
Sequential turbo operation restored(thanks Dale!)
Intercooler fan and water sprayer installed for between runs
Water injection set at 9psi
boost at 12psi

Car was missing out on a lot of power below 4,400rpm. As long as I can adjust to the new powerband easily it should be more effective!

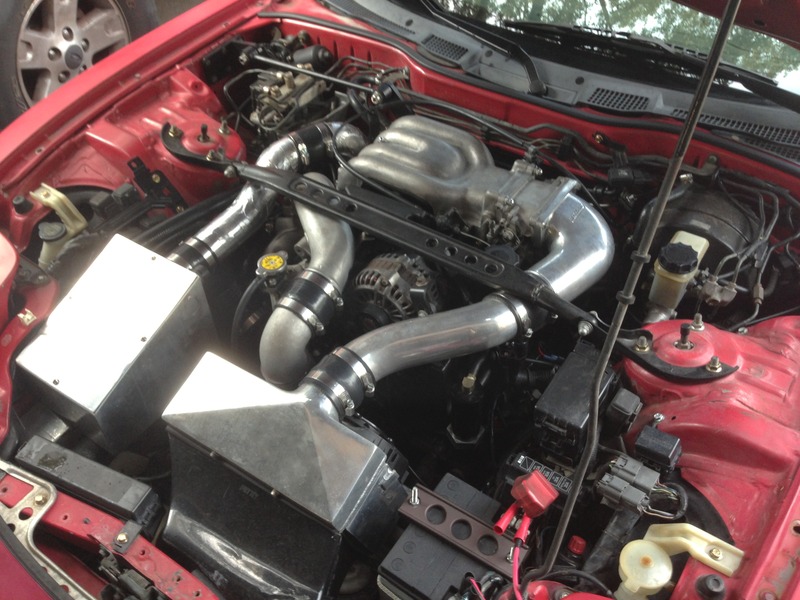

Up to date engine pic:
Name: IMG_0590_zps7a1zwxhl.jpg Views: 93 Size: 159.2 KB
Last edited by K-Tune; 08-01-15 at 06:57 PM.
K-Tune is offline
Reply Like
Old 08-01-15, 09:06 PM
  #124
Senior Member


silver_7's Avatar

Join Date: May 2005
Location: Pensacola
Posts: 646
Likes: 0
Received 0 Likes on 0 Posts
Very nice. Happy this has come as far as it has.
silver_7 is offline
Reply Like
Old 12-26-15, 12:43 PM
  #125
FD Daily

Thread Starter
iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
Slight update:
