93' R1 BLack on Black 19K original mile bolt on 350HP build
02-12-17, 09:50 AM
#76
Professional Tinkerer
Thread Starter
In the mean time forum members Zeepower and Sgtblue pointed out the 99' Efini y will slide into the existing 93' port ( not the technical name ). In either case once I get into it I have two parts to work with, probably end up going with the low mileage one on the car more than likely... find out soon enough.
02-12-17, 10:26 AM
#77
Professional Tinkerer
Thread Starter
Last of the IC parts in

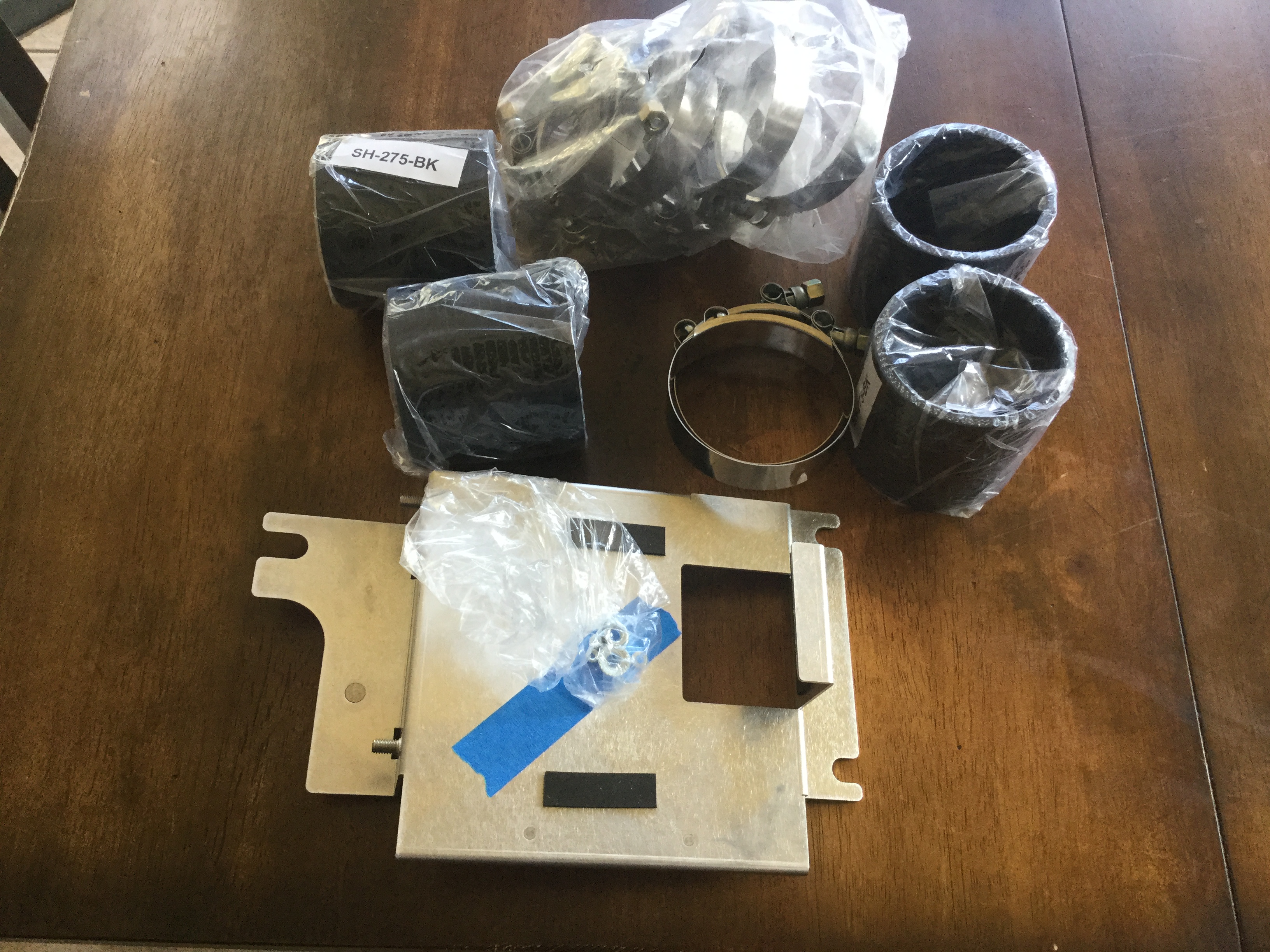

More parts in, time to get under the hood. Black silicone couplers and T-clamps are in and my PFC holder has arrived. Time to dive in and see what new problems there are to be resolved along the way.
02-12-17, 01:21 PM
#80
Professional Tinkerer
Thread Starter
now I'm thinking to myself, self, did you move this car without warming it up or did one of your SONS get curious! Who knows, my memory isn't that great and no finger prints in the dust, just deflood it and get it started.

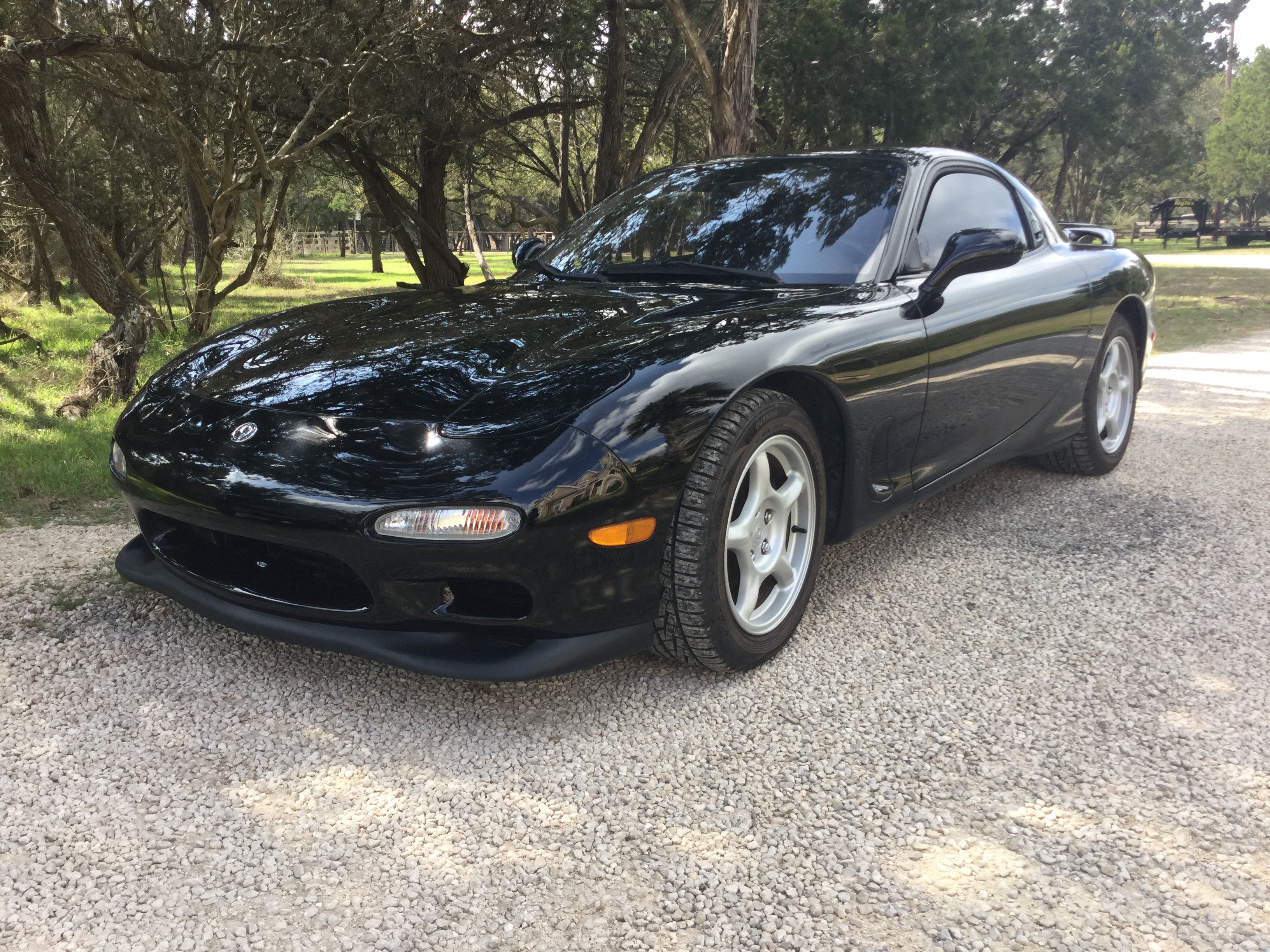

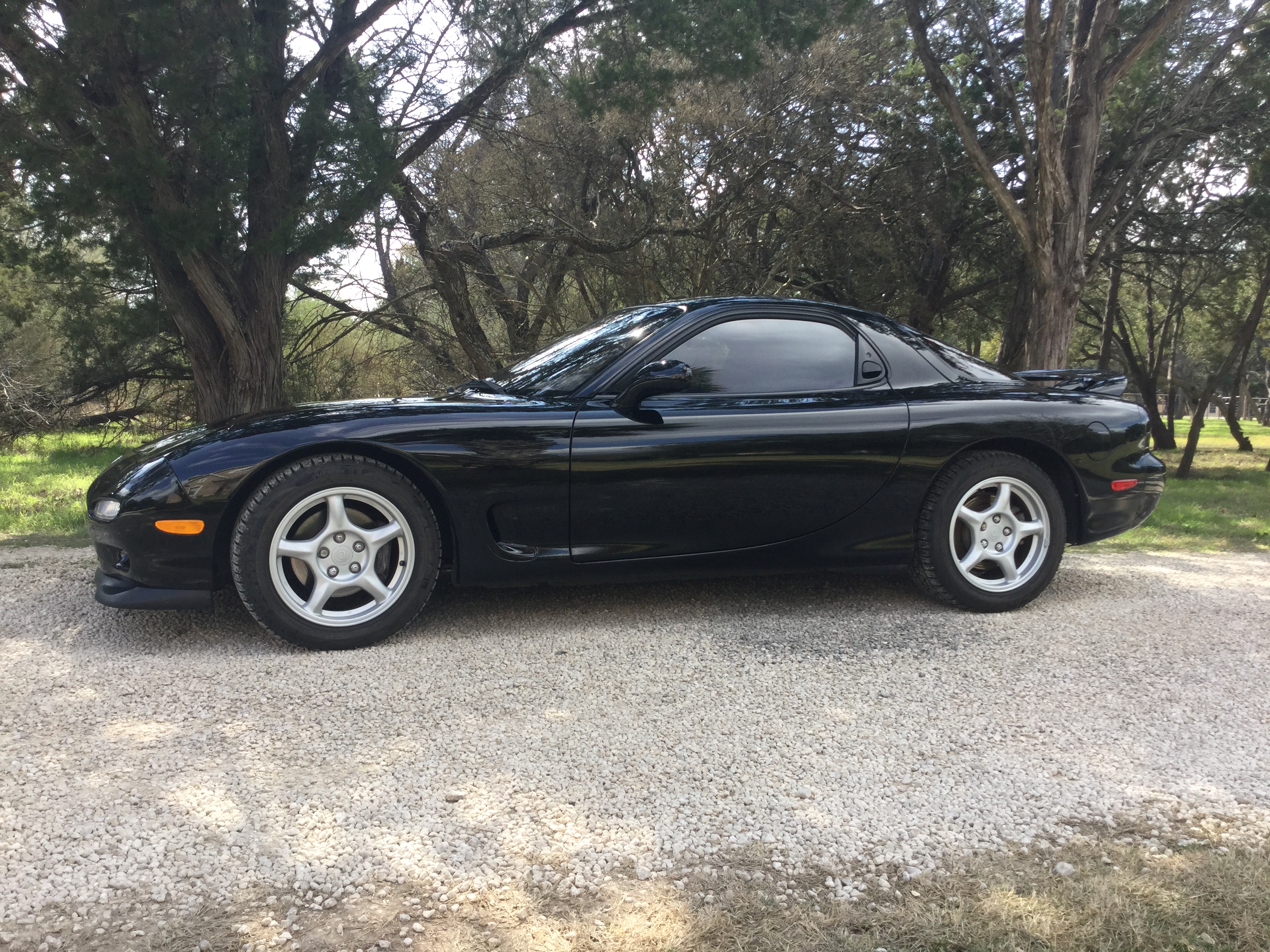

Here's a couple of pics of them cleaned up. It's almost car show time around here so I need to keep things moving along with this build.
02-12-17, 02:21 PM
#85
Professional Tinkerer
Thread Starter
02-12-17, 02:25 PM
#86
Professional Tinkerer
Thread Starter

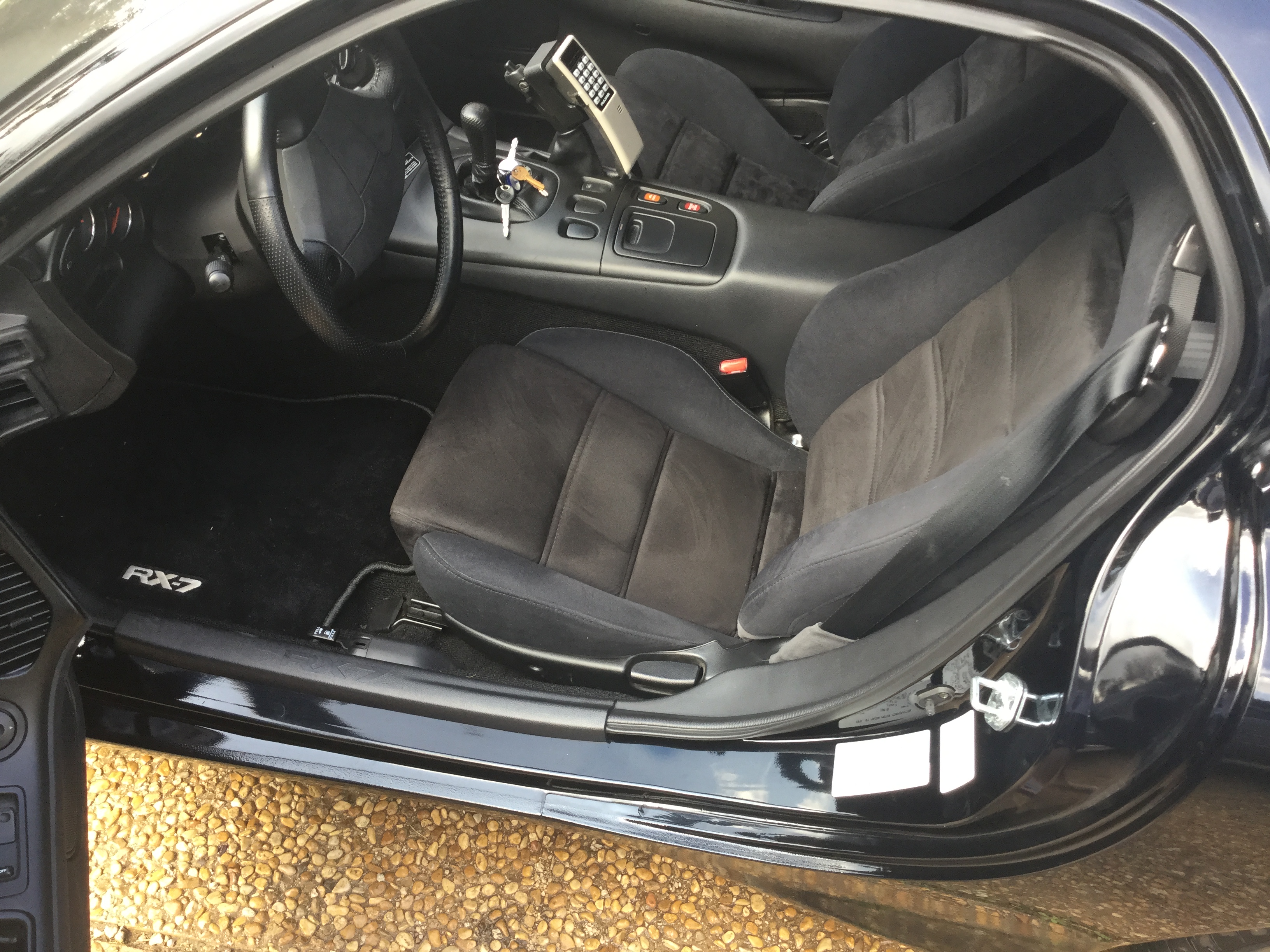

Yah, I think the phone is gonna go. Though it has helped win some shows, most folks don't realize the age of these cars because of the timelessness styling of these things and the mileage on this one. Once they see the phone they appreciate the car more but I think it's time for it to go.
02-28-17, 10:50 PM
#87
Professional Tinkerer
Thread Starter
Get'en parts

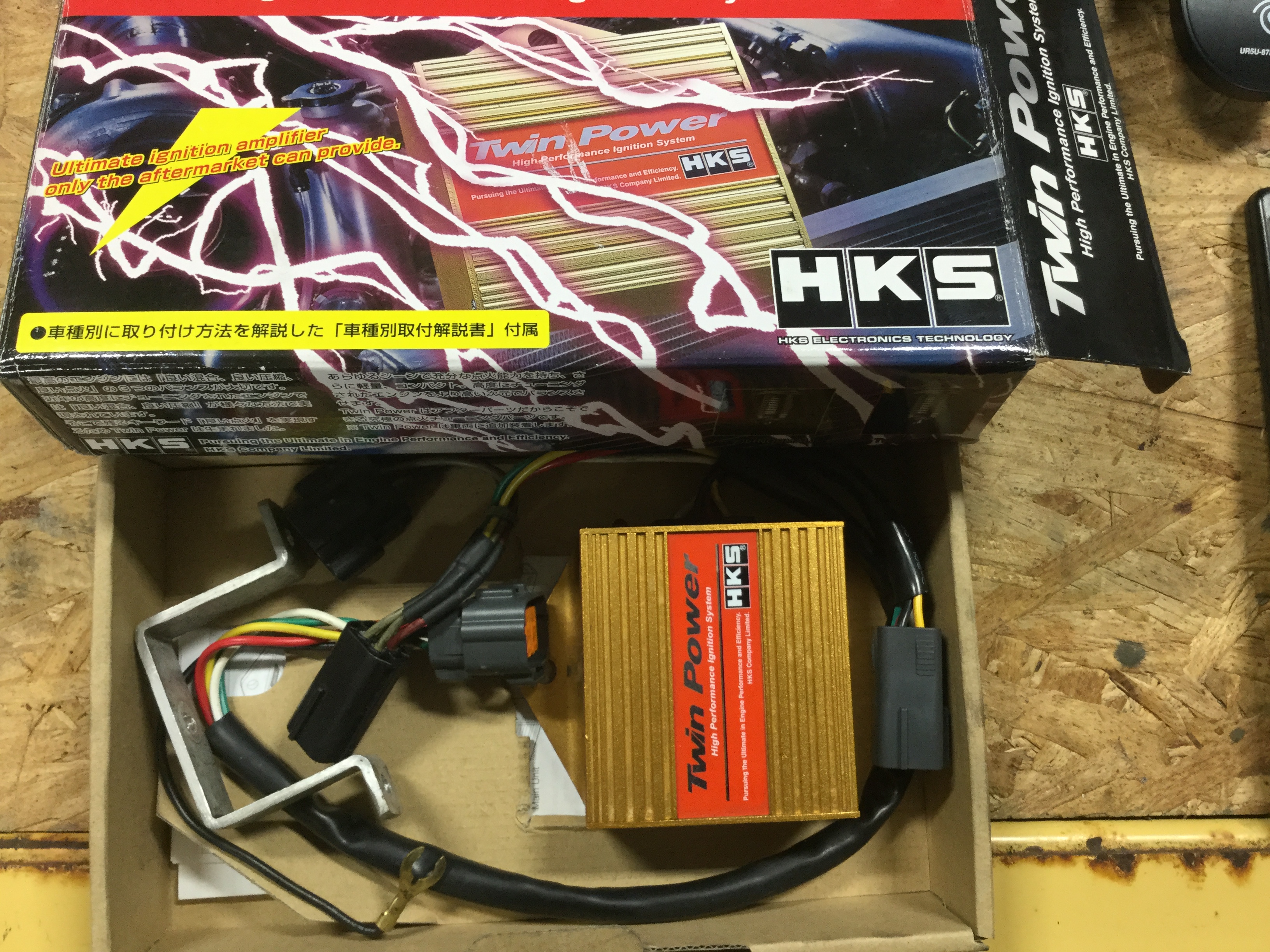

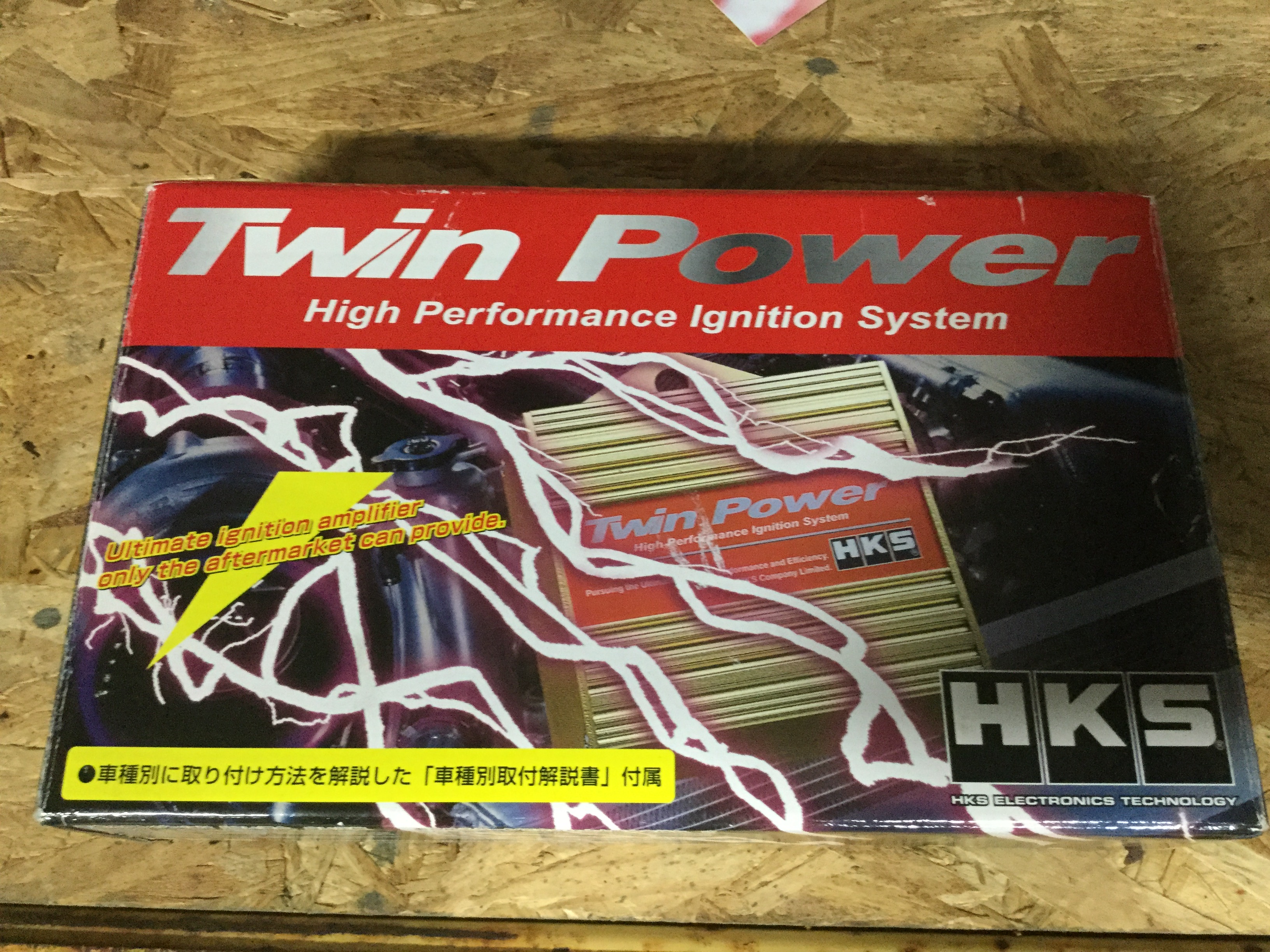

So I have been busy dealing with the Texas weather nutty as it can be. None the less another part and we are just about ready to start bolting on. HKS twin power from Rotary Yo and was shipped in what I assume is the original box with instructions.
he included a mount for the twin power that I think mounts to or around the cruise control module. Not sure but we will find it a good location. See pics.
he included a mount for the twin power that I think mounts to or around the cruise control module. Not sure but we will find it a good location. See pics.
03-01-17, 11:55 AM
#88
FWIW, I mounted mine on the firewall behind the cruise control. You have to remove the washer hose mount tho.
https://www.rx7club.com/build-thread.../#post12094687
https://www.rx7club.com/build-thread.../#post12094687
03-03-17, 08:11 AM
#89
RX-7 Bad Ass
iTrader: (55)
Looking good! I think you have a good recipe going for your build.
On the 3000 RPM hesitation and grounds - upgrading grounds, especially the negative battery terminal, will help, but not eliminate it. It's a bug in the stock ECU, plain and simple. Good thing is the PowerFC will totally eliminate the hesitation.
In other words, don't get carried away with playing with the grounds since you have a PFC going in. Add a ground to the negative battery terminal and be done with it.
Dale
On the 3000 RPM hesitation and grounds - upgrading grounds, especially the negative battery terminal, will help, but not eliminate it. It's a bug in the stock ECU, plain and simple. Good thing is the PowerFC will totally eliminate the hesitation.
In other words, don't get carried away with playing with the grounds since you have a PFC going in. Add a ground to the negative battery terminal and be done with it.
Dale
03-05-17, 06:53 PM
#92
Professional Tinkerer
Thread Starter
Quotes
I wish I knew how to reply to multiple quotes. However I do appreciate the input and feedback on the car and mounting points on the HKS. Keep it coming! Got me fired up and in the shop today.

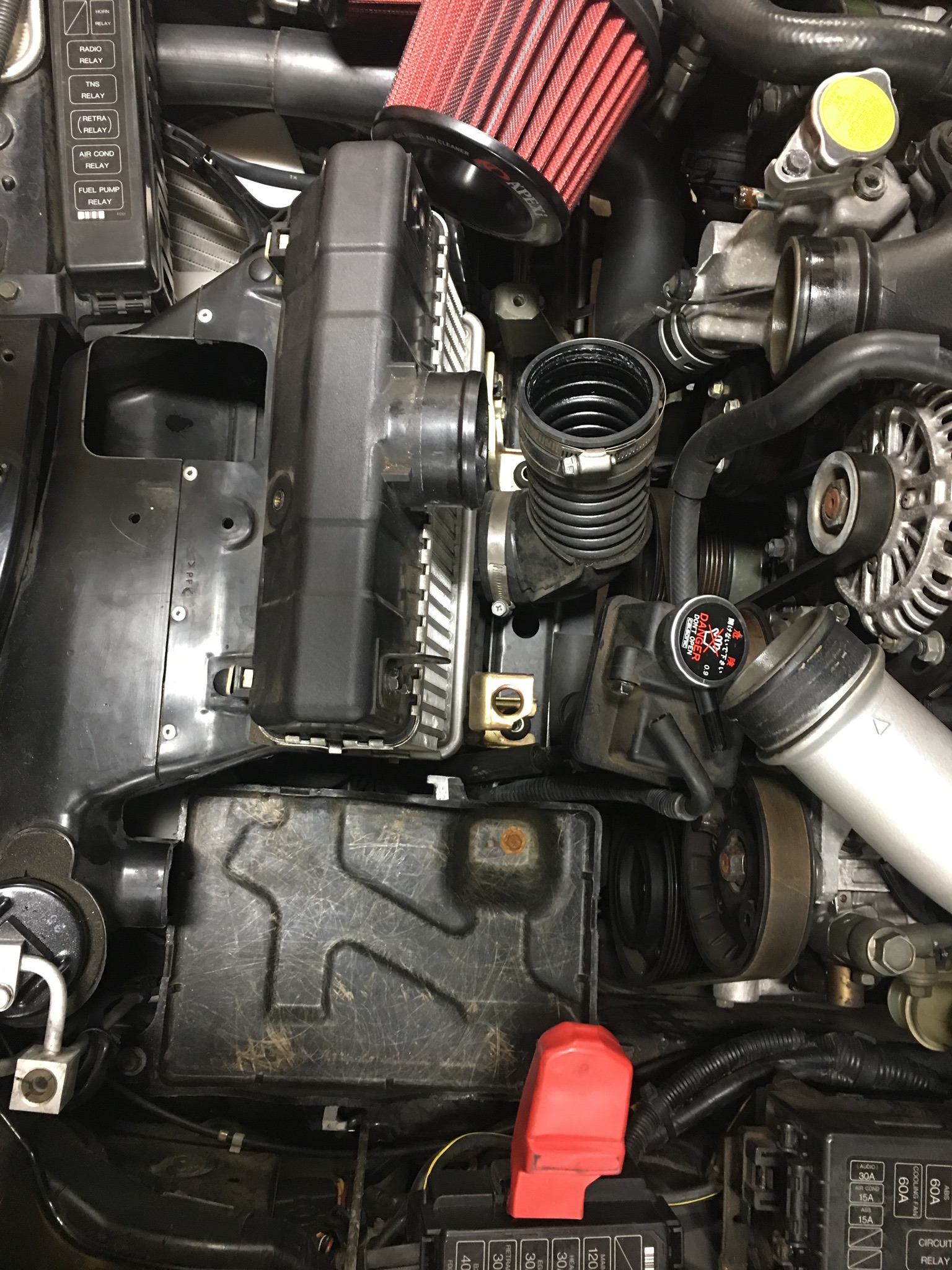

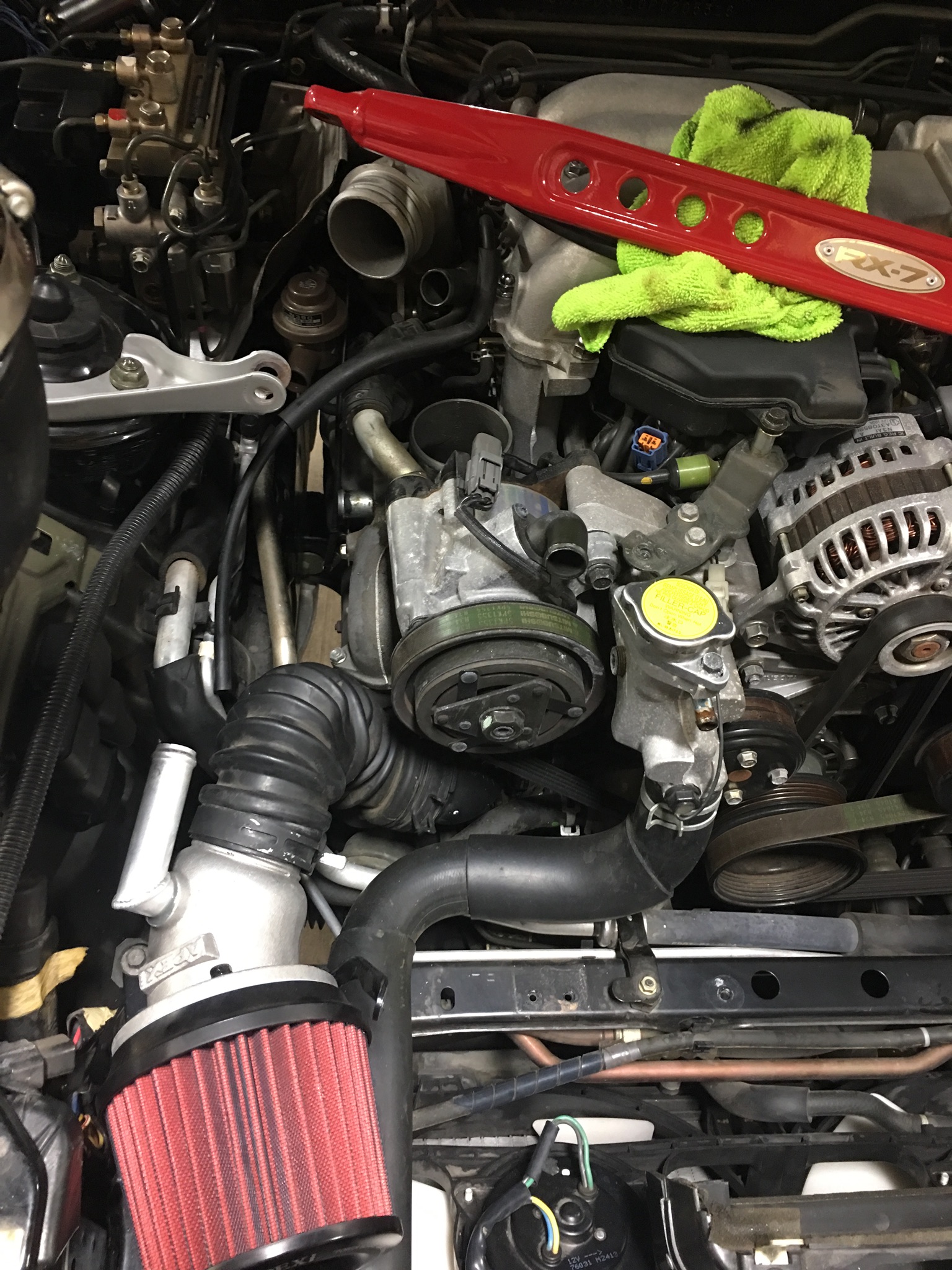

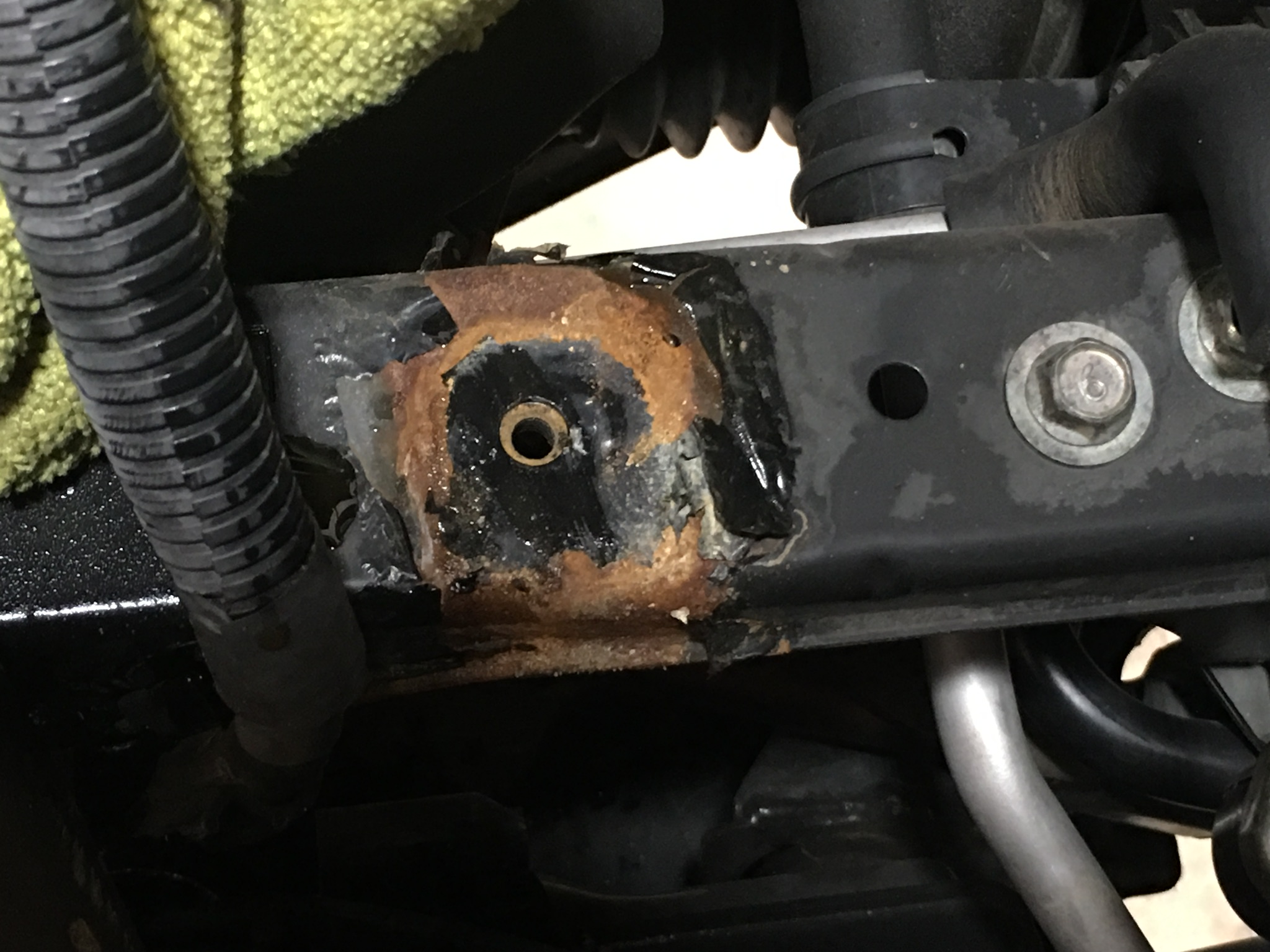

I got started today cleaning parts up for install, polished pipes and SMIC a little and started disassembly of things that are in the way. Interesting enough, as you get into these things you always find things that will need attention one way or another. As I peeled the layers away I am reminded of the car that is in the classified section right now that as 36K miles on it, "Museum Quality" and how it is a prime example just like this one. However, as I take the battery out and look in the tray I see one out of the three bolts rusted. No big deal right?
Well 👀! Nothing major but it would be at some point if it were not taken care of. Out of sight out of mind......, certainly something you would not ever notice on an inspection normally.
I got started today cleaning parts up for install, polished pipes and SMIC a little and started disassembly of things that are in the way. Interesting enough, as you get into these things you always find things that will need attention one way or another. As I peeled the layers away I am reminded of the car that is in the classified section right now that as 36K miles on it, "Museum Quality" and how it is a prime example just like this one. However, as I take the battery out and look in the tray I see one out of the three bolts rusted. No big deal right?
Well 👀! Nothing major but it would be at some point if it were not taken care of. Out of sight out of mind......, certainly something you would not ever notice on an inspection normally.
03-05-17, 07:01 PM
#93
Professional Tinkerer
Thread Starter
Then

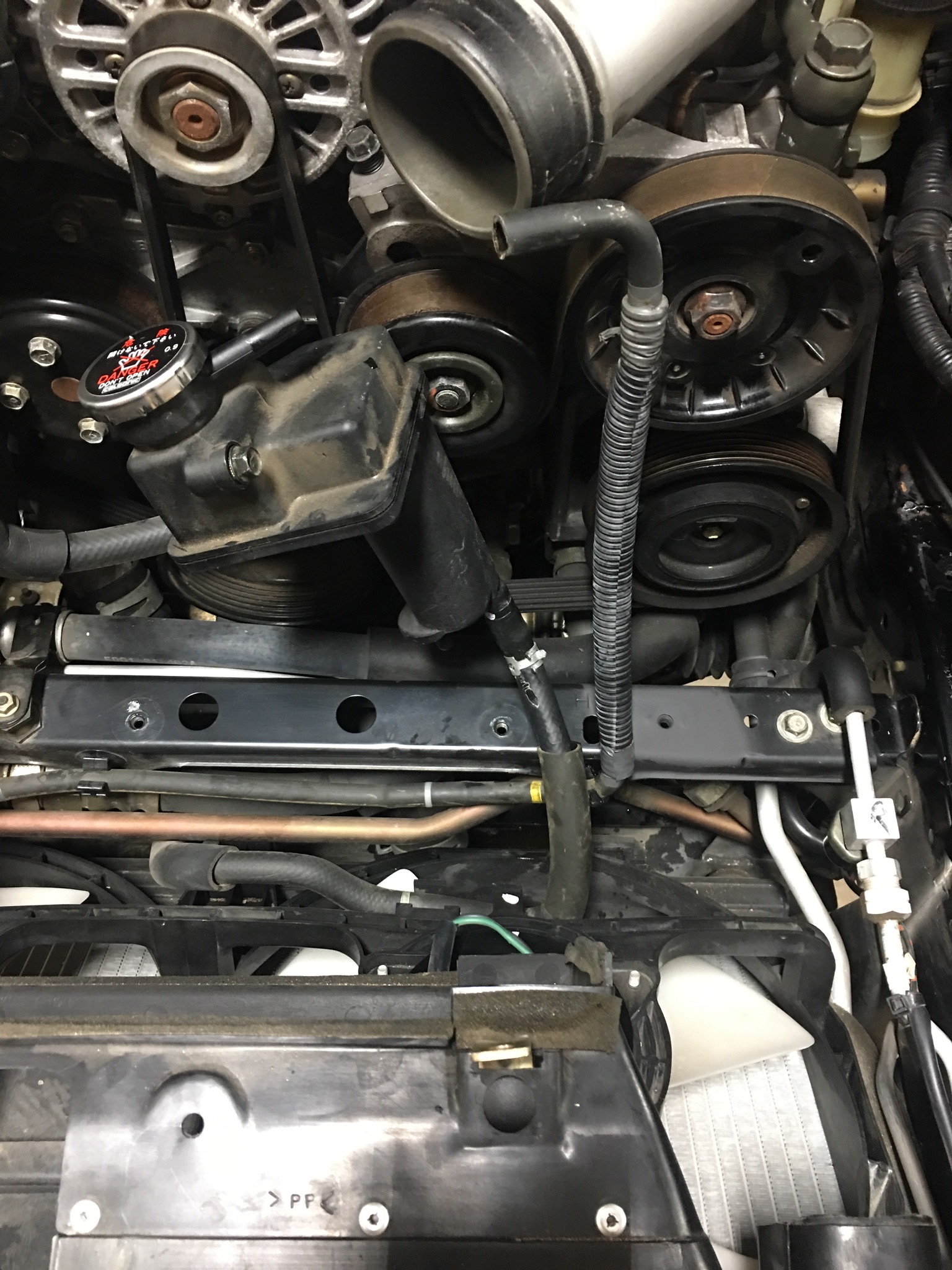

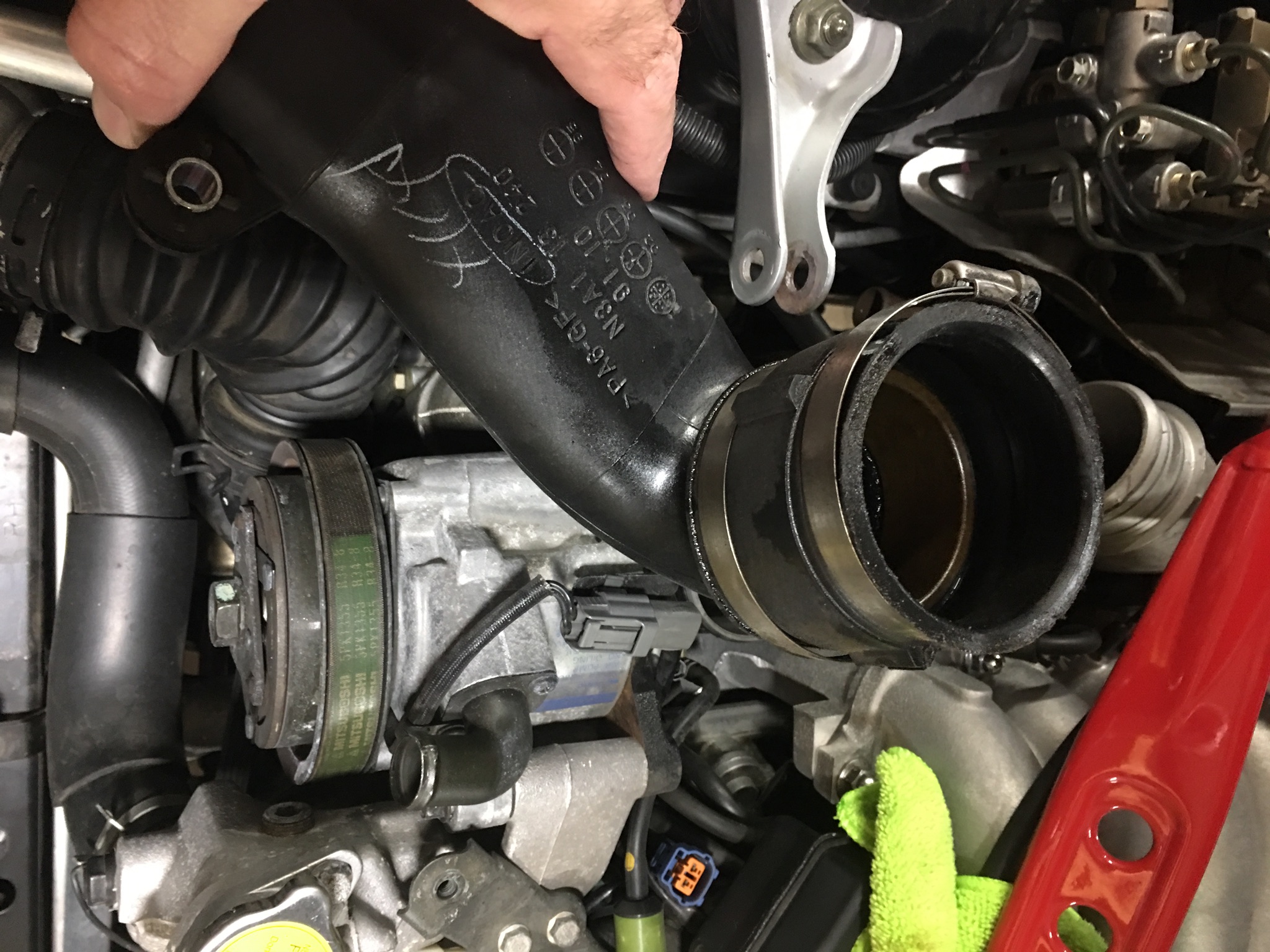

A little Black Star rust preventer after sanding, primer and paint and that problem was solved. Next issue that was about to rear its ugly head was removed. The cross over pipe out of the y-pipe, hose clamps were so loose it is any wonder it was making boost.
03-05-17, 07:10 PM
#94
Professional Tinkerer
Thread Starter
Point is
No matter how clean, unmolested, low miles, these cars must be taken apart if you are to keep them in tip top shape. That's just what a 20+ year old car is gonna require. That is unless you are going to drain the fluids, put them in a tempered environment (museum) and NOT drive them. IMHO
03-05-17, 08:00 PM
#95
Professional Tinkerer
Thread Starter

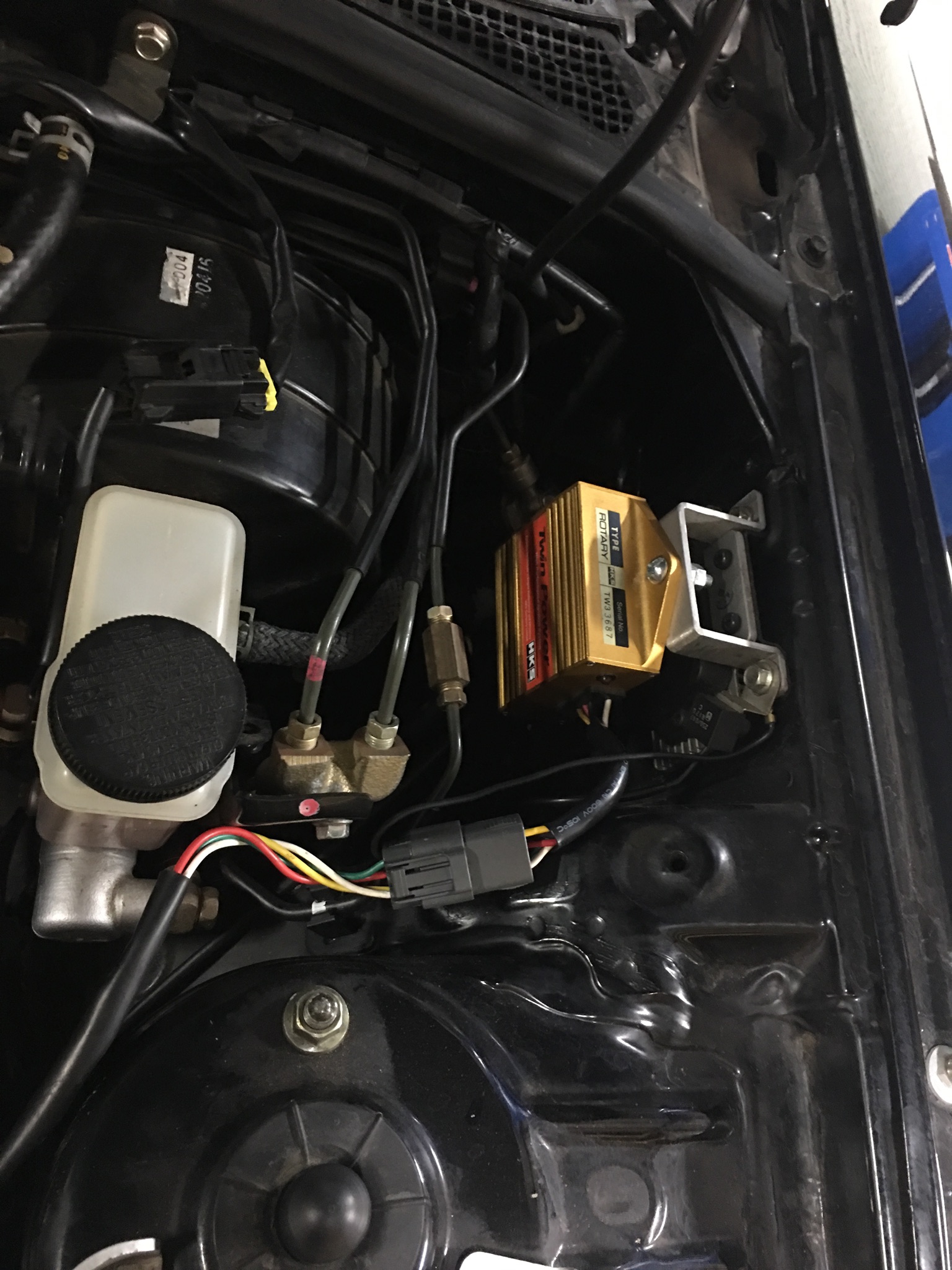

HKS twin power mounting

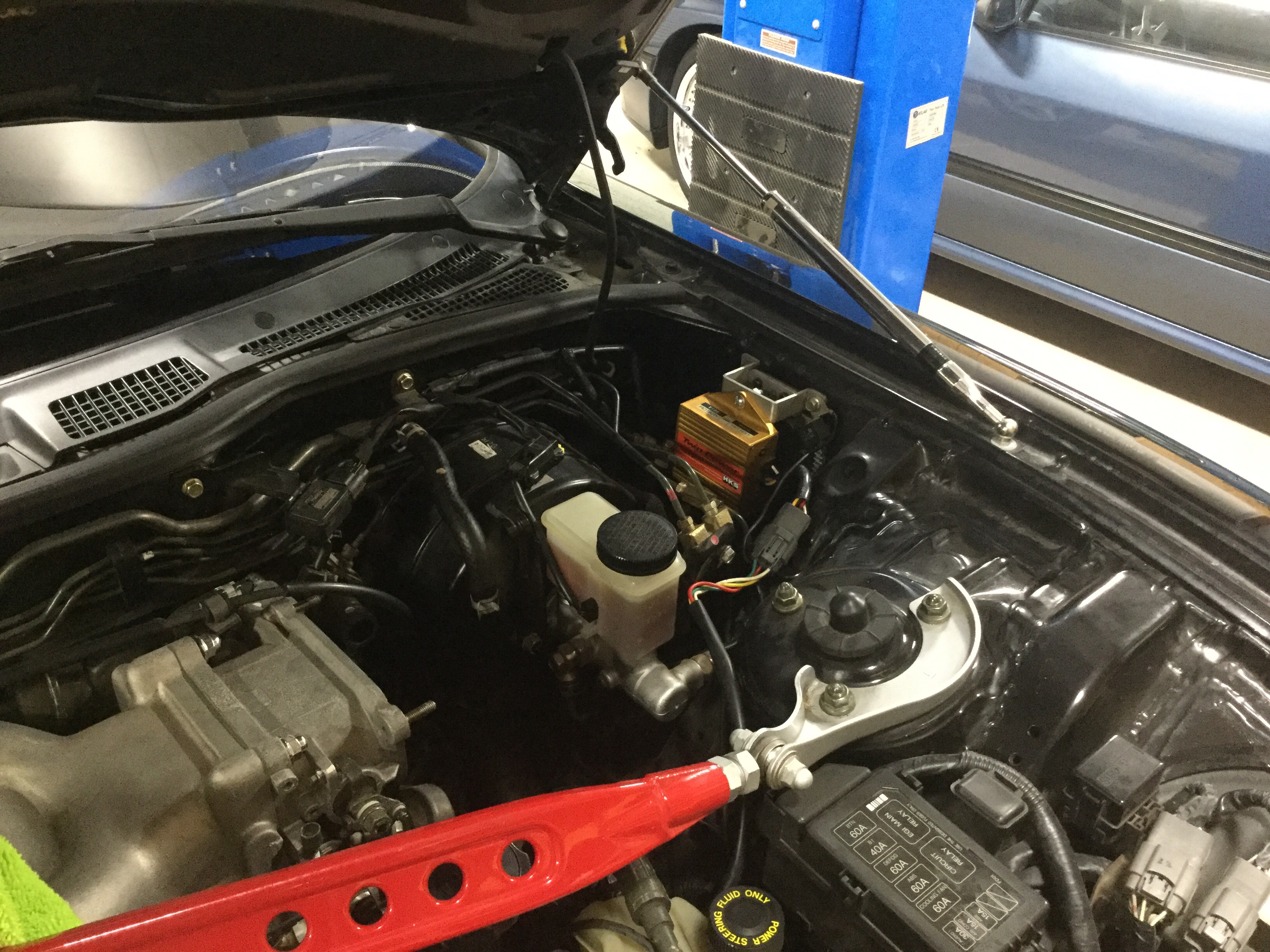

Went ahead and mounted the HKS. Haven't sorted the wires yet but I like the mount. Out of the way and it looks like it belongs there.
03-05-17, 09:35 PM
#96
However, as I take the battery out and look in the tray I see one out of the three bolts rusted. No big deal right?
Well ��! Nothing major but it would be at some point if it were not taken care of. Out of sight out of mind......, certainly something you would not ever notice on an inspection normally.
Well ��! Nothing major but it would be at some point if it were not taken care of. Out of sight out of mind......, certainly something you would not ever notice on an inspection normally.
You can click the "+ button next to quote, and then hit the quote button on the last post you wanna quote and it will bring them all into a reply
03-05-17, 10:00 PM
#97
Professional Tinkerer
Thread Starter
FWIW, I mounted mine on the firewall behind the cruise control. You have to remove the washer hose mount tho.
https://www.rx7club.com/build-thread.../#post12094687
https://www.rx7club.com/build-thread.../#post12094687
Looking good! I think you have a good recipe going for your build.
On the 3000 RPM hesitation and grounds - upgrading grounds, especially the negative battery terminal, will help, but not eliminate it. It's a bug in the stock ECU, plain and simple. Good thing is the PowerFC will totally eliminate the hesitation.
In other words, don't get carried away with playing with the grounds since you have a PFC going in. Add a ground to the negative battery terminal and be done with it.
Dale
On the 3000 RPM hesitation and grounds - upgrading grounds, especially the negative battery terminal, will help, but not eliminate it. It's a bug in the stock ECU, plain and simple. Good thing is the PowerFC will totally eliminate the hesitation.
In other words, don't get carried away with playing with the grounds since you have a PFC going in. Add a ground to the negative battery terminal and be done with it.
Dale
A very common issue on these cars. Water and battery acid will leak down that bolt and rust the fan motor and intercooler support bar. You can order the bar, but it's almost not worth it. Better to etch and paint, probably. Looks good.
You can click the "+ button next to quote, and then hit the quote button on the last post you wanna quote and it will bring them all into a reply
You can click the "+ button next to quote, and then hit the quote button on the last post you wanna quote and it will bring them all into a reply
Thanks man! That was too easy. Hopefully it worked
03-06-17, 06:53 PM
#98
Professional Tinkerer
Thread Starter
Belts
Did you know.. Mazda has "retired" the alternator belt "N3A1159089LL" and only has the AC belt " N3A115907" available? Found this out today. Can't dive down this deep without changing the belts out. Guess I will check out the vendors here on the forum. I am sure they will have them, just surprised to here Mazda would retire one of two belts...
03-06-17, 08:06 PM
#100
Professional Tinkerer
Thread Starter
Museum parts
Anyone know where this goes? This isn't flopping around the one on eBay in the battery tray like mine. Hum, works good though. Factory I guess...

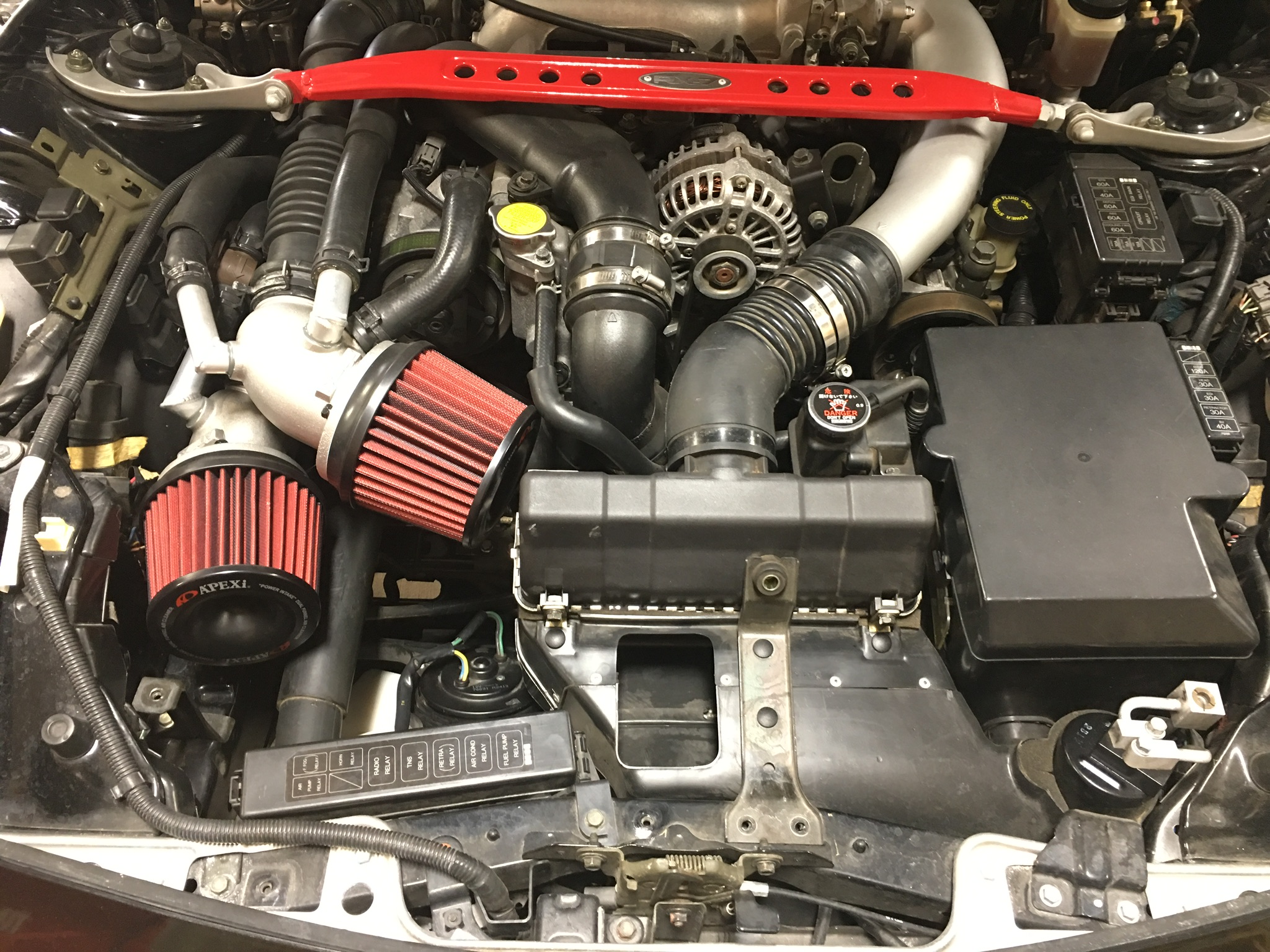

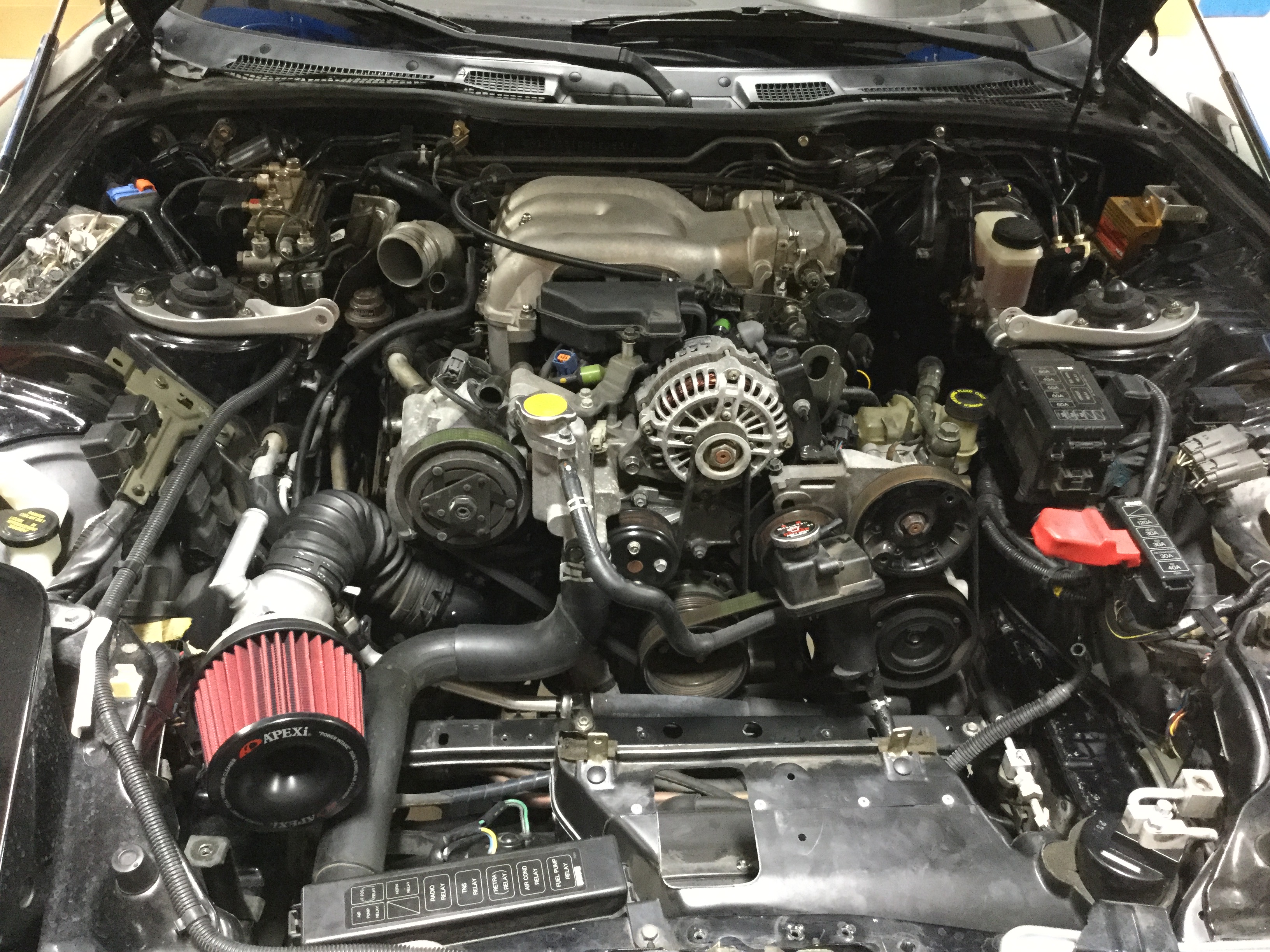

First time this compartment has seen the light of a shop. Save this for the archives. Untouched till now! Hopefully for the better.
, works good though. Factory I guess...First time this compartment has seen the light of a shop. Save this for the archives. Untouched till now! Hopefully for the better.
