In relation to the wiring or the configuration? Could you assist?

EB Turbo

iTrader: (1)

I dont know enough about the EVO8 ECU to be able to help with the conversion.

EB Turbo

doghouse

iTrader: (1)

ok. I will get to work soon with it.

doghouse

iTrader: (1)

this would help me a lot. Please do

RX7(613)

iTrader: (9)

I had the series 1 almost ready to go, then moved.

I currently have a series 2 mitsu talon box I am adapting. Havent had time , but will next weekend.

, I will keep track on the wiring diagram and what I did.

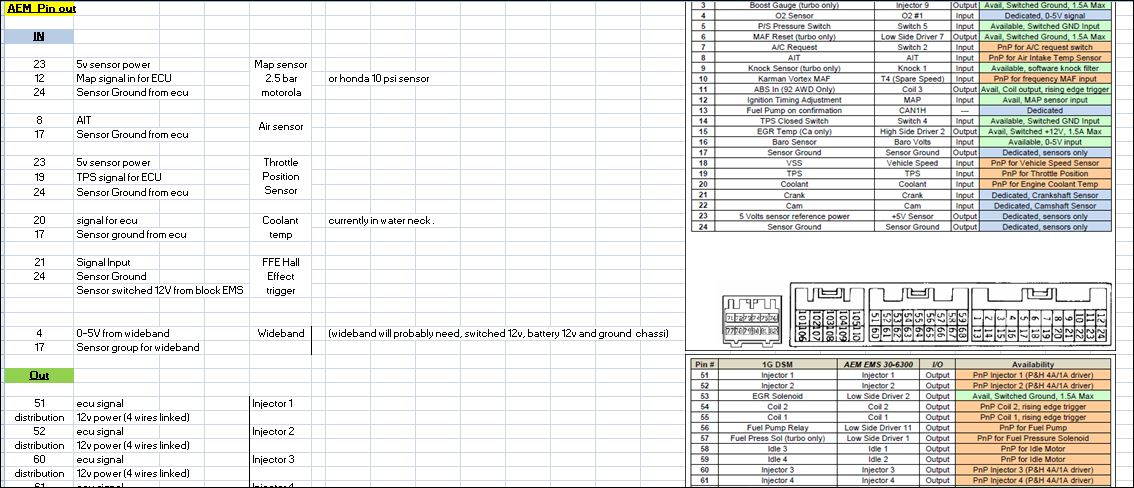

basically what you need to do , is get donor plugs ( that match your AEM box ) , and use the pin out from AEM ( with aid of the OEM manual ) to fire the outputs and get your inputs.

eg ( this is a rough data )

https://www.rx7club.com/attachment.p...1&d=1417319179

RX7(613)

iTrader: (9)

I had the series 1 almost ready to go, then moved.

I currently have a series 2 mitsu talon box I am adapting. Havent had time , but will next weekend.

Ill keep track and post.

I will be working on this next week, I will keep track on the wiring diagram and what I did.

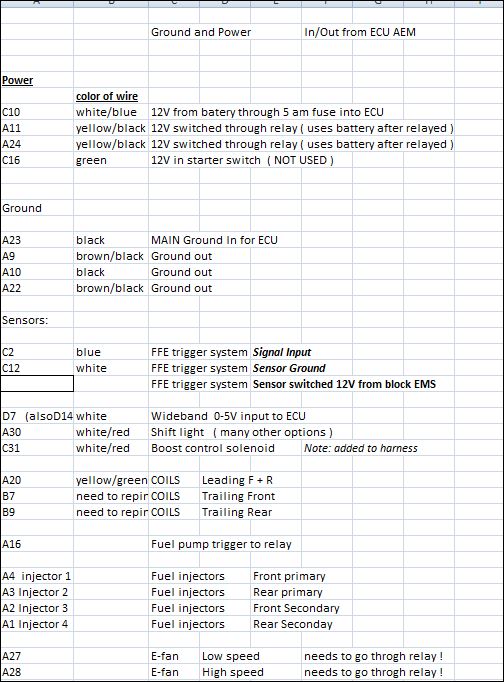

basically what you need to do , is get donor plugs ( that match your AEM box ) , and use the pin out from AEM ( with aid of the OEM manual ) to fire the outputs and get your inputs.

eg ( this is a rough data )

https://www.rx7club.com/attachment.p...1&d=1417319179

doghouse

iTrader: (1)

the fd3 and Evo 8 uses the same 4 plug for the Ecu. My Evo 8 Ecu plugs on the the 13brew loom perfectly. After I change the pin on the loom to match the corresponding pins on the Evo I would then load the rx7 file on the Evo Ecu? What about the leading and trailing parts ?

RX7(613)

iTrader: (9)

That makes life easy ! .

Because the evo8 output pins are probably not the same as the RX7. You will have to make a PATCH harness.

You can re assign some of the out / inputs, but it will make it hard. Easiest is to work with a patch harness.

either , cut off the plugs on the FD harness and solder to correct pin out (have to be very careful and make sure you dont screw anything up, or make a piggy back harness ( i recommend this option ) .

Or wire it up as a full stand alone. aka make a new harness.

I am making a new harness for my swap,

RX7(613)

iTrader: (9)

Start by finding out all the inputs / outputs you need in both Rx7 and Evo.

see below for talon and Rx7 .

doghouse

iTrader: (1)

Ok I will do that and give you the update. I may have to premix the oil or convert on a 2 stroke oil pump
