Whats in a Turbo Rebuild Kit?
#1
il Cosa Nostra e vivo!!
Thread Starter
iTrader: (1)
Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Likes: 0
Received 0 Likes
on
0 Posts
Whats in a Turbo Rebuild Kit?
What do you (we) get when we buy a Turbo Rebuild Kit? AND, what company has the best components and price. Thanks.
#2
1JZ powered
Join Date: Jul 2001
Location: Where there's only two seasons, hot and wet! I love Okinawa
Posts: 4,423
Likes: 0
Received 0 Likes
on
0 Posts
turbo rebuild kit norally consists of front and rear CHRA bearings, thrust collar, thrust collar bearing, and rear oil seal.
#3
Slower Traffic Keep Right
iTrader: (5)

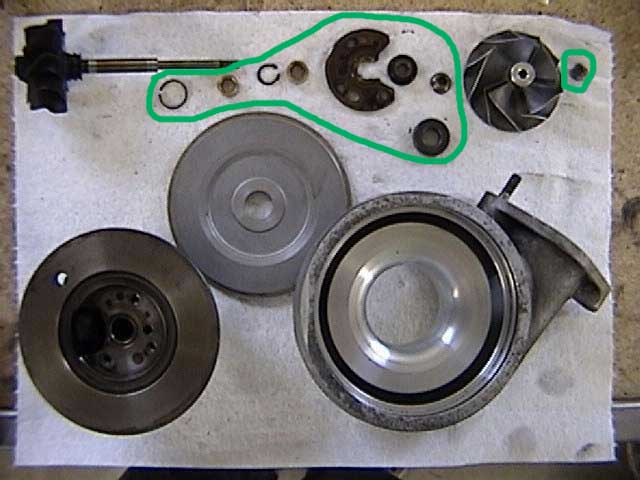

Here is most of the stuff you get in a turbo rebuild kit from turbo city (multiples where required). There is also an oring that comes with the kit. They cost $150 per turbo. I don't know of anyone else who sells rebuilt kits for the stockers. So far, around 12k miles with no problems.
Last edited by ISUposs; 01-18-04 at 05:44 PM.
#4
il Cosa Nostra e vivo!!
Thread Starter
iTrader: (1)
Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by ISUposs
Here is most of the stuff you get in a turbo rebuild kit from turbo city (multiples where required). There is also an oring that comes with the kit. They cost $150 per turbo. I don't know of anyone else who sells rebuilt kits for the stockers. So far, around 12k miles with no problems.
Here is most of the stuff you get in a turbo rebuild kit from turbo city (multiples where required). There is also an oring that comes with the kit. They cost $150 per turbo. I don't know of anyone else who sells rebuilt kits for the stockers. So far, around 12k miles with no problems.
Q.) Did you take the Turbo(s) off the manifold for the rebuild ... or take off the manifold with Turbos attached?
Q.) What was the most difficult part of the rebuild?
Q.) How hard was it to take apart the Turbo and inner parts and install new parts?
Q.) How long did the rebuild take (total time for one Turbo)?
Q) What was/is the most noticable improvement after the rebuild.
Thanks a bunch.
#5
0-rotor-0-turbo-0-fd
Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by areXseven
First time I see the actual Turbo components. Many thanks for the photo!. If you don't mind, will you please answer a few questions...
Q.) Did you take the Turbo(s) off the manifold for the rebuild ... or take off the manifold with Turbos attached?
Q.) What was the most difficult part of the rebuild?
Q.) How hard was it to take apart the Turbo and inner parts and install new parts?
Q.) How long did the rebuild take (total time for one Turbo)?
Q) What was/is the most noticable improvement after the rebuild.
Thanks a bunch.
First time I see the actual Turbo components. Many thanks for the photo!. If you don't mind, will you please answer a few questions...
Q.) Did you take the Turbo(s) off the manifold for the rebuild ... or take off the manifold with Turbos attached?
Q.) What was the most difficult part of the rebuild?
Q.) How hard was it to take apart the Turbo and inner parts and install new parts?
Q.) How long did the rebuild take (total time for one Turbo)?
Q) What was/is the most noticable improvement after the rebuild.
Thanks a bunch.
2- The most dificult part for me I think was the taking out the big C clip that hold the turbine housing and the installing back the little C clips that hold the shaft bearings.
3-Taking out and installing the new parts with the right tools I think it was a piece of cake, don't need to be a scientist.
3-Total time for both turbos to rebuild and get them ready to put in your car (taking your sweet time) it should be like 3-4 hours tops.
5-I didn't notice no diference b/c they worked fine even before reb. and after I rebuilt them I went non-seq. so couldn't tell no difference, I rebuilded them just cuz they where over 100k miles.
#7
il Cosa Nostra e vivo!!
Thread Starter
iTrader: (1)
Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Likes: 0
Received 0 Likes
on
0 Posts
TwinTurbo93 and ISUposs: Thanks for taking the time to answer my questions. I think I'm going to give it a try. Just getting rid of the smoke screen is worth it. Thanks again.
Trending Topics
#8
Slower Traffic Keep Right
iTrader: (5)
I should mention that there are some people who haven't had good luck with the Turbo city kit or rebuilds in general, just FYI.
also, here is some more info.
http://www.scuderiaciriani.com/rx7/turbo_rebuild.html
also, here is some more info.
http://www.scuderiaciriani.com/rx7/turbo_rebuild.html
Last edited by ISUposs; 01-19-04 at 01:47 PM.
