Spool Up

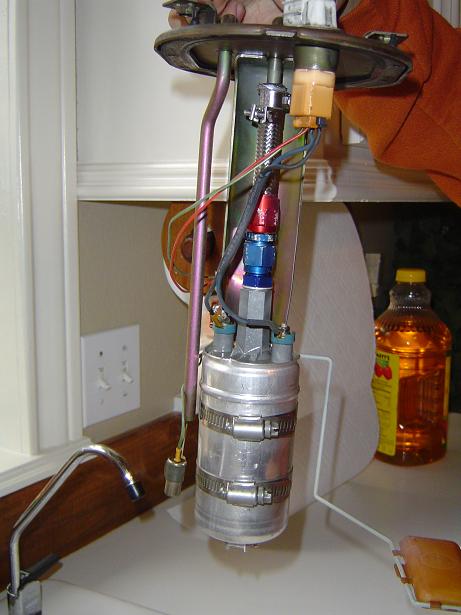

I was about to order a new fuel pump, but wanted to make sure I didn't already have one. Good thing I checked.....anybody know what this is? My guess was that it was a bosch unit. How much does this thing flow and what type of HP ratings is it good for? Only thing, i don't see a pickup on the bottom of it anywhere. Should I fabricate one for it, or is this a big deal?

vosko

iTrader: (4)

looks like the M2 pump ?

Mr. Stock

Is there a screen on the bottom of the fuel pump?

jspecracer7

Looks like a Bosch.

Marshall

The the M2 Bosche ala Wael el Dasher. Unfortunately it doesn't work too well under 1/2 tank of gas because vortices form at the castle nut and draw in air.

teachermechanic

iTrader: (4)

Iam running same pomp it's VENOM parts# hp733-515 in tank.
This pump is good for 1000hp
Flows about 100 gallons per hour and can maintian 100psi.

Spool Up

yea....i checked the side and it says "12v Bosch Czech Republic" Hmm.....1000hp dunno if that will be enough for my stock turbos and greddy SMIC. I think I'm going to try to make a fuel pickup for it. Is there any downside to running this massive a pump if all I plan on doing is running around 12-15psi on the stock twins w/ 850cc injectors all around?

vosko

iTrader: (4)

you can never have too much fuel just don't go racing around with 1/4 tank of gas or less

rockshox

iTrader: (3)

i run that pump with the stock pickup
