Speedo board question

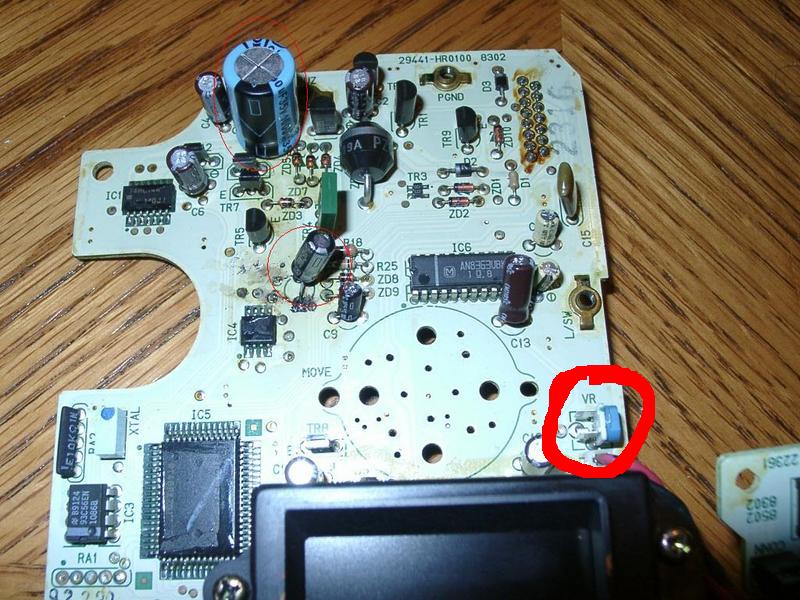

Would anyone possible know what this blue "dial" in the bold red circle might be for? As I was dissassembling my speedo to repair the odometer, I think I moved it a little and now I'm concerned that I may have messed up some calibration of some sort. Any ideas?

Thanks a lot,

Ian

Attached Thumbnails

Reply Like

02-26-07, 12:21 PM

BillM

RX-7's since 1980

iTrader: (4)

Join Date: May 2006

Location: NYC

Posts: 801

Likes: 0

Received 59 Likes on 18 Posts

variable resistor which changes value when you turn the "dial".

Reply Like

02-26-07, 12:24 PM

3GRX7

Rotary!

Thread Starter

iTrader: (1)

Join Date: Mar 2006

Location: Miami, Florida

Posts: 582

Likes: 0

Received 0 Likes on 0 Posts

Thanks, but in english please

What does this affect?

Reply Like

02-26-07, 12:47 PM

BillM

RX-7's since 1980

iTrader: (4)

Join Date: May 2006

Location: NYC

Posts: 801

Likes: 0

Received 59 Likes on 18 Posts

I didnt see anything in the electrical manual about the circuit board so I cannt tell you what to do, sorry.

Reply Like

02-26-07, 01:44 PM

DaleClark

RX-7 Bad Ass

iTrader: (55)

Join Date: Jan 2002

Location: Pensacola, FL

Posts: 15,399

Likes: 1,903

Received 2,437 Likes on 1,508 Posts

It's most likely a calibration for the speedometer. Might have to drive around and see if the speedometer reads high or low, and adjust accordingly.

Dale

Reply Like

02-26-07, 05:00 PM

3GRX7

Rotary!

Thread Starter

iTrader: (1)

Join Date: Mar 2006

Location: Miami, Florida

Posts: 582

Likes: 0

Received 0 Likes on 0 Posts

I just finished installing my speedo after replacing some bad capacitors...unfortunately now the speedo guage is reading 20 mph at idle and 60 mph at any speed. Guess it's time for a new speedo, eh?
