mr.veilsidewankel

iTrader: (1)

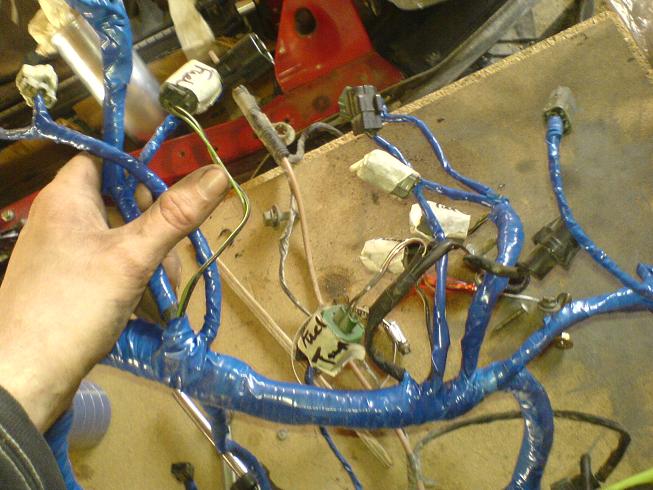

hi, need some help finding out where the secondarys are, need to cut them and put on the new ones gotham sent with the 1600kit,
allso need to put in the resistors, any hints?
how did you guys do it?

mr.veilsidewankel

iTrader: (1)

bump,
i meen the injector connectors by the way

GoodfellaFD3S

iTrader: (213)

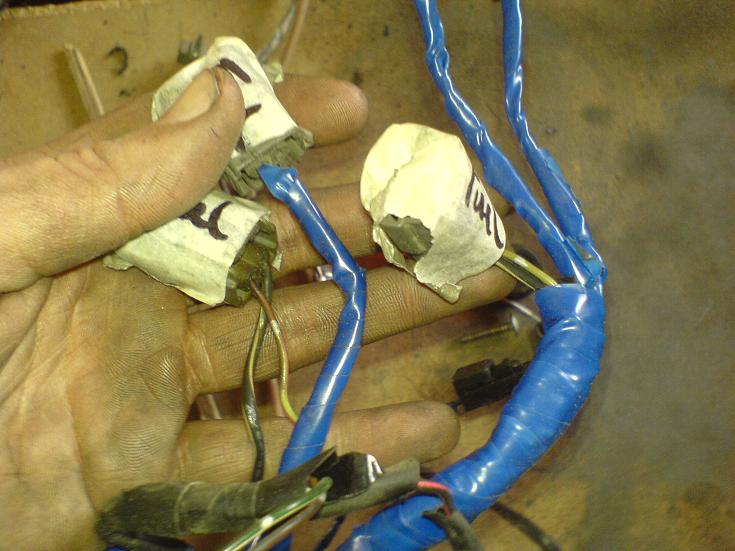

You have them covered in tape, it's kind of hard to see what's what .

The connectors are gray and clip onto your injectors.....the primary connectors will be in close proximity to each other, but the secondary connectors will be about 8 inches apart. grab an injector and see which connectors fit on.

solder the resistors inline on the injector wiring.

mr.veilsidewankel

iTrader: (1)

aah,
so the injectors connectors that are the longest apart from each other are the secondarys,
which wire do i put the resistor on? color on the cable?
damn it! i wich gotham/KGparts would send instructions with their kits,
allso wich i had marked the connectors before i took everything of:hehe

cewrx7r1

iTrader: (2)

It does not need instructions as it is simple DC electricity. No more complex than a battery powered flashlight. When devices are put in series, location does not matter. Sorry but you need to read up on basic DC and AC circuits which will benefit your the rest of your life.

The wiring diagram in the manual would tell you by color code which is which. Time to also learn how to read wiring diagrams.

mr.veilsidewankel

iTrader: (1)

hmm,
maybe you are right,
but i have had most of my focus on the mekanical stuff on this car,
haven't touch t the electrical yet,
also, im afraid of doing something wrong,

will reaf through the manual to see if i learn something
by the way, any links to a place to read upp on dc/ac circuits?

mr.veilsidewankel

iTrader: (1)

ok, i do have the diagram over the injectors, but it doesnt say anything about which
injectors are the secondary ones
argh!

Mahjik

iTrader: (1)

You need to look in the wiring diagram. Find the secondary injectors and the associated wire colors. Then compare the wiring diagram colors to the colors on your wiring harness.

Mahjik

iTrader: (1)

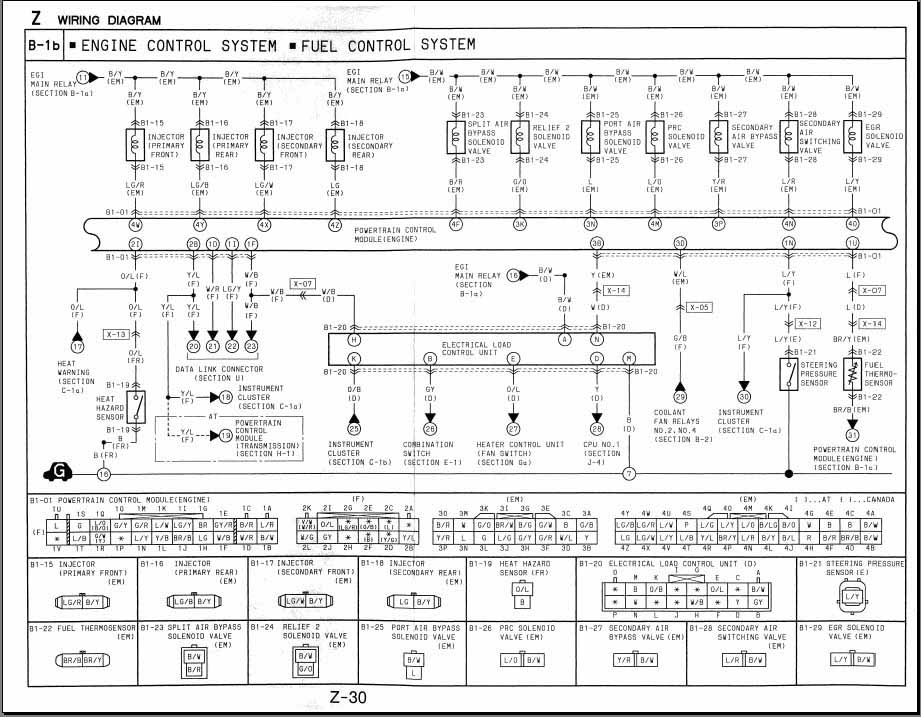

Here you go:

mr.veilsidewankel

iTrader: (1)

thanks mahjik
you are a lifesaver
not sure about the colors though.
think time and heat have fucked them up a bit,
will have to take a closer look
again, Thanks, dont know what i would do without you guys
