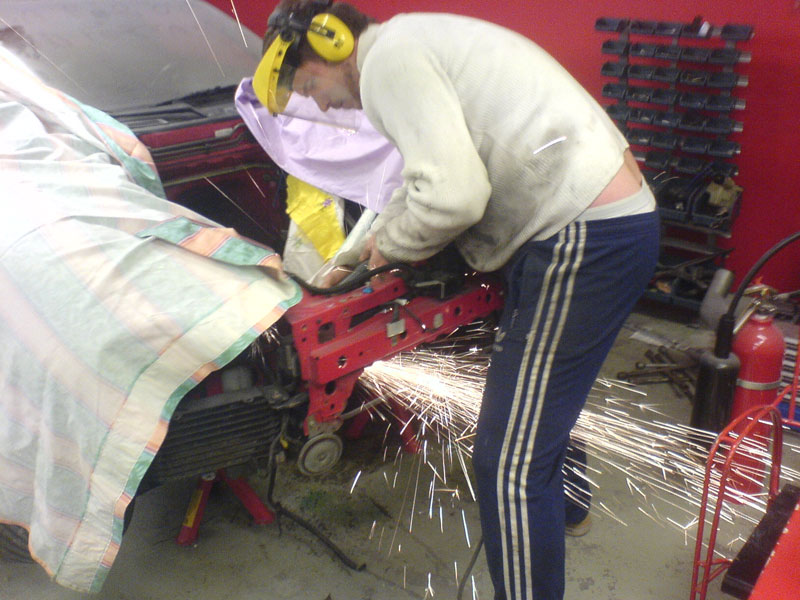

Hey everyone about to install a front mount on the FD I need an Idea on how to mount this thing and wheater I need to cut the core support or not. Also will I need to trim away at my front bumper?


Please post your install pic's here with out the front bumper and with.

Thanks everyone

rofuz

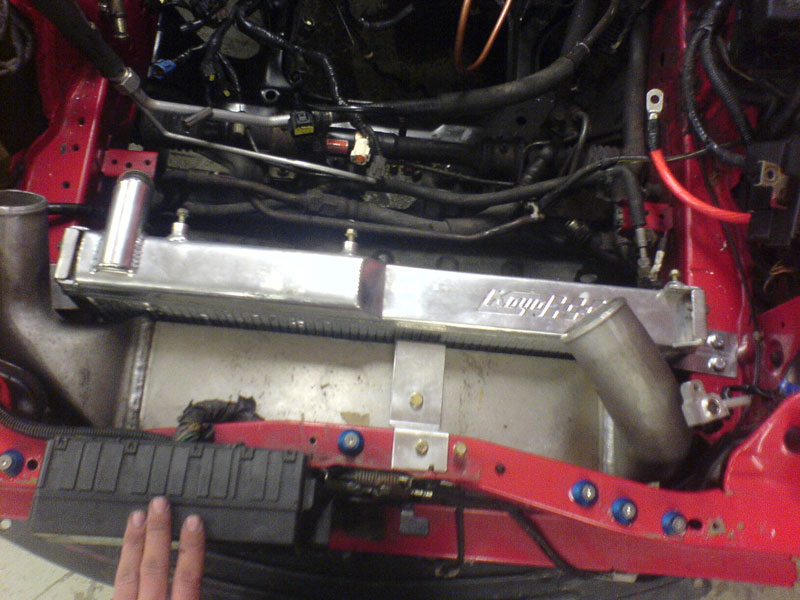

this is how i did it...

rofuz

and some ducting...

jectrx7

looks good man.

93FDADR

i have a greddy FMIC and a Cwest front. I ended up mounting the core about 2"-3" lower than where greddy designed it for because it left a 2" gap at the bottom opening of the cwest bumper. i had to get a 6" coupler for one hotside pipe and cut just a small section out to the left of the relay box in the front of the car. its a tight *** fit with my koyo, but it works. I also had to trim around 3" off the opening of the bumper

gracer7-rx7

iTrader: (16)

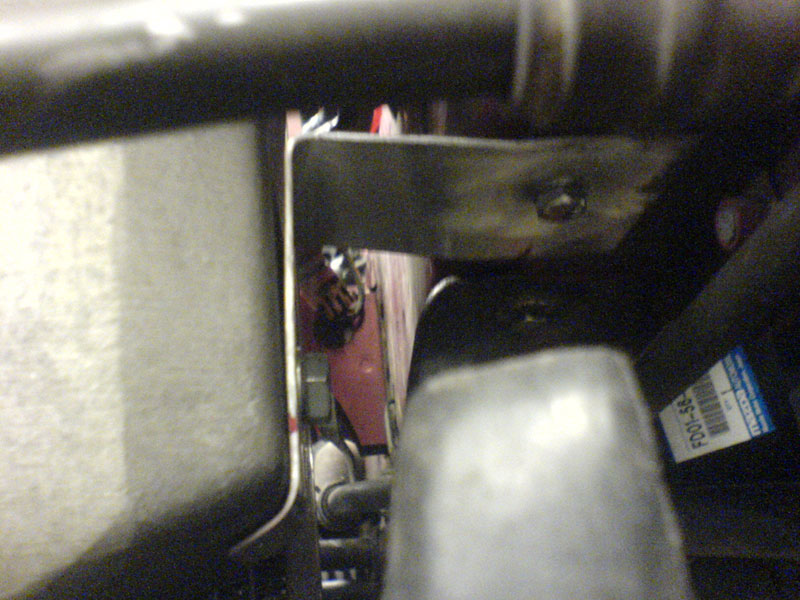

Be careful with the hard mounting of the radiator as in pic #3. There are 2 issues to look out for:
1. The chassis may flex slightly up there and if you hard mount it directly to the metal it will twist the rad ever so slightly causing it to develop a hair line crack over time (happened to me).
2. Its good to have some kind of vibration damping so your rad isn't getting rattled around as that can also cause some cracking.

Looks good though. Nice ducting.

cewrx7r1

iTrader: (2)

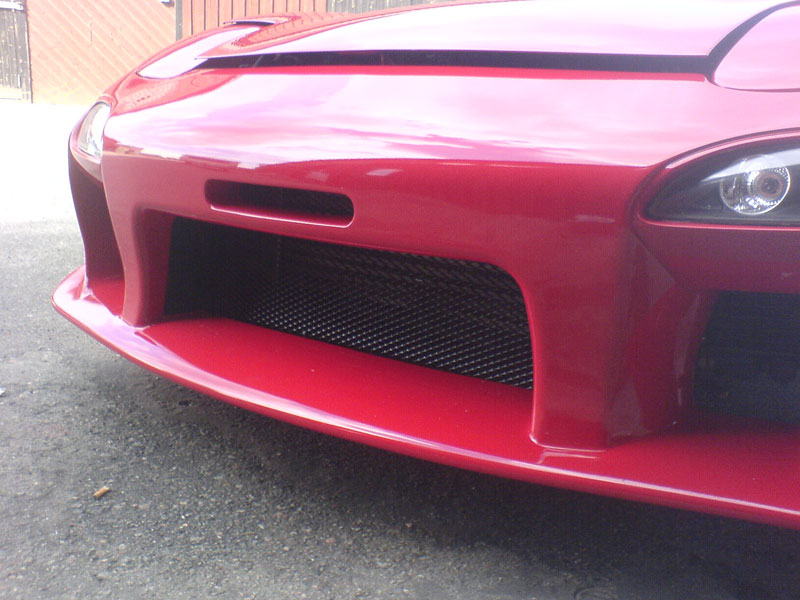

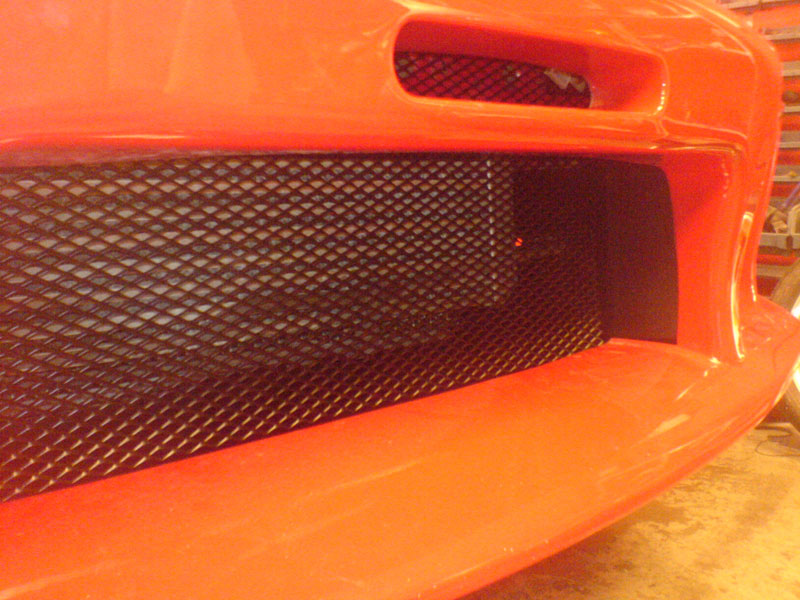

Blitz FMIC with stainless steel wire mesh in front for rock protection (hard to see), removed plastic nose corner pieces with custom blocking plates on the sides, and single shark tooth nose mod (idea from Brad Barber).

cewrx7r1

iTrader: (2)

Glad to see another person protecting their IC from rock damage.

LasVegasGS

Anymore install/Installed pic's?

GREAT INFO!!

Rx7_Nut13B

iTrader: (1)

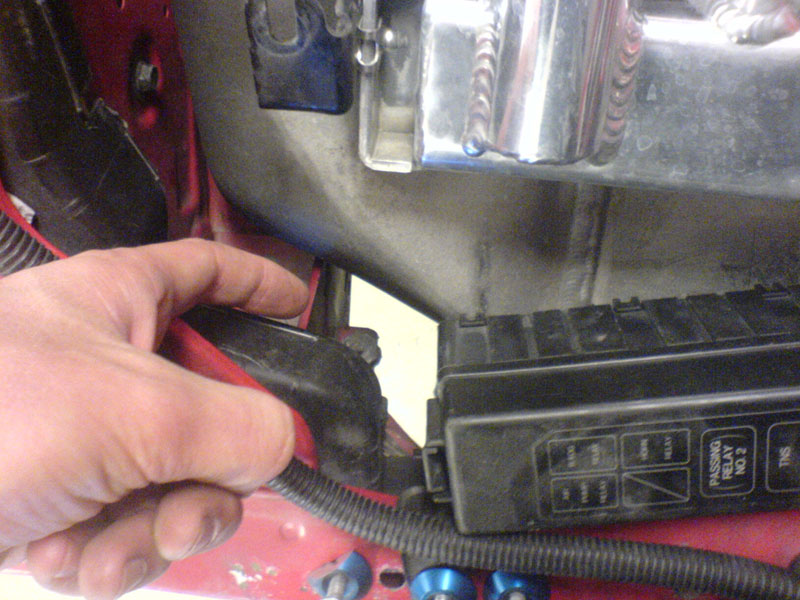

Here is mine, didnt even have to move the Koyo

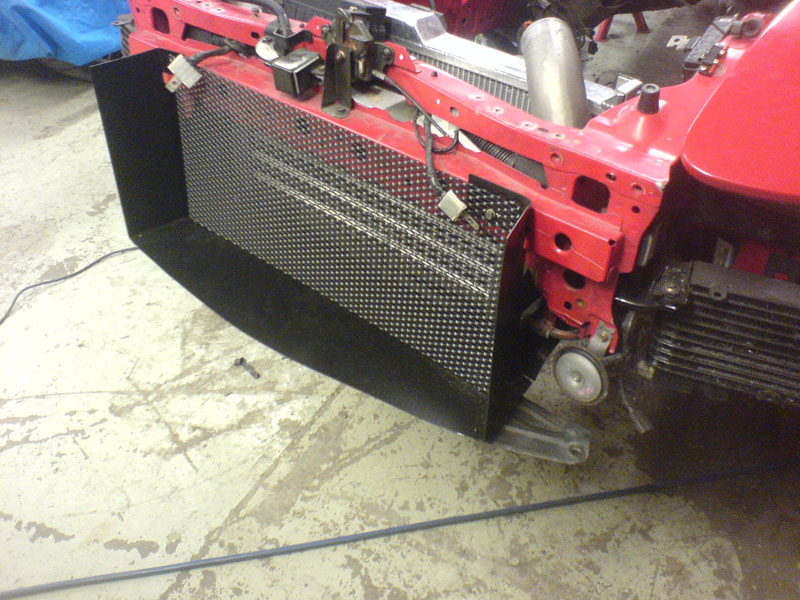

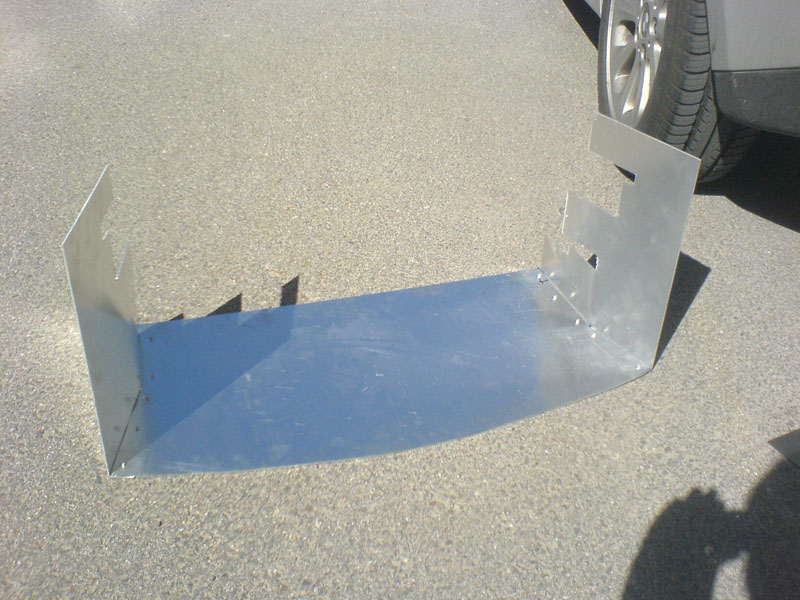

This is all custom, everything is hand made by myself

13Foxtrot

This was my old setup with the Greddy 2 row 24v IC. I only had to trim a little out of the back side of the opening in the front bumper so everything would fit well enough until I could put my FEED front end on.



** All that oil was from the install of my Gotham Racing Dual-oil cooler kit btw.
This is my current Greddy 2 row 24v setup.

And for the record to all the useless post ******, I am AWARE of the gap in my hood as well as the hanging wiring harnesses for the turn signals. All that will be fixed in due time. Nuff' said.

LasVegasGS

LMAO Sweet stuff so it seems as tho we dont need the touch the core support.

silverTRD

iTrader: (36)

looks good nut13b...

hey 13foxtrot, are u aware that you hood needs realigned? j/k

Herblenny

iTrader: (13)

these pics are few years old...

By 93 Blk FD back when it ran...

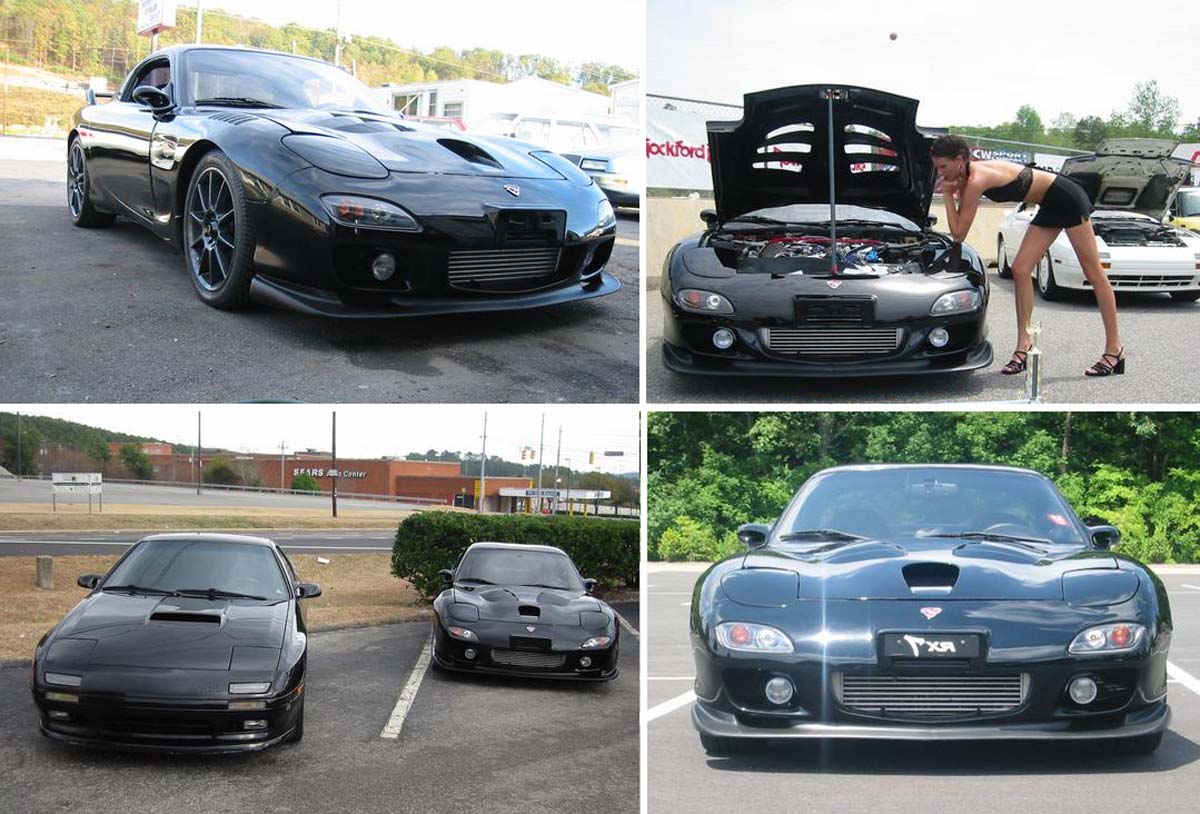

RX7Junkman

here a couple pics of mine its 30x12x4" BIG. removed the stock popup lights and ran the piping thru. didnt cut the chassis but needed to trim off a little bit off of the bumper, it is 4" thick dont know about 3"

Grizzly

Wow wow wow Woman you'll dent the wing !!!! LOL

Dezigns

Looks nice, but any particular reason the bottom right pic has RX-7 written backwards, like the image has been flipped? But that would then make it right hand drive?

Nuvolari

iTrader: (4)

apexFD

^ That is sooooo clean, i love it.

FD3S2005

iTrader: (11)

What do u have under you hood?? because my stock one is ripping and i need something new so my hood dont get stained black

felix_is_alive

my crappy car

Compilez

iTrader: (3)

Yeah, it is pretty crappy.. Let me take it off your hands. I'll trade you my 93 VR for it. It's got a fresh rebuilt motor

Compilez

iTrader: (3)

That's a LOT of piping you got there...



Nuvolari, That is a clean setup you got there, looks nice.

LasVegasGS

Man those headlights are so sexy I think I might sell mine and get those.

13Foxtrot

Herblenny, that is a killer setup. I wish mine would get a girl like that!
