New Transmission
So I've got a tranny that I haven't put in yet because I'm wanting to get a new clutch and flywheel at the same time. I'm probably going to go with the ACT S/S clutch and a lightweight flywheel that has a replaceable surface. I was wondering about a few questions though, like are there any seals that I should be replacing at the same time? Also, is there much of a difference between the 9# flywheels and say an 11# or 13# flywheel? Just basically wanting to make sure all my bases are covered, as I don't want to pull the tranny again for a while after this is done.
#3
Form follows function
iTrader: (8)

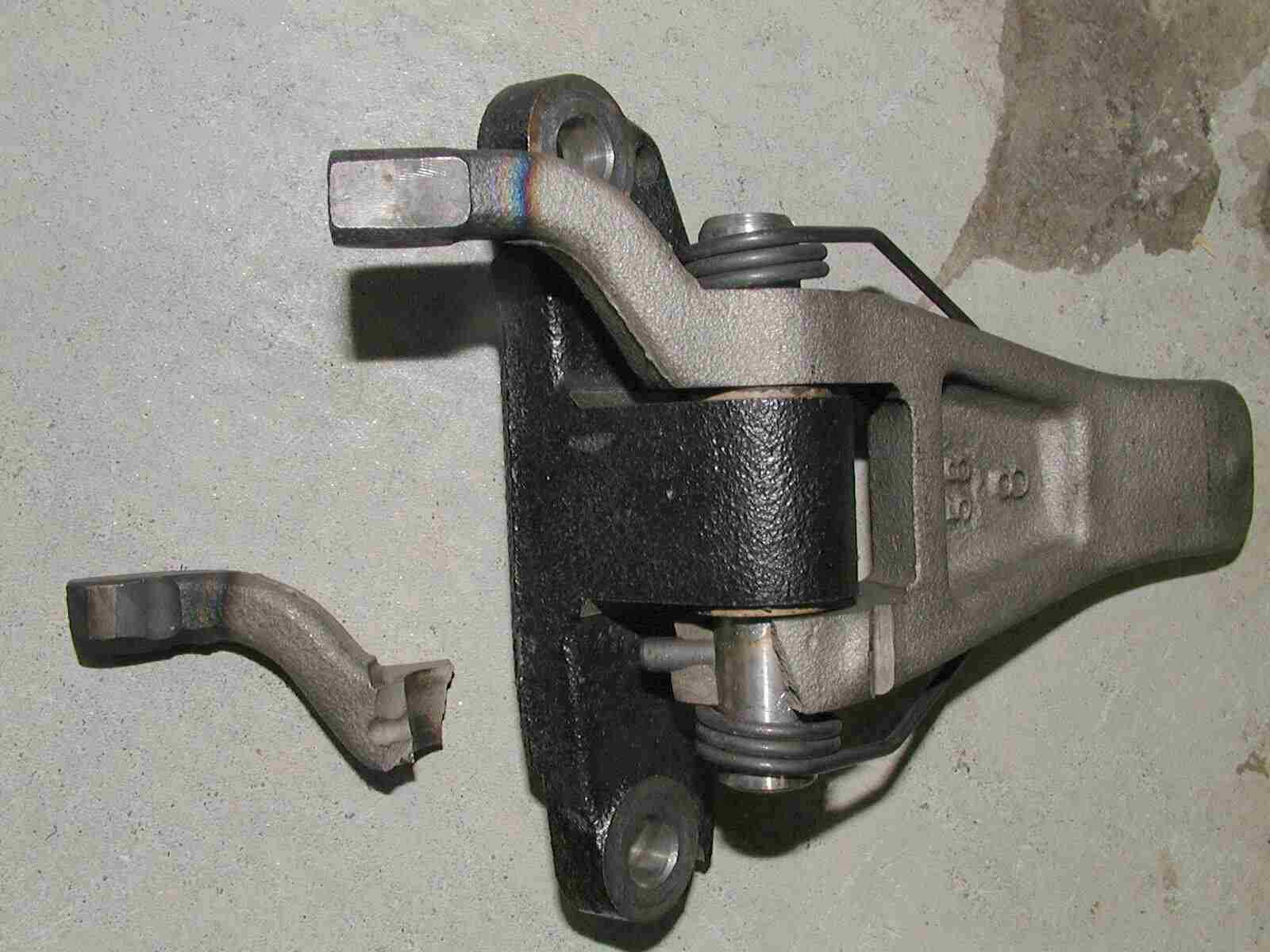

I would consider replacing the rear main seal on the engine, especially if its been on the motor for a while. I didn't do that when I pulled my tranny to replace my clutch fork and have regretted it for the last 3 years or so. I recommend that the counterweight you use isn't grooved to deeply where the seal runs or it (the rear main seal) will wear prematurely.
#5
Team Benjos Captain
Thread Starter
iTrader: (2)
Join Date: Aug 2005
Location: Greenwood/Hartsville, SC.
Posts: 2,720
Likes: 0
Received 1 Like
on
1 Post
Originally Posted by Speed of light
I would consider replacing the rear main seal on the engine, especially if its been on the motor for a while. I didn't do that when I pulled my tranny to replace my clutch fork and have regretted it for the last 3 years or so. I recommend that the counterweight you use isn't grooved to deeply where the seal runs or it (the rear main seal) will wear prematurely.
Trending Topics
#9
Goodfalla Engine Complete
iTrader: (28)
SS clutch line, and there are a few other parts that are good to do.
- Clutch Release Fork: N315-16-520B (upgraded OEM part)
- Wedge Collar: N315-16-415
- Wire Ring: N315-16-416
- Rear Seal: R501-17-335A
- Bearing, Release: N315-16-510
and good to do:
- Bearing, Pilot: N326-11-D03
- Seal, Pilot Bearing: 1881-11-404A
- Seal, Oil (Clutch Hsg): H501-17-103
- Spindle, Select Lock: R503-17-550 (upgraded OEM part)
FdNewbie sells the whole shebang for 300 shipped.
- Clutch Release Fork: N315-16-520B (upgraded OEM part)
- Wedge Collar: N315-16-415
- Wire Ring: N315-16-416
- Rear Seal: R501-17-335A
- Bearing, Release: N315-16-510
and good to do:
- Bearing, Pilot: N326-11-D03
- Seal, Pilot Bearing: 1881-11-404A
- Seal, Oil (Clutch Hsg): H501-17-103
- Spindle, Select Lock: R503-17-550 (upgraded OEM part)
FdNewbie sells the whole shebang for 300 shipped.
