Need a picture of the Power Steering line loop

I am in the middle of doing some stuff to my car. I am trying to take as much off as I can. Just need a picture to use as a reference. I've tried searching and found nothing. Thanks.

Brent

Reply Like

04-22-07, 06:10 PM

gracer7-rx7

needs more track time

iTrader: (16)

Join Date: Mar 2006

Location: Bay Area CA

Posts: 9,178

Likes: 2,176

Received 506 Likes on 348 Posts

try gothamracing.com
i think its about $30

Reply Like

04-22-07, 07:50 PM

DGblk93

Senior Member

Join Date: Dec 2004

Location: In your wheelhouse

Posts: 502

Likes: 0

Received 0 Likes on 0 Posts

http://www.nopistons.com/forums/inde...opic=43871&hl=

first picture

Reply Like

04-22-07, 08:20 PM

jkstill

Searching for 10th's

iTrader: (11)

Join Date: May 2002

Location: Portland OR

Posts: 2,247

Likes: 66

Received 29 Likes on 18 Posts

Not sure what kind of pic you are looking for.

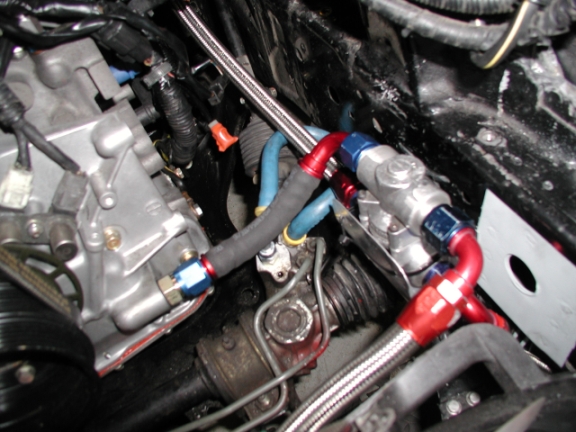

Here's a line loop installed in my FD (blue hose)

Attached Thumbnails

Need a picture of the Power Steering line loop-oilstat_1_lowres.jpg

Reply Like

04-22-07, 09:51 PM

dontlift

Blithering Idiot

Join Date: Jan 2007

Location: NE Pa

Posts: 338

Likes: 9

Received 1 Like on 1 Post

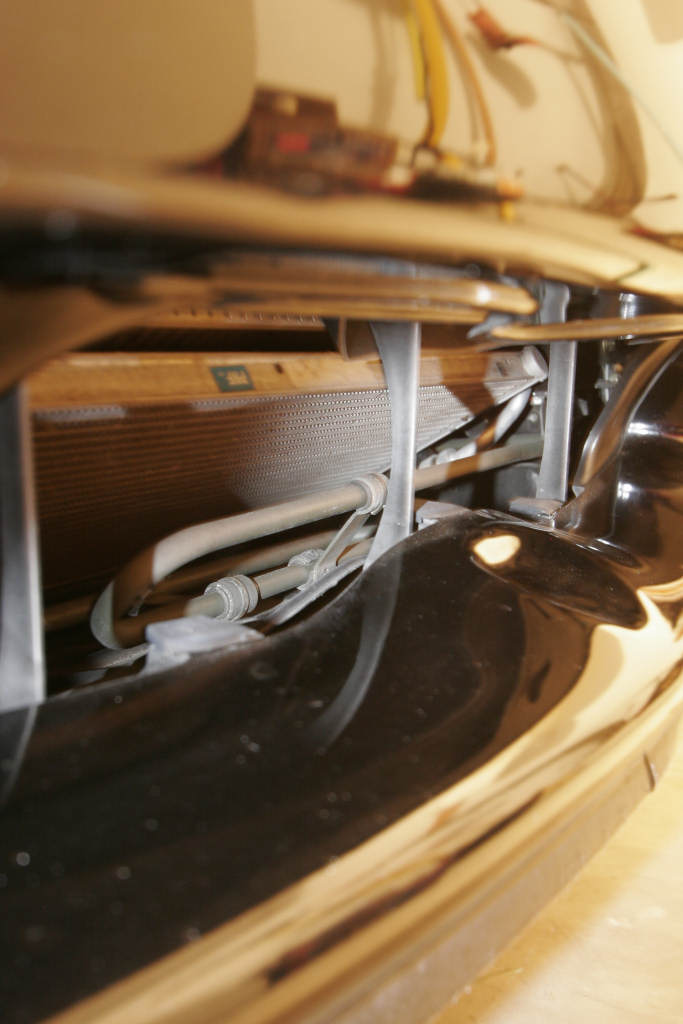

^ likewise, but here's a view of the p/s cooler loop:
https://www.rx7club.com/attachment.p...hmentid=218562
attachment.php (JPEG Image, 683x1024 pixels)
