stevemack

I already have 1100 breaking in miles on the new rebuild and I wanted to install my new Pineapple Racing Dual EGT Gauge and probes before getting it tuned.

Hopefully this will help me get a more comprehensive tune as I will be incorporating EGT values from each rotor face.

Basically my question is, where do I install the probes on my stock sequential turbo system in order to maximize the correct corresponding EGT values?

Any help will be greatly appreciated.

Stephen

Narfle

iTrader: (16)

youll have to have stock manifold drilled and plugged. Mostly i think it was intended for single set ups with custom manifolds.

islanders_rx7

iTrader: (4)

Ref this thread:
https://www.rx7club.com/nw-rx-7-forum-33/fd-restoration-%24%24%24%24-damnit-525920/page17/

stevemack

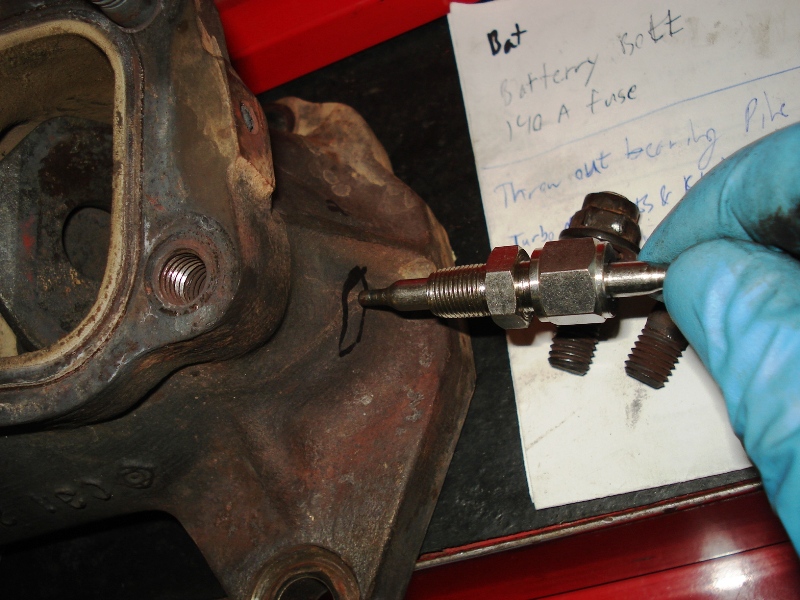

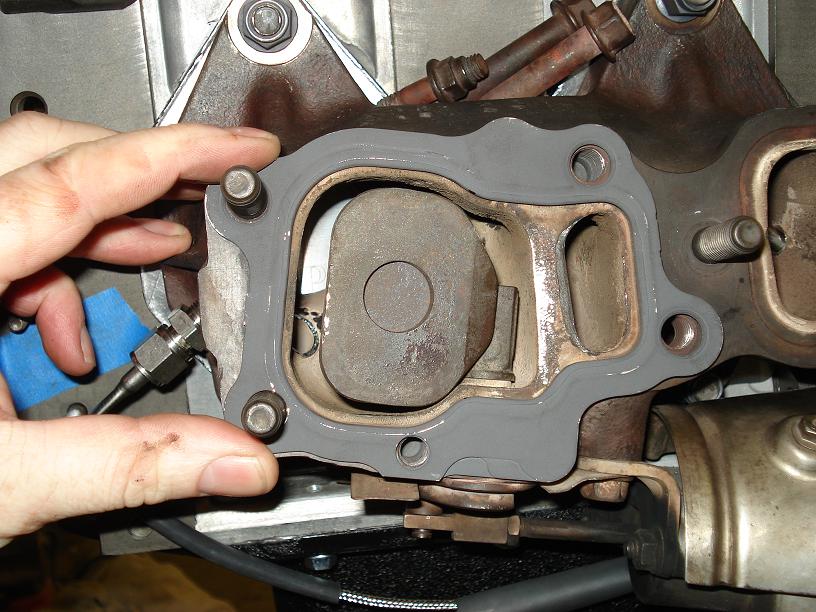

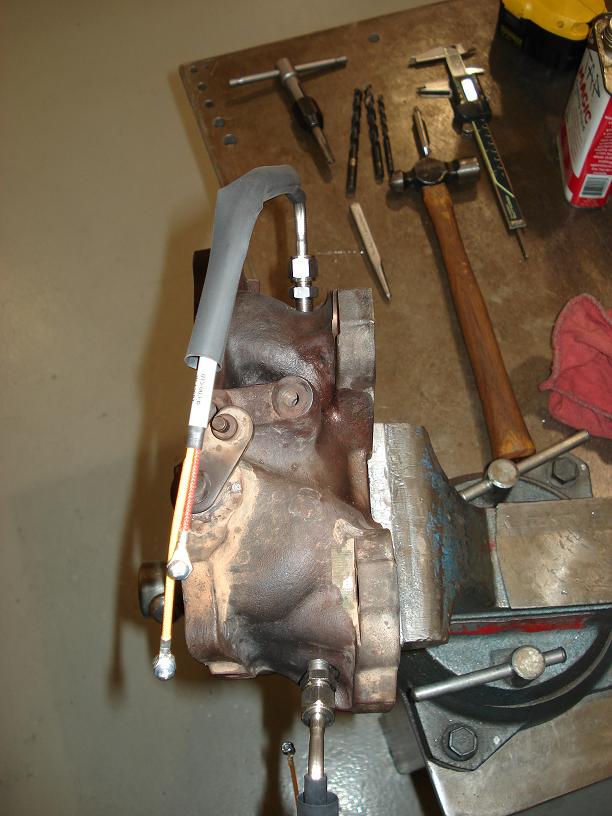

Thanks bro. I had to look through the 12th page but I finally found what I was looking for. Below are the pictures that I found helpful.

Is this the agreed upon best location to place the probes in order to obtain optimal EGT values from a stock sequential turbo system?

afgmoto1978

iTrader: (6)

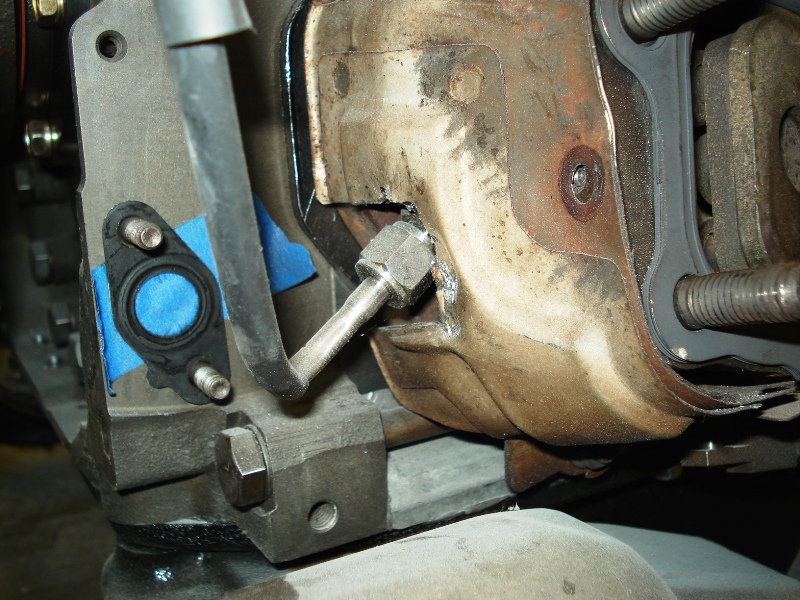

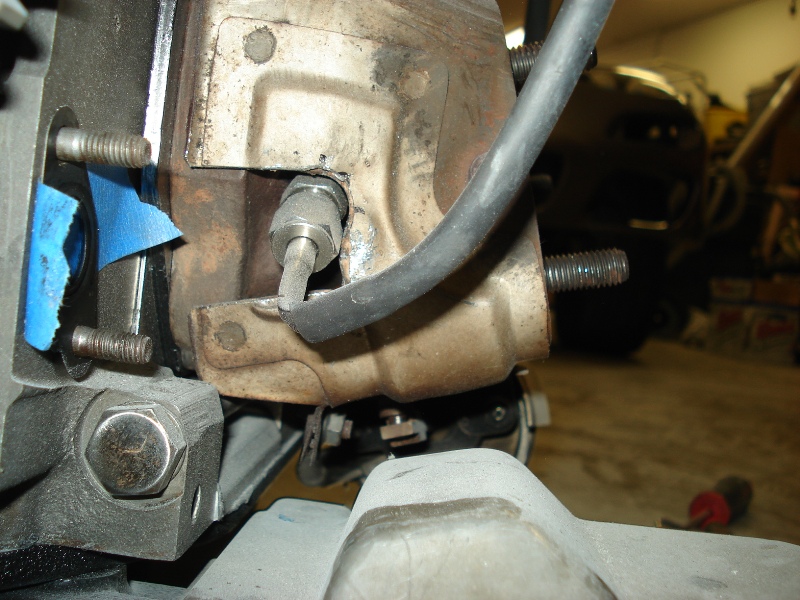

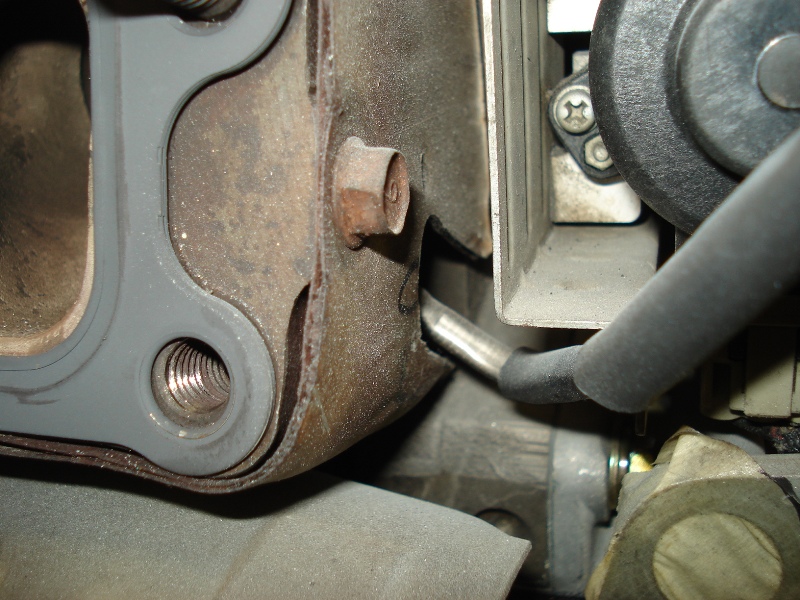

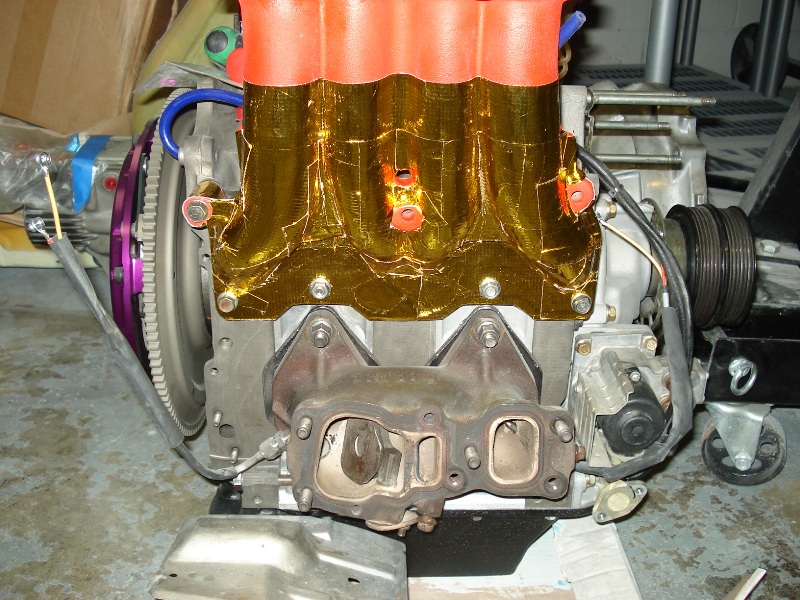

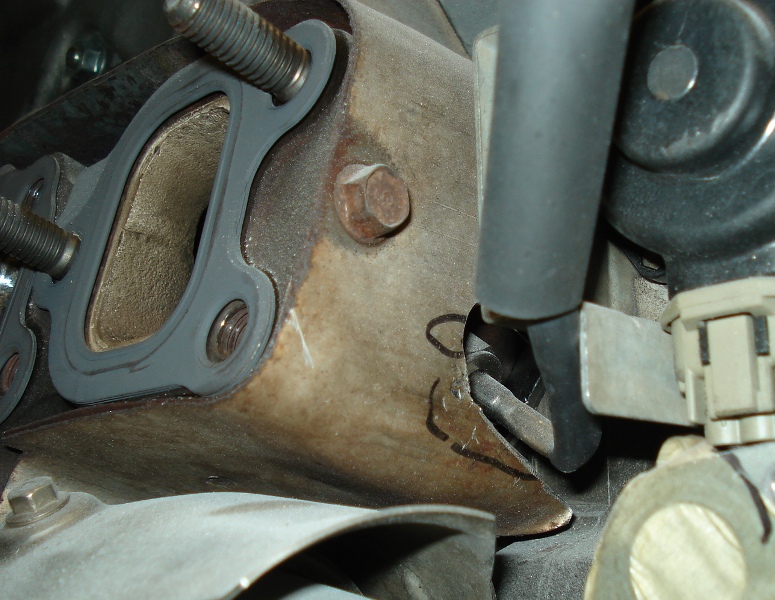

Here are some more pics. Nobodies objected to the location yet. It’s more of a room/clearance issue with the probe placement on the stock turbos. However, the location is within the recommended placement from Blake.

stevemack

Ah, a post from the man himself. Thanks for letting me borrow some of the pictures from your post. A hundred more thanks for the new pictures you posted in my thread. I think I have all I need now in terms of knowing where to place the probes.

Now I just need to get my mechanic to take the steps necessary to get them there. Hopefully he can get it done.

Good luck on your project afgmoto1978. Looks like your car is going to be ******* sweet.
