bisQuit

Hello

just got my greddy/trust airinx set here from greenline motorsports and was wondering if anyone had an english manual or some kind of howto to mounting these. I only got a japanese manual without pictures and i must say that japanese isnt my strong side.

Thanks for all help.

Rex7-93

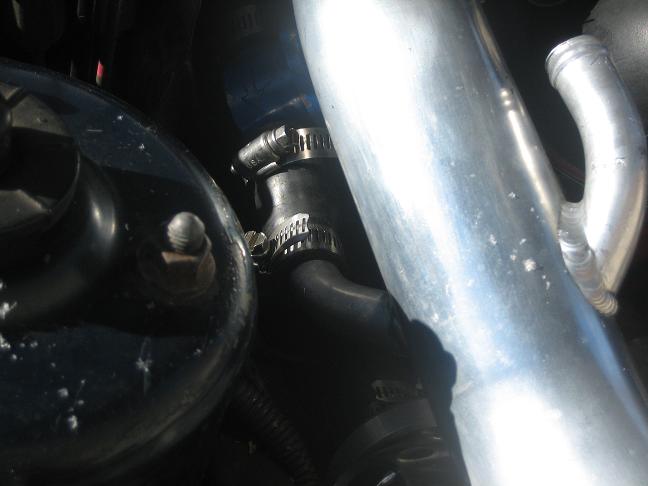

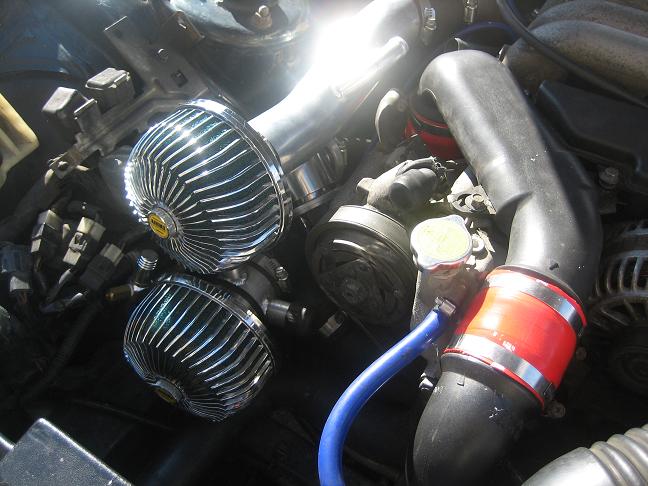

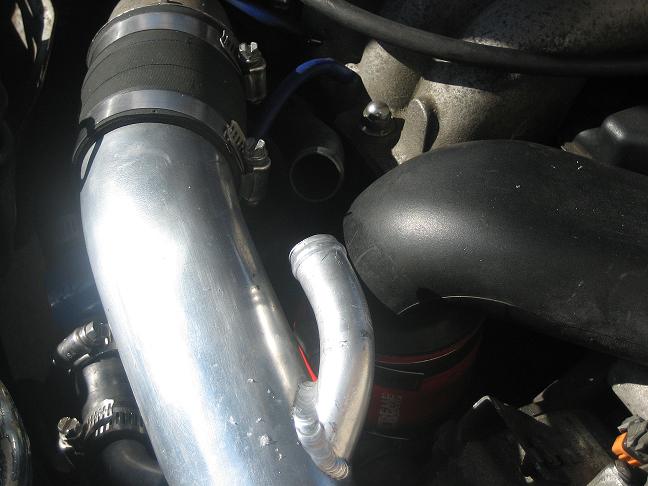

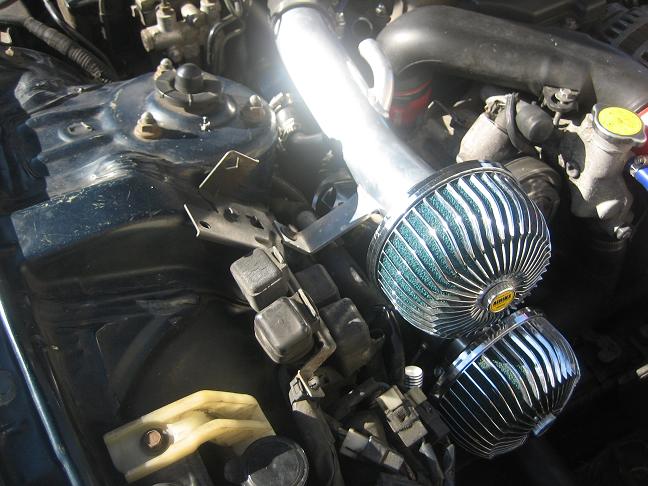

it is very easy, all you have to do is cut the lines a bit shorter for the ABV and CRV. The ABV connects to the pipe on the smaller intake that turns towards the back of the car and the air pump goes on the straight pipe on the smaller intake. The CRV goes on the pipe on the longer intake closer to the passanger side, and the other one on the longer intake goes to that small metal pipe right above the Y pipe. Sorry if the directions are hard to understand but it has been over a year since i did this.

Rex7-93

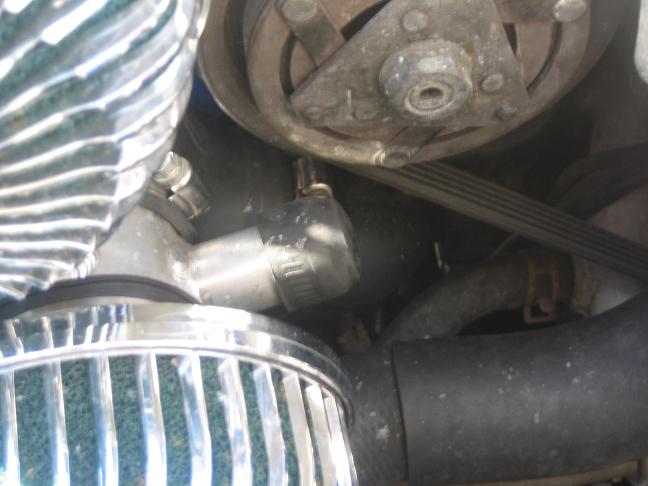

In the third picture, the straight pipe coming off of the smaller intake is cut shorter and capped off because I am not using my air pump. I also dont have a picture of the one going to the ABV because I have a HKS bov and it is too crammed to see anything. Hope this helps.

bisQuit

quick question what is ABV and CRV ?

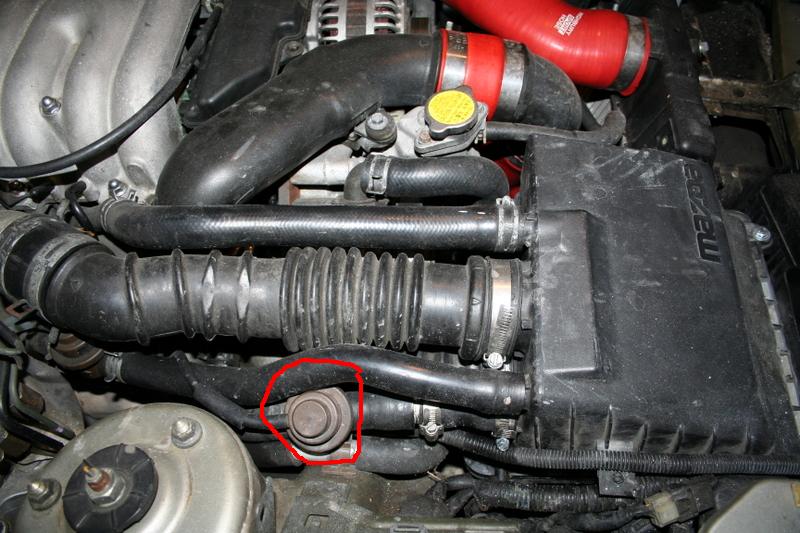

I guess this are the orginal valves but whats what of them. Im also gona install a turboXS HRFL valve on my car so would be kind of nice knowing whats what. I guess the one that i have marked on the picture here is whats original is going to the "top" filter and the one that should be switched with the RFL?

Rex7-93

the one you have circled is the ABV, or the blow off valve. The one that looks the same towards the back of the engine is the CRV, or charge relief valve which vents air from the secondary until 4500 rpm. Yes the one you have circled will be replaced with the turbo xs, but that one goes on the lower intake. The valve that is not circles goes on the upper intake.

bisQuit

Okay.

thanks alot

Guess il have to try this thing pictures will follow.

Rex7-93

yea when you get it done let me know how it turns out or if you have any problems, i'll check in on this later.
