Help filling in the blanks - RX7 Wiring Diagram
Although there's a great photo of a wiring harness that's taken apart floating around the boards, I'm trying to create one using the RX7 tech manual's diagram...that way it's easily identifiable which goes where because it's placed actually on the engine.
But I'm having trouble filling in the blanks...there's a few connectors I'm missing and I'd like to double-check my work. Can any of you help? This is going to go along with the Assembly Reference Photos I'm working on here:
RX-7 (FD3S) Reference Photos Project
Thanks for the help!
But I'm having trouble filling in the blanks...there's a few connectors I'm missing and I'd like to double-check my work. Can any of you help? This is going to go along with the Assembly Reference Photos I'm working on here:
RX-7 (FD3S) Reference Photos Project
Thanks for the help!
#2
~17 MPG
iTrader: (2)
To the right of the purge control is the Knock sensor, it's a one-wire connector. The connector to the far right is for the OMP. Not too big of a deal because you can't connect either of them to anything else.
The connectors you have labeled Turbo Precontrol, Wastegate Control and OMP are something else. Those three "T" shaped connectors near the rear Secondary Injector go to the ACV.
The connectors you have labeled Turbo Precontrol, Wastegate Control and OMP are something else. Those three "T" shaped connectors near the rear Secondary Injector go to the ACV.
#5
Rotary Enthusiast
Thread Starter
Join Date: Nov 2002
Location: Oahu, Hawaii
Posts: 792
Likes: 0
Received 0 Likes
on
0 Posts
Sure thing...I'm going to go through a couple of the most common and see about making them a bit more friendly.
Thanks all for the help! If anyone else can help me re-identify the ones I screwed up, I'd appreciate it. Thanks!
Thanks all for the help! If anyone else can help me re-identify the ones I screwed up, I'd appreciate it. Thanks!
#6
Twisted this is how it should be:
Power steering is actually Oil metering pump
ACV is the turbo precontrol (left) and wastegate (right) solenoids
Cali EGR is 93 Ca and 94 all EGR
Also
The one directly above the "cali EGR" is the Turbo control solenoid
Above where you have thermo switch there is the fan swich (thermo switch) to the right and the Thermosensor to the left
The IAC is really the ISC (idle speed control)
Power steering is actually Oil metering pump
ACV is the turbo precontrol (left) and wastegate (right) solenoids
Cali EGR is 93 Ca and 94 all EGR
Also
The one directly above the "cali EGR" is the Turbo control solenoid
Above where you have thermo switch there is the fan swich (thermo switch) to the right and the Thermosensor to the left
The IAC is really the ISC (idle speed control)
Trending Topics
#11
Rotary Enthusiast
Thread Starter
Join Date: Nov 2002
Location: Oahu, Hawaii
Posts: 792
Likes: 0
Received 0 Likes
on
0 Posts
I'm sure it's on another diagram...I won't be adding anything to this one other than what's on it, because I plan on going through the majority of the harness diagrams and labeling all the connectors. The driver's side of the firewall is the one after this. Thanks for the input though!
#12
Luckily no broken cambelt
Join Date: Nov 2009
Location: Sweden
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
This seemed like a too good idea to not be updated.
The IAC (intake air control valve) is part of the ISC so that label would be correct.
Please double check what I did to the picture.
Are we definite on the water temp sender? I would have thought oil pressure.
To the very left, where there is a text "Sec. Injector", there also is a branch of the harness. Where does that branch go?
The IAC (intake air control valve) is part of the ISC so that label would be correct.
Please double check what I did to the picture.
Are we definite on the water temp sender? I would have thought oil pressure.
To the very left, where there is a text "Sec. Injector", there also is a branch of the harness. Where does that branch go?
#13
Senior Member
iTrader: (20)
Looks good to me, the harness which runs off the page which you are referring to goes over the transmission and plugs into the gear sensors/switches there.
The water temp sender is correct as well.
The O2 and AWS connectors are switched though, if you notice on the O2 Connector there is a small slit opening on the bottom part of the connector which corresponds to the male end of the AWS if I remember correctly.
This diagram is also missing a small connector which plugs into the emissions harness, near the power steering..
The water temp sender is correct as well.
The O2 and AWS connectors are switched though, if you notice on the O2 Connector there is a small slit opening on the bottom part of the connector which corresponds to the male end of the AWS if I remember correctly.
This diagram is also missing a small connector which plugs into the emissions harness, near the power steering..
#14
Luckily no broken cambelt
Join Date: Nov 2009
Location: Sweden
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
The water temp sender is correct as well.
The O2 and AWS connectors are switched though, if you notice on the O2 Connector there is a small slit opening on the bottom part of the connector which corresponds to the male end of the AWS if I remember correctly.
This diagram is also missing a small connector which plugs into the emissions harness, near the power steering..
#15
Luckily no broken cambelt
Join Date: Nov 2009
Location: Sweden
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
LOL x 2
LOL #1, I thought this was the engine harness, this is the emissions harness. Looking a bit closer in the wiring diagrams I now know there are lots of harnesses.
LOL #2, ArchangelX had started another thread where this already was answered.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/need-help-finishing-off-wiring-harness-diagram-853588/
And Sephek made the same comments in that thread just a few months ago.
It also contained this useful link:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/1993-front-harness-annotated-connector-pictures-892648/
Well, at least I've done a more neatly looking version.
LOL #1, I thought this was the engine harness, this is the emissions harness. Looking a bit closer in the wiring diagrams I now know there are lots of harnesses.
LOL #2, ArchangelX had started another thread where this already was answered.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/need-help-finishing-off-wiring-harness-diagram-853588/
And Sephek made the same comments in that thread just a few months ago.
It also contained this useful link:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/1993-front-harness-annotated-connector-pictures-892648/
Well, at least I've done a more neatly looking version.
#16
Luckily no broken cambelt
Join Date: Nov 2009
Location: Sweden
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts

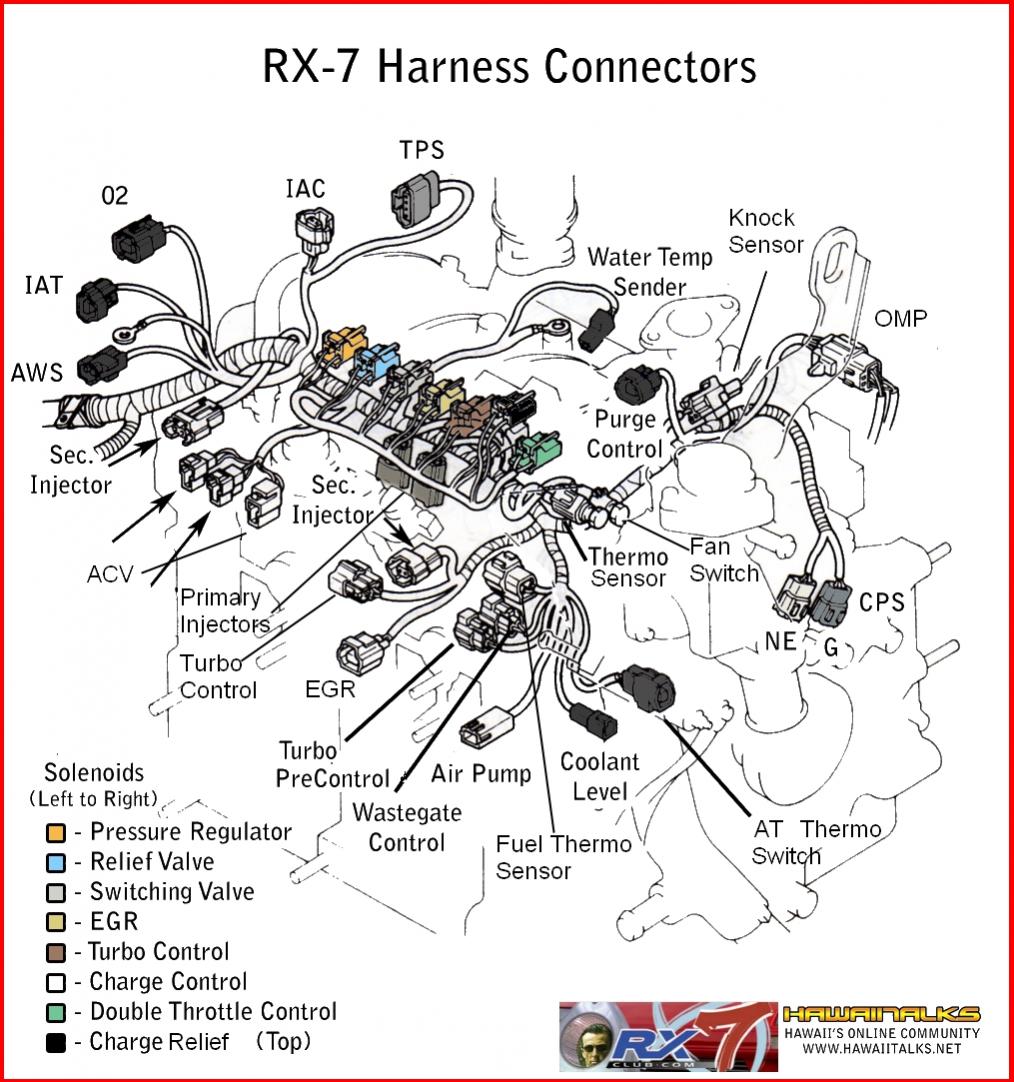

Finished
02<->AWS
Fuel thermo<->turbo control
Colored three connectors
Comparing with badddrx7's comment and the wiring diagram, that is the coolant level switch that plugs into the engine harness (and then into the front harness and then into the instrument-panel harness). It's now added.
I'm hopefully finished.
Fuel thermo<->turbo control
Colored three connectors
I'm hopefully finished.
