Fuse for Tach...?

Reset the ECU and took the car for a quick drive and on my way home the Tach stopped working simultaneously with the passenger window.

When it rains it pours.

Are they on the same fuse?
Old 02-20-07, 04:47 PM
  #2
IRS 4 Life

iTrader: (12)

Bacon's Avatar

Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes on 2 Posts
well by the tac should be on the room fuse which is separate from the window.

factoid the ground for the gauge is the one on top of the fuel pump cover

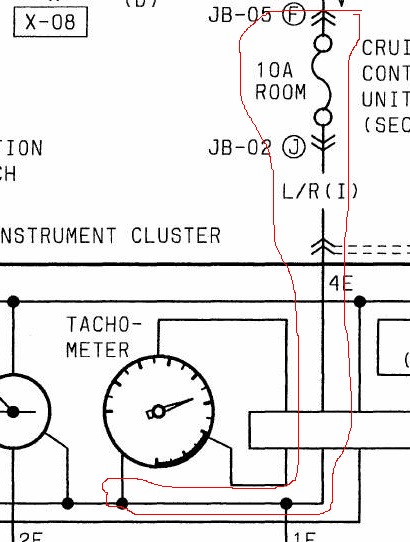

Attached Thumbnails Fuse for Tach...?-tac.bmp.jpg
Old 02-20-07, 07:13 PM
  #3
Eats, Sleeps, Dreams Rotary

iTrader: (17)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,896
Received 175 Likes on 129 Posts
Originally Posted by Bacon
factoid the ground for the gauge is the one on top of the fuel pump cover
really?
Old 02-21-07, 02:34 PM
  #4
IRS 4 Life

iTrader: (12)

Bacon's Avatar

Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by neit_jnf
really?
I thought the same thing. I discovered this after I put in a custom dual pump setup. So the top cover was different, didn’t think to re hook that little ground since the tank was grounded, and I had direct leads to the battery for the fuel pumps.

After doing the swap and being like WTF, I didn’t do anything with the cluster I stared @ the wiring diagrams and realized that was the ground for the cluster. Grounded it and tadow, cluster works……
