Fire Today -- Under the Dash (pix)
#1
93 Touring
Thread Starter
Fire Today -- Under the Dash (pix)
Drove maybe 5 minutes, smoke started coming out of the vents.
Then I saw a flame under the dash to the left of the glovebox. I have the glovebox out of the car, that's how I could see the flame.
Anyway, tried to put it out with a towel but couldn't, turned around and drove back home grabbed the fire extinguisher, pulled the pin and Nothing! Now the flame is burning the plastic, So I grab the water hose and spray it out.

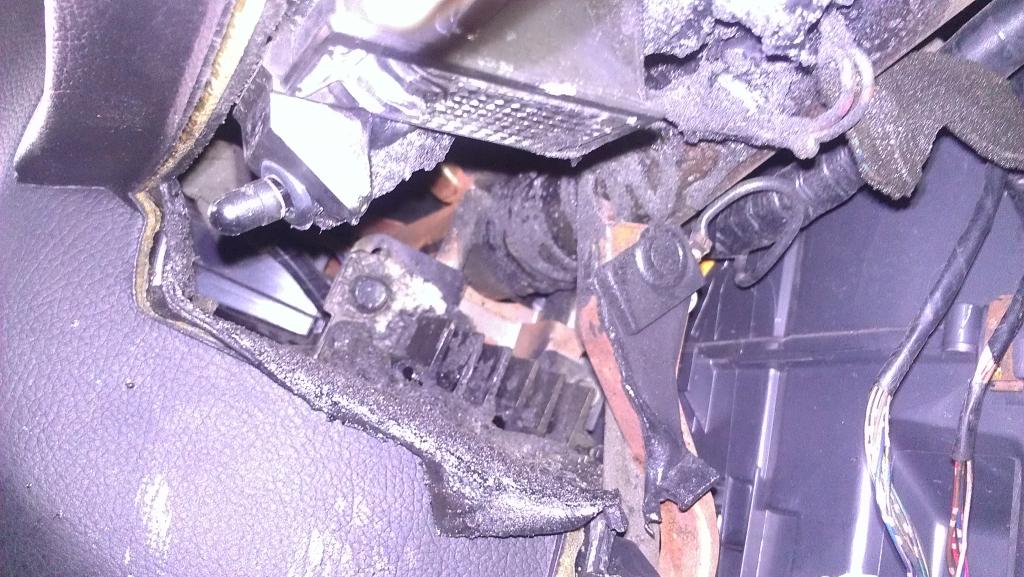

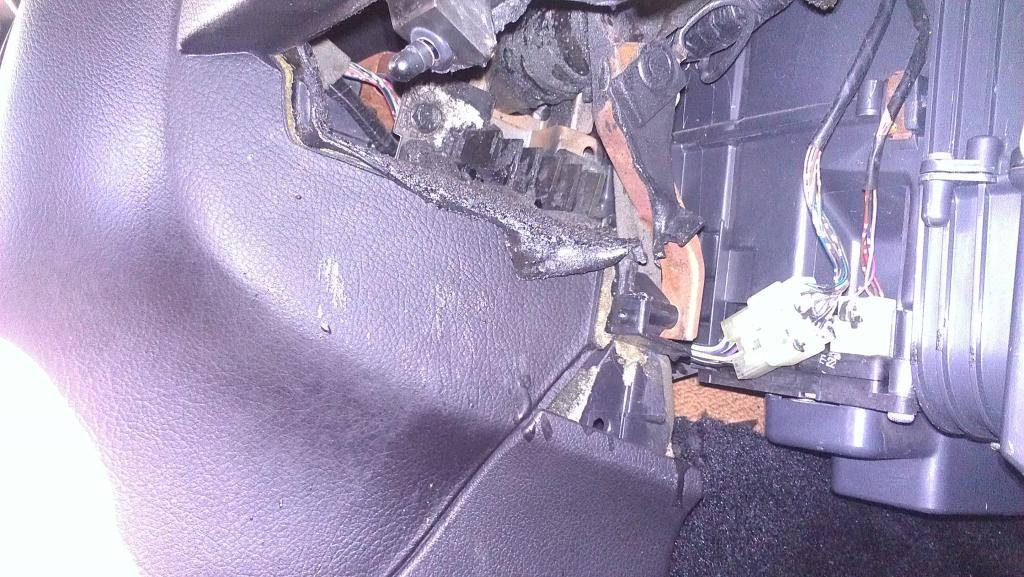

What caused the fire? Pics show a finned metal something just to the left of the glovebox and it looks like the origin or something right there.
I pulled the radio, it wasn't from there-- wires are all fine there.
I've searched, but all the Fire posts are about under hood fires.
As always, thanks for any help.
ppritchard@cfl.rr.com
Then I saw a flame under the dash to the left of the glovebox. I have the glovebox out of the car, that's how I could see the flame.
Anyway, tried to put it out with a towel but couldn't, turned around and drove back home grabbed the fire extinguisher, pulled the pin and Nothing! Now the flame is burning the plastic, So I grab the water hose and spray it out.
What caused the fire? Pics show a finned metal something just to the left of the glovebox and it looks like the origin or something right there.
I pulled the radio, it wasn't from there-- wires are all fine there.
I've searched, but all the Fire posts are about under hood fires.
As always, thanks for any help.
ppritchard@cfl.rr.com
#2
93 Touring
Thread Starter
Is that "finned" piece the amp for the center speaker?
That's the only thing I can find a pic of that looks similar.
Could a center speaker amp catch fire?
thanks for any input.
That's the only thing I can find a pic of that looks similar.
Could a center speaker amp catch fire?
thanks for any input.
#3
Top of the food chain!!!
iTrader: (1)
It's definitely a heat sink for something. Not sure if that's an amp (I kinda thought it was internal to the headunit) but it very well might be. Regardless, it looks like it's close to where the fire started. If you had only been driving 5 minutes I doubt it could have heated up quite that much though. It wouldn't have had time to get THAT hot.
My money is on some bad wiring or something electrical.
My money is on some bad wiring or something electrical.
#5
Form follows function
iTrader: (8)
That is the center speaker amp. Does the car have a Bose system? Was the center speaker connected and working?
This is not the first report of the center amp catching fire. More info and some forensics would be helpful to identify a potential hazard/trend/failure mode.
This is not the first report of the center amp catching fire. More info and some forensics would be helpful to identify a potential hazard/trend/failure mode.
#7
93 Touring
Thread Starter
Thanks,
Speed of light-- first time I've heard of an amp fire -- but the precursor was a whining noise from the speaker, just like an old distributor wiring problem. That was my only warning that "something" was amiss with the audio.
Are there posts on other fire issues? If so, I couldn't find them.
2. center speaker was working, but with the buzz/whine I mentioned.
thanks,
ppritchard
Speed of light-- first time I've heard of an amp fire -- but the precursor was a whining noise from the speaker, just like an old distributor wiring problem. That was my only warning that "something" was amiss with the audio.
Are there posts on other fire issues? If so, I couldn't find them.
2. center speaker was working, but with the buzz/whine I mentioned.
thanks,
ppritchard
Trending Topics
#9
Time or Money, Pick one
iTrader: (36)
Def an amp in my opinion. This same thing happened to me in my Toyota Tundra. My fd has the bose in it and I think It may be time to remove it. I didn't know it was a problem. Maybe I'll get a speaker pod, hmm
Keep us posted upon further inspection and repair. Thanks and good luck
Keep us posted upon further inspection and repair. Thanks and good luck
#10
Top of the food chain!!!
iTrader: (1)
If the speaker was giving you hints that the source powering it was calling it quits then that sounds like your answer. Though to be honest, as an audio amplifier and speaker designer, I wouldn't have thought it could really heat up to beyond operating temp in less than 5 minutes. Certainly not unless you were just jamming like crazy.
Unless of course, the fire wasn't due to the heat sink getting to hot and it was really due to some capacitors blowing up or something. That DEFINITELY has the potential to cause a fire. I melted some caps on a 350watt plate amp in a home theater sub I built about 5 years ago. It toasted some of the poly fill inside the enclosure.
Glad you're ok though. Could have been a LOT worse!
Unless of course, the fire wasn't due to the heat sink getting to hot and it was really due to some capacitors blowing up or something. That DEFINITELY has the potential to cause a fire. I melted some caps on a 350watt plate amp in a home theater sub I built about 5 years ago. It toasted some of the poly fill inside the enclosure.
Glad you're ok though. Could have been a LOT worse!
#11
I'm glad you caught it in time. That could have become so much worse...!!
This speaker amp- is it only in Bose equipped models or is it in all models?
I have seen a small clarion branded amp metal looking square thing in the center of my dash, behind the stereo unit on my RHD car. Is this the same thing and should I remove it??
Fire freaks me out. I had one car burn to the ground from bad factory wiring and insurance didn't cover it.
This speaker amp- is it only in Bose equipped models or is it in all models?
I have seen a small clarion branded amp metal looking square thing in the center of my dash, behind the stereo unit on my RHD car. Is this the same thing and should I remove it??
Fire freaks me out. I had one car burn to the ground from bad factory wiring and insurance didn't cover it.
#12
Form follows function
iTrader: (8)
Clarion was, I believe, the vendor for the 'standard' system. They certainly made the head units. I don't know if they manufactured units for Bose, however. (After viewing the pic on a real computer, that def is the Bose version of the amp.)
So it sounds like the amp became unstable and went into oscillation; a condition which can lead to thermal runaway and catastrophic failure.
For those who would prefer to keep the system, it might be worthwhile to splice a small 4 or 5 amp fuse specifically in the B+ lead to the center channel amp, which might better protect the amp against such a high-profile failure (than the 20 or 30 amp 'main' system fuse apparently does). That's what I'll be doing.
If you search the board, I think you may find another member that reported the same failure and fire not that long ago. I hope this isn't trending.
So it sounds like the amp became unstable and went into oscillation; a condition which can lead to thermal runaway and catastrophic failure.
For those who would prefer to keep the system, it might be worthwhile to splice a small 4 or 5 amp fuse specifically in the B+ lead to the center channel amp, which might better protect the amp against such a high-profile failure (than the 20 or 30 amp 'main' system fuse apparently does). That's what I'll be doing.
If you search the board, I think you may find another member that reported the same failure and fire not that long ago. I hope this isn't trending.
Last edited by Speed of light; 09-17-14 at 12:10 AM. Reason: crappy android phone text editor
#14
Urban Combat Vet
iTrader: (16)
https://www.rx7club.com/interior-ext...nterior-90394/
https://www.rx7club.com/interior-ext...oubles-611695/
https://www.rx7club.com/interior-ext...cement-294476/
Hate electronics and have no real understanding of what the OP is saying in this thread, other than how the amps might fail:
https://www.rx7club.com/interior-ext...-guide-885516/
https://www.rx7club.com/interior-ext...oubles-611695/
https://www.rx7club.com/interior-ext...cement-294476/
Hate electronics and have no real understanding of what the OP is saying in this thread, other than how the amps might fail:
https://www.rx7club.com/interior-ext...-guide-885516/
#16
Top of the food chain!!!
iTrader: (1)
For those who would prefer to keep the system, it might be worthwhile to splice a small 4 or 5 amp fuse specifically in the B+ lead to the center channel amp, which might better protect the amp against such a high-profile failure (than the 20 or 30 amp 'main' system fuse apparently does). That's what I'll be doing.
#17
93 Touring
Thread Starter

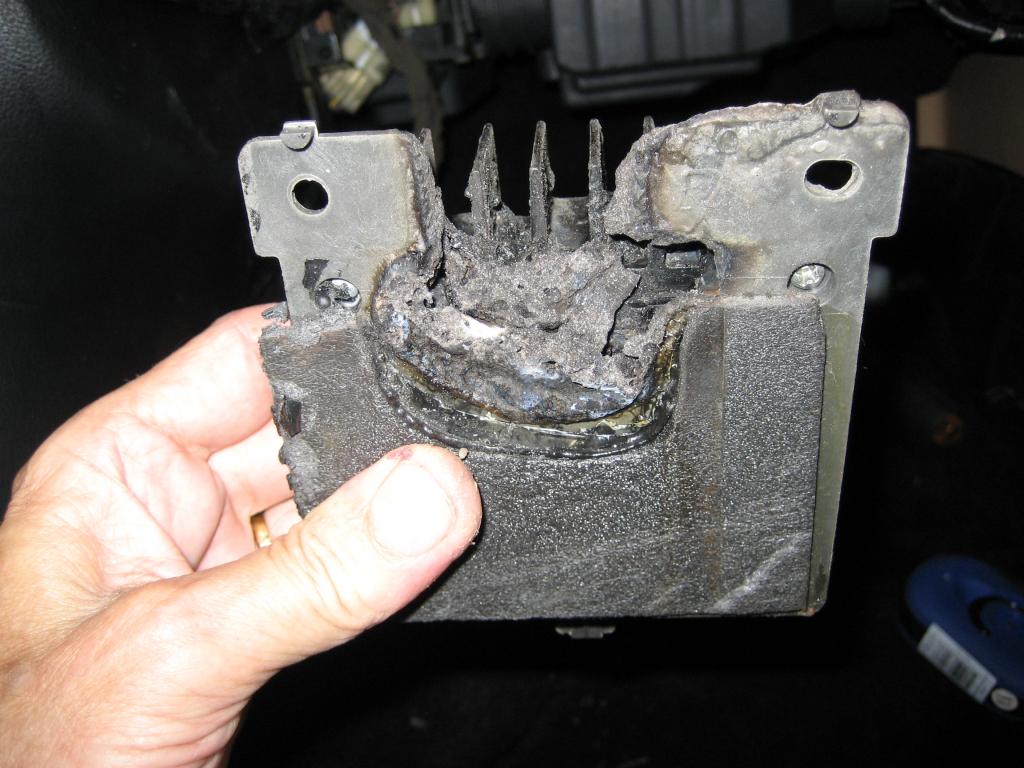

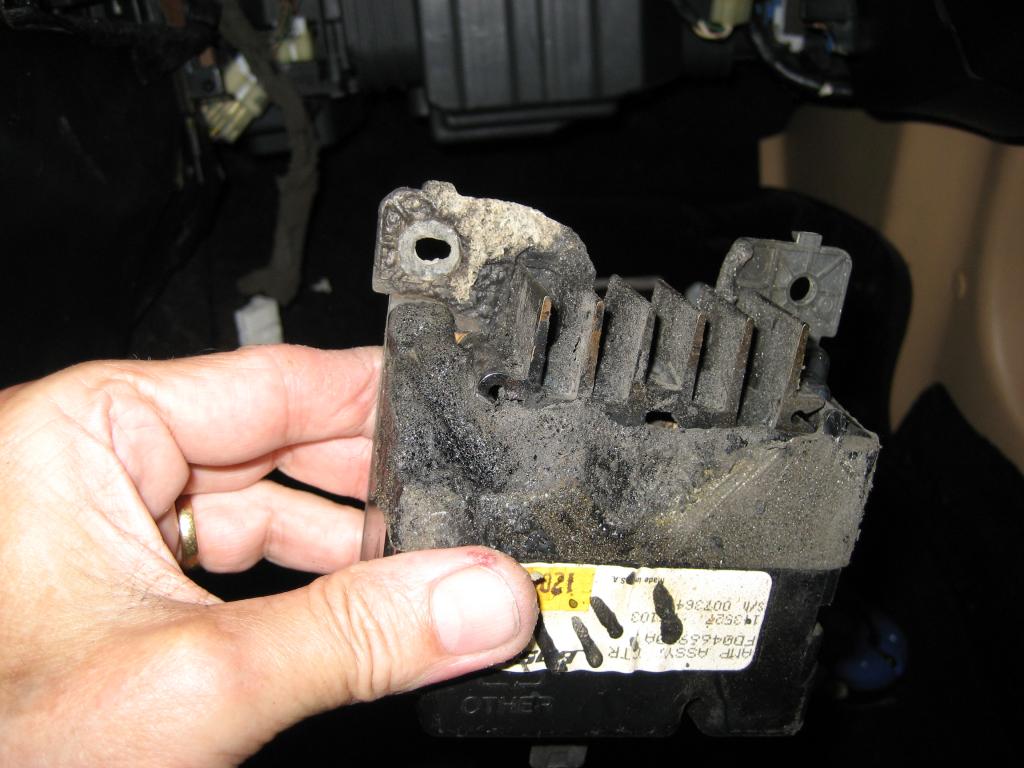

Ok -- pulled the Center Bose Amplifier. It appears that the top side either was hot enough to melt or hot enough to catch fire and melt. The only other burnt area is the adjacent plastic that runs along the left side of the glovebox. Since I do Not see other hotspots, I'm guessing that the amplifier was the source of the heat/fire. The wiring is on the bottom and did not display any damage.
The Only other electrical source nearby would be the glovebox light, but not likely.
The Only other electrical source nearby would be the glovebox light, but not likely.
#18
Form follows function
iTrader: (8)
Here is the link to the other thread that came to mind:
https://www.rx7club.com/3rd-generati...aster-1040757/
Italyn: I agree with you about a smaller fuse size for a 15 watt (RMS) amp. Given the size of the heat sink, I assume that it is a class AB linear amp (probably chosen for low distortion and low noise).
So considering the 15 watt output and a 66% estimated efficiency, a 2 to 3amp fuse should suffice. This pretty significant since it reduces the available input power to the amp by at least a factor of 10x, which would probably be preclude a major meltdown such as that depicted; e.g., with a smaller fuse, the amp would be limited to say 35 watts total input power--as opposed to say the 350+ watts that melts everything and/or ignites.
https://www.rx7club.com/3rd-generati...aster-1040757/
Italyn: I agree with you about a smaller fuse size for a 15 watt (RMS) amp. Given the size of the heat sink, I assume that it is a class AB linear amp (probably chosen for low distortion and low noise).
So considering the 15 watt output and a 66% estimated efficiency, a 2 to 3amp fuse should suffice. This pretty significant since it reduces the available input power to the amp by at least a factor of 10x, which would probably be preclude a major meltdown such as that depicted; e.g., with a smaller fuse, the amp would be limited to say 35 watts total input power--as opposed to say the 350+ watts that melts everything and/or ignites.
#22
93 Touring
Thread Starter
Closer examination reveals that the a/c duct from the center (above radio) to the right hand vents has melted away. The vent tube was plastic and ran just above where the amp fire happened.
Has anyone replaced that a/c duct run? If so, how did you do it?
Thanks for any help.
ppritchard@cfl.rr.com
Has anyone replaced that a/c duct run? If so, how did you do it?
Thanks for any help.
ppritchard@cfl.rr.com
#23
Senior Member
iTrader: (1)
Join Date: May 2002
Location: Houston, TX
Posts: 705
Likes: 0
Received 0 Likes
on
0 Posts
According to the shop manual, this amplifier was moved to the center console on the 1994 model. Guess that explains why my center console has been getting so warm. Time to send mine to the retirement home!
#24
Senior Member
iTrader: (1)
Join Date: May 2002
Location: Houston, TX
Posts: 705
Likes: 0
Received 0 Likes
on
0 Posts
Got my amp out. It was definitely overheating but hadn't yet caught fire. I can post pics of it with the cover off if anyone can possibly identify a root cause.
One of the screws holding the cover on was corroded, and it happened to be near the largest capacitor on the board so I'm wondering if it sprung a leak and ceased to capacitate? It wasn't bulged/distorted, however.
One of the screws holding the cover on was corroded, and it happened to be near the largest capacitor on the board so I'm wondering if it sprung a leak and ceased to capacitate? It wasn't bulged/distorted, however.
