downpipe thermal wrap?
#2
DRIVE THE ROTARY SPORTS
iTrader: (5)
Join Date: May 2003
Location: CA (Bay Area)
Posts: 4,150
Likes: 0
Received 0 Likes
on
0 Posts
um... ok i got my thermal wrap (DEI i think??? i cant remember the brand) it was like $50 for a not so large roll (its expensive). i got it from a local performance shop. anyway, there are metal zip ties that can be used (or connect 2 together if theyre not long enough) to secure the wrap in a few places, especially @ the ends. also, wear glovs and long sleve shirt... i didnt (its made of glass particles) and it will really irritate your skin!! -heath
#6
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
If you have a mild steet pipe, just paint the pipe really well before wrapping it. I used the DEI wrap and DEI high temp paint with good results. I painted the pipe then wrapped it then painted the wrap. Turned out really nice. I think I got it from Summit.
Trending Topics
#8
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
Oh yeah the kit from summit comes with the stainless ties to secure it. Or you can just use stainless hose clamps. I think the stainless hose clamps are easier to use. The metal zip ties are a pain in the butt. They have a little metal ball in them (part of the securing mechanism) that can pop out and hide from you.
#9
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by VQracer
What if you have a stainless steel pipe? Is it OK to use?
What if you have a stainless steel pipe? Is it OK to use?
#10
Full Member
Join Date: Apr 2003
Location: Oklahoma
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BRADYMAHONEY
I have used it on both types with no problems. I think the lower underhood temps make the wrap worth the money. I wraped my T78 down pipe and I could really tell the difference, my LIM stayed alot cooler to the touch than before. I bought the DEI turbo wrap kit, which also comes with the stuff to wrap the down pipe. I have another roll of wrap which I will sell for 30 bucks shipped. I paid 37.00 for it before shipping. It is DEI wrap.
I have used it on both types with no problems. I think the lower underhood temps make the wrap worth the money. I wraped my T78 down pipe and I could really tell the difference, my LIM stayed alot cooler to the touch than before. I bought the DEI turbo wrap kit, which also comes with the stuff to wrap the down pipe. I have another roll of wrap which I will sell for 30 bucks shipped. I paid 37.00 for it before shipping. It is DEI wrap.
Last edited by VQracer; 02-08-04 at 08:21 PM.
#11
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
Way more than enough, it is a 2" x 50' roll. It is a brand new roll. I didn't know the Turbo wrap kit came with the down pipe wrap too. So I had ordered both. I take Paypal. mahoneybrady@aol.com
Thanks,
Thanks,
#16
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
PM me with your phone# we might meet up somewhere? Did you go to that last RX-7 get togther in Tulsa last year. It was on May 31st. I can't wait till the next one.
#18
DRIVE THE ROTARY SPORTS
iTrader: (5)
Join Date: May 2003
Location: CA (Bay Area)
Posts: 4,150
Likes: 0
Received 0 Likes
on
0 Posts

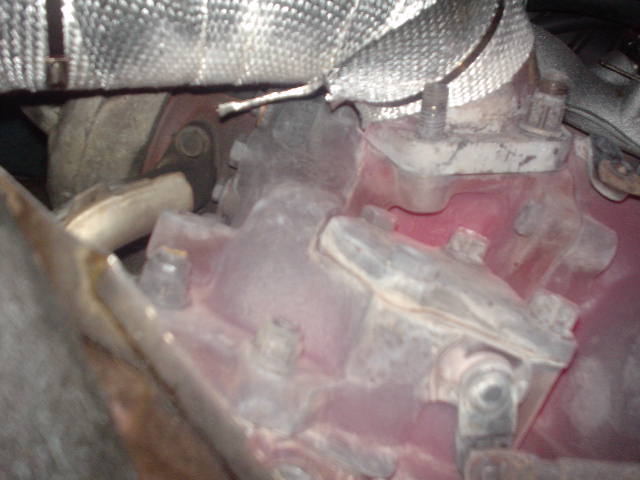

here's my pipe.... wrapped a week ago... smoked like HELL for a long time and smelled like burning pineapples .... anyway, i dont know if im having exhaust problems but the wrap doesnt seem to be working as it GLOWS as well as everything else under there! the wrap used to be black.... now its charred white!! (you can see the metal zip ties in the picture....
#19
The Overattempter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
The main problem with using exh wrap is that it pushes the heat back into the metal which can cause stress cracks, usually at the welds. If the exhaust components are quality built this would not be an issue. And just use some good SS hose clamps (1 on each end) to hold the wrap...as long as it is a tight spiral that would be all that's necessary to hold it.
#20
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by VQracer
Is it OK to wrap the pipe w/o spraying it with the high temp stuff?
Is it OK to wrap the pipe w/o spraying it with the high temp stuff?
Mine smoked for about 30 minutes. The heat cures the paint. The DEI header wrap is a tan color before it is painted with the silver DEI high temp paint. Which has NOT cooked off the down pipe on my T78 I painted it some time last summer. I also painted my turbo with it that DEI paint is some good stuff. I tried some other brand (high temp silver paint from wal-mart) before that, just on my bare down pipe. It immediately bubbled up and peeled right off in big flakes.
#22
Rotary Enthusiast
Join Date: Dec 2001
Location: WILBURTON, OKLAHOMA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
Yes, I think it would. But I am in the sticks without access to ceramic coating. And my car is my daily driver so I couldn't just take it apart and wait for it to be mailed back and forth. If my car wasn't my daily driver I would have went with ceramic. Maybe next time.
#23
Full Member
Join Date: Apr 2003
Location: Oklahoma
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by RotorMotor
i wonder if ceramic coating the DP's and turbo manifolds would be a better solution to this problem?
i wonder if ceramic coating the DP's and turbo manifolds would be a better solution to this problem?
http://www.jet-hot.com/pages/whyjethot.html
#25
Senior Member
Join Date: Dec 2001
Location: Crestview, FL
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by VQracer
I was thinking the same or maybe JET HOT?
http://www.jet-hot.com/pages/whyjethot.html
I was thinking the same or maybe JET HOT?
http://www.jet-hot.com/pages/whyjethot.html
About the smoking. The thermal wrap will typically smoke for a little while. After you wrap the pipe for the first time you need to let the car idle for a while with the hood open. What happens is that the thermal wrap tends to bake into the form that you wrapped around the pipe and it will give off a little bit of smoke for a while. The smoke should go away after a day or two of driving around and idling. This is a perfectly normal thing for the wrap and you should not panic when you see if smoking.
I noticed that some people are using metal zip ties, clamps and other things. We just use a heavy gauge wire and wrap it around the thermal wrap at both ends and then twist the ends of the wire together several time with a set of pliers until it appears to be snug. I have done this on three different cars with no ill effects so far and I track two of the cars.
- Cody
