Braided power steer lines and oil cooler lines - anyone done them?

Im simplifying and tidying up everything in my race car and the next thing on the list is all the lines.

Im going to braided line for the power steering lines from the pump to the rack and want to know if anyone has done this before? Im after the thread sizes for the banjo bolt on the high pressure side of the pump and the flare thread size on the rack itself so I can order the fittings. - Anyone got these?

Also - has anyone gone to braided line for all the oil cooler lines while retaining the factory oil coolers? How did you go about attaching to the bottom of the coolers? there a massive thread and will need some sort of adapter fitting to attach an AN fitting to. Any ideas?
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 03-18-10, 06:02 AM   #2
Rotolicious
10 Year Member

Railgun's Avatar

Trader Score: (0)

Join Date: Aug 2002
Location: London
Posts: 3,790
F Twitter Not here Don`t have one Railgun69
Send a message via ICQ to Railgun Send a message via AIM to Railgun Send a message via MSN to Railgun Send a message via Yahoo to Railgun Send a message via Skype™ to Railgun
I can't comment on the PS as I did a manual conversion. As far as the oil coolers, I had -10 fittings welded on in place of the original ports.
__________________

Railgun is offline   Reply With Quote
Old 03-19-10, 05:41 PM   #3
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
Ive managed to work out what is needed to do the oil coolers and have found a kit for the power steering side so will post the parts when I get it for interestes sake.

If anyones wanting to do the oil coolers (factory twin oil coolers on my FD) in -10 braided line, this is what I ordered

4x Steel -10 weld on fittings (oil coolers)
4x -10 straight fittings (oil coolers)
1x -10 120* fitting (oil pump)
1x -10 45* fitting (oil filter)
2x -10 to M18x1.5 Thread adapters
-10 Braided line x 3m (or 10 feet)
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 03-19-10, 08:33 PM   #4
GT3574R equipped
5 Year Member

HalifaxFD's Avatar

Trader Score: (16)

Join Date: Mar 2007
Location: Bedford, Nova Scotia
Posts: 909
thanks for the info, I may have to do it because of my new vmount. Please post pics of the end result.
HalifaxFD is offline   Reply With Quote
Old 03-29-10, 05:44 PM   #5
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
I have actully found that you can replace the whole oil cooler lines without welding anything at all if need be. The factory coolers have M22x1.5 threads in them so you could use 4 M22x1.5 to -10 adapters on the oil coolers them selves instead of welding the -10 weld ons to the coolers.

I will be running the lines this weekend so should have pics up next week.
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 03-29-10, 07:15 PM   #6
Snowboarding Whistler!
10 Year Member

Fortune_Seven's Avatar

Trader Score: (24)

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,286
Interested in seeing your install pics!
Fortune_Seven is offline   Reply With Quote
Old 03-29-10, 10:27 PM   #7
Wangan Junkie

smog-guy707's Avatar

Trader Score: (11)

Join Date: Dec 2007
Location: SF Bay Area
Posts: 1,249
nice i might end up doing the same thing i cant wait to see pics too!
__________________
Currently rotorless
smog-guy707 is offline   Reply With Quote
Old 03-29-10, 10:43 PM   #8
bow leggin'
10 Year Member

Scrub's Avatar

Trader Score: (17)

Join Date: Jul 2002
Location: Delaware
Posts: 6,029
Send a message via ICQ to Scrub Send a message via AIM to Scrub

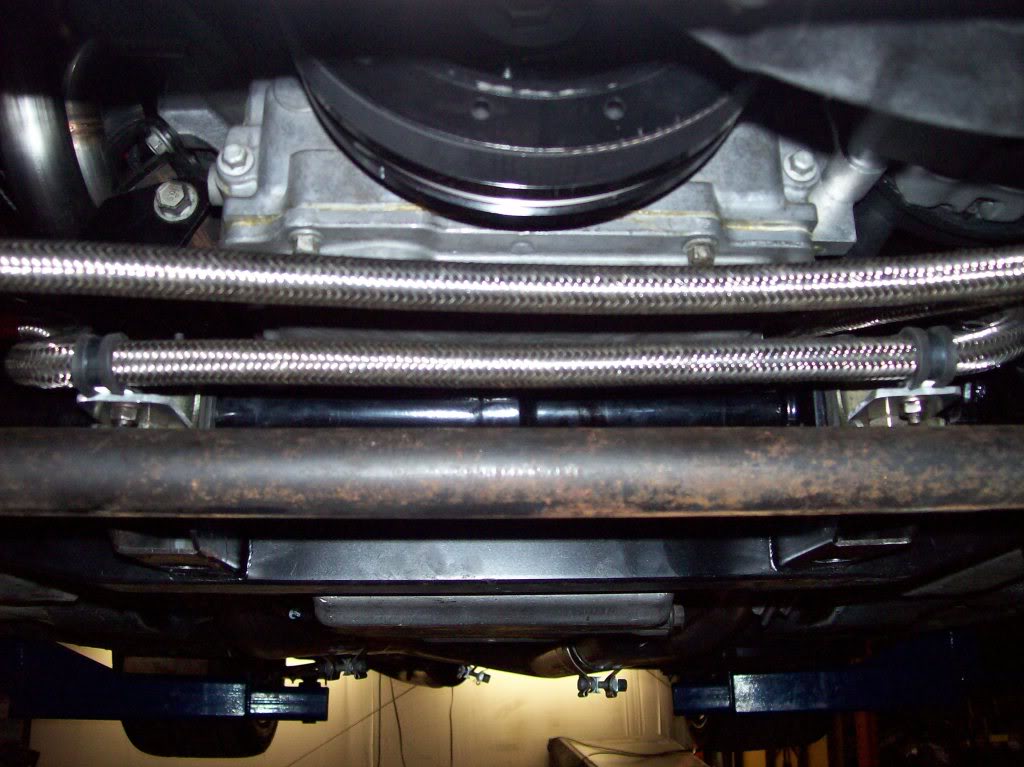

Click the image to open in full size.

This is back when I considered making upgraded cooler lines for the stock coolers, test fitment
__________________
www.SakeBombGarage.com

R.I.P. Peppay Lopez, 2013. Mrowz4life
Scrub is offline   Reply With Quote
Old 03-30-10, 12:28 AM   #9
Snowboarding Whistler!
10 Year Member

Fortune_Seven's Avatar

Trader Score: (24)

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,286
Wow that looks great! exactly what I want!
__________________
Fortune_Seven is offline   Reply With Quote
Old 03-30-10, 04:36 AM   #10
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
I remounted my coolers so they are in a better place in relation to the vents in my bumper and will be ducted to the bumper. I also started installing the fittings so pics will be up after the weekend.

Best part about doing this now is that swapping to aftermarket oil coolers later is soooooooo simple.
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 04-02-10, 01:55 AM   #11
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
Ran the oil cooler lines today. Still need to get some hose holders to mount them to the body and stop them distroying everything they touch, but you get the idea.

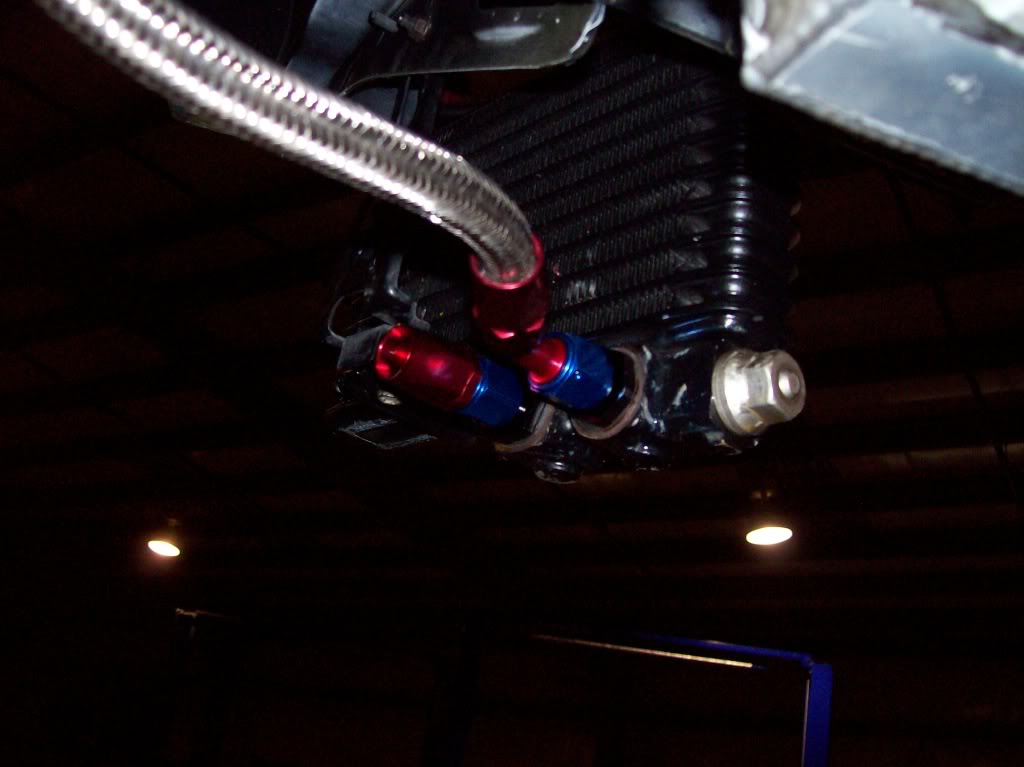

Click the image to open in full size.

Make sure you can go full lock without the tyre rubbing on the lines.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 04-04-10, 03:39 AM   #12
Snowboarding Whistler!
10 Year Member

Fortune_Seven's Avatar

Trader Score: (24)

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,286
Going to do this as well looks great!

So other then the parts you listed below, did you find you needed anything else, would recommend anything different?

4x Steel -10 weld on fittings (oil coolers)
4 M22x1.5 to -10 adapters
4x -10 straight fittings (oil coolers)
1x -10 120* fitting (oil pump)
1x -10 45* fitting (oil filter)
2x -10 to M18x1.5 Thread adapters
-10 Braided line x 3m (or 10 feet)
__________________
Fortune_Seven is offline   Reply With Quote
Old 04-04-10, 07:22 AM   #13
bow leggin'
10 Year Member

Scrub's Avatar

Trader Score: (17)

Join Date: Jul 2002
Location: Delaware
Posts: 6,029
Send a message via ICQ to Scrub Send a message via AIM to Scrub
Quote:
Originally Posted by TURSTY View Post
Best part about doing this now is that swapping to aftermarket oil coolers later is soooooooo simple.
Not really. Yes, you removed the stock lines which makes installing new coolers/lines easier. You'll still need to use different fittings on the hose. There are a lot of things you are not considering. The line running from the pedestal will need to be split and connected to an oil thermostat also.

I don't know about you, but I hate working with steel braided line.


Quote:
Originally Posted by Fortune_Seven View Post

4x Steel -10 weld on fittings (oil coolers)

You don't need that if you've already got M22 adapters. Did you even bother reading through this thread?
__________________
www.SakeBombGarage.com

R.I.P. Peppay Lopez, 2013. Mrowz4life
Scrub is offline   Reply With Quote
Old 04-04-10, 07:23 AM   #14
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
Quote:
Originally Posted by Fortune_Seven View Post
Going to do this as well looks great!

So other then the parts you listed below, did you find you needed anything else, would recommend anything different?

4x Steel -10 weld on fittings (oil coolers)
4 M22x1.5 to -10 adapters
4x -10 straight fittings (oil coolers)
1x -10 120* fitting (oil pump)
1x -10 45* fitting (oil filter)
2x -10 to M18x1.5 Thread adapters
-10 Braided line x 3m (or 10 feet)
Yes I did.

Like I said above, I used M22x1.5 to -10 adapters in place of the weld on fittings so the oil coolers are undamaged. Using these however, you need to get 4 M22 copper washers, as the washers on the standard oil lines have a rubber center and dont seal. The copper washers off the standard banjo bolts for the oil pump and filter can be reused for the M18 to -10 fittings.

Also, as my oil coolers are remounted for my current bumper, you should check the straigh fittings off the oil coolers will still allow you to go full lock without the tyre hitting the braided lines. If they dont, go for 45* fittings instead of straight.

You'll also need some form of mounting for the hoses to the body, as the braid will wear through anything it touches. Its abrasive as h3ll.

EDIT: Oh and get another 2 feet of hose (12 feet total). Apparently I cant use a tape measure lol.
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 04-04-10, 08:57 AM   #15
Sua Sponte
10 Year Member

Brent Dalton's Avatar

Trader Score: (26)

Join Date: Aug 2001
Location: Killeen, TX
Posts: 3,071
Send a message via AIM to Brent Dalton
Looks good. I also did this a while back, but it was because I have a different engine in my car and I like the stock oil coolers:

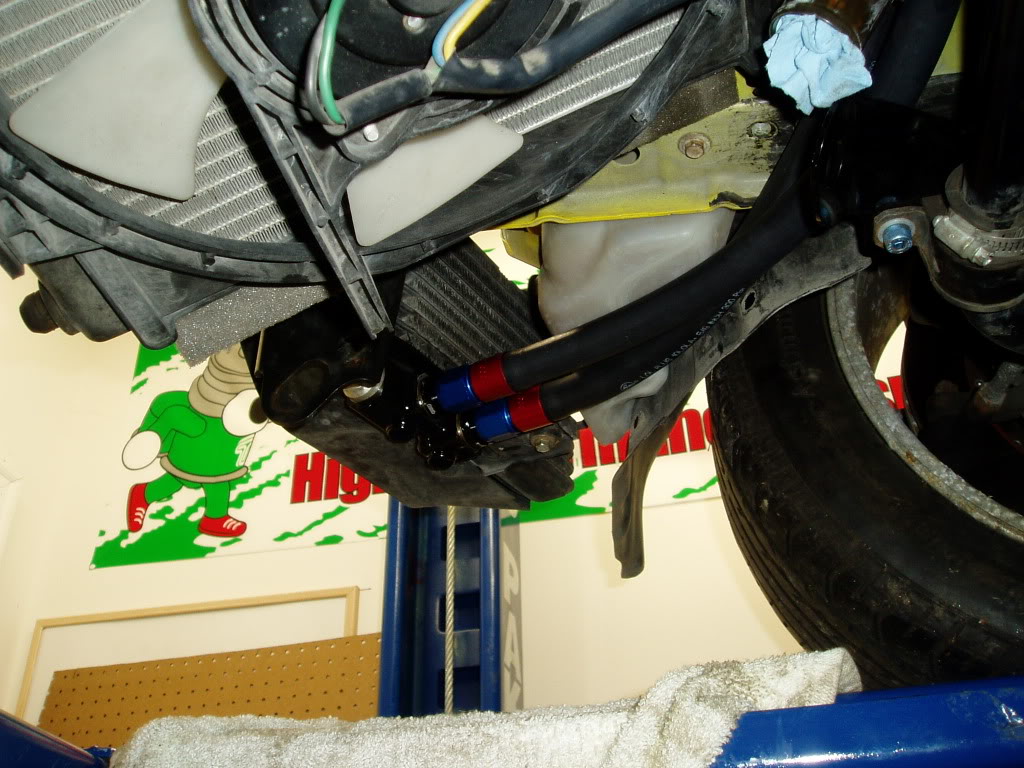

Click the image to open in full size.
Click the image to open in full size.

Catch22 had a thread where he did this a month or two ago. I believe his was because he was adapting another driver's side oil cooler for the passenger side.
__________________
Road Atlanta NASA TT 1:33
http://www.youtube.com/watch?v=IFY00PAK_Ps
Video of Yellow LS1 FD at NASA TT at VIR(Oct 10)
http://www.youtube.com/watch?v=e6k0lJkcwrM
Brent Dalton is offline   Reply With Quote
Old 04-04-10, 09:08 AM   #16
***** "Nazi"...lol!
10 Year Member

bajaman's Avatar

Trader Score: (0)

Join Date: Jul 2001
Location: near Wichita, Kansas
Posts: 4,589
I like seeing these nicely done conversions. Very professional looking from everyone. Good job!
__________________
'93 Montego Blue Mica
Yes, it's an automatic and yes, it's fast.
bajaman is offline   Reply With Quote
Old 04-05-10, 12:19 AM   #17
Snowboarding Whistler!
10 Year Member

Fortune_Seven's Avatar

Trader Score: (24)

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,286
Quote:
Originally Posted by Scrub View Post


You don't need that if you've already got M22 adapters. Did you even bother reading through this thread?
Well Scrub, I did read the entire thread, it should be obvious by my posts throughout, but apparently not to you. To clarify why don't you "bother" reading through this post.

Quote:
Originally Posted by Fortune_Seven

So other then the parts you listed below, did you find you needed anything else?
As both fittings are options, dependant on wether you want to weld or not, I included them in the list.

The information I was after, was clearly the information TURSTY provided. The "did you find you needed anything else?" part of my post u must have missed.

But thanks for your help in any case!
__________________
Fortune_Seven is offline   Reply With Quote
Old 04-05-10, 06:16 AM   #18
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
Hay one thing I have notised while remounting my intercooler and radiator, it that the location of the bottom radiator hose will play a part in whether you can use a 120* fitting for the oil pump, or if you would need a 180* one.
I am going to have to swap to a 180* fitting to clear the bottom hose.

I have never owned a stock RX7 (only ones with front mounts and aftermarket radiators) so I cant say if the list I have provided will work on a stock car. It would definitly pay to have a look at how much clearance you have. These lines will distroy anything they touch/rub against so make sure you have sufficient room.
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 04-05-10, 08:27 AM   #19
bow leggin'
10 Year Member

Scrub's Avatar

Trader Score: (17)

Join Date: Jul 2002
Location: Delaware
Posts: 6,029
Send a message via ICQ to Scrub Send a message via AIM to Scrub
Quote:
Originally Posted by Fortune_Seven View Post
Well Scrub, I did read the entire thread, it should be obvious by my posts throughout, but apparently not to you. To clarify why don't you "bother" reading through this post.



As both fittings are options, dependant on wether you want to weld or not, I included them in the list.

The information I was after, was clearly the information TURSTY provided. The "did you find you needed anything else?" part of my post u must have missed.

But thanks for your help in any case!
Read post #5 genius.
Scrub is offline   Reply With Quote
Old 04-05-10, 12:19 PM   #20
Snowboarding Whistler!
10 Year Member

Fortune_Seven's Avatar

Trader Score: (24)

Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,286
I have captain lacking a grasp of the obvious. You don't have to weld to the coolers, we all know that, or u can! So! Not the conversation. But again you've been invaluable! Thanks for the great contribution!
__________________
Fortune_Seven is offline   Reply With Quote
Old 04-05-10, 12:45 PM   #21
No Life.
5 Year Member

catch-22's Avatar

Trader Score: (2)

Join Date: Jun 2006
Location: Charlotte, NC
Posts: 1,254
@acates22

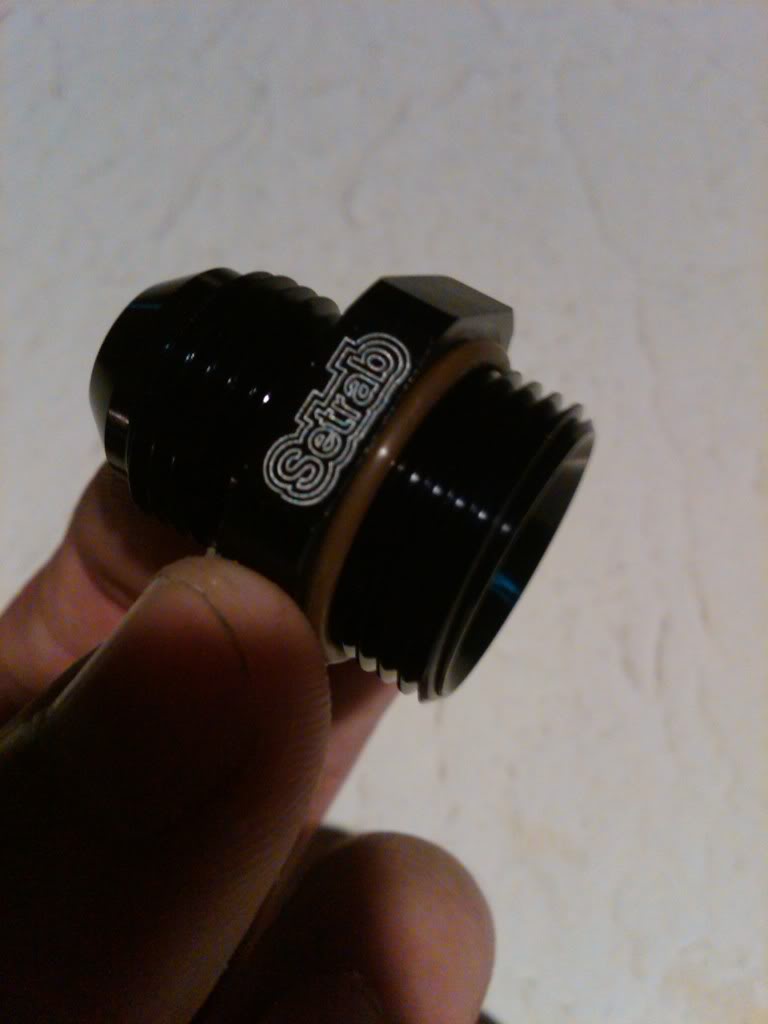

Just got done with this myself. I was able to find a new fitting that was a ton cheaper. Check page 5 of this thread. dual oil coolers cheap
catch-22 is offline   Reply With Quote
Old 04-05-10, 12:47 PM   #22
No Life.
5 Year Member

catch-22's Avatar

Trader Score: (2)

Join Date: Jun 2006
Location: Charlotte, NC
Posts: 1,254
@acates22
Oh and mine was using a drivers side cooler.
catch-22 is offline   Reply With Quote
Old 04-05-10, 01:40 PM   #23
bow leggin'
10 Year Member

Scrub's Avatar

Trader Score: (17)

Join Date: Jul 2002
Location: Delaware
Posts: 6,029
Send a message via ICQ to Scrub Send a message via AIM to Scrub
Edit: Tursty, PM me when you're looking to go the aftermarket oil cooler route. I'll give you a break down of all the parts you'll need for the conversion. Also try using some adel clamps (reference 2nd pic memphis posted) to hold the lines in place if you find they're rubbing the wrong places


Quote:
Originally Posted by Fortune_Seven View Post
I have captain lacking a grasp of the obvious. You don't have to weld to the coolers, we all know that, or u can! So! Not the conversation. But again you've been invaluable! Thanks for the great contribution!
I was actually trying to help you initially but it's pretty obvious you're the smartest person alive. You listed both parts as being needed, I corrected you. Yes you CAN weld the fittings on but WHY would you? I'm done arguing with you, good luck with your build

Quote:
Originally Posted by catch-22 View Post
Just got done with this myself. I was able to find a new fitting that was a ton cheaper. Check page 5 of this thread. dual oil coolers cheap
Those are actually the same fittings I used when doing the test fitting, very nice quality and you don't need to use a crush washer or dowty seal.

Taken from the thread you posted....

Click the image to open in full size.
__________________
www.SakeBombGarage.com

R.I.P. Peppay Lopez, 2013. Mrowz4life
Scrub is offline   Reply With Quote
Old 04-05-10, 04:42 PM   #24
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
^^^ those look like the exact same fittings I used on my oil coolers, but they didnt come with a rubber o ring. Just shot down to the local fastners supplies and got M22 copper washers.

Ive mounted the lines using those same rubber lines clamps. Ill post pics once the 180* fitting has turned up and its all complete. =D
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 04-17-10, 05:50 AM   #25
The wankel way!!
5 Year Member

TURSTY's Avatar

Trader Score: (0)

Join Date: May 2008
Location: New Zealand
Posts: 462
Heres a few pics of the finished lines

I used Rivnuts and the hose holders to keep the lines from rubbing on things, and anywhere they touched, I just covered the braid in wireing wrap.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
__________________
FD - A true Jap supercar!!!

96 FD RX7 - 13B Bridge port - HKS T51R SPL
480 RWHP - Pump gas
650 RWHP - C16
10.6 quarter
TURSTY is offline   Reply With Quote
Old 04-17-10, 05:50 AM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
1993, banjo, bolts, braided, cooler, cooling, fc3s, line, lines, m18x15, oil, pedestal, power, rack, radiator, rx7, steering

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


All times are GMT -5. The time now is 01:11 PM.
All content Copyright 2007 by Internet Brands, Inc.

Contacts
