3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.
Sponsored by:

air feed to omp injectors

Thread Tools

Search this Thread

Old 05-19-07, 10:17 AM
  #1
ONLY FD OWNER IN MY STATE

Thread Starter
iTrader: (1)

mr.veilsidewankel's Avatar

Join Date: Mar 2004
Location: NORWAY
Posts: 486
Likes: 0
Received 1 Like on 1 Post
air feed to omp injectors

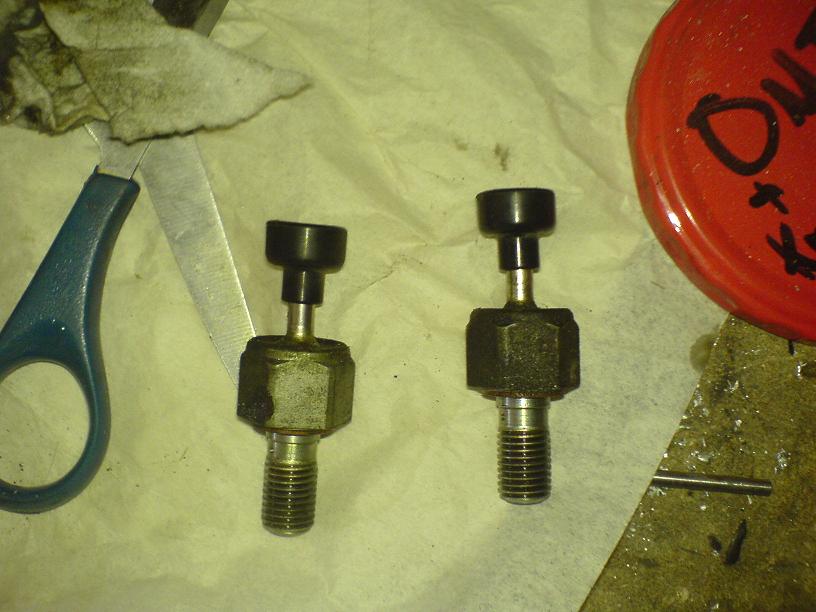

hi, just wondering if it is ok to use the rats nest miniairfilters to use as airfeed to the oil injectors?

like in the picture
Attached Thumbnails air feed to omp injectors-edit.jpg
Old 05-19-07, 10:19 AM
  #2
Rotary Enthusiast


telum01's Avatar

Join Date: Apr 2006
Location: Grovetown, Ga
Posts: 849
Likes: 0
Received 0 Likes on 0 Posts
why would you want to do that?
Old 05-19-07, 10:27 AM
  #3
ONLY FD OWNER IN MY STATE

Thread Starter
iTrader: (1)

mr.veilsidewankel's Avatar

Join Date: Mar 2004
Location: NORWAY
Posts: 486
Likes: 0
Received 1 Like on 1 Post
because im going nonseq, and i want to remove as many vaclines as possible,
(allso, i broke the nipple on the intake)
this fall im going single. so this solution seemes ok, if it works,
i do mean i have seen somebody on this forum do this before(i know i got the idea from here)
Old 05-19-07, 11:10 AM
  #4
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
The oil injection nozzles use the primary intake as a vacuum source. Simply using the mini airfilters does not create a vacuum.
Old 05-19-07, 12:29 PM
  #5
ONLY FD OWNER IN MY STATE

Thread Starter
iTrader: (1)

mr.veilsidewankel's Avatar

Join Date: Mar 2004
Location: NORWAY
Posts: 486
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Mahjik
The oil injection nozzles use the primary intake as a vacuum source. Simply using the mini airfilters does not create a vacuum.
aah. ok,
but, can i route the lines to another place then the intake?
like a nippel on the lim(or wont that work since that place allso sees boost?
Old 05-19-07, 03:48 PM
  #6
ONLY FD OWNER IN MY STATE

Thread Starter
iTrader: (1)

mr.veilsidewankel's Avatar

Join Date: Mar 2004
Location: NORWAY
Posts: 486
Likes: 0
Received 1 Like on 1 Post
bump
Old 05-19-07, 04:16 PM
  #7
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
The primary turbo inlet is constant vacuum. If you can find another constant vacuum source on the car, you can relocate the hoses there.
Old 05-19-07, 04:42 PM
  #8
ONLY FD OWNER IN MY STATE

Thread Starter
iTrader: (1)

mr.veilsidewankel's Avatar

Join Date: Mar 2004
Location: NORWAY
Posts: 486
Likes: 0
Received 1 Like on 1 Post
ok then, will just have to fix the nipples instead
argh, i hate vac lines
