AC belt tensioner location...
Changing belts, I put the alternator belt on fine. Can't seem to find the belt tensioner bolts for the PS/AC belt. There is a non-grooved pulley, with a bolt on the top left. I thought that was the tensioner bolt, but I can only get the bolt to move a little bit to each side. Is there another nut holding that bolt in place, or is there some other place to adjust the tensioner on the PS belt?
TMadlem84 is offline
Reply Like
Old 09-19-06, 07:29 PM
  #2
Slower Traffic Keep Right

iTrader: (5)

poss's Avatar

Join Date: Apr 2002
Location: Albuquerque, NM
Posts: 2,192
Received 2 Likes on 2 Posts
Loosen the nut that holds the pulley, then adjust and re-tighten. It acts as a lock.
poss is offline
Reply Like
Old 09-19-06, 07:32 PM
  #3
Rotary Enthusiast

Thread Starter

TMadlem84's Avatar

Join Date: Dec 2004
Location: Indianapolis, IN
Posts: 818
Received 2 Likes on 2 Posts
The nut in the center of the pulley?
TMadlem84 is offline
Reply Like
Old 09-19-06, 09:50 PM
  #4
Rotary Enthusiast


Eggie's Avatar

Join Date: Jan 2002
Location: 15143
Posts: 859
Likes: 0
Received 0 Likes on 0 Posts

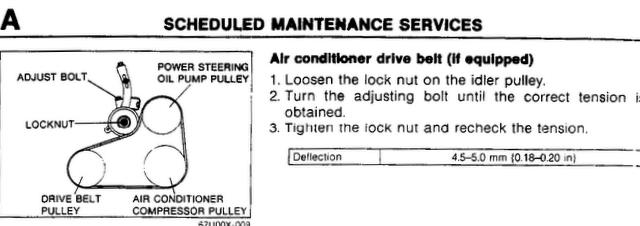

Sorry, complete mental timeout when posting. See the pic.
Attached Thumbnails AC belt tensioner location...-ac-pulley.jpg
Eggie is offline
Reply Like
Old 09-19-06, 09:52 PM
  #5
Slower Traffic Keep Right

iTrader: (5)

poss's Avatar

Join Date: Apr 2002
Location: Albuquerque, NM
Posts: 2,192
Received 2 Likes on 2 Posts
yes, I should have specified, the nut in the center of the idler pulley.
poss is offline
Reply Like
Old 09-19-06, 10:06 PM
  #6
Rotary Enthusiast

Thread Starter

TMadlem84's Avatar

Join Date: Dec 2004
Location: Indianapolis, IN
Posts: 818
Received 2 Likes on 2 Posts
Thanks guys
TMadlem84 is offline
Reply Like
Old 09-20-06, 07:33 AM
  #7
What's your point ?


CantGoStraight's Avatar

Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes on 0 Posts
Just be glad you didn't force it and snap the ear off your bracket where the adjusting bolt is. (-:
CantGoStraight is offline
Reply Like

Trending Topics

Old 09-20-06, 04:31 PM
  #8
BMW Tech


White94RX's Avatar

Join Date: Mar 2002
Location: Auburn, Alabama
Posts: 845
Likes: 0
Received 0 Likes on 0 Posts
Yup, loosen the bolt holding the pulley, then adjust the other bolt to tighten or loosen.

Makes me really appreciate hydraulic, or spring loaded auto tensioners.
White94RX is offline
Reply Like
Old 09-20-06, 04:32 PM
  #9
Eye In The Sky

iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes on 66 Posts
Time for someone to downlaod the manual from one of the web sites.
