Rewire Fuel pump.Why?
02-23-09, 10:11 PM
#1
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Rewire Fuel pump.Why?
I've seen guys mentioning rewiring the fuel Pump.
Now,I am planning on putting a TII engine in my N/A car using the N/A harness.I will installing a walbro 255.
Question: do I need to Rewire my Pump too?,Or does this not apply if the Car was originally N/A..Thanks Guys,STYX.
Now,I am planning on putting a TII engine in my N/A car using the N/A harness.I will installing a walbro 255.
Question: do I need to Rewire my Pump too?,Or does this not apply if the Car was originally N/A..Thanks Guys,STYX.
02-24-09, 11:57 AM
#3
This is something I've been wondering about. My 88 vert doesn't have a fuel pump/resistor relay, and the S4 wiring diagram only shows the TII as having one (pg. 50-34). On the NA fuel system page there isn't one in the diagram (pg. 50-36). Yet, I'm fairly sure I've seen an '86 with the resistor/relay...
2slow4stock, your cars are S5s (according to your sig), so they should all have the resistor/relay.
In any case, the "rewire" refers to running all new wires and bypassing the resistor/relay. If you don't have one, and your terminals at the pump are in good shape, you don't really need to mess with it. That's what my situation is. My fuel pump conections are perfect and I have no resistor/relay.
2slow4stock, your cars are S5s (according to your sig), so they should all have the resistor/relay.
In any case, the "rewire" refers to running all new wires and bypassing the resistor/relay. If you don't have one, and your terminals at the pump are in good shape, you don't really need to mess with it. That's what my situation is. My fuel pump conections are perfect and I have no resistor/relay.
02-24-09, 12:32 PM
#4
RotaryRocket88:

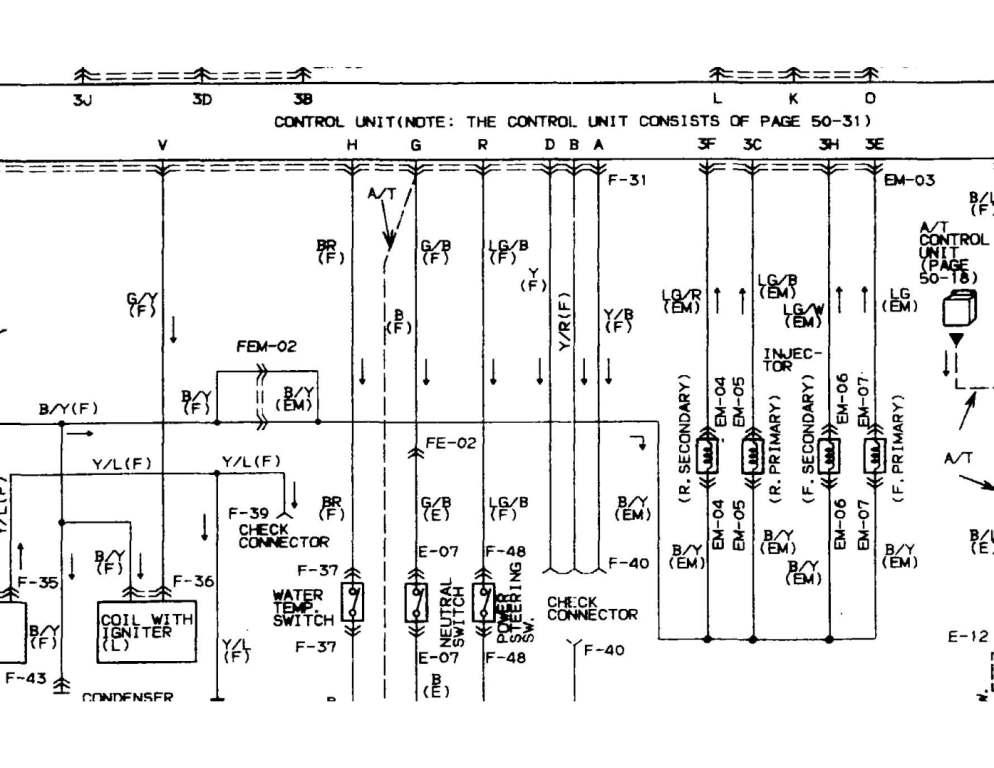

Not sure if you're doing this, but to be safe: Don't mistake the fuel pump relay with the fuel injector resistor found on 86-early 88 cars (both NA and TII).

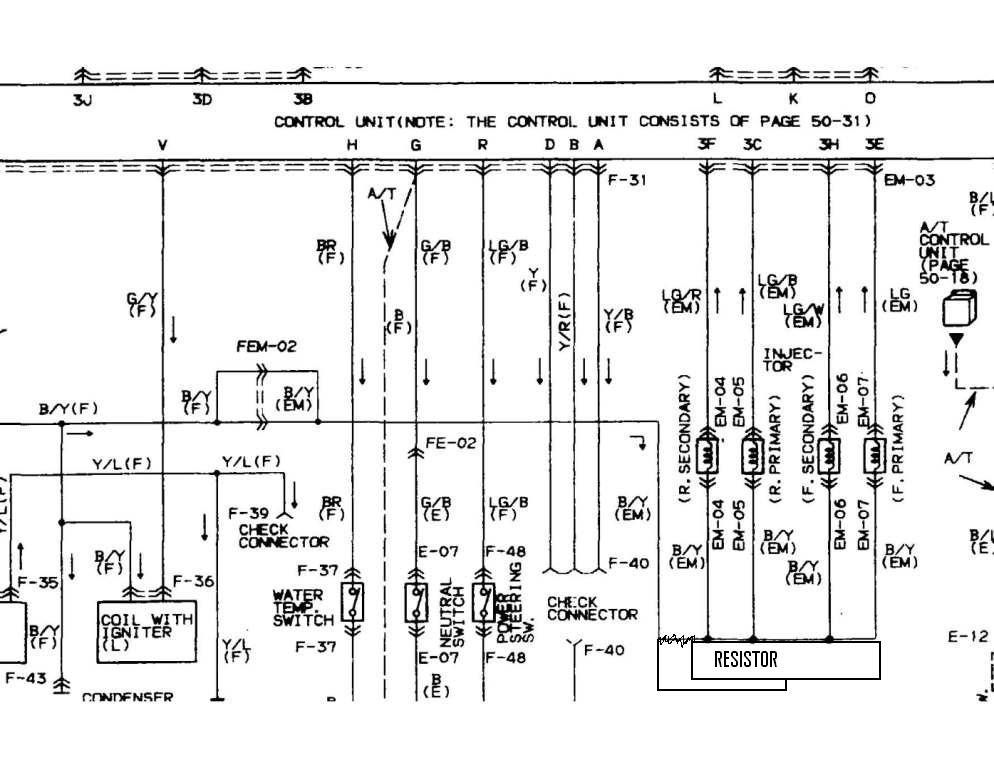

The injector resistor is near and below the AFM, the fuel pump relay I'm not sure.

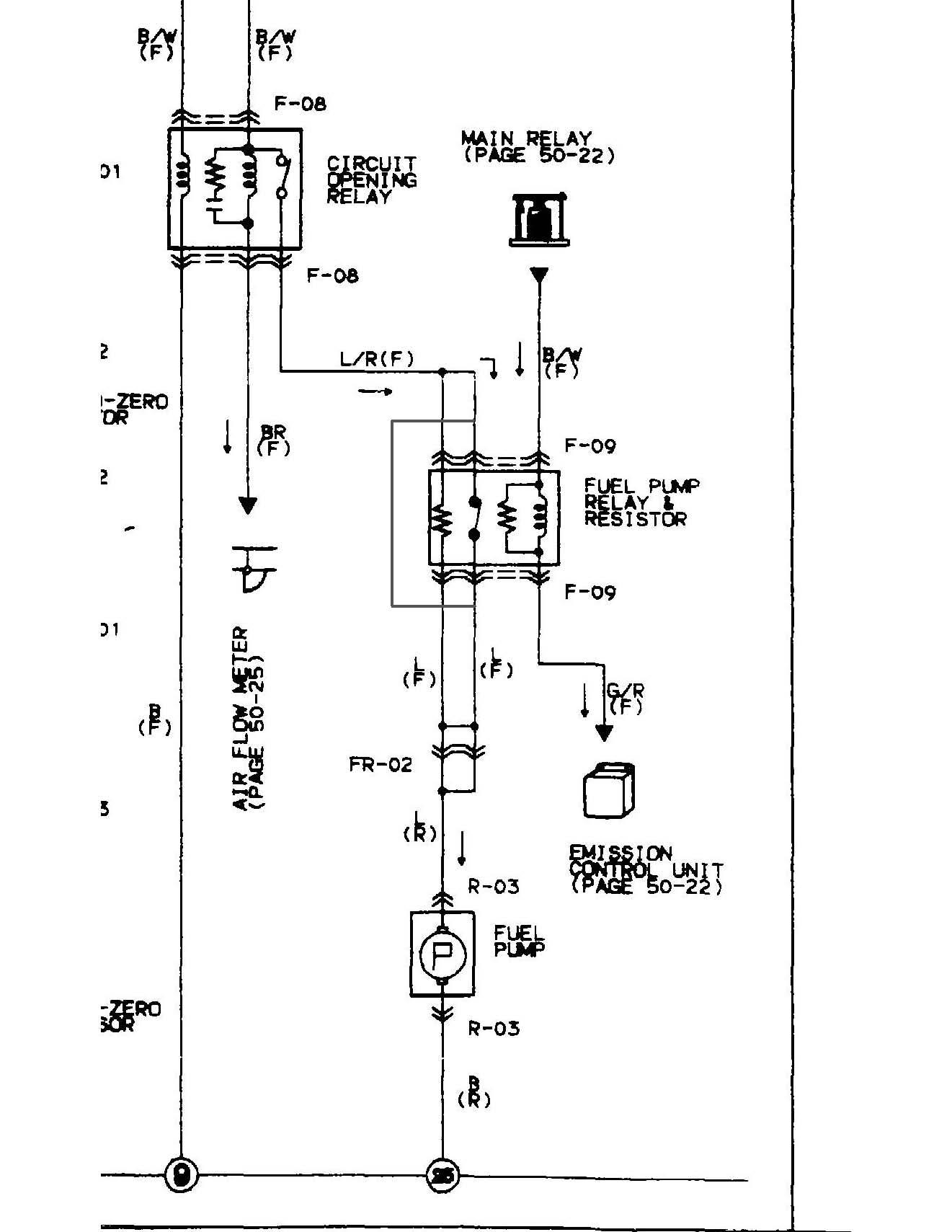

The TII fuel pump resistor/relay controls whether the fuel pump receives a lower voltage or full battery voltage.
I'll post some wiring diagrams.
In the meantime, something to ponder...will the NA fuel pump supply the motor with enough fuel? (Paging Hailers and Icemark)
Not sure if you're doing this, but to be safe: Don't mistake the fuel pump relay with the fuel injector resistor found on 86-early 88 cars (both NA and TII).
The injector resistor is near and below the AFM, the fuel pump relay I'm not sure.
The TII fuel pump resistor/relay controls whether the fuel pump receives a lower voltage or full battery voltage.
I'll post some wiring diagrams.
In the meantime, something to ponder...will the NA fuel pump supply the motor with enough fuel? (Paging Hailers and Icemark)
02-24-09, 01:45 PM
#7
Sit and Spin
Join Date: Mar 2001
Location: Latrobe, Pa
Posts: 472
Likes: 0
Received 0 Likes
on
0 Posts
The S4 coupe NA's do not have the "changing voltage" to the pump. There is no relay for this on S4 NA coupes.
However, I have read somewhere that the verts do. THis is something that was fuzzy for me. I never delved any deeper into this because I don't have a vert.
However, I have read somewhere that the verts do. THis is something that was fuzzy for me. I never delved any deeper into this because I don't have a vert.
Trending Topics
02-24-09, 02:36 PM
#8
RotaryRocket88:
Not sure if you're doing this, but to be safe: Don't mistake the fuel pump relay with the fuel injector resistor found on 86-early 88 cars (both NA and TII).
The injector resistor is near and below the AFM, the fuel pump relay I'm not sure.
The TII fuel pump resistor/relay controls whether the fuel pump receives a lower voltage or full battery voltage.
I'll post some wiring diagrams.
In the meantime, something to ponder...will the NA fuel pump supply the motor with enough fuel? (Paging Hailers and Icemark)
Not sure if you're doing this, but to be safe: Don't mistake the fuel pump relay with the fuel injector resistor found on 86-early 88 cars (both NA and TII).
The injector resistor is near and below the AFM, the fuel pump relay I'm not sure.
The TII fuel pump resistor/relay controls whether the fuel pump receives a lower voltage or full battery voltage.
I'll post some wiring diagrams.
In the meantime, something to ponder...will the NA fuel pump supply the motor with enough fuel? (Paging Hailers and Icemark)
And no, the NA fuel pump is too weak to be run with a TII engine. If you check my sig, you'll see I use a pump out of an FD.
No resistor relay in the S4 verts. Mine does not have one, and there is no plug for it, so I can assume it never had one. I was of the opposite opinion that some coupes might have had it, but maybe it's just like the FSM shows it...no resistor/relays on any S4 NAs.
02-24-09, 07:55 PM
#10
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

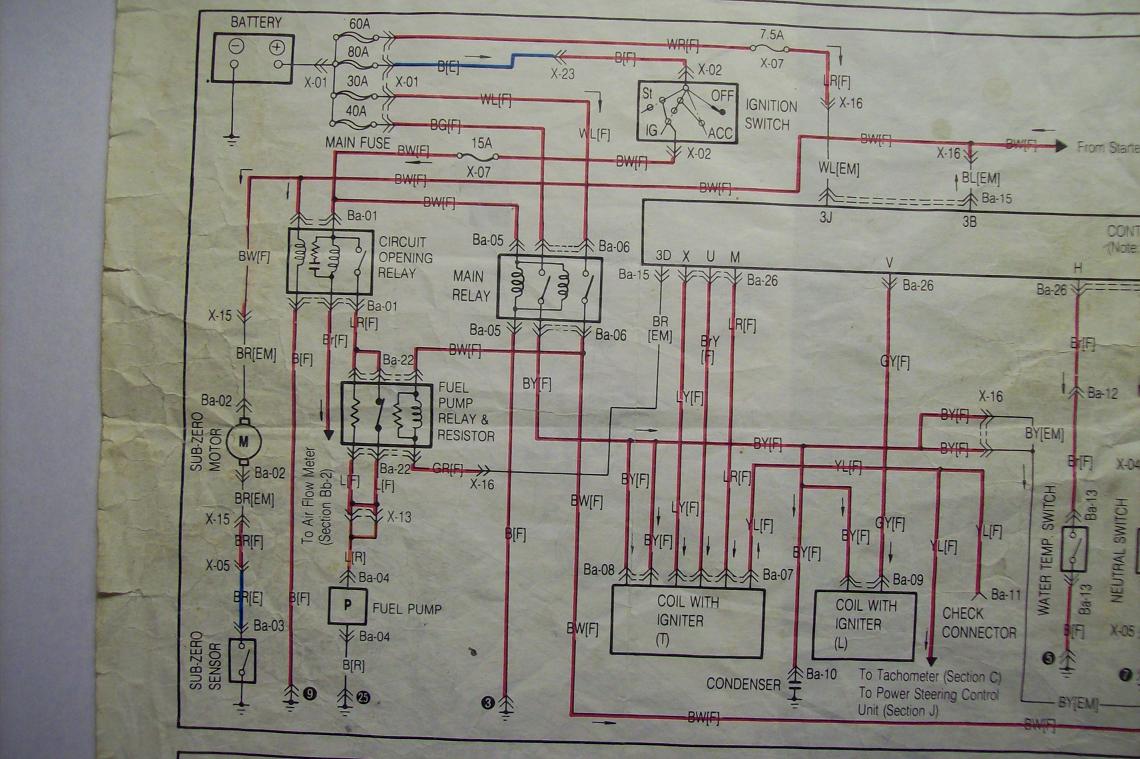

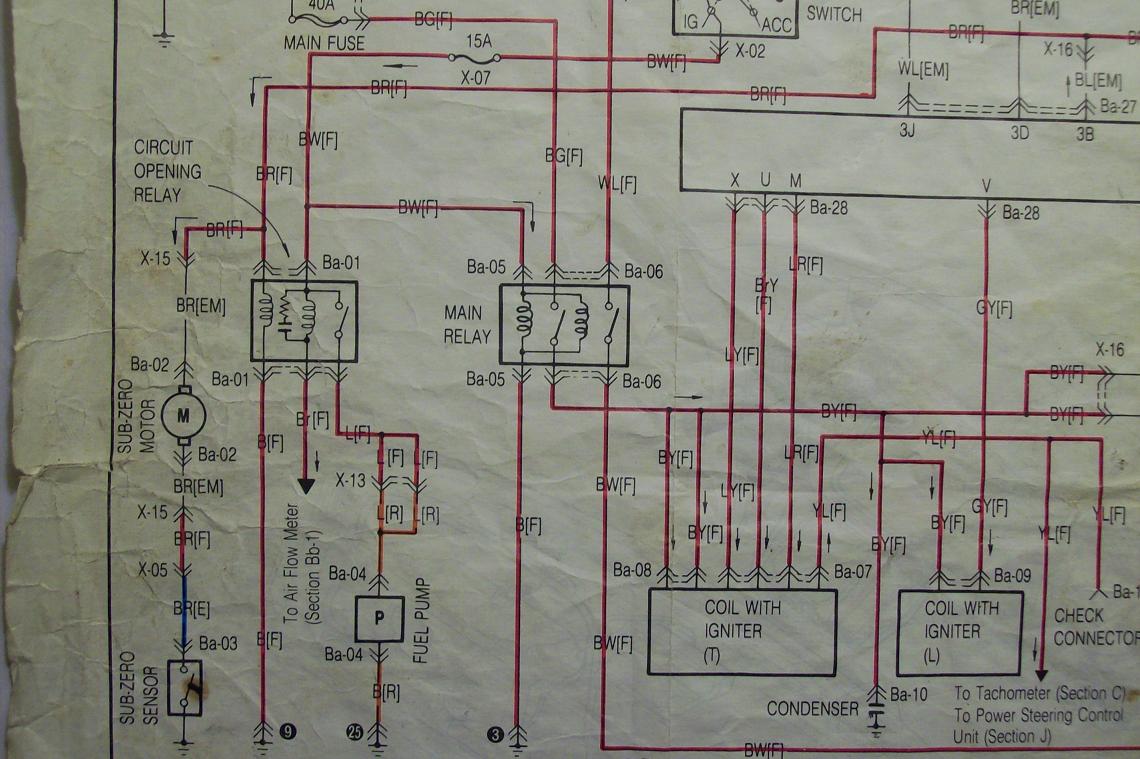

The non turbo (left jpg) and TurboII (right jpg) for 86-87.
The solenoid resistor is not a part of the fuel pump circuit so it isn't attached.
What was the question?
They rewire the TurboII for FEAR of the fuel pump/resistor relay (TurboII cars for 86-87 1/2) failing to the low voltage positon and or they find there is a slight problem if your driving at night with the a/c on/heater on/headlights on and the voltage at the stock wiring at the pump has fallen to an unacceptable figure. Kabloowi! goes the apex seal from running too lean. Something like that.

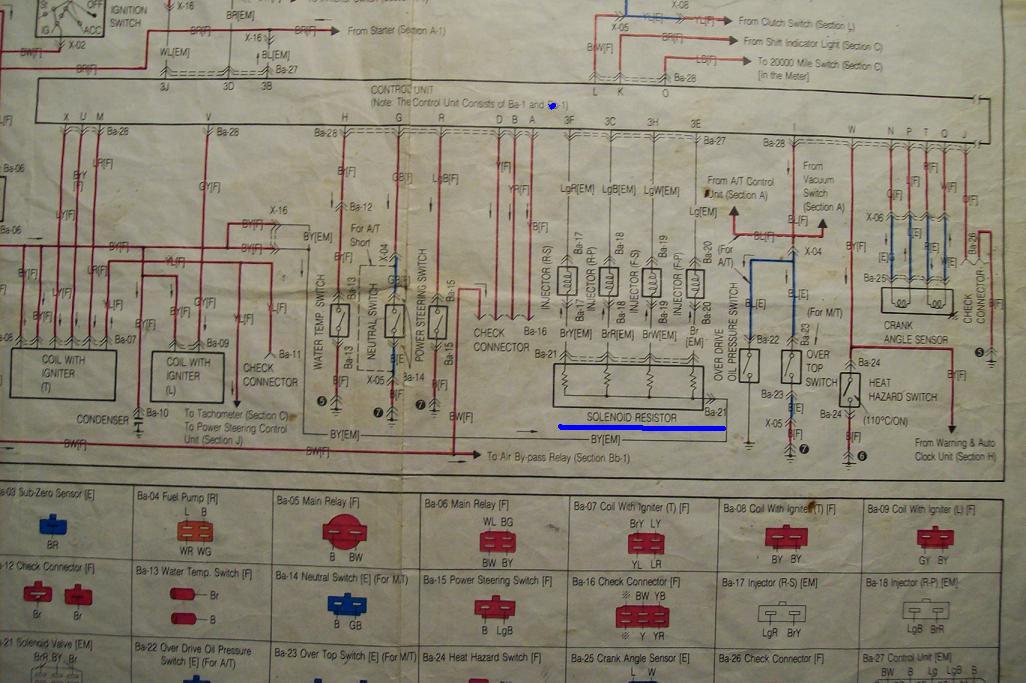

EDIT: By popular demand of the dog, I attach a jpg of the Solenoid Resistor. Third jpg.
The solenoid resistor is not a part of the fuel pump circuit so it isn't attached.
What was the question?
They rewire the TurboII for FEAR of the fuel pump/resistor relay (TurboII cars for 86-87 1/2) failing to the low voltage positon and or they find there is a slight problem if your driving at night with the a/c on/heater on/headlights on and the voltage at the stock wiring at the pump has fallen to an unacceptable figure. Kabloowi! goes the apex seal from running too lean. Something like that.
EDIT: By popular demand of the dog, I attach a jpg of the Solenoid Resistor. Third jpg.
02-24-09, 10:31 PM
#11
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
So,I am Guessing that I can Put My Walbro into my 86 N/A chassis's wiring to supply fuel to the TII engine,and I don't have to Mess with any wiring?(the Walbro Unit I got last year has the Sending unit,etc on it,so it is a Plug and play unit,so to speak).
I will not be using the TII's harness on the engine anyhow.I don't know if that is Pertinent.
and Icemark,seeing this is My thread,originally,Can you tell me the Color of the Wire 1r(ps..Knock sensor)I have to Depin the N/A harness.I know it is on other threads But Since I Posted this one,I may as well ask.Thanks.
I will not be using the TII's harness on the engine anyhow.I don't know if that is Pertinent.
and Icemark,seeing this is My thread,originally,Can you tell me the Color of the Wire 1r(ps..Knock sensor)I have to Depin the N/A harness.I know it is on other threads But Since I Posted this one,I may as well ask.Thanks.
02-24-09, 11:50 PM
#12
Interesting topic, I'm glad this thread popped up. I've seen this topic before but couldn't remember the pros and cons of modding fuel pump wiring. Reminds me to educate myself a bit on it.
My car is in my signature, if I can be of any help I can snap some pics, do some research. I want to learn more about the topic so it'd be a win-win situation
My car is in my signature, if I can be of any help I can snap some pics, do some research. I want to learn more about the topic so it'd be a win-win situation
02-25-09, 12:28 AM
#13
So,I am Guessing that I can Put My Walbro into my 86 N/A chassis's wiring to supply fuel to the TII engine,and I don't have to Mess with any wiring?(the Walbro Unit I got last year has the Sending unit,etc on it,so it is a Plug and play unit,so to speak).
I will not be using the TII's harness on the engine anyhow.I don't know if that is Pertinent.
and Icemark,seeing this is My thread,originally,Can you tell me the Color of the Wire 1r(ps..Knock sensor)I have to Depin the N/A harness.I know it is on other threads But Since I Posted this one,I may as well ask.Thanks.
I will not be using the TII's harness on the engine anyhow.I don't know if that is Pertinent.
and Icemark,seeing this is My thread,originally,Can you tell me the Color of the Wire 1r(ps..Knock sensor)I have to Depin the N/A harness.I know it is on other threads But Since I Posted this one,I may as well ask.Thanks.

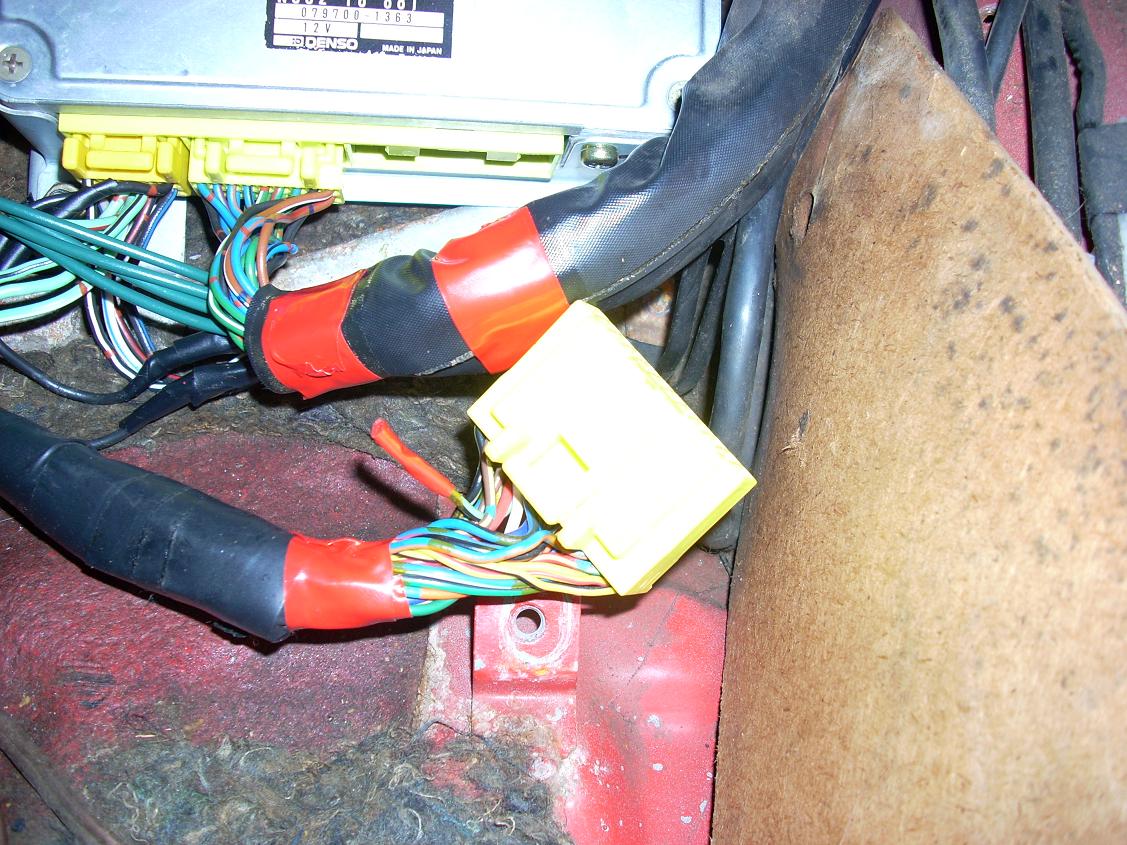

As for the wire at pin 1R, it's light green w/ a black stripe (LG/B). Here, I just happen to have taken a picture of it. A little blurry, but it's the wire w/ the red tape on it.
02-25-09, 09:28 AM
#14
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
So,I am Guessing that I can Put My Walbro into my 86 N/A chassis's wiring to supply fuel to the TII engine,and I don't have to Mess with any wiring?(the Walbro Unit I got last year has the Sending unit,etc on it,so it is a Plug and play unit,so to speak).
I will not be using the TII's harness on the engine anyhow.I don't know if that is Pertinent.
and Icemark,seeing this is My thread,originally,Can you tell me the Color of the Wire 1r(ps..Knock sensor)I have to Depin the N/A harness.I know it is on other threads But Since I Posted this one,I may as well ask.Thanks.
I will not be using the TII's harness on the engine anyhow.I don't know if that is Pertinent.
and Icemark,seeing this is My thread,originally,Can you tell me the Color of the Wire 1r(ps..Knock sensor)I have to Depin the N/A harness.I know it is on other threads But Since I Posted this one,I may as well ask.Thanks.
If so, the whole thread is irrelevant.
You'll be running a new wire from the fuel pump relay at your ECU panel all the way back to the fuel pump. Use 12 gauge, and also bring a ground back there as well.
02-25-09, 09:37 AM
#15
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
My tuner had me run a larger guage wire directly from the battery to the fuel pump. Simply used a Bosch relay in between that was triggered by the stock fuel pump power wire so all operated as stock. If you look at the schematic, as it stands power otherwise goes through two relays.
Goal was more consistant power flow to the pump (Denso in this case).
Goal was more consistant power flow to the pump (Denso in this case).
09-02-09, 02:24 PM
#16
lycanthrope
iTrader: (11)
Join Date: Jan 2007
Location: lancaster ca
Posts: 1,131
Likes: 0
Received 0 Likes
on
0 Posts
would you want to go strait from the battery or another consistant 12v source? i was just wondering cuz i know the battery has about 13-14 volt while the car is on because of the charging system. is that going to be bad? or maybe wear out the pump pre-mature?
09-02-09, 03:10 PM
#18
lycanthrope
iTrader: (11)
Join Date: Jan 2007
Location: lancaster ca
Posts: 1,131
Likes: 0
Received 0 Likes
on
0 Posts
sounds good, thats how i did mine and then the next day i was laying around thinking about it and just wanted to make sure. also does anyone know what size fuse i should use for an fd fuel pump? i have a 15a in right now.
09-02-09, 08:14 PM
#19
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Ok,Just an update.
I wired the Walboro Directly onto the Stock wiring,it runs great.
I know because I have had to Reconfigure the Fuel lines a couple times,and there is Sufficient Pressure..Trust me!..(Daddy smells liks gas!).
So in short it is wire up and play on an N/A.
I wired the Walboro Directly onto the Stock wiring,it runs great.
I know because I have had to Reconfigure the Fuel lines a couple times,and there is Sufficient Pressure..Trust me!..(Daddy smells liks gas!).
So in short it is wire up and play on an N/A.
09-02-09, 09:23 PM
#20
yeah on the turbo cars all you have to do is cut the resistor relay from the front and solder the two sets of bluish wires together. then use the factory pump wire in the back of the car to trigger a relay that pulls battery voltage.

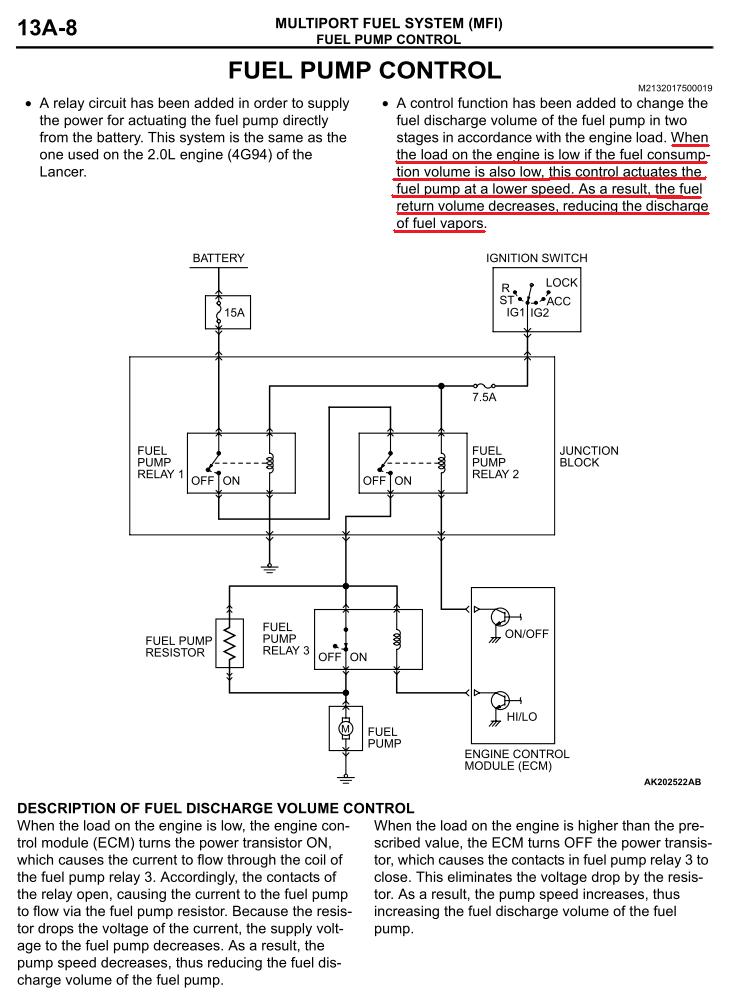

For those of you wondering why the two-speed system exists, here is a major reason why:
fuel vapor emissions are a major component of the pollution engines produce. Return fuel systems tend to produce significant amounts of fuel vapor, which the evaporative emissions system (charcoal canister etc) has to capture and feed into the engine. Vapors in the fuel lines also can lead to rough idle or vapor lock, which is why there is a hot start assist solenoid. Running a pump at lower speed reduces the amount of fuel vapors produced.
Returnless fuel systems (like on the Rx-8) reduce fuel vapor even further.
For those of you wondering why the two-speed system exists, here is a major reason why:
fuel vapor emissions are a major component of the pollution engines produce. Return fuel systems tend to produce significant amounts of fuel vapor, which the evaporative emissions system (charcoal canister etc) has to capture and feed into the engine. Vapors in the fuel lines also can lead to rough idle or vapor lock, which is why there is a hot start assist solenoid. Running a pump at lower speed reduces the amount of fuel vapors produced.
Returnless fuel systems (like on the Rx-8) reduce fuel vapor even further.
09-05-09, 09:46 PM
#21
______
iTrader: (20)
Join Date: Mar 2003
Location: Florida
Posts: 447
Likes: 0
Received 0 Likes
on
0 Posts
fuel pump voltage changes fuel pump out put (output drops). Thats why its best to run it of a constant voltage source ie relay to battery.
For 89-91 the relay is behind the front head light, far from the pump. I remember people saying the stock unit was not reliable for upgraded fuel systems.
For 89-91 the relay is behind the front head light, far from the pump. I remember people saying the stock unit was not reliable for upgraded fuel systems.
02-10-10, 04:45 PM
#23
People re-wire fuel pumps because the stock wiring is crappy. I lost an engine because the fuel pump had ~5V going to it even though the FPRR passed the resistance test. Its much easier and more effective to bypass the stock wiring and run a 12 gauge wire from the battery to a relay.
You can re-wire and still keep the resister relay if you are on the stock EMS. Without it the idle AFRs suck, mine idles at 11.0 AFR.
You can re-wire and still keep the resister relay if you are on the stock EMS. Without it the idle AFRs suck, mine idles at 11.0 AFR.
02-10-10, 06:29 PM
#24
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Update,sort of.(car under a tarp outside)..I got the Walbro in,and hooked up,running a parallel fuel setup with an RTEK 1.8 and 750;s..all is GOOD!..I can't wait for Spring!
02-10-10, 11:48 PM
#25
all S5 and S4 t2's have fuel pump resistor relays, S4 n/a did not and needs to have one wired in the circuit in order to run the right pressures.
adding a walbro to any stock car just makes the car run richer so you also need some sort of way to adjust fuel at the ECU to compensate. rewiring the fuel pump to bypass the 2 stage fuel pump relay also adds even more richness to the fuel mixtures since the pump is now doing even more work than before and raising fuel pressure further.
adding a walbro to any stock car just makes the car run richer so you also need some sort of way to adjust fuel at the ECU to compensate. rewiring the fuel pump to bypass the 2 stage fuel pump relay also adds even more richness to the fuel mixtures since the pump is now doing even more work than before and raising fuel pressure further.
