hondahater

iTrader: (2)

ok just pulled the injectors back out of my car and would like to send them off to a place to have them cleaned and tested but I noticed on them one says 10w and the other says 16w. What exactly does this mean? THey also have RP on the injectors. Any info would be great thanks. Oh these are 890cc injectors.

1987RX7guy

iTrader: (3)

I think it woudl help if you noted the problem for us.

hondahater

iTrader: (2)

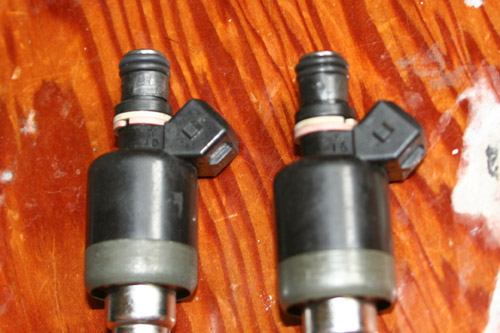

here is a pic of what they look like and if you look closely you can see the w10 and w16

hondahater

iTrader: (2)

sorry about that man I've been having the same problem for a while trying to trouble shoot it with wayne and a few others so I just ASSumed everyone knew, lol. ANyways what happens is right at the 3500rpm (rtek1.7) cut on, the car starts sputtering, backfiring and hessitating horribly. My wideband goes from 12 to 21 back and forth real quickly and of course there is no power. Well the only thing I changed was going from 550/720 combo with old injector connectors to a 550/890 with new injector connectors. Of course I did something retarded and ASSumed that the 890cc injectors where low impedance so I wired in some resistors however I found out real quick that it was high impedance. so I took the resistors out and this is what is happening. I don't know if doing that could have messed up the ecu but I've check the voltage to all 4 injectors and they are getting the same exact voltage and when the secondaries kick in the voltage drops on them like they should so it all should be fine but its not. I've also checked the 890 injectors by putting them in the primary location and puting two cups under both injectors and turned the car over and there was fuel in both cups (same amount).

there are two numbers on both the injectors and they are exactly the same numbers

4233 and 17102768

hondahater

iTrader: (2)

just did a search and found that they are

MULTECH ROCHESTER PR. 17102768 but it doesn't say injector size. So I just sent an email to an injector place to see what size these injectors are. If anyone can find out for me that would be awesome!

hondahater

iTrader: (2)

I'm about to be pissed off! I just flow tested my injectors at a local machine shop and they said (and I saw) they where only spraying 50ml however the stock 550cc injectors flow at 80ml so I got jiped! Am I right in thinking this??? Is there any ml to cc conversion?

SonicRaT

iTrader: (6)

1cc = 1 ml

I would wager, if they flowed 80ml(cc), that they are BROKE.

hondahater

iTrader: (2)

so wait a minute. he said it was shooting 50 milileters per cycle witch the stock 550's we looked up in the book and they shoot 80 milileters per cycle so how do you solve this mystery??? lol

WAYNE88N/A

Per cycle? Cycle of what? Piston stroke? Single rotor turn? 1/3 turn?

Did you compare how much they flow in a minute?

Get ya some new injectors

SonicRaT

iTrader: (6)

Yah... what kind of cycle? Like 1% DC or something? 1ms cycle?

hondahater

iTrader: (2)

damn, I don't know he just said (of course he is a piston guy) they flow 50 milileters per cycle??? I said well what is it cc and he said he has no idea because he goes by milileters per cycle.

SonicRaT

iTrader: (6)

sure he wasn't mistaking lb/hr? That'd make sense, but it's reversed as well, stock is like 52lb/hr, the 890's would be like 84lb/hr.

hondahater

iTrader: (2)

if you go here http://www.cruzinperformance.com/injsteps.html and look at the tubes with the differant numbers well on a 15 second test they flowed 50 ml. Thats all I know.

SonicRaT

iTrader: (6)

Oh I see, they run them for 15 seconds at wide load, up to what pressure i wonder on those? That'd help decipher better.

hondahater

iTrader: (2)

43.5 I believe.

SonicRaT

iTrader: (6)

Figure that the stock injectors flow 550cc/min, cut that by 4 (15 seconds = 1/4th a minute), and you're at 137.5cc(ml). To get 80 would have to be around 60% DC. If this is what they test at (very likely, i guess.) Apply the same logic to your flow results and work back, this would be equivalent of 330cc's, which is a VERY common type of those GM Multec injectors you have.

RotaryEvolution

iTrader: (30)

did you ever get around to checking the injector pulse with them in the car? sorry for not following up..

SonicRaT

iTrader: (6)

Whats it matter at the moment if they did? If they only are flowing 330cc that's the answer to all of his problems right there!

RotaryEvolution

iTrader: (30)

that is true, his AFR readings are severely lean so it is likely.

hondahater

iTrader: (2)

hey guys thanks for the replies! Sonic thanks for that, I'm sure thats what they are because they look like some stock injector off of a GM oh well 200 bucks later I guess I learned a lesson. That was the first time to get ripped off by someone on this forum. Anyways I've got another set of 890s that a fellow rotor head here in town had, he let me barrow them so as soon as I modify them to fit in the rail (hopefully today or tomorrow) I'll try them to see if they work, if they do, marren here I come. Thanks again for the help! Karak, I tried them in the primaries and they sprayed just fine for 330cc injectors

SonicRaT

iTrader: (6)

Yeah... shitty! Can't wait to see how that damn car does when it functions properly!

hondahater

iTrader: (2)

yeah you and me both, lol. It was quick as **** with the other hybrid I had on it but that turbo wasn't near as big as this one
