TX 13b carbed turbo setup

Ok, I am building a carbed 13b turbo. I know many of you dislike carbed applications, however, I am trying to do something a little different then most others with 2nd gens. I am going to post my basic setup with the hopes of getting some good feedback as to whether or not it will work well together. Thank you in advance for any help!!!!

S4 4port Full Bridgeported
Racing beat carb intake manifold
Holley 650 w/ vacuum secondaries (boost prepped)
Holset hx40 turbo
Custom built turbo manifold
large tial wastegate
FMIC with 2.5 inch piping
1st gen distributor, aftermarket coils, crane cams hi-6 ignition box
walbro 255 fuel pump
full 3" exhaust with N1 muffler

I will also be pre-mixing my gas/oil and this IS NOT a daily driver...


Thanks again!!!
Turboroll is offline   Reply With Quote
Old 03-12-09, 05:33 PM   #2
Spinner

Trader Score: (0)

Join Date: Jun 2008
Location: on a twisty road somewhere...
Posts: 154
good luck. theres a reason you dont see many carbed turbo cars of any kind.
__________________


S4GXL is offline   Reply With Quote
Old 03-12-09, 05:59 PM   #3
All out Freak!
5 Year Member

FrankV702's Avatar

Trader Score: (12)

Join Date: May 2006
Location: Las Vegas
Posts: 1,506

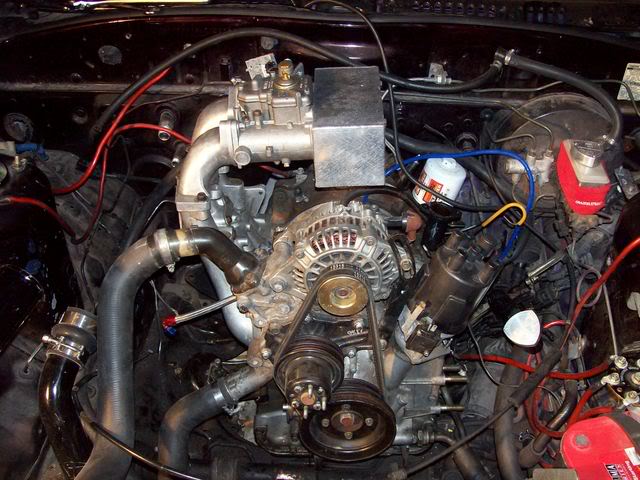

This was my attempt at a blow-through carb setup.. I FAILED! But I should've known better, I know absolutely nothing about carbs, I just thought it would be cool and unique!

Click the image to open in full size.
__________________
90 Candy Burgundy Vert: Cosmo 13B-RE swap, custom motor mounts, Ball Bearing Turbonetics 60-1 Turbo, HKS cast iron manifold, HKS 40mm wastegate w/ 1 bar spring, full TII drivetrain swap, Innovate LC-1 wideband, Haltech Sprint RE, and much more!
FrankV702 is offline   Reply With Quote
Old 03-12-09, 06:36 PM   #4
Engine, Not Motor
10 Year Member
5 Year Member

Aaron Cake's Avatar

Trader Score: (1)

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 28,135
Send a message via ICQ to Aaron Cake Send a message via Yahoo to Aaron Cake
Uh, that's not a Holley 650...
Aaron Cake is offline   Reply With Quote
Old 03-12-09, 06:56 PM   #5
Fistful of steel
5 Year Member

LargeOrangeFont's Avatar

Trader Score: (5)

Join Date: Nov 2008
Location: OC, So Cal
Posts: 991
Quote:
Originally Posted by S4GXL View Post
good luck. theres a reason you dont see many carbed turbo cars of any kind.
They can be made to work just fine, if done correctly. VW guys have been doing it for decades.
LargeOrangeFont is offline   Reply With Quote
Old 03-12-09, 07:16 PM   #6
87 SE WITH S5 T2 SWAP
10 Year Member

joeylyrech's Avatar

Trader Score: (10)

Join Date: May 2004
Location: allentown pa
Posts: 1,959
Send a message via AIM to joeylyrech Send a message via Yahoo to joeylyrech
I owned one several years ago and it ran great,full bridgeported,60-1,holley 650 turbo prepped double pumper with mechanical secondaries and running a locked first gen dizzy ALA PUERTORICAN STYLE,people will tell you that they dont run good that it will not idle fine that you wont be able to run lost of boost not really,if the person building it knows his stuff it will drive fine and make good power without investing a chunk of money of a standalone in fact i seen turbo carbed cars killing fuel injected ones all they long.
__________________
I HATE MY CAR
joeylyrech is offline   Reply With Quote
Old 03-12-09, 09:39 PM   #7
No Sleep, No Food
10 Year Member

arghx's Avatar

Trader Score: (3)

Join Date: Aug 2004
Location: cold
Posts: 14,591
^^^ he never said it was. That pic is not from the OP's car.

I'm sure you can make it work but one of the biggest drawbacks is a lack of any precise timing control.
arghx is offline   Reply With Quote
Old 03-12-09, 11:51 PM   #8
Spinner

Trader Score: (0)

Join Date: Jun 2008
Location: on a twisty road somewhere...
Posts: 154
and a lack of precision fuel control. two of the biggest issues when building a turbo motor. hence the general lack of high power turbo carb cars around.
__________________


S4GXL is offline   Reply With Quote
Old 03-13-09, 12:06 AM   #9
Passing life by
5 Year Member

iceblue's Avatar

Trader Score: (0)

Join Date: Feb 2005
Location: Scotland, USA
Posts: 4,028
Send a message via AIM to iceblue
And the boost floating the carb. Personally I cant stand them its decades old technology and for a reason. Flip side they can work if you set the carb up properly I just have a disgust for carbs think there anchant junk but whatever.
__________________
iceblue is offline   Reply With Quote
Old 03-13-09, 10:26 AM   #10
New Member

Trader Score: (0)

Join Date: Mar 2009
Location: Texas
Posts: 7
I will never understand where total disgust comes from for carbs... To each his own. I do appreciate everyone's feedback though. As for fuel control, I will be using a nice boost sensitive FPR, not sure how precise it will be though because I have never used one. But it does sound like I will be doing most of my tuning by watching my wideband.
Turboroll is offline   Reply With Quote
Old 03-13-09, 01:45 PM   #11
Engine, Not Motor
10 Year Member
5 Year Member

Aaron Cake's Avatar

Trader Score: (1)

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 28,135
Send a message via ICQ to Aaron Cake Send a message via Yahoo to Aaron Cake
Quote:
Originally Posted by arghx View Post
^^^ he never said it was. That pic is not from the OP's car.
I'm sure you can make it work but one of the biggest drawbacks is a lack of any precise timing control.
Yep, I'm an idiot. I scrolled down too quickly and the names ran together...

In reply to the OP, the total disgust of carbs comes from the fact that it is thoroughly antiquated technology. Now I suspect that a lot of people to say "carbs suck" are just parroting, but believe me, I totally mean it when I say "carbs suck". Having dealt with turbocharged carbureted rotary before, I say "good luck" to anyone who thinks they can make it run as well (or even close to as well) as a fuel injected car. Especially with a bridgeport.
Aaron Cake is offline   Reply With Quote
Old 03-13-09, 02:14 PM   #12
One Luv "Till The End"
5 Year Member

teddyrx2's Avatar

Trader Score: (33)

Join Date: Mar 2006
Location: san diego
Posts: 13,757
Teddy Blanco TillTheEnd1231
Send a message via AIM to teddyrx2
Quote:
Originally Posted by S4GXL View Post
good luck. theres a reason you dont see many carbed turbo cars of any kind.
You are so cute and dumb at the same time...Tell the cats in florida, here in cali, Puerto Rico, Ausi, just to name a few, that this idea sucks and wouldn't work...and hp levels would never be reached!!! When this **** has been done countless times over the years...

Yeah it takes a little more tunning, but with propler jetting, porting, and mods to the carb, things will work just fine...
__________________
"Right place at the WRONG TIME!!!"

Sold My RX2 To Make Things Right
http://www.rx7club.com/showthread.ph...wpost&t=717888

Follow My Turbo Project Build In The Works!!!
http://www.rx7club.com/showthread.php?t=663533
teddyrx2 is offline   Reply With Quote
Old 03-13-09, 03:10 PM   #13
The Doctor
5 Year Member

g14novak's Avatar

Trader Score: (1)

Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Quote:
Originally Posted by teddyrx2 View Post
You are so cute and dumb at the same time...Tell the cats in florida, here in cali, Puerto Rico, Ausi, just to name a few, that this idea sucks and wouldn't work...and hp levels would never be reached!!! When this **** has been done countless times over the years...

Yeah it takes a little more tunning, but with propler jetting, porting, and mods to the carb, things will work just fine...
QFT. Yeah, turbo setups are hard to do mainly because of the custom fab required.

I could be wrong, but you cant run that Walbro. It's going to push WAY too much fuel. Try a Holley blue pump.

Personally, If I were to make a turbo carb setup, the carb would basically be used as a TB... Custom intake manifold with 6-10 injectors depending on what turbo.

Are you sure you modified the carb correctly?

And to the people saying you can't make a carb run right. Want to come by and see my or my mechanics or all of my mechanics customers cars? I bet they run better than your efi cars. I can get in my car, ice cold or a hot summer day. Little tap of the gas pedal and it'll start on the first crank of the starter. Do that with your EFI system. Oh wait, you can't, it'll flood.
__________________
1989 GTU: Given Away!
1984 VW Rabbit GTI: Stock DD
g14novak is offline   Reply With Quote
Old 03-13-09, 03:58 PM   #14
New Member

Trader Score: (0)

Join Date: Mar 2009
Location: Texas
Posts: 7
I have not boost prepped the carb yet. Though I am fairly certain I can manage that. I have been reading that holleys need other modifications to work on a 13b, is that what you are talking about??
Turboroll is offline   Reply With Quote
Old 03-13-09, 05:47 PM   #15
The Doctor
5 Year Member

g14novak's Avatar

Trader Score: (1)

Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Quote:
Originally Posted by Turboroll View Post
I have not boost prepped the carb yet. Though I am fairly certain I can manage that. I have been reading that holleys need other modifications to work on a 13b, is that what you are talking about??
Yes, their are some tricks that you have to perform on the carb for it to work on a rotary and not lean out up top. Theirs also other tricks for setting it up correctly for boost. You might want to take it to a mechanic to modify or that motor will be toast pretty quick.

Not trying to say you cant do it, theirs just steps people forget when they modify the carb the first time.
__________________
1989 GTU: Given Away!
1984 VW Rabbit GTI: Stock DD
g14novak is offline   Reply With Quote
Old 03-13-09, 06:17 PM   #16
Passing life by
5 Year Member

iceblue's Avatar

Trader Score: (0)

Join Date: Feb 2005
Location: Scotland, USA
Posts: 4,028
Send a message via AIM to iceblue
Quote:
Originally Posted by g14novak View Post
Personally, If I were to make a turbo carb setup, the carb would basically be used as a TB... Custom intake manifold with 6-10 injectors depending on what turbo.
What?
__________________
iceblue is offline   Reply With Quote
Old 03-13-09, 07:11 PM   #17
Rotorhead
10 Year Member

Evil Aviator's Avatar

Trader Score: (0)

Join Date: Feb 2001
Location: St. Louis, Missouri, USA
Posts: 8,839
Quote:
Originally Posted by Turboroll View Post
I am trying to do something a little different then most others with 2nd gens. I am going to post my basic setup with the hopes of getting some good feedback as to whether or not it will work well together.
As posted by the Puerto Rican forum members, your idea is not different, but rather it is so outdated that you rarely see it anymore in modernized nations. You may want to post in the 1Gen forum or on third world country websites to get help with your setup.
Evil Aviator is offline   Reply With Quote
Old 03-13-09, 07:16 PM   #18
Banned. I got OWNED!!!

Trader Score: (0)

Join Date: Aug 2002
Location: chatsworth,Ca.
Posts: 4,666
Quote:
Originally Posted by Evil Aviator View Post
As posted by the Puerto Rican forum members, your idea is not different, but rather it is so outdated that you rarely see it anymore in modernized nations. You may want to post in the \ on third world country websites to get help with your setup.
that is where the fastest rotarys are P.R.
680RWHP12A is offline   Reply With Quote
Old 03-13-09, 07:18 PM   #19
Banned. I got OWNED!!!

Trader Score: (0)

Join Date: Aug 2002
Location: chatsworth,Ca.
Posts: 4,666
Quote:
Originally Posted by S4GXL View Post
good luck. theres a reason you dont see many carbed turbo cars of any kind.

i guess you have never visited rotaryshack.com
my 12a turbo blowthrough made 540rwhp with a modified factory carb, a nikki this was back in 2000
680RWHP12A is offline   Reply With Quote
Old 03-13-09, 07:20 PM   #20
Banned. I got OWNED!!!

Trader Score: (0)

Join Date: Aug 2002
Location: chatsworth,Ca.
Posts: 4,666
Quote:
Originally Posted by Turboroll View Post
I have not boost prepped the carb yet. Though I am fairly certain I can manage that. I have been reading that holleys need other modifications to work on a 13b, is that what you are talking about??
contact this place, they are the king of holley blow-thru


http://www.csucarbs.com/

1,200 hp blow thru setups are common and race competitively today fawk the haters
680RWHP12A is offline   Reply With Quote
Old 03-13-09, 07:21 PM   #21
The Doctor
5 Year Member

g14novak's Avatar

Trader Score: (1)

Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Quote:
Originally Posted by iceblue View Post
What?
Not have the carb control the fuel, but rather injectors before the carb.

OP's setup will more than likely run once he gets done with it. I can't say how long, but it'll run. Carb, like previously said, is old technology. You'll never get the AFR's perfect and will either never get the power out of the car that it's able to make or it'll blow up.

Carb setup is easier to get running. EFI will always run faster though.


And I think OP was stating that he is trying to do something different and make a blow-thru on a 2nd gen. Most people just buy a T2 motor and do the swap. He's actually trying to be original and do a custom setup.
__________________
1989 GTU: Given Away!
1984 VW Rabbit GTI: Stock DD
g14novak is offline   Reply With Quote
Old 03-13-09, 07:29 PM   #22
Zoom Zoom

Super82's Avatar

Trader Score: (1)

Join Date: Jun 2008
Location: Minnesota
Posts: 638
Quote:
Originally Posted by iceblue View Post
And the boost floating the carb. Personally I cant stand them its decades old technology and for a reason. Flip side they can work if you set the carb up properly I just have a disgust for carbs think there anchant junk but whatever.
How can we take your opinion on carbs as truth when you can't even spell ancient?

They are old. But so are rotaries, the idea of internal combustion engines, and the idea of a car. The fact that we still talk about carbs in a performance aspect over 100 years after their invention says alot about their resilency and quality. The fact that you say 'I have a disgust for carbs think there anchant junk' leads me to believe you don't comprehend how a carb fully works. I'm not expert on carbs myself, not by a long shot, but once you start looking at the mechanics of a carburetor it is amazing how they work and how well (and simplisticly) they work.

While I have no experience on the subject, I've heard and I can imagine that there are severe limitations with a carb'd turbo car, and that they can be a pain to work with. But from what I know, if you aren't trying to push the limits and get it tuned right they can be a real simple way of turboing. That being said I know little about boosting or boosting with carbs, so thats all I have to say.
__________________
82 RX7-Cone Killer, for sale
94 Miata-New supercharged toy
Super82 is offline   Reply With Quote
Old 03-13-09, 09:35 PM   #23
Passing life by
5 Year Member

iceblue's Avatar

Trader Score: (0)

Join Date: Feb 2005
Location: Scotland, USA
Posts: 4,028
Send a message via AIM to iceblue
Quote:
Originally Posted by Super82 View Post
How can we take your opinion on carbs as truth when you can't even spell ancient?

While I have no experience on the subject, I've heard and I can imagine that there are severe limitations with a carb'd turbo car, and that they can be a pain to work with.
I think you said enough in your own post I really don't need to respond with anything besides another crawls out of the wood works

Quote:
Originally Posted by g14novak View Post
Not have the carb control the fuel, but rather injectors before the carb.
It's all good I think my post just went completely over your head. Tip: google = ITB's
iceblue is offline   Reply With Quote
Old 03-13-09, 11:18 PM   #24
Banned. I got OWNED!!!

Trader Score: (1)

Join Date: Sep 2003
Location: SoCal
Posts: 131
Send a message via AIM to RXvedub
Quote:
Originally Posted by FrankV702 View Post
This was my attempt at a blow-through carb setup.. I FAILED! But I should've known better, I know absolutely nothing about carbs, I just thought it would be cool and unique!

Click the image to open in full size.

what happened? that setup is great, it should work fine
RXvedub is offline   Reply With Quote
Old 03-13-09, 11:24 PM   #25
Zoom Zoom

Super82's Avatar

Trader Score: (1)

Join Date: Jun 2008
Location: Minnesota
Posts: 638
Quote:
Originally Posted by iceblue View Post
I think you said enough in your own post I really don't need to respond with anything besides another crawls out of the wood works
You think you've gotten me, but if you read I'm not offering any help on boosting with a carb. I explictly said that. How does saying 'While I have no experience on the subject, I've heard...' make me a noob? I'm not claiming to any knowledge, but offering regurgitated info I've heard. I think that is a bit more admireable thing to do for a 'noobie', rather than just coming in here thinking I do have help to offer.

If you re-read my post, you will see that I didn't really make any points in the third paragraph. My third paragraph was solely my take on the subject, to contribute to the OP without derailing the thread. My thesis and my argument was in my second paragraph, which I stand by. Carbs are nothing but ancient junk, the are an incredible piece of technology.
__________________
82 RX7-Cone Killer, for sale
94 Miata-New supercharged toy
Super82 is offline   Reply With Quote
Old 03-13-09, 11:24 PM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
13b, 4309, blow, carb, carbed, complete, engine, fpr, guide, holley, holset, rotary, setup, thur, turbo

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On

Similar Threads
Thread Thread Starter Forum Replies Last Post
What motor for carbed sandrail setup jon6.0 Rotary Car Performance 2 11-04-07 01:52 PM
13b carbed guitardedcracker 2nd Generation Specific (1986-1992) 1 04-15-07 06:51 PM
13b to carbed 13b, questions. Velocifero 2nd Generation Specific (1986-1992) 6 03-07-07 03:53 PM
Carbed 13B dyne 2nd Generation Specific (1986-1992) 4 11-30-04 06:56 PM
carbed 13b Randy Poffo 2nd Generation Specific (1986-1992) 7 05-02-04 01:36 PM


All times are GMT -5. The time now is 05:11 AM.
All content Copyright 2007 by Internet Brands, Inc.

Contacts
