Pictures of FC wheel fitment with specs... ***Picts-n-Specs ONLY***
09-26-16, 07:20 AM
#951
Junior Member
That looks really good! What size tires were you running? Any spacers or anything like that?
10-01-16, 08:03 AM
#952
Unbereevable
10-02-16, 10:14 PM
#953
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Don't know if you can see it.

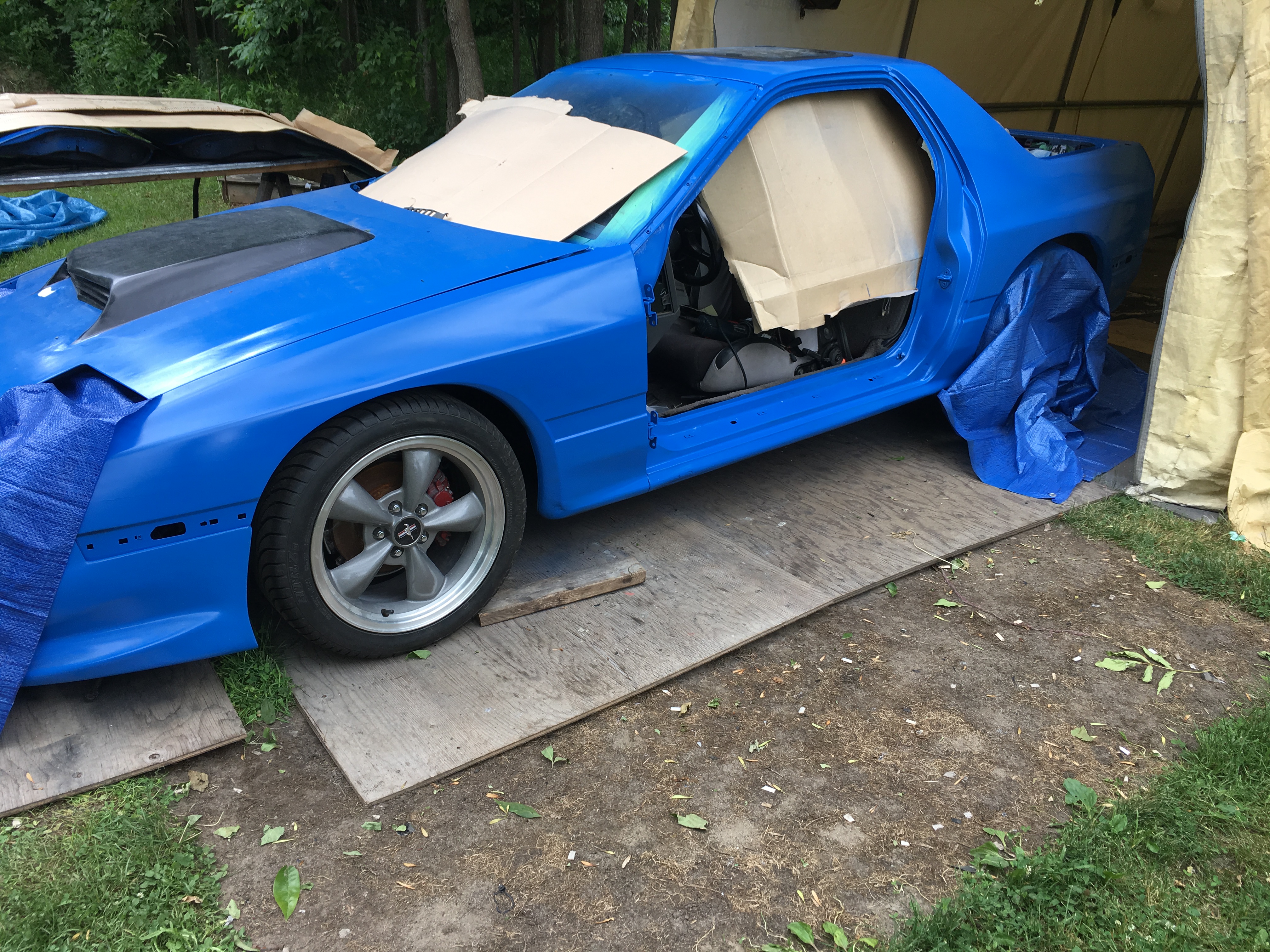

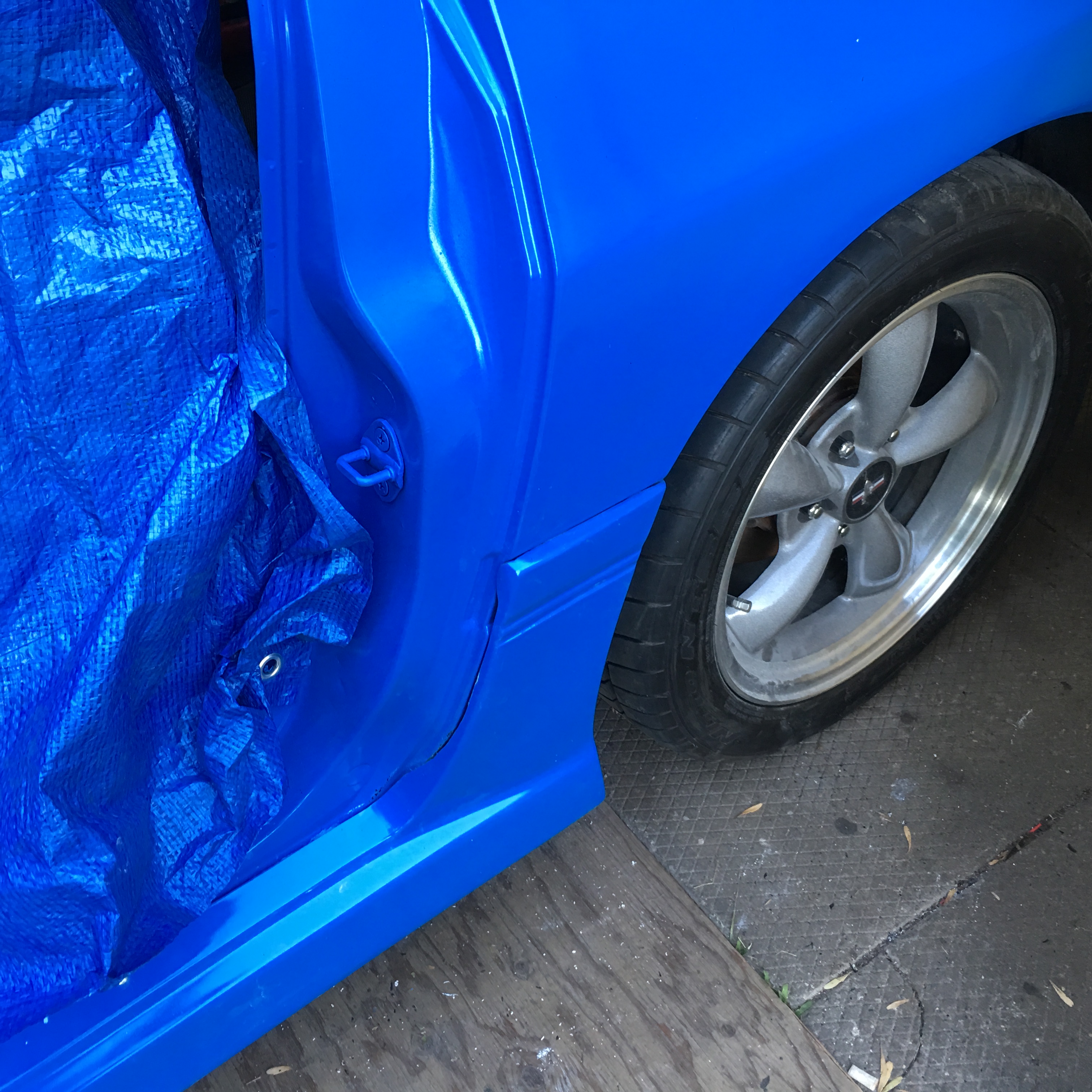

Old pics of Mustang Bullit wheels..on an FC.
They fit rather nicely.They are the older version..38 offset 17x8's.
Old pics of Mustang Bullit wheels..on an FC.
They fit rather nicely.They are the older version..38 offset 17x8's.
My setup
10-27-16, 08:32 PM
#956
Might have answered my question.
Im looking at a set of Ruff Racing R350 in 18x8 38et
Im running ebay lowering struts and cut coils in the front.
Will a 18X8 38 fit in there without hitting the strut?
I don't know my current setup but I measured my wheels and tires that are on the car now (16x7or7.5? borbet with 195x40r16) I have an effective 20mm offset from what my tape measure tells me. That includes the spacers. I have about 1.5" between the tire and the strut.
When I do the math I should have about 1/4" between the wheel and strut with the new wheels. Does that math figure up? I could always run a 5mm spacer to.
Current setup.
12-22-16, 04:47 PM
#957
Will racing beat springs/agx shocks rubb against 17x7.5 front 17x9 rear
Hi guys,
I was wandering if anyone have experience with racing beat springs/agx shocks on 17x7.5 35 offset front/17x9 35 offset rear. Tires are 215/45R17 front, rear 245/40R17. Will my wheels rub against the springs? Any help would be appreciative.
Thanks
I was wandering if anyone have experience with racing beat springs/agx shocks on 17x7.5 35 offset front/17x9 35 offset rear. Tires are 215/45R17 front, rear 245/40R17. Will my wheels rub against the springs? Any help would be appreciative.
Thanks
03-26-17, 11:54 PM
#961

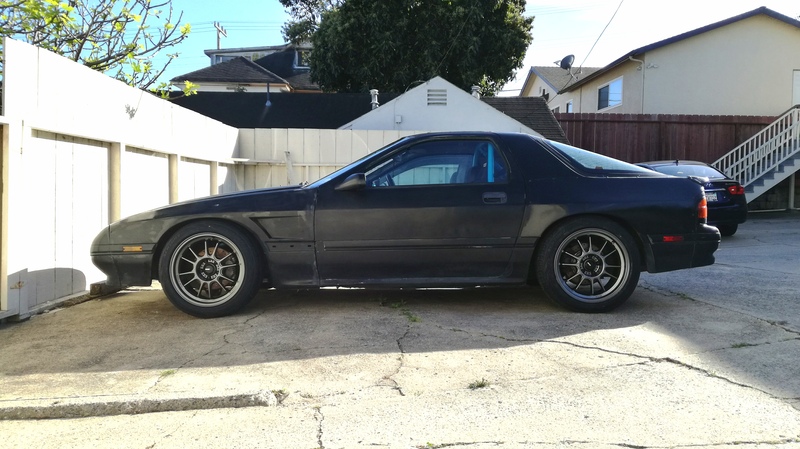

Konig Hypergrams
Hey Everyone,

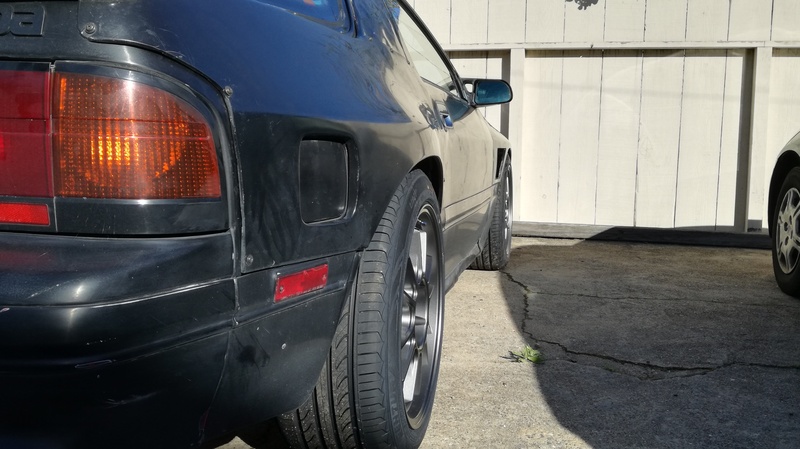

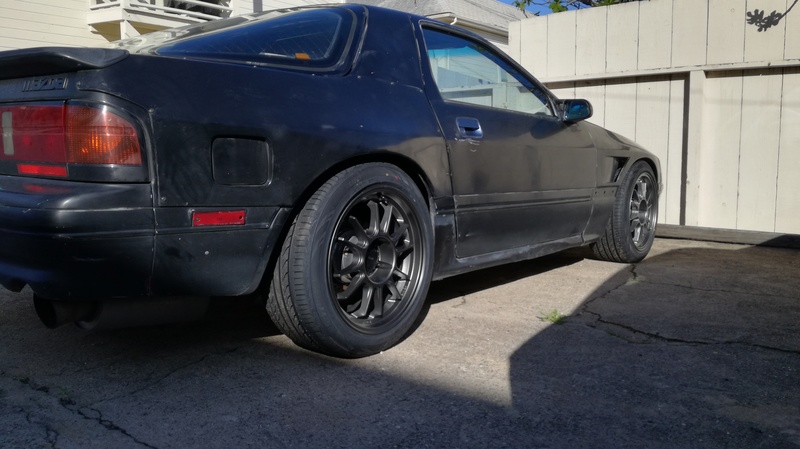

I wanted a lightweight, but affordable wheel and this was a great option: The new Konig Hypergram. Got them from discount tire direct for $176/wheel. However, I think they're sold out right now because I double checked the site and they're gone. Great deal for a lightweight wheel if you can find them (~17.5lbs/wheel).
FR:
17x9, +25mm offset, 235/45/17 tire, +20mm wide front fenders
RR:
17x9, -5mm effective offset (installed 30mm spacer on +25mm wheel), 235/45/17 tire, +30mm wide rear over fenders
This setup could be run on a stock body with a fender pull front and rear without the huge rear spacer of course, that's only to match the over fenders I have. I have Fortune Auto coilovers so I can't confirm clearance to any other suspension types.
I wanted a lightweight, but affordable wheel and this was a great option: The new Konig Hypergram. Got them from discount tire direct for $176/wheel. However, I think they're sold out right now because I double checked the site and they're gone. Great deal for a lightweight wheel if you can find them (~17.5lbs/wheel).
FR:
17x9, +25mm offset, 235/45/17 tire, +20mm wide front fenders
RR:
17x9, -5mm effective offset (installed 30mm spacer on +25mm wheel), 235/45/17 tire, +30mm wide rear over fenders
This setup could be run on a stock body with a fender pull front and rear without the huge rear spacer of course, that's only to match the over fenders I have. I have Fortune Auto coilovers so I can't confirm clearance to any other suspension types.
The following users liked this post:
cmarcano (01-11-18)
04-06-17, 12:38 PM
#962
how would 18x9.5 18x10.5 +7 fit? possible with stock metal or is it mandatory for something that aggressive? if i go 30mm fenders front and back would it make it a better fit?
The following users liked this post:
MazDan (03-18-18)
06-25-17, 11:02 PM
#965
Full Member
Hey Everyone,
I wanted a lightweight, but affordable wheel and this was a great option: The new Konig Hypergram. Got them from discount tire direct for $176/wheel. However, I think they're sold out right now because I double checked the site and they're gone. Great deal for a lightweight wheel if you can find them (~17.5lbs/wheel).
FR:
17x9, +25mm offset, 235/45/17 tire, +20mm wide front fenders
RR:
17x9, -5mm effective offset (installed 30mm spacer on +25mm wheel), 235/45/17 tire, +30mm wide rear over fenders
This setup could be run on a stock body with a fender pull front and rear without the huge rear spacer of course, that's only to match the over fenders I have. I have Fortune Auto coilovers so I can't confirm clearance to any other suspension types.
I wanted a lightweight, but affordable wheel and this was a great option: The new Konig Hypergram. Got them from discount tire direct for $176/wheel. However, I think they're sold out right now because I double checked the site and they're gone. Great deal for a lightweight wheel if you can find them (~17.5lbs/wheel).
FR:
17x9, +25mm offset, 235/45/17 tire, +20mm wide front fenders
RR:
17x9, -5mm effective offset (installed 30mm spacer on +25mm wheel), 235/45/17 tire, +30mm wide rear over fenders
This setup could be run on a stock body with a fender pull front and rear without the huge rear spacer of course, that's only to match the over fenders I have. I have Fortune Auto coilovers so I can't confirm clearance to any other suspension types.
