Pictures of FC wheel fitment with specs... ***Picts-n-Specs ONLY***
#1
Banned. I got OWNED!!!
Thread Starter
Pictures of FC wheel fitment with specs... ***Picts-n-Specs ONLY***
f- 16x8 +30 Japanese 2piece Hero's racing, 20mm over fenders
r- 16x8 -15 Japanese 2piece Demon cambers, ??mm over fenders(forgot)
r- 16x8 -15 Japanese 2piece Demon cambers, ??mm over fenders(forgot)
#2
Banned. I got OWNED!!!
Thread Starter
BoostinmyS5
18x10-6
19x10-16
other wheels are:
17x10-2 front (20mm spacer) under 25mm wide fender
18x10.5-5 rear (20mm spacer) under 50mm wide fender
18x11-9 work meister (no spacer)
18x10-6
19x10-16
other wheels are:
17x10-2 front (20mm spacer) under 25mm wide fender
18x10.5-5 rear (20mm spacer) under 50mm wide fender
18x11-9 work meister (no spacer)
Last edited by PlatinumPresto.info; 10-21-07 at 10:42 PM.
#6
Banned. I got OWNED!!!
Thread Starter
demontwig
Zenneti aluminum wheels with Falken ZE512 235/45/z18 8.5 front 265/45/z18 9.5 rear with 25mm spacers up front. Stance GR coilovers. A little bit of rubbing when turning too sharp, but otherwise fit fine.
Zenneti aluminum wheels with Falken ZE512 235/45/z18 8.5 front 265/45/z18 9.5 rear with 25mm spacers up front. Stance GR coilovers. A little bit of rubbing when turning too sharp, but otherwise fit fine.
Trending Topics
#9
Banned. I got OWNED!!!
Thread Starter
unicorn_squad
16x8 minus 30 front,
16x8 minus 16 rear. after spacers....
205/50 all around.
16x8 minus 30 front,
16x8 minus 16 rear. after spacers....
205/50 all around.
Last edited by PlatinumPresto.info; 10-21-07 at 10:59 PM.
The following users liked this post:
rlynchster (12-29-21)
#16
Banned. I got OWNED!!!
Thread Starter
unicorn_squad
18x9.5 + ~ 12 with 215/35
18x10 +2 with 225/40
18x9.5 +22 with a 225/40 tire. on the front
18x9.5 + ~ 12 with 215/35
18x10 +2 with 225/40
18x9.5 +22 with a 225/40 tire. on the front
Last edited by PlatinumPresto.info; 10-21-07 at 11:25 PM.
#19
Banned. I got OWNED!!!
Thread Starter
azncmb
wheels: work vs-kf
size:
F- 18x9.5 +7(effectively +0 with 7mm spacer to clear caliper).
R- 18x10 +7
tires:
F- 225/40/18 Federal ss595
R- 235/40/18 Federal ss595
stock fenders, with a a roll/pull in the rear...
^^sheet of paper clearence between caliper and wheel spoke ^^
wheels: work vs-kf
size:
F- 18x9.5 +7(effectively +0 with 7mm spacer to clear caliper).
R- 18x10 +7
tires:
F- 225/40/18 Federal ss595
R- 235/40/18 Federal ss595
stock fenders, with a a roll/pull in the rear...
^^sheet of paper clearence between caliper and wheel spoke ^^
The following users liked this post:
Paul1 (01-21-23)
#20
Banned. I got OWNED!!!
Thread Starter
hurleysurf24
Wheels are
17 x 8 - 32 offset
17 x 9 - 32 Offset
225/45/17 on the front
245/40/17 on rear
275/40/17 were rubbing against the mufflers of my racing beat exhaust .. even after the shield was bent. 255/40/17 will make the rears look more flush with the fender.
17 x 8 35offset on the front
Wheels are
17 x 8 - 32 offset
17 x 9 - 32 Offset
225/45/17 on the front
245/40/17 on rear
275/40/17 were rubbing against the mufflers of my racing beat exhaust .. even after the shield was bent. 255/40/17 will make the rears look more flush with the fender.
17 x 8 35offset on the front
Last edited by PlatinumPresto.info; 10-21-07 at 11:22 PM.
#21
Banned. I got OWNED!!!
Thread Starter
RETed
17" x 8.0", +35 wheel

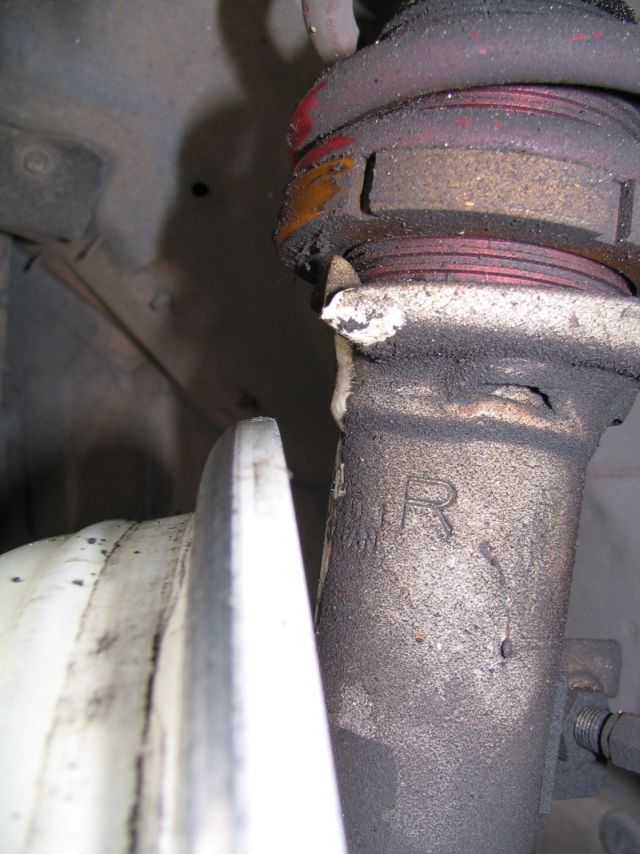

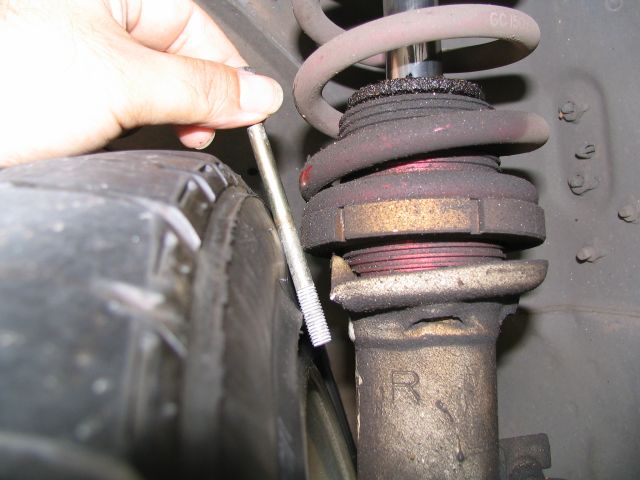

On stock-type shocks, the lower spring perch will interfere with 225 / 235 wide tires.
There is no way it's going to fit without hitting the lower spring perch.
17" x 8.0", +30
235 / 45 / 17 tire
17" x 8.0", +35 wheel
On stock-type shocks, the lower spring perch will interfere with 225 / 235 wide tires.
There is no way it's going to fit without hitting the lower spring perch.
17" x 8.0", +30
235 / 45 / 17 tire
