Looking to start my switch panel so figured let me get some ideas and if anyone has a thread of a diy for our generation id greatly appreciate it...

LargeOrangeFont

iTrader: (7)

Here is mine.

Dorito Powered

Thats clean sir !!!!! Thank you

LargeOrangeFont

iTrader: (7)

Thank you. I can get some better pictures if you have any questions.

2jzfc

Love this, I don't know why I cannot get myself to do this to my FC... I really want to, I just cannot get myself to do it...

Dorito Powered

im just going clean and simple with it. i already have a fuel pump switch so relocating that to the panel , possibly push button, electric fan and thas it...nothing crazy

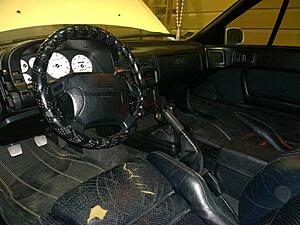

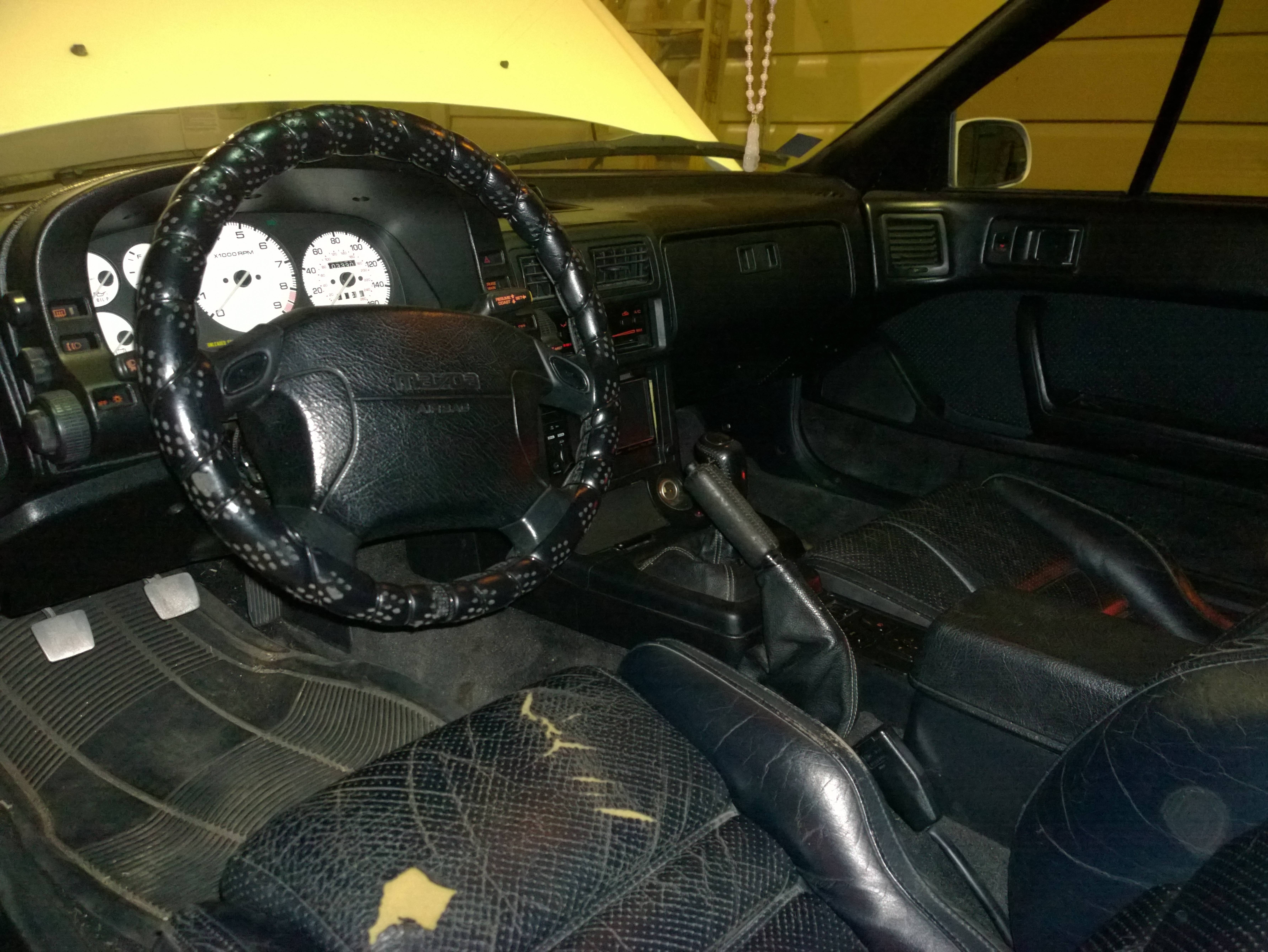

psyaddict

just made this out of a chinese carbon plate from ebay, not enough gauges and switches to finish it yet.

unek87

Damn it largeorangefont . Just when I thought I saw all the clean dash setups , I see yours. Now I'm going to have to rethink my setup lol . Very nicely played sir .

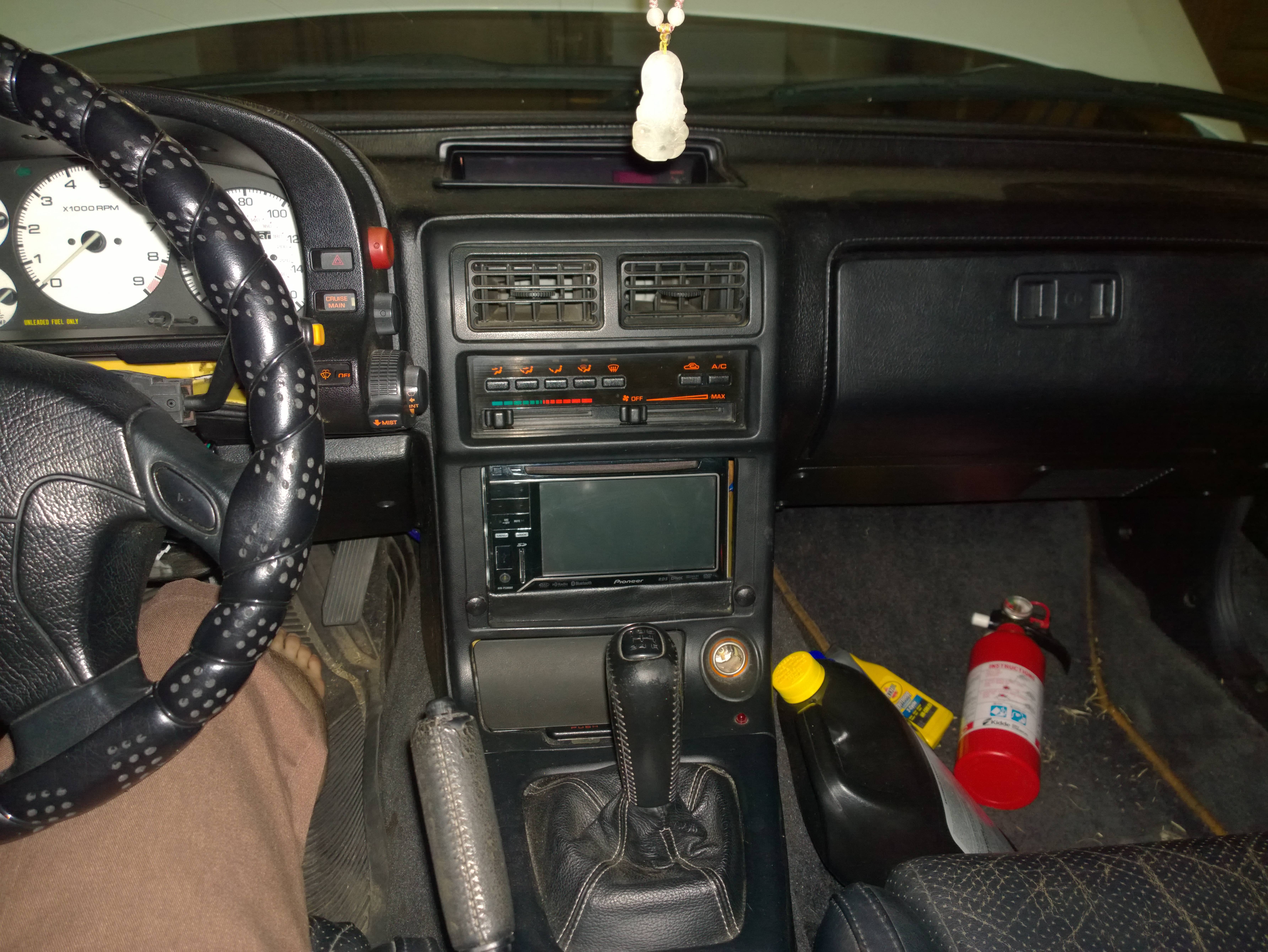

I installed my push bottom n the old cig lighter it's a $10 autozone special . Look like a lighter still kinda

Nitrometano

This is mine.
U

nitrofish88

iTrader: (1)

Here's mine!

Aaron Cake

iTrader: (1)

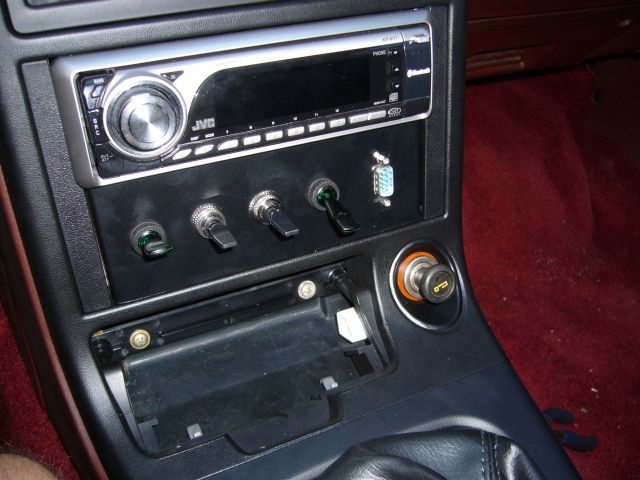

Left to right: daytime running lights, driver window, passenger window, fog lights, DB9 serial port to ECU

TRRAPLN

Left to right;

Radiator fan, auto/over-ride.
Aux oil cooler fan, auto/off/manual.
Water Injection pump, auto/off/prime.
Data collection, on/off.
Water Injection indicator light.

Havoc

Still need to fix some bits up on it.

Shainiac

iTrader: (7)

Here's my DIY panel. I still need to add labels, but each switch it tied to the Megasquirt ECU. The various functions are:

Traction control ON/OFF
Boost HI/LO
Launch Control ON/OFF (connected to clutch switch)
Exhaust Cutout ON/OFF
Fuel Pump ON/OFF
Timing Map Switching for snap crackle pop on overrun

The big **** is traction control sensitivity. It allows more/less slip before it starts reducing timing/cutting spark events.

rotorhead_izzy

iTrader: (36)

I love this idea for the microtech, i think i found a new little projecr to do in the 3 7's

Aaron Cake

iTrader: (1)

Makes it very convenient to access the ECU. Especially since mine is in the stock ECU position. I'm going to have to change it to USB anyway at some point when I replace the Microtech with an MS3-Pro. Well, I guess the MS3-Pro also has a serial port but sadly serial ports are starting to become inconvenient.

Rob XX 7

iTrader: (8)

i have a cord in my glove box I can pull out and plug into a laptop
mine is also in the stock location but im thinking of relocating it under the package tray.

nosugar0carbs

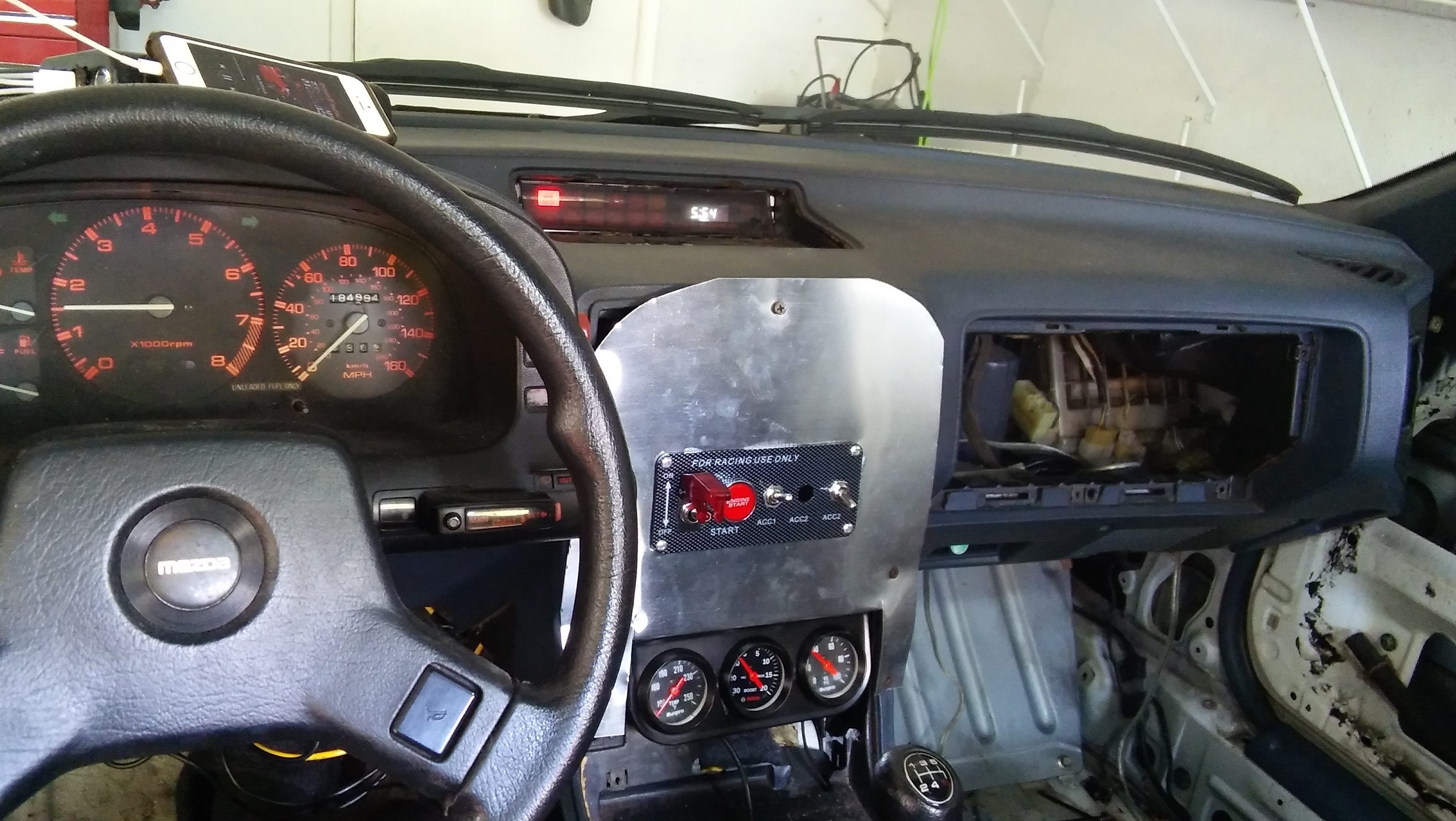

All of your panels look damn good. It puts my to shame by like, a billion.... Main switch with push to start, fuel pump and fan, gauges are coolant temp, boost and oil pressure. She is project "13b on 12a budget"

pontiackid

iTrader: (3)

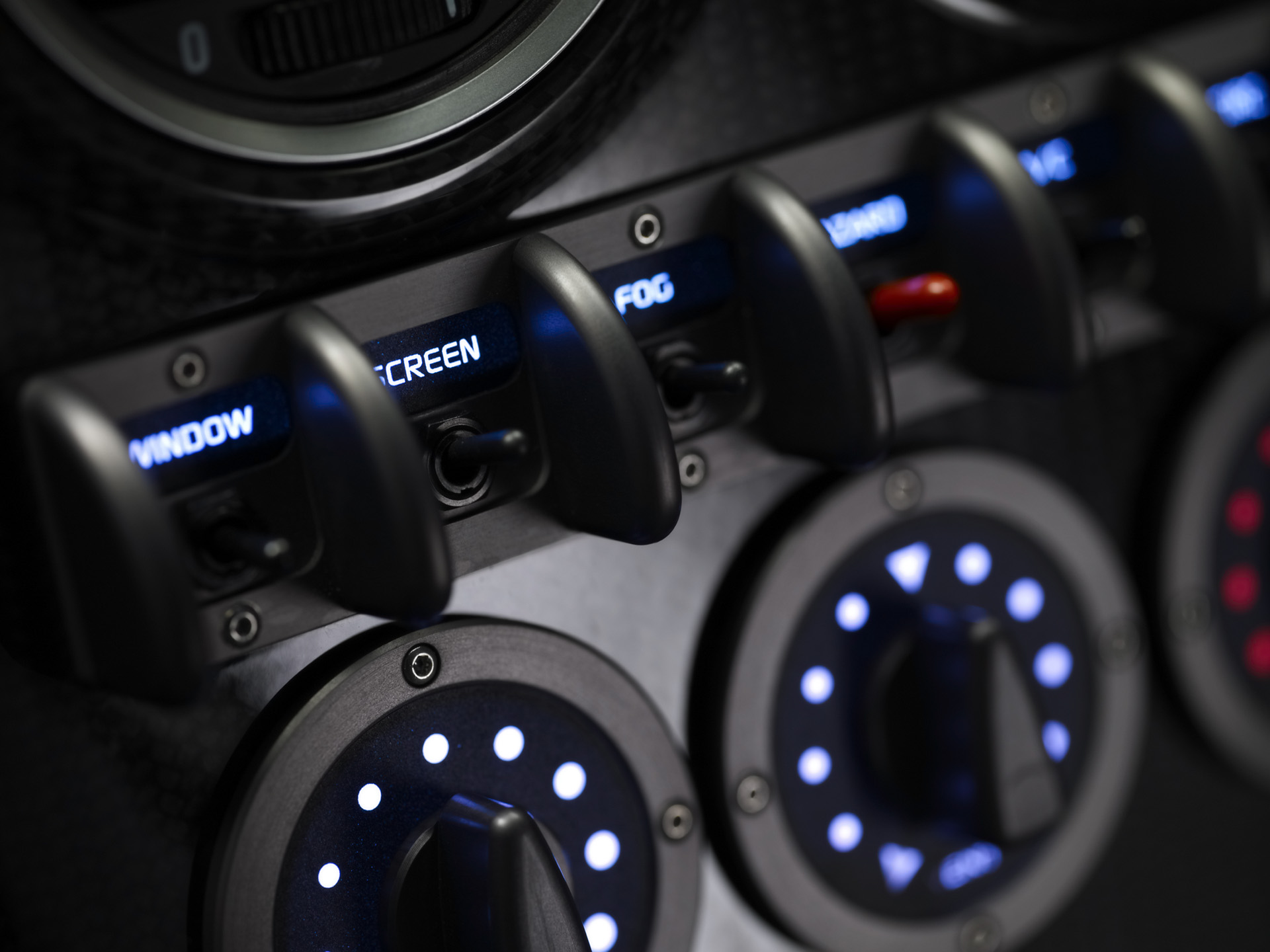

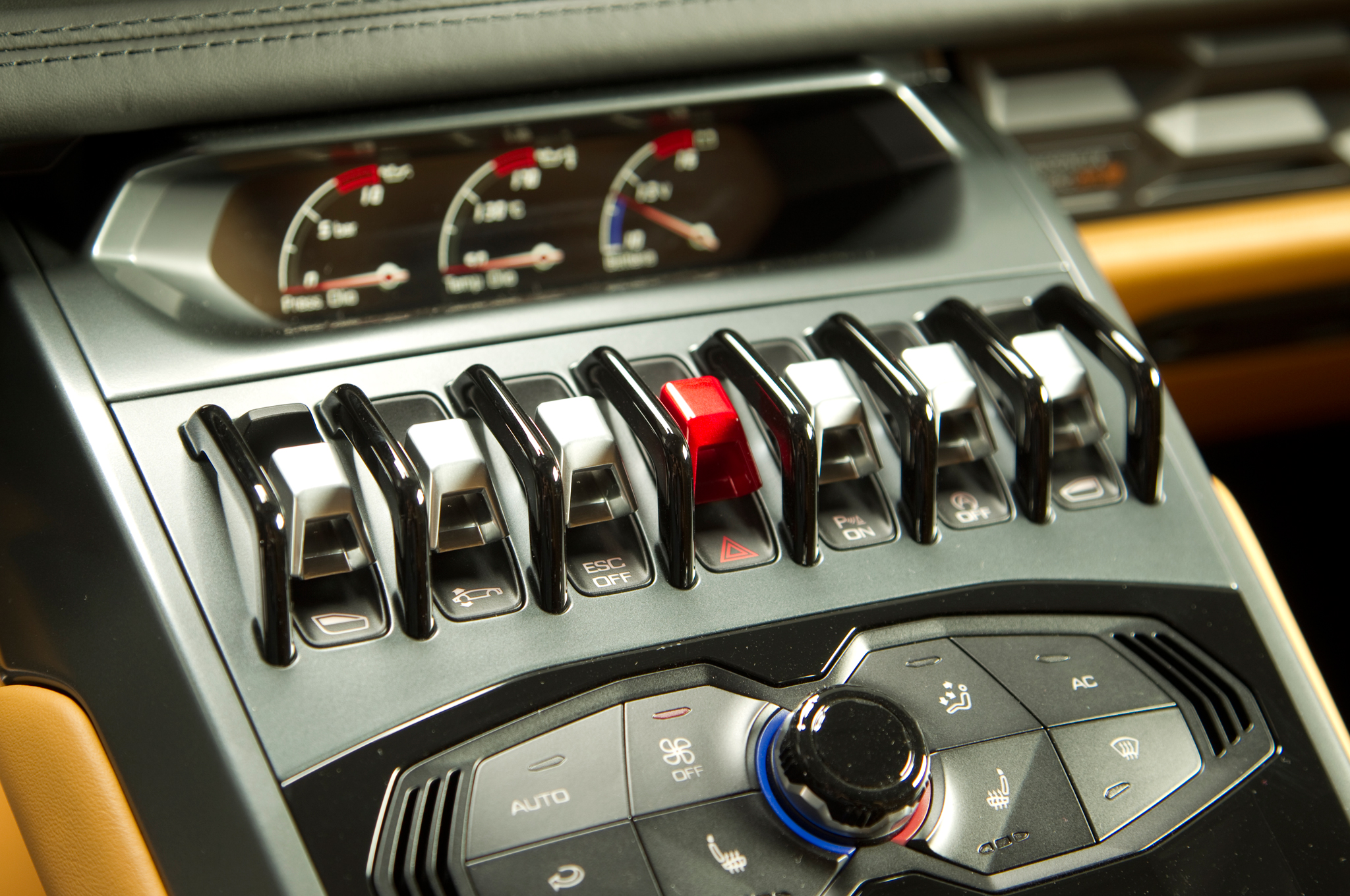

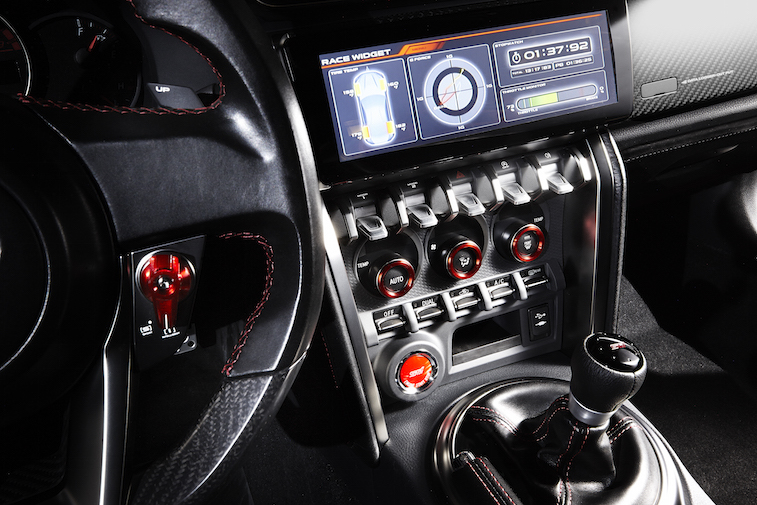

I'd been wanting to make one eversince I got one of the Retro-Spec carbon Fiber blanks. I never got around to it as I couldn't source any toggle switches that I wanted. I still had a full interior so the race-look wasn't fully desired. I was looking for something more stylized like on these concept cars. I've never came close to finding anything even similar.

STEMSL007

^ What car is that last one from.

STEMSL007

Nvm, just as I thought... Lamborghini

FCmee

Is that an FD gauge cluster?

FCmee

Is this an FD gauge cluster?

LargeOrangeFont

iTrader: (7)

No, it is a custom cluster. I removed the stock cluster, and made a kydex gauge cluster with aftermarket gauges that attached to the stock bezel.
