20BEAST FD build.
12-29-12, 11:26 AM
#26
Full Member
iTrader: (3)
Join Date: May 2009
Location: Montreal
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
I forgot to also state the obvious. The PPF too will have to be cut and re enforced...
Mine I got it re done. I welded at all the week spots at each end of the PPF by adding 1/4 inch steel and welded onto it. Also I got both pieces to be welded I the center then I put a piece of steel of the same width of the PPF and all it's length and also welded it. Then I put another piec like a band aid of 1/4 inch thick steel that wraps tightly along the center of the PPF.
Very important to reenforce each end of the PPF because with time I notice it starts to weeken the metal and eventually it snaps
Mine I got it re done. I welded at all the week spots at each end of the PPF by adding 1/4 inch steel and welded onto it. Also I got both pieces to be welded I the center then I put a piece of steel of the same width of the PPF and all it's length and also welded it. Then I put another piec like a band aid of 1/4 inch thick steel that wraps tightly along the center of the PPF.
Very important to reenforce each end of the PPF because with time I notice it starts to weeken the metal and eventually it snaps
12-29-12, 01:54 PM
#27
The reason I'm a little excited is cause I wanted to move my engine back exactly 6 inches according to my measurements. I had assumed I would have to cut up the firewall but if thats not the case, then mucho bonus haha. Gotta finish putting the motor together to find out haha. Thanks for the pics.
thewird
thewird
But keep in mind that the filter might have to be relocated.
12-31-12, 12:00 AM
#29
Full Member
iTrader: (3)
Join Date: May 2009
Location: Montreal
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
Hey David!
Merry Christmas and happy new year!
Like the gentlem on here I got to finish her first
but I will if she is good to go!
Also for the build just I small point but maybe you guys thought about it already... Depending on how high the motor sits as well as how far back it might change the angle alignment of how your PPF is set with your tranny and your diff which means in the end your diff might be sitting in a different angle than what it usually should be. This means all the diff braces been sold on this forum might not fit and your driveline is not straight which might wear out sooner the joints on de driveshaft. Just my 2 cents
Andrew
Merry Christmas and happy new year!
Like the gentlem on here I got to finish her first
but I will if she is good to go!Also for the build just I small point but maybe you guys thought about it already... Depending on how high the motor sits as well as how far back it might change the angle alignment of how your PPF is set with your tranny and your diff which means in the end your diff might be sitting in a different angle than what it usually should be. This means all the diff braces been sold on this forum might not fit and your driveline is not straight which might wear out sooner the joints on de driveshaft. Just my 2 cents
Andrew
01-05-13, 07:27 PM
#30

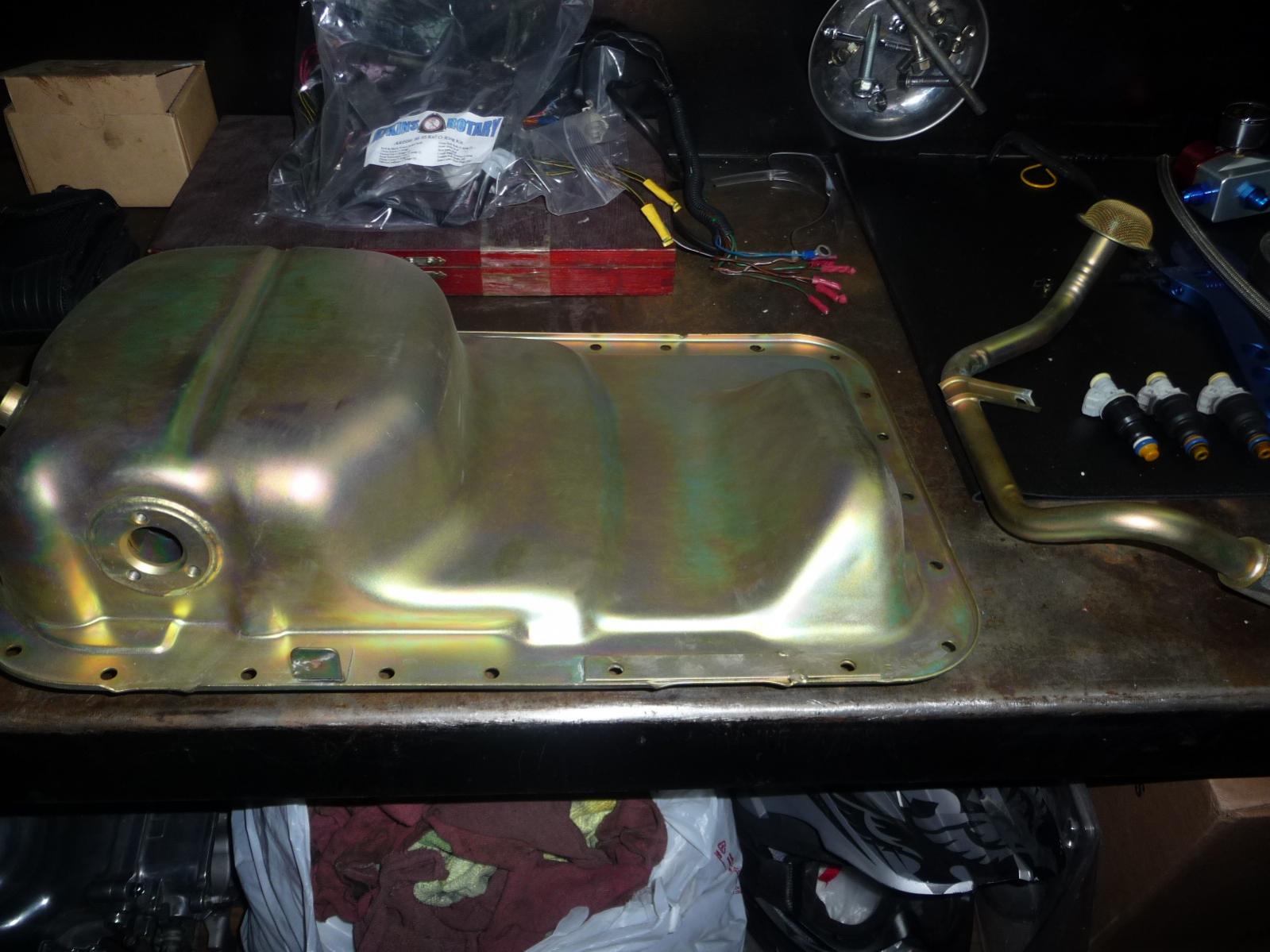

Received my oil pan and pickup tube from Chip Ursu. Looks great thanks Chip!

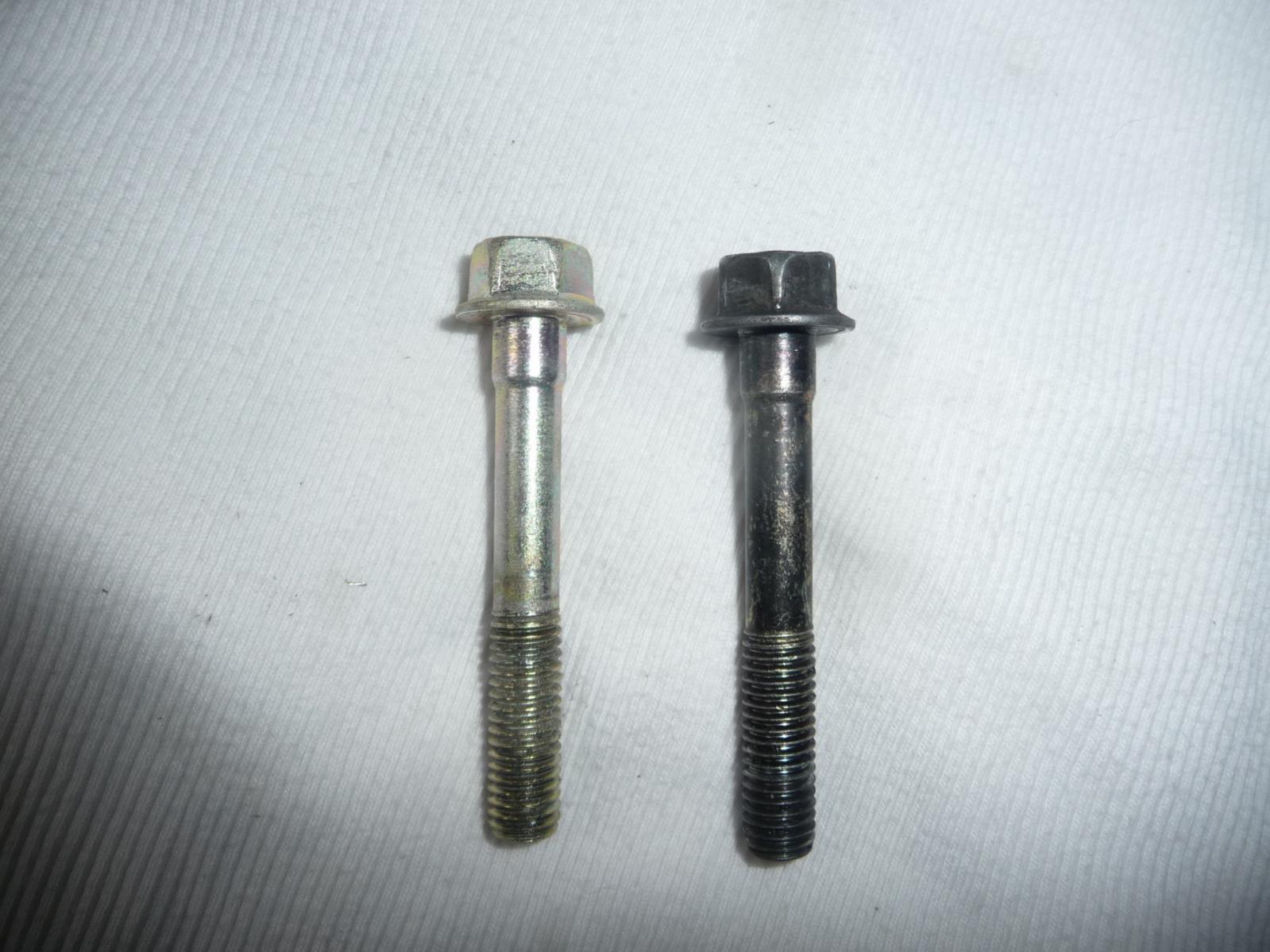

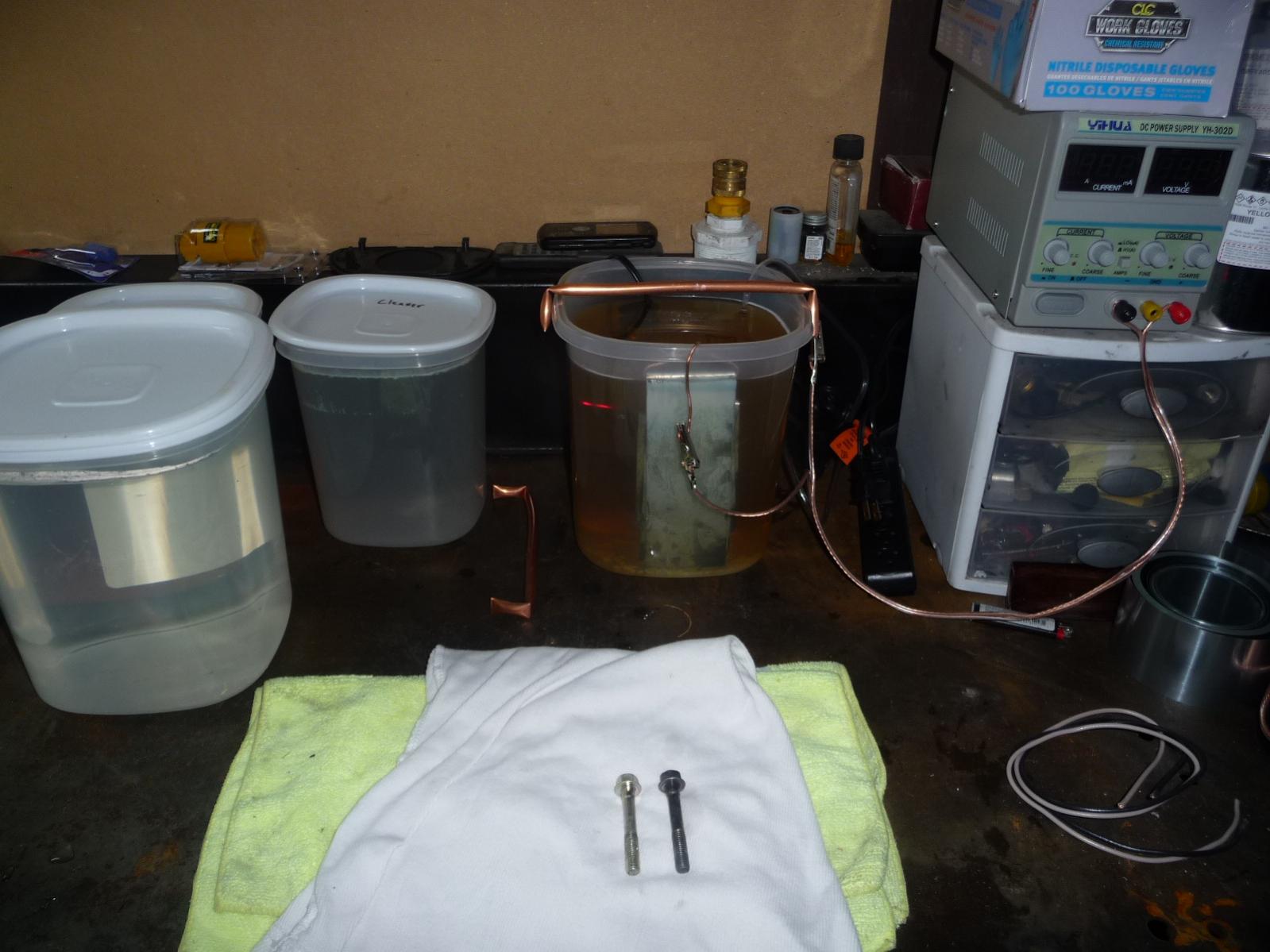

Decided to finally put together a zinc plating system. The yellow is just a die after its plated, The parts come out chrome looking after they are plated. Its a great way to protect your metal hardware big or small from the elements and unlike painting which can and will wear off plating stays forever and looks great!
The oil pan was done by Chip. He has a much larger setup for plating big parts.
Decided to finally put together a zinc plating system. The yellow is just a die after its plated, The parts come out chrome looking after they are plated. Its a great way to protect your metal hardware big or small from the elements and unlike painting which can and will wear off plating stays forever and looks great!
The oil pan was done by Chip. He has a much larger setup for plating big parts.
02-11-13, 12:51 AM
#37
Depends on power output. They are really weak like all the na transmissions are in the rx7's I do have a buddy with a turbo rx8 running 350hp with no issues. I think its all on how you drive and how sticky your tires are.
The t2 trans is the absolute strongest.
The t2 trans is the absolute strongest.
02-23-13, 12:59 AM
#42
Not that im aware of. You have to shop around. Most 3 rotors I have seen for sale is going between $3800-$7000. I have however found blocks like this for super cheap and in great running shape. I bought one a few years ago for $1000 and it was a runner also.
02-25-13, 02:58 AM
#46
Full Member
iTrader: (3)
Join Date: May 2009
Location: Montreal
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
OP teachermechanic ^^ is the guy who originally installed the 20B in my FD. It was his car. He moved the begone back and modified the inside of the tranny to relocate the shifter. If you want to know, he is the guy!
Salut Mario! J'espere que tu vas bien!!
Salut Mario! J'espere que tu vas bien!!
