** 1st Gen Dyno Sticky **
#151
Rotary Enthusiast
Join Date: Aug 2006
Location: Melbourne FL/San Antonio TX/Okinawa Japan
Posts: 1,216
Likes: 0
Received 10 Likes
on
10 Posts
#154

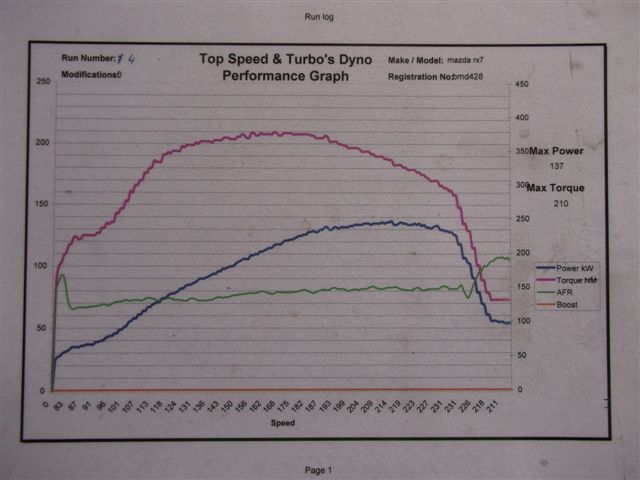

Back to the dyno yesterday and got 183rwhp (137kw) and 154lbs torque (210nm) torque, engine is a 12app with a modified nikki carb, the fuel pressure was dropping off at the higher rpm it went from 4.5psi to 2psi so I couldn't get enough fuel in it to get the AFR's I was after, so I didn't bother adjusting the ignition timing as I didn't want to risk detonation with AFR's on the lean side, still pretty happy considering its a nikki carb!
#156
#157
all i'v got is dynolicious runs
Rx7
1983 Gs Manual
2012-05-17 6:02 PM
Acceleration
0-10 km/h: 0.51 sec
0-20 km/h: 1.18 sec
0-30 km/h: 2.05 sec
0-40 km/h: 2.97 sec
0-50 km/h: 4.20 sec
0-60 km/h: 4.89 sec
0-70 km/h: 6.13 sec
0-80 km/h: 7.49 sec
0-90 km/h: 9.52 sec
0-100 km/h: 11.17 sec
0-110 km/h: 12.95 sec
0-120 km/h: 15.03 sec
0-130 km/h: 17.78 sec
Elapsed Time
60': 2.93 sec @ 35.5 km/h
330': 7.69 sec @ 80.1 km/h
1/8 mi: 11.65 sec @ 104.0 km/h
1000': 14.99 sec @ 118.0 km/h
1/4 mi: 17.80 sec @ 131.0 km/h
Miscellaneous
Max Speed: 130.1 km/h
Max Acceleration: 0.45 G's
Peak Horsepower: 79 HP
Generated by Dynolicious
the cars pretty much stock.
Rx7
1983 Gs Manual
2012-05-17 6:02 PM
Acceleration
0-10 km/h: 0.51 sec
0-20 km/h: 1.18 sec
0-30 km/h: 2.05 sec
0-40 km/h: 2.97 sec
0-50 km/h: 4.20 sec
0-60 km/h: 4.89 sec
0-70 km/h: 6.13 sec
0-80 km/h: 7.49 sec
0-90 km/h: 9.52 sec
0-100 km/h: 11.17 sec
0-110 km/h: 12.95 sec
0-120 km/h: 15.03 sec
0-130 km/h: 17.78 sec
Elapsed Time
60': 2.93 sec @ 35.5 km/h
330': 7.69 sec @ 80.1 km/h
1/8 mi: 11.65 sec @ 104.0 km/h
1000': 14.99 sec @ 118.0 km/h
1/4 mi: 17.80 sec @ 131.0 km/h
Miscellaneous
Max Speed: 130.1 km/h
Max Acceleration: 0.45 G's
Peak Horsepower: 79 HP
Generated by Dynolicious
the cars pretty much stock.
Last edited by nff; 05-17-12 at 07:08 PM.
#160
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
ResurreXion-7
The ResurreXion-7 - Part 3 - Will this thing run faster'n a stripedy-@ssed ape?
T-II motor and gearbox, Garrett 35GTr turbo, Tec3
T-II motor and gearbox, Garrett 35GTr turbo, Tec3
#162
Junior Member
iTrader: (1)
I should be dynoing higher now but i havent taken it since i did the MSD ignition, timing adjustments, and tuned it a little more. But either way last year i made 157.68 whp and 105 wtq w/ SP 12A, holley blue, msd coils, k&n filter, full exhaust, light flyweel, heavy 15" rims 4.44 rear end, etc
https://www.rx7club.com/attachment.p...6&d=1160936174
https://www.rx7club.com/attachment.p...6&d=1160936174
What kind of power should I expect to get?
#166
.
145rwhp 185Nm, and 186hp at the engine, lost 41hp on gear box.
But i lile my torque curve, it starts soon.
12A stock ports.
FC ignition
Costume headers, costume exhaust line 2,5" pipe, CBR600RR air-box complet
system, K&N filter, 8 injectors, Megasquirt 3.0, and some other things.
Thread were all come to reality
https://www.rx7club.com/megasquirt-f...my-12a-835786/
First test exhaust valve closed
second text exhaust valve open
And the video
145rwhp 185Nm, and 186hp at the engine, lost 41hp on gear box.
But i lile my torque curve, it starts soon.
12A stock ports.
FC ignition
Costume headers, costume exhaust line 2,5" pipe, CBR600RR air-box complet
system, K&N filter, 8 injectors, Megasquirt 3.0, and some other things.
Thread were all come to reality
https://www.rx7club.com/megasquirt-f...my-12a-835786/
First test exhaust valve closed
second text exhaust valve open
And the video
#169
Full Member
iTrader: (2)
Join Date: Jul 2012
Location: Miami
Posts: 231
Likes: 0
Received 0 Likes
on
0 Posts
Dyno Miami GSL-SE
Made 382 who @ 14 psi..
Built thread:https://www.rx7club.com/build-thread...build-1018678/
Will be raising the boost soon! 500 WHP here we come...

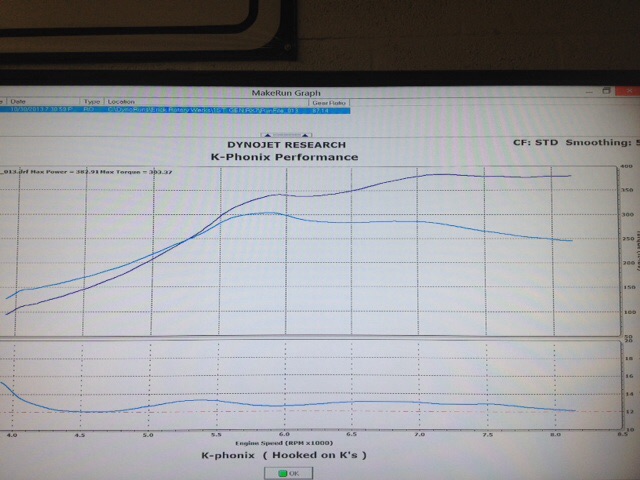

Dyno sheet
Built thread:https://www.rx7club.com/build-thread...build-1018678/
Will be raising the boost soon! 500 WHP here we come...
Dyno sheet
#170
#garageguybuild
iTrader: (32)
Made 382 who @ 14 psi..
Built thread:https://www.rx7club.com/build-thread...build-1018678/
Will be raising the boost soon! 500 WHP here we come...
Dyno sheet
Built thread:https://www.rx7club.com/build-thread...build-1018678/
Will be raising the boost soon! 500 WHP here we come...
Dyno sheet
Congrats bro!!!
Hope to see at the Churazco meet this November.
.
#171
1979 Mazda Rx-7 dyno runs
Howdy!
My mechanic finally sent me the videos he took of my old honey on the rollers.
... He isn't a cameraman, but at least his phone/whatever has a decent microphone!
Enjoy good noises:
It's a freshly overhauled street port 12a with full RB exhaust and 465 holley carb. This video was taken while trying to tune out a wicked flat spot. Apparently they eventually accomplished that, though I haven't driven the car since, or seen any dyno plots of this yet.
Regardless, even with the buzzkill flat spot, it was sheer joy to drive the old girl, so it will doubtlessly be a big improvement!
With flat spot: 116whp.
New tune: tba!
My mechanic finally sent me the videos he took of my old honey on the rollers.
... He isn't a cameraman, but at least his phone/whatever has a decent microphone!
Enjoy good noises:
It's a freshly overhauled street port 12a with full RB exhaust and 465 holley carb. This video was taken while trying to tune out a wicked flat spot. Apparently they eventually accomplished that, though I haven't driven the car since, or seen any dyno plots of this yet.
Regardless, even with the buzzkill flat spot, it was sheer joy to drive the old girl, so it will doubtlessly be a big improvement!
With flat spot: 116whp.
New tune: tba!
#172
Waffles - hmmm good
iTrader: (1)
Howdy!
My mechanic finally sent me the videos he took of my old honey on the rollers.
... He isn't a cameraman, but at least his phone/whatever has a decent microphone!
Enjoy good noises:
1979 Mazda Rx-7 dyno runs - YouTube
It's a freshly overhauled street port 12a with full RB exhaust and 465 holley carb. This video was taken while trying to tune out a wicked flat spot. Apparently they eventually accomplished that, though I haven't driven the car since, or seen any dyno plots of this yet.
Regardless, even with the buzzkill flat spot, it was sheer joy to drive the old girl, so it will doubtlessly be a big improvement!
With flat spot: 116whp.
New tune: tba!
My mechanic finally sent me the videos he took of my old honey on the rollers.
... He isn't a cameraman, but at least his phone/whatever has a decent microphone!
Enjoy good noises:
1979 Mazda Rx-7 dyno runs - YouTube
It's a freshly overhauled street port 12a with full RB exhaust and 465 holley carb. This video was taken while trying to tune out a wicked flat spot. Apparently they eventually accomplished that, though I haven't driven the car since, or seen any dyno plots of this yet.
Regardless, even with the buzzkill flat spot, it was sheer joy to drive the old girl, so it will doubtlessly be a big improvement!
With flat spot: 116whp.
New tune: tba!
#174
Full Member
Join Date: Aug 2013
Location: Trinidad & Tobago
Posts: 178
Likes: 0
Received 0 Likes
on
0 Posts
first time on the dyno with the car,
13b S5 TII street port engine
BW S360 .88, Tial MVR.
Haltech E6K, 720cc/1200cc
AEM 340lph Phantom pump
10psi, rev cut set at 7,000rpm. 11.8afr - max pull was 272whp on the waste gate spring
doing my toyota 8" diff swap, water meth install and then going for 15-20psi.
not looking for more than 380whp.
13b S5 TII street port engine
BW S360 .88, Tial MVR.
Haltech E6K, 720cc/1200cc
AEM 340lph Phantom pump
10psi, rev cut set at 7,000rpm. 11.8afr - max pull was 272whp on the waste gate spring
doing my toyota 8" diff swap, water meth install and then going for 15-20psi.
not looking for more than 380whp.
