** 1st Gen Dyno Sticky **
#1
** 1st Gen Dyno Sticky **
Okay, Start Posting Numbers, Dyno sheets, Videos, whatever you got. I will be updating the list as we go.
Make sure you list a few of the "Big" Mods. We don't need to know you have a gutted interior, Big wheels, or anything like that. Just the stuff for Horsepower.
Remember, No BS!
Let us know all the details of your setup as well:
stock, bolt ons, carbs, headers, fuel injected, turbo, nitrous, slicks, drag radials (DR's), etc..
Oh, and more importantly: don't try to jerk the members around.
Be prepared to show proof!!
Just in case the is called out on you.
Make sure you list a few of the "Big" Mods. We don't need to know you have a gutted interior, Big wheels, or anything like that. Just the stuff for Horsepower.
Remember, No BS!
Let us know all the details of your setup as well:
stock, bolt ons, carbs, headers, fuel injected, turbo, nitrous, slicks, drag radials (DR's), etc..
Oh, and more importantly: don't try to jerk the members around.
Be prepared to show proof!!
Just in case the is called out on you.
THIS PAGE SHOULD BE SEEN AT A MINIMUM
RESOLUTION OF 1280 x 1024 FOR EVERYTHING TO LINE UP PROPERLY.
RESOLUTION OF 1280 x 1024 FOR EVERYTHING TO LINE UP PROPERLY.
Last edited by Directfreak; 05-10-08 at 10:32 PM.
#2
Banned. I got OWNED!!!
iTrader: (2)
147.3RWHP 124.2ft-lb SP 12A
https://www.rx7club.com/showthread.p...highlight=dyno
more mods and info can be found in the link or just look in sig
https://www.rx7club.com/showthread.p...highlight=dyno
more mods and info can be found in the link or just look in sig
#4
Admitted Sevenaholic
Join Date: Feb 2001
Location: Ashland, OH
Posts: 1,910
Likes: 0
Received 0 Likes
on
0 Posts
131.6 RWHP / 117.2 RWT 85 GSL-SE - RB Exhaust, MSD, Cone Filter
stock 110k block
http://max7.rx-7.org/images/Max7-DynoSheet-3-23-02.jpg
stock 110k block
http://max7.rx-7.org/images/Max7-DynoSheet-3-23-02.jpg
#7
That damn Aussie!
Join Date: Apr 2007
Location: Canberra, Australia
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
s5 13BT, stock turbs, stock port, piggyback fuel computer, lightweight fly, on 98octane pump fuel on 12PSI. 193kw (or 258hp)
is getting dyno'd with it's new tune for 15psi soon so i'll post up when i know
is getting dyno'd with it's new tune for 15psi soon so i'll post up when i know
Trending Topics
#8
the old setup was 12a what was called a race port(very large street port) mukni 50, 1piece u shape RRR manifold ported and honed, turbo (kkk) and intercooler off a crashed delivery truck, bfg dr, fish tank boost controler, little cheater. hp 320+ tq 230
after the new turbo this fall I will check the new set up out. I went for a more streetable setup with aprox same hp goal.
after the new turbo this fall I will check the new set up out. I went for a more streetable setup with aprox same hp goal.
#9
under construction
Join Date: Nov 2005
Location: savannah
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts
at the 7-7-07 se regional meet in savannah, we will have access to the dyno at carter race... if you don't have your numbers and would like to know, then it would be a prime time to find out... hell i might even put my gsl on there to see what a 12a w/ twin weber down drafts and r/b header and 81- 82 flywheel will do!!! sounds like fun!!! see ya there!!!
#12
Senior Member
iTrader: (4)
Join Date: Jun 2005
Location: Perth, Western Australia
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Here's the dyno sheet I got from when I installed a fuel injected 13B bridgie into my old 1983 Series 3 RX-7.
I was running a 50mm IDA Injection Perfection throttle body, 550cc injectors, Microtech MT-4 fuel only computer, heavy duty clutch, lightened flywheel and electronic ignition.
I only had a 2.5 inch exhaust so I only got 186HP, with a 3inch it should have been up around 200HP but I sold the car before putting a larger exhaust on it.
I was running a 50mm IDA Injection Perfection throttle body, 550cc injectors, Microtech MT-4 fuel only computer, heavy duty clutch, lightened flywheel and electronic ignition.
I only had a 2.5 inch exhaust so I only got 186HP, with a 3inch it should have been up around 200HP but I sold the car before putting a larger exhaust on it.
#13
Rotary Enthusiast
iTrader: (8)
Join Date: Mar 2004
Location: Ontario
Posts: 1,036
Likes: 0
Received 0 Likes
on
0 Posts
i just did this swap, i would like to know what light weight fly wheel, and pigguback fuel systems your running cause thats some nice HP and are you just using boost controler to get up to 12psi or did you do something else? o and what clutch u got in there?
#14
That damn Aussie!
Join Date: Apr 2007
Location: Canberra, Australia
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
im just using a turbosmart bleed valve type boost controller. i believe it has the mazdaspeed lightweight billet fly and i have a single plate uncushioned brass button clutch with a 1000lb pressure plate. and before you ask, yes it is a bastard to drive and i wanna get a nice twin plate
fuel system is run by a microtech Digi-1 (seriously oldschool) and will be coming out at some point in the future for a full aftermarket computer (and coils.. no more of this distrobuter crap:p)
new dyno run this weekend! woo!
also, how come up there ^^^^^^ hasn't been updated?
fuel system is run by a microtech Digi-1 (seriously oldschool) and will be coming out at some point in the future for a full aftermarket computer (and coils.. no more of this distrobuter crap:p)
new dyno run this weekend! woo!
also, how come up there ^^^^^^ hasn't been updated?

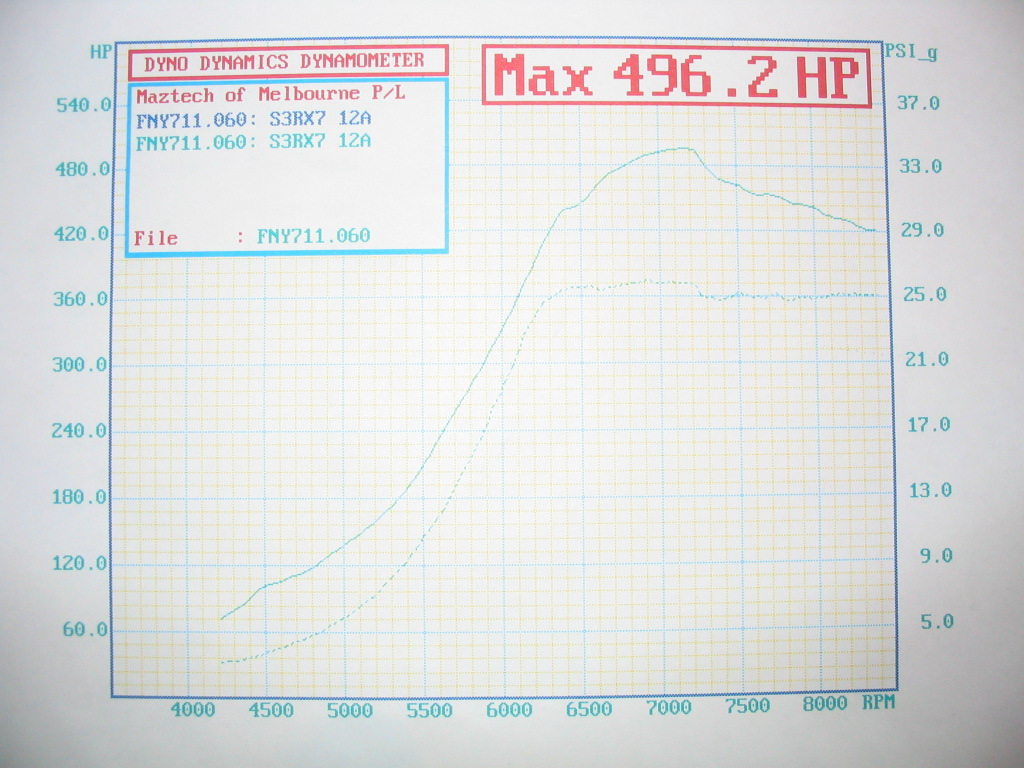

#16
10.21 @ 137mph
ENGINE : 12A efi turbo engine. Bridge ported, Xtreme stud kit (18 studs), custom sump plate, increased oil pressure, Xtreme finished crank.
TA45 Turbo with custom exhaust manifold
Turbosmart 45mm external wastegate
Series 4 13bt inlet manifold and throttle body with ASK adaptor plate
2 x 800cc injectors and 2 x 1700cc injectors
Custom 1.5 litre surge tank
2 x Bosch 975 main fuel pumps
Carter gold pre pump
Half inch fuel lines
Malpassi rising rate fuel pressure regulator
Custom tube and fin intercooler with stainless plumbing
Turbosmart type 3 blow off valve
Custom oil catch can
Microtech LTX8 computer with 3 bar map sensor
Bosch HEC-715 coils
Magnecor KV-85 plug leads
NGK B10EGV spark plugs
RX 4 radiator and oil cooler
16” Davies Craig thermo fan
DRIVELINE : Series 4 RX7 13b turbo 5 speed
2700 pound centre force pressure plate, solid centre puck clutch
Billet lightened and heat treated flywheel
Custom 3 inch tailshaft
Shortened and braced Hilux diff, 9 inch tubes and locked 4.875 diff gears
TA45 Turbo with custom exhaust manifold
Turbosmart 45mm external wastegate
Series 4 13bt inlet manifold and throttle body with ASK adaptor plate
2 x 800cc injectors and 2 x 1700cc injectors
Custom 1.5 litre surge tank
2 x Bosch 975 main fuel pumps
Carter gold pre pump
Half inch fuel lines
Malpassi rising rate fuel pressure regulator
Custom tube and fin intercooler with stainless plumbing
Turbosmart type 3 blow off valve
Custom oil catch can
Microtech LTX8 computer with 3 bar map sensor
Bosch HEC-715 coils
Magnecor KV-85 plug leads
NGK B10EGV spark plugs
RX 4 radiator and oil cooler
16” Davies Craig thermo fan
DRIVELINE : Series 4 RX7 13b turbo 5 speed
2700 pound centre force pressure plate, solid centre puck clutch
Billet lightened and heat treated flywheel
Custom 3 inch tailshaft
Shortened and braced Hilux diff, 9 inch tubes and locked 4.875 diff gears
#17
That damn Aussie!
Join Date: Apr 2007
Location: Canberra, Australia
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
dyno sheet will be up tonight but it pulled 199.6kw (267.6hp) on saturday. didnt have a chance to get it up on sunday as i was away for the day.
this was running 15psi of boost with a bleed valve controller so it was backing off boost in the higher rev range.
it was also running extremely rich (afrs were in the 10s all through the rev range)
again, dyno sheet tonight hopefully
this was running 15psi of boost with a bleed valve controller so it was backing off boost in the higher rev range.
it was also running extremely rich (afrs were in the 10s all through the rev range)
again, dyno sheet tonight hopefully
#23
That damn Aussie!
Join Date: Apr 2007
Location: Canberra, Australia
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
#24
Okay, Start Posting Numbers, Dyno sheets, Videos, whatever you got. I will be updating the list as we go.
Make sure you list a few of the "Big" Mods. We don't need to know you have a gutted interior, Big wheels, or anything like that. Just the stuff for Horsepower.
Remember, No BS!
###.FORUM NAME:... WHP.../..TORQUE..| YR | MODEL...| ENGINE | PORTING.... | BOOST | MODS...
-----------------------------------------------------------------------------------------------------
001 DIABOLICAL7... 350.25 / 244.12 .| 84 | GS .....| 12A .. | BRIDGE .... | 22PSI | S5 ENGINE,GT45 TURBO /AEM
002 SETZEP........ 297.42 / 237.47 .| 82 | GSL.....| 13B .. | STREET .... | 15PSI | 60-1 HI-FLOW, A1000 FUEL PUMP
003 MIKE-P28...... 243.78 / 187.39 .| 82 | GSL-SE..| 13B .. | STOCK...... | 13PSI | S4 ECU, PFC, STEVE KAN TUNED
Let us know all the details of your setup as well:
stock, bolt ons, carbs, headers, fuel injected, turbo,
nitrous, slicks, drag radials (DR's), etc..
Oh, and more importantly: don't try to jerk the members around.
Be prepared to show proof!!
Just in case the is called out on you.
Make sure you list a few of the "Big" Mods. We don't need to know you have a gutted interior, Big wheels, or anything like that. Just the stuff for Horsepower.
Remember, No BS!
###.FORUM NAME:... WHP.../..TORQUE..| YR | MODEL...| ENGINE | PORTING.... | BOOST | MODS...
-----------------------------------------------------------------------------------------------------
001 DIABOLICAL7... 350.25 / 244.12 .| 84 | GS .....| 12A .. | BRIDGE .... | 22PSI | S5 ENGINE,GT45 TURBO /AEM
002 SETZEP........ 297.42 / 237.47 .| 82 | GSL.....| 13B .. | STREET .... | 15PSI | 60-1 HI-FLOW, A1000 FUEL PUMP
003 MIKE-P28...... 243.78 / 187.39 .| 82 | GSL-SE..| 13B .. | STOCK...... | 13PSI | S4 ECU, PFC, STEVE KAN TUNED
Let us know all the details of your setup as well:
stock, bolt ons, carbs, headers, fuel injected, turbo,
nitrous, slicks, drag radials (DR's), etc..
Oh, and more importantly: don't try to jerk the members around.
Be prepared to show proof!!
Just in case the is called out on you.
THIS PAGE SHOULD BE SEEN AT A MINIMUM
RESOLUTION OF 1280 x 1024 FOR EVERYTHING TO LINE UP PROPERLY.
RESOLUTION OF 1280 x 1024 FOR EVERYTHING TO LINE UP PROPERLY.
There are a few errors in mine, should read 295hp / 217tq..| 83..| gs..| 13b..| stock port..| 13b-re, E6K, TD07
#25
under construction
Join Date: Nov 2005
Location: savannah
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts
http://www.youtube.com/watch?v=8FQBd92UyTU
with a stock port 12a (186k on the motor), it made 112rwh at 102rwt... wasn't the numbers i was lookin for, but it's ok... when i get my new motor built i'll run some new numbers for ya...
with a stock port 12a (186k on the motor), it made 112rwh at 102rwt... wasn't the numbers i was lookin for, but it's ok... when i get my new motor built i'll run some new numbers for ya...
