(IGNITION) How To: Test your ignitors

OK, we had Ray give us a crazy way to test ignitors in bulk, but I figured that we needed a method that can be done indoors so it doesn't matter what's going on outside.

To that end, I pulled the old test schematic we've seen over and over and slapped together an ignitor test station with some wire, speaker quick disconnect clips (fat and thin, the thin type being for car stereo speakers' negative tabs...what is that? 0.14" for the thin type?), a 12V test lamp and the trusty yellowtop Optima battery, the finest battery upgrade for an RX-7, EVAR.

Here's the old schematic we're used to seeing that got Ray so 'enraged' he came up with that crazy testing-on-the-engine-while-it's-running thread from a while's back...and an added bonus for any entrepeneurs out there. My quicky design for a test box I decided I won't be making.

Click the image to open in full size.

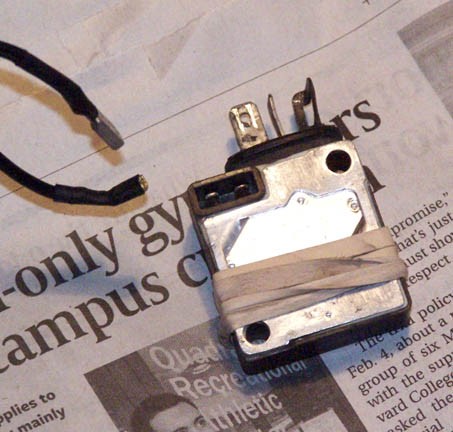

First, I pulled some old paired wire and then put the quick disconnects on it...only one big and one thin one is necessary. I use heat shrink tube for everything which ended up making one of the pics somewhat confusing. The other end of that paired wire simply had the ends stripped with bare wire exposed.


Click the image to open in full size.

Here's the connections while I was setting up my 'proof of concept' station to test the schematic. By "clip" in the pic, I mean quick disconnect clip. There are two flat pins in that recessed socket, you push your test wire clip on the left side one. The big clip goes on the spade up top closest to those pins...easiest way to remember it when it comes time for mass testing of ignitors? Stay Left.


Click the image to open in full size.

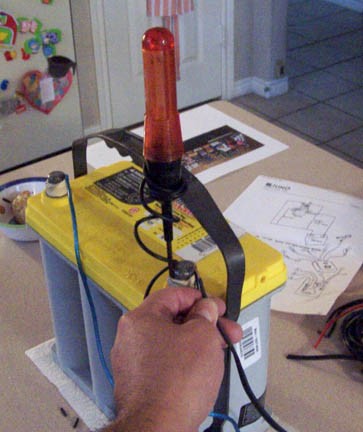

Proof of Concept test one, wire not touching...

Click the image to open in full size.


Proof of Concept test success!

Click the image to open in full size.
Attached Thumbnails
(IGNITION) How To: Test your ignitors-ignitor-test-4.jpg   (IGNITION) How To: Test your ignitors-ignitor-test-3.jpg   (IGNITION) How To: Test your ignitors-ignitor-test-2.jpg   (IGNITION) How To: Test your ignitors-ignitor-test-1.jpg   (IGNITION) How To: Test your ignitors-ignitor-schematic-update-plus-bonus.jpg

mar3 is offline
Old 03-08-08, 05:37 PM   #2
Administrator
10 Year Member

mar3's Avatar

Trader Score: (8)

Join Date: Jan 2001
Location: So. Arlington, TX!!!
Posts: 12,803
marioaguirreiii@sbcglobal.net
Send a message via AIM to mar3

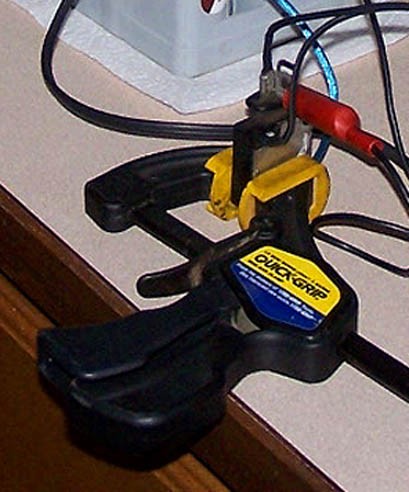

After that, I decided on a quicker way to secure the ground to the case instead of a wound rubber band...the Quick Grips find yet another application.

Click the image to open in full size.

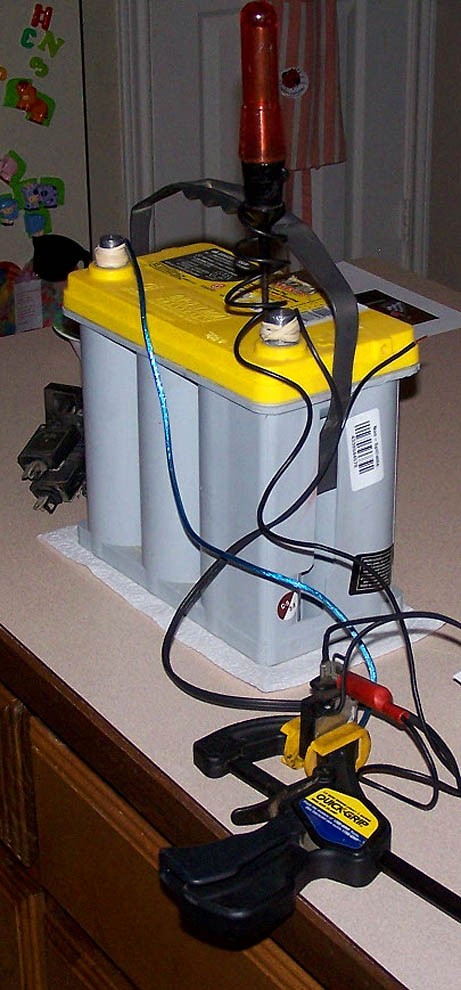

The test station in its final state.

Click the image to open in full size.


Basically, it's just a matter of
  • ...get your fabbed test wire with the two quick disconnects already attached and determine which of the wires is connected to the fat clip...that one gets strapped to the positive battery terminal throughout all of the testing. It doesn't get touched again. The other wire needs to hang loose away from touching anything, its the switch wire.
  • ...plugging in the two clips...with the silver ground plate facing you, just remember to plug into the left side terminals. One clip is fat and the other is thin, so you can't mix them up, right?
  • .... use the Quick Grips to hold the ground wire to the case.
  • ...use the test lamp's alligator clip to get the right side spade that didn't get the big quick disconnect clip, make sure that alligator clip does not touch the other spade if it's a fat alligator.
  • ...touch the "switch" wire to the top positive post of the battery to see if the lamp lights up.
If it does, you're golden.

Including the time it took me to go out to the garage and get the Quick Grips to change how the ground wire would be attached to the ignitor, I was able to test ALL of these ignitors in 7 minutes even as I enjoyed a White Russian beverage as a distraction.

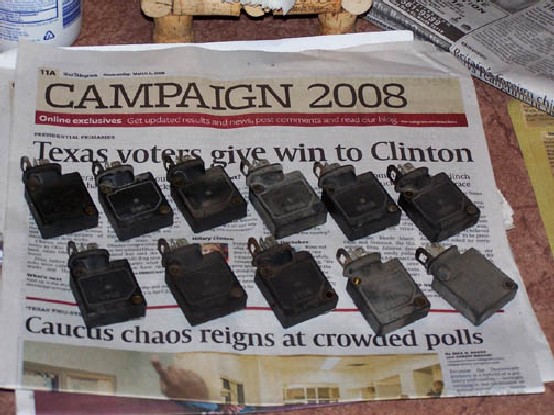

How a stock 1stgen RX-7 owner measures his Wealth...

Click the image to open in full size.


I dunno...I might end up building a test box or two and see if I can hawk them on my website that's about to debut here in a month or so.




Attached Thumbnails
(IGNITION) How To: Test your ignitors-ignitors-galore....jpg   (IGNITION) How To: Test your ignitors-ignitor-test-6.jpg   (IGNITION) How To: Test your ignitors-ignitor-test-5.jpg
__________________
1983 RX-7 GS
...Furious Rex...Racing Beat rear springs, KYB shocks, Energy Suspension bushings, Kumho Ecsta 711's on 15" Weds Autobahns..."blowed up" 12A engine at 198,000 miles, time for the turbos and nitrous...
1984 RX-7 GS
...Stock but now it's Year 2000 DC Solar Yellow, being restored for Late August 2013 sale....
1968 Pontiac Firebird Convertible
..."CBird" recovered from Sputnic's, coming up - the QA-1 Coil-Over Conversion, C5 Z-06 front disc brakes, Aerospace Components rear disc brakes, WS6 T/A front sway bar, Z-28 steering box, Hotchkis rear sway bar plus their underbody cage/subframe connectors, Carrera front shocks, Tokico rears, custom Watt's Link and poly bushings everywhere pushed by a real '72 455 HO Pontiac V8 with Tri Power induction...
1968 Pontiac Firebird Pro Street
...decided to keep the beast, neighbors consider it a covered "annoyance"...
mar3 is offline
Old 03-08-08, 05:45 PM   #3
djessence
5 Year Member

djessence's Avatar

Trader Score: (0)

Join Date: Aug 2007
Location: Alberta, Canada
Posts: 1,956
arhives?
djessence is offline
Old 03-08-08, 06:32 PM   #4
No Life.

Vashner's Avatar

Trader Score: (0)

Join Date: Dec 2007
Location: Texas
Posts: 1,079
Nice. Archive worthy. What where the results for the 7 test items?
Vashner is offline
Old 03-08-08, 06:42 PM   #5
vrrmmmmm

DwArF's Avatar

Trader Score: (0)

Join Date: Jul 2005
Location: BAY
Posts: 664
Sweet, can I bring it the junkyard to test ignitors?
__________________
1985 Rx7
DwArF is offline
Old 03-08-08, 07:44 PM   #6
Super Moderator
10 Year Member

gsl-se addict's Avatar

Trader Score: (3)

Join Date: Jan 2003
Location: Lynchburg, VA
Posts: 5,062
Send a message via MSN to gsl-se addict
Rich (64MGB) built a portable version of this that runs on a 9v battery. That would be a good setup for testing junkyard ignitors.

Edit: Here you go: Ignitor Tester

Last edited by mar3; 08-10-10 at 09:07 PM. Reason: Killd quote since reply was back-to-back post in question...
gsl-se addict is offline
Old 03-08-08, 11:03 PM   #7
kiwi from downunder..
5 Year Member

blwfly's Avatar

Trader Score: (4)

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,374
Send a message via MSN to blwfly
in the hayness iirc it says you can test with a digital voltmeter test the ohms i think it said 1000ohms was the magin number but i have allways found them at 1600-1800 in working condition but if they gave readings when u switch the conections around they were toast.
__________________
74 repu sporting a s4t2 engine
73 rx2 12a dual diz holly,rb exhaust.
blwfly is offline
Old 03-09-08, 09:45 AM   #8
Go Hawks!
5 Year Member

64mgb's Avatar

Trader Score: (1)

Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,926
Send a message via AIM to 64mgb Send a message via Yahoo to 64mgb
Quote:
Originally Posted by gsl-se addict View Post
Rich (64MGB) built a portable version of this that runs on a 9v battery. That would be a good setup for testing junkyard ignitors.

Edit: Here you go: Ignitor Tester
Thanks for the reference, gsl-se addict. But mine actually has clips to clip it on the car battery. You could easily convert it to use a 9v battery though.

Rich
64mgb is offline
Old 03-09-08, 10:11 AM   #9
Super Moderator
10 Year Member

gsl-se addict's Avatar

Trader Score: (3)

Join Date: Jan 2003
Location: Lynchburg, VA
Posts: 5,062
Send a message via MSN to gsl-se addict
You're right. Maybe I was thinking that becuase you were going to try the 9v. Anyway, shouldn't be a problem to use a 9v and would make it nice and portable.

Did you do those other mods to the tester yet? lol
gsl-se addict is offline
Old 03-09-08, 11:07 AM   #10
Rotary Madness
10 Year Member

rxtasy3's Avatar

Trader Score: (1)

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 6,151
ahhh, the trusty ol continuity checker, nice idea. i made one when i was younger and had a dirt bike for setting timing. when the contacts closed, light on.
__________________
Michael
http://www.facebook.com/profile.php?id=1270644880

DD-'84 RX7-streetported '74 13B, RB holley 600 carb and intake RB header and muffler, unknown lighweight flywheel, RB street/strip clutch and PP.
rxtasy3 is offline
Old 03-09-08, 07:35 PM   #11
Exhaust Leak

japreja's Avatar

Trader Score: (0)

Join Date: Nov 2007
Location: Belgrade, Montana
Posts: 22
You can find all sorts of parts to make a dedicated tester from http://www.allelectronics.com including wire, rechargable batteries, cases, and etc.... I used to shop there alot when I worked with electronincs. They mey even have some overstock Multimeters that always come in handy for electrical work.
